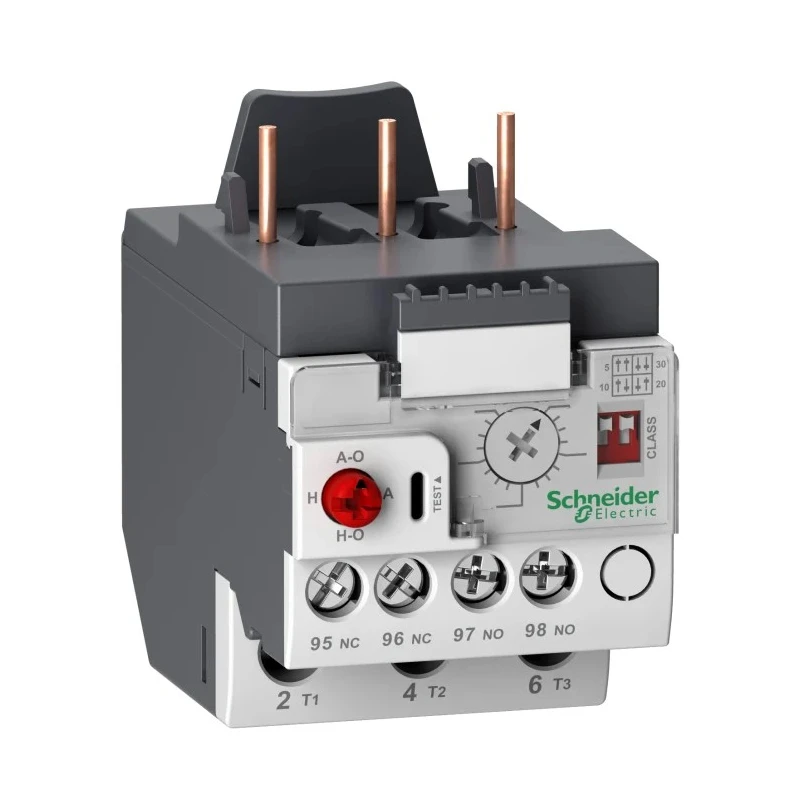

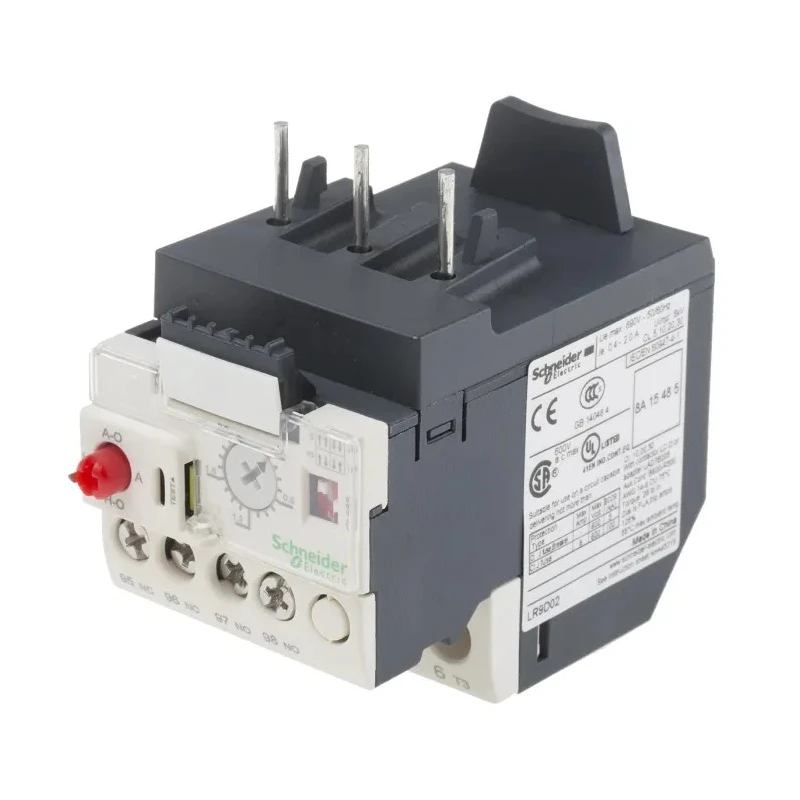

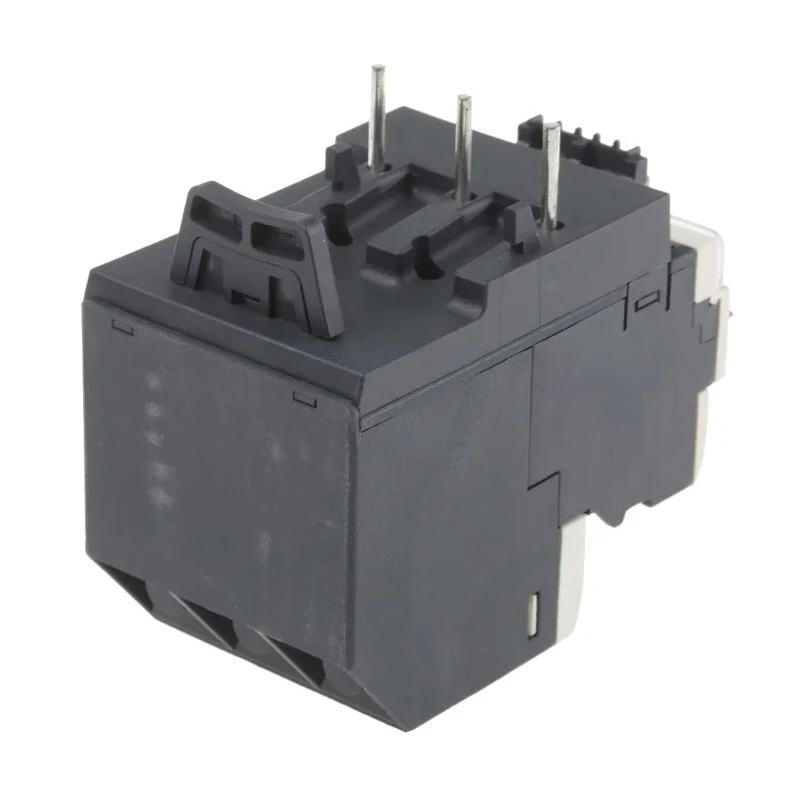

Schneider Electric TeSyS LR Thermal Overload Relay 1 NO/1 NC, 0.4A, 2 A Contact Rating, 300 mW, 690V LR9D02
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 45mm |
| Model | LR9D02 |
| Depth | 72.5mm |
| IP Rating | IP20 |
| Width | 79.9mm |
| Mount Type | Under Contactor Mount |
| Series | TeSyS LR |
| Power Rating | 300mW |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Contact Voltage | 690V |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 0.4, 2A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| Control Voltage | 690V |
| Adjustable Current Range | 0.4 → 2 A |
Key Features
- Features a screw terminal type ensuring secure connections.
- Offers an automatic and manual reset method for operational flexibility.
- Equipped with 2 auxiliary contacts enhancing control capabilities.
- Rated IP20 for front panel protection against solid objects.
- Compact dimensions of 79.9mm width, 45mm length, and 72.5mm depth for space saving.
- Designed to operate within temperature range of -25°C to 70°C.
- Compliance with multiple international standards and approvals including CSA, UL, EN/IEC, UKCA, CCC.
- Self-powered design with selectable trip classes (5, 10, 20, 30) suitable for diverse industrial applications.
Product Description
Schneider Electric LR9D02 TeSyS LR Thermal Overload Relay is a professional-grade device suitable for automatic and manual reset under contactor mount applications. Designed with a compact form factor, this relay provides reliable protection with its 1 NO/1 NC configuration and adjustable current range from 0.4 to 2 amperes. Its screw terminal type and IP20 rated front panel ensure secure and robust installation in electrical control systems.
This relay supports self-powered operation and ambient insensitivity, making it suitable for a broad range of industrial environments. It features trip indicators and selectable trip classes of 5, 10, 20, and 30, providing customized protection based on application needs.
With compliance to international standards including CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, UL, UKCA, and CCC approvals, this overload relay guarantees safety and quality. Its compact dimensions (79.9mm width, 45mm length, 72.5mm depth) make it ideal for installations requiring space efficiency.
Typical applications encompass pumping stations, material working and handling, packaging lines, and HVAC systems. Features like reset mode selectors and trip indicators further enhance usability and maintenance efficiency.
Features a screw terminal type ensuring secure connections. Offers an automatic and manual reset method for operational flexibility. Equipped with 2 auxiliary contacts enhancing control capabilities. Rated IP20 for front panel protection against solid objects.
Compact dimensions of 79.9mm width, 45mm length, and 72.5mm depth for space saving. Designed to operate within temperature range of -25°C to 70°C. Compliance with multiple international standards and approvals including CSA, UL, EN/IEC, UKCA, CCC.
Self-powered design with selectable trip classes (5, 10, 20, 30) suitable for diverse industrial applications. Ideal for pump controls, material handling, packaging, and HVAC systems. Explore the full range of Schneider Electric Overload Relays at EnvMart for reliable industrial and commercial electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LR9D02 thermal overload relay has a contact rating of 2 A.
This model features an adjustable current range from 0.4 A to 2 A.
The maximum operating temperature for the LR9D02 is 70°C.
The LR9D02 uses a screw terminal type for secure connections.
This relay is rated IP20, providing protection against solid objects.
It is equipped with 2 auxiliary contacts to enhance control capabilities.
The LR9D02 offers both automatic and manual reset methods for operational flexibility.
The LR9D02 is manufactured in India.
The minimum operating temperature for the LR9D02 is -25°C.
This model is designed for under contactor mount applications.
The LR9D02 complies with multiple international standards, including CSA, UL, EN/IEC, UKCA, and CCC.
The dimensions of the LR9D02 are 79.9 mm in width, 45 mm in length, and 72.5 mm in depth.
