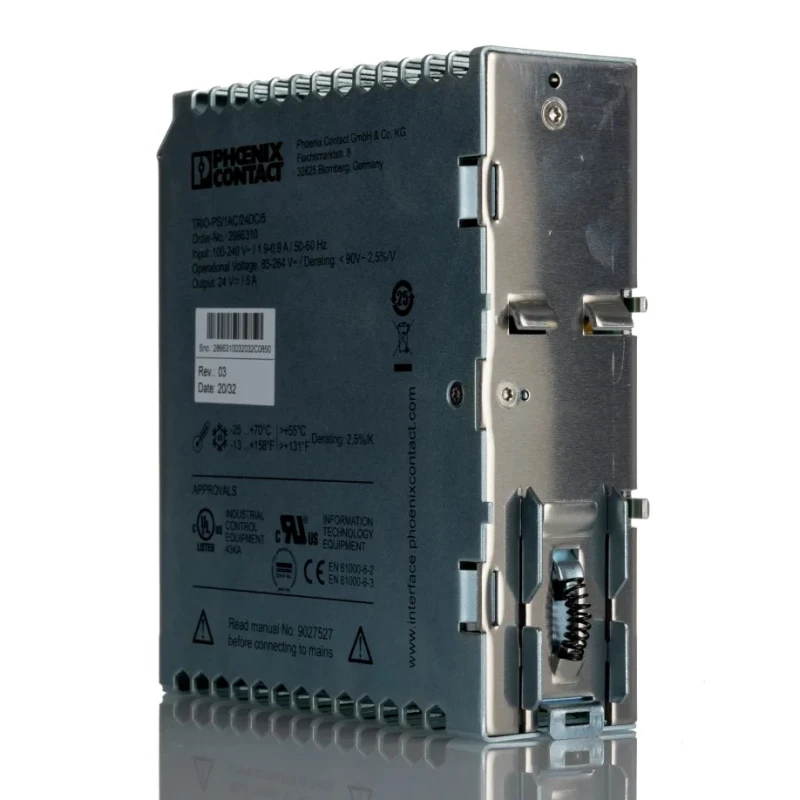

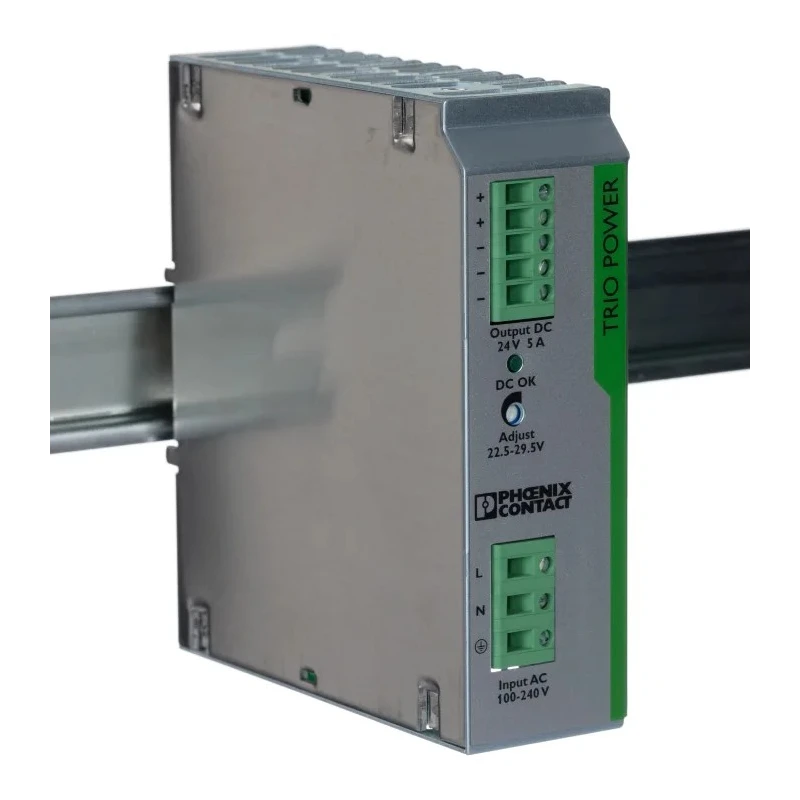

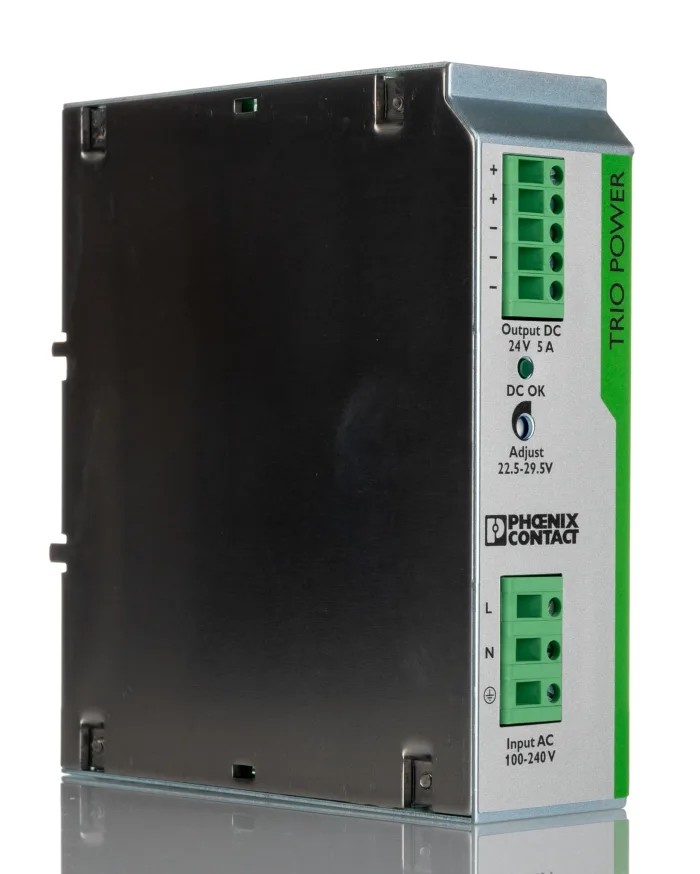

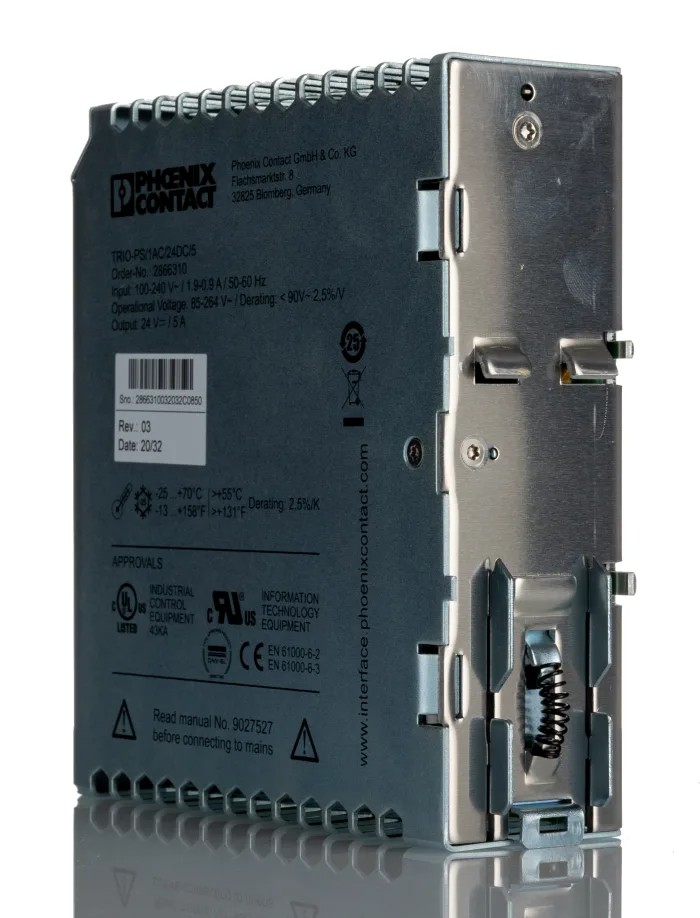

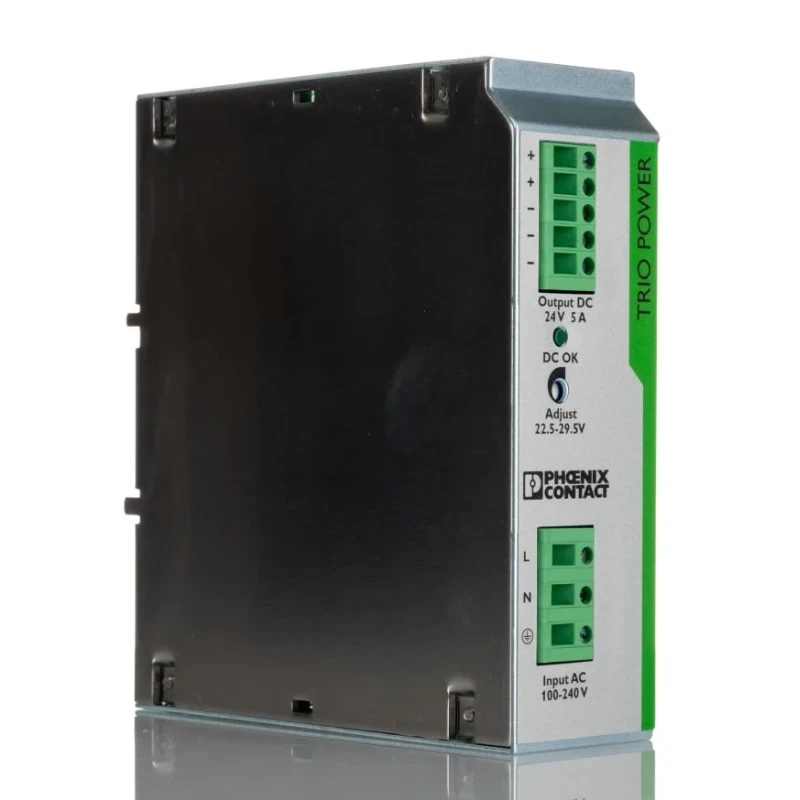

Phoenix Contact TRIO POWER Switch Mode DIN Rail Power Supply 1 Phase 264V AC Input, 29.5V DC 5A Output, 120W 2866310
Specifications
| Country of Origin | China |
|---|---|
| Brand | Phoenix Contact |
| Power | 120W |
| Efficiency | 89% |
| Height | 130mm |
| Model | 2866310 |
| Depth | 130mm |
| IP Rating | IP20 |
| Width | 40mm |
| Series | TRIO POWER |
| Output Current | 5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switch Mode Power Supply |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 29.5V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Operates on 1 phase with wide input voltage range of 85 to 264V AC.
- Output voltage adjustable via front panel for compensation of voltage drops.
- Shock and vibration resistant compliant to IEC 60068-2-27 standard.
- IP20 rated housing with safe isolated design per DIN VDE 0100-410 for operator safety.
- Mean time between failures up to 2,031,000 hours for reliable long service life.
- Easy snap-on mounting onto standard 35mm DIN rails without tools.
- Third negative terminal block enables safe grounding without extra parts.
- RoHS compliant, environmentally friendly power supply.
Product Description
Phoenix Contact 2866310 TRIO POWER Switch Mode DIN Rail Power Supply delivers a robust and efficient power solution suitable for industrial workplaces requiring stable DC output. Operating with a single-phase AC input voltage range from 85 to 264V AC, this power supply reliably converts input to a steady 29.5V DC output at 5A with a total power capacity of 120W.
The unit's output voltage can be finely tuned via the front panel to compensate for voltage drops, making it ideal for applications involving lengthy cable runs or battery charging. This adjustability ensures connected sensitive battery-powered components receive stable voltage for optimum performance.
Designed to withstand demanding industrial conditions, the power supply meets shock and vibration resistance standards per IEC 60068-2-27. Safety is paramount with an IP20-rated enclosure and isolation compliant with DIN VDE 0100-410, minimizing the risk of electric shock to operators.
Durability is enhanced by a mean time between failures rated up to 2,031,000 hours, assuring long-lasting operation. Installation is user-friendly with a tool-free snap-on mounting system for standard 35mm DIN rails.
An innovative feature is the third negative terminal block, facilitating safe grounding of the device without the need for additional terminal blocks. Compliance with RoHS standards further confirms the environmental safety and regulatory adherence of this product.
The device operates reliably within an ambient temperature range from -25°C to 70°C, perfectly suited to harsh industrial environments. Its compact dimensions (130 mm height, 40 mm width, 130 mm depth) provide a space-efficient footprint on control panels.
Operates on 1 phase with input voltage range 85-264V AC. Stable 29.5V DC output voltage at 5A output current. Adjustable output voltage via front panel for voltage drop compensation. Shock and vibration resistant per IEC 60068-2-27 standards.
IP20 rated, safely isolated design to prevent shock risk. Mean time between failures of up to 2,031,000 hours ensures reliability. Tool-free snap-on mounting to 35mm DIN rail. Includes third negative terminal block for safe grounding without additional blocks.
RoHS compliant for environmental safety. Wide operating temperature range from -25°C to 70°C.
This Phoenix Contact DIN rail power supply is ideal for use in industrial automation, electrical panels, manufacturing facilities, HVAC controls, and other environments demanding reliable and efficient power delivery. It offers a combination of durability, safety, and performance to maintain continuous system operation under challenging conditions.
Explore more high-quality power supplies and related industrial electrical components at EnvMart to power your projects with confidence.
Explore more products in our Power Supplies & Transformers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a single-phase AC input voltage range from 85 to 264V AC.
This model provides a stable output voltage of 29.5V DC at a current of 5A.
The total power capacity is 120W.
The output voltage can be adjusted via the front panel to compensate for voltage drops.
The dimensions are 130 mm in height, 40 mm in width, and 130 mm in depth.
It operates reliably within an ambient temperature range from -25°C to 70°C.
It meets the shock and vibration resistance standards per IEC 60068-2-27.
The unit has an IP20 rating, indicating protection against solid objects larger than 12.5 mm but no protection against water.
Installation is user-friendly with a tool-free snap-on mounting system for standard 35mm DIN rails.
Yes, it includes a third negative terminal block that facilitates safe grounding without the need for additional terminal blocks.
Yes, it is RoHS compliant, confirming its environmental safety and regulatory adherence.
