4D Systems gen4 4.3 in Arduino Compatible Resistive Touch Screen Display Module 480 x 272 pixel

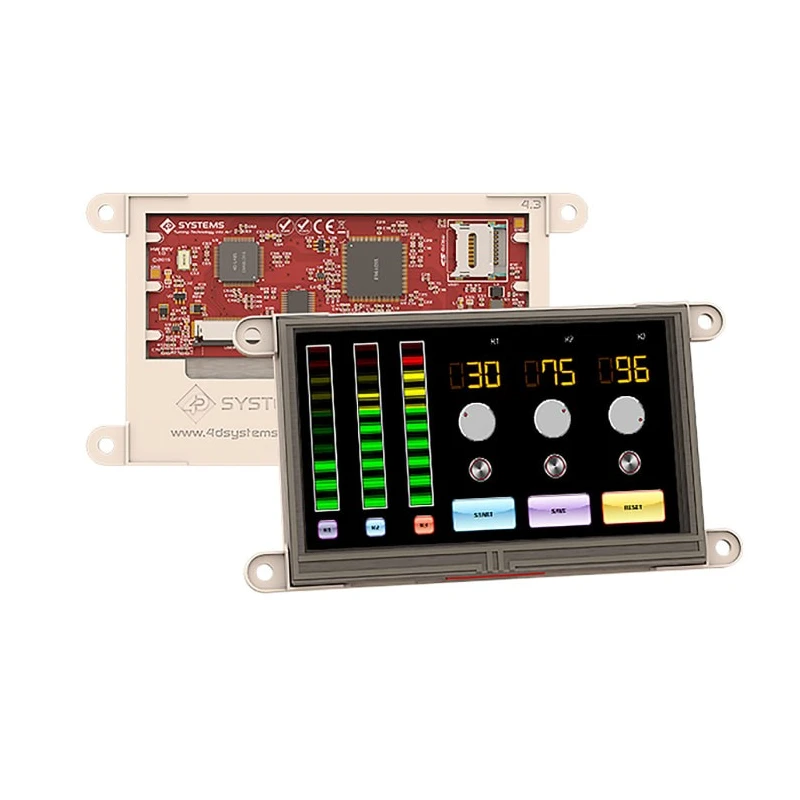

4D Systems gen4 gen4-uLCD-43DT-AR Arduino Compatible Display Module is a 4.3 inch resistive touch screen display designed to provide a compact, high-performance interface solution for Arduino-based projects and embedded systems. It features a 480 x 272 pixel resolution with RGB 65k color depth, delivering vivid and accurate visuals ideal for user interfaces requiring responsive touch input.

The module dimensions are 127.6 x 69.3 x 7.8 mm including mounting tabs with a 95.04 x 53.86 mm viewing area. Powered by the advanced Diablo16 Arduino-compatible embedded controller, it offers integrated graphics, text, image, and animation capabilities to enhance user interface development.

This display module supports a wide variety of connectivity including 3 I2C and 3 SPI channels as well as 16 general-purpose GPIO pins, some of which can be programmed for PWM, pulse output, and quadrature encoder inputs, providing extensive flexibility for complex control applications.

A micro-SD card slot enables multimedia storage and data logging, adding an additional layer of functionality for industrial, educational, and experimental usage. The module operates between 4.0 V and 5.5 V DC, compatible with standard Arduino voltage requirements.

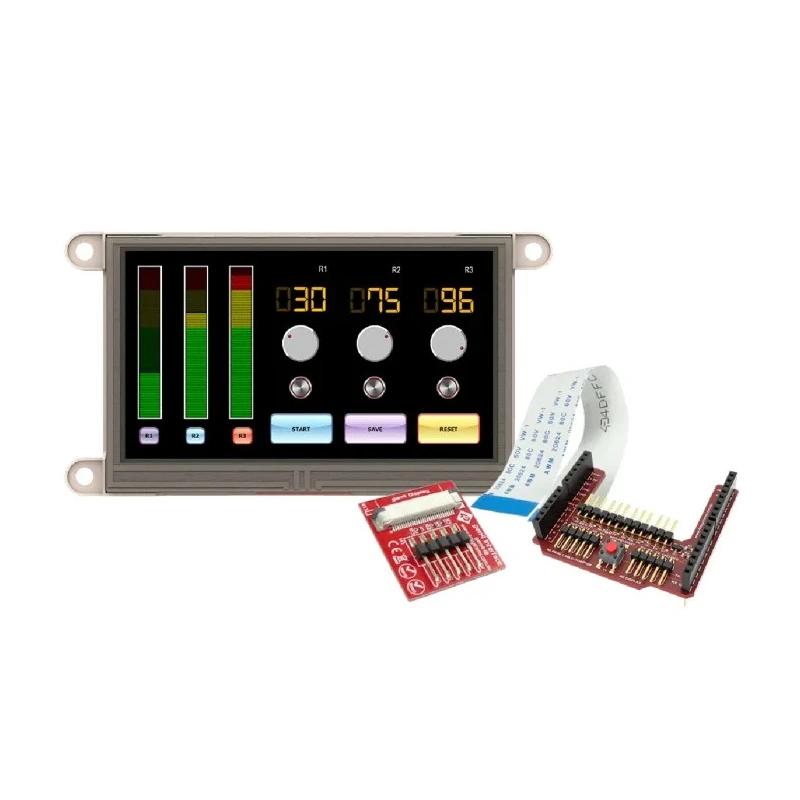

Included in the kit are the gen4-uLCD-43DT LCD display module, gen4-IB interface board, a 150 mm flat flexible cable (FFC), and a 4D Arduino adaptor shield to facilitate rapid connection and prototyping without intricate wiring.

Popular in industrial automation, STEM education, and embedded system development, this module simplifies human-machine interface construction without sacrificing performance or ease of integration.

Package Contents: 1 x 4.3 inch gen4-uLCD-43DT LCD display module, 1 x gen4-IB interface board, 1 x 150 mm FFC cable, 1 x 4D Arduino adaptor shield. Explore the full range of Arduino-compatible display solutions and related components on EnvMart for comprehensive project assembly.

The module includes RGB 65k true-to-life colors for vibrant display quality. Compact dimensions of 127.6 x 69.3 x 7.8 mm with a viewing area of 95.04 x 53.86 mm. Powered by the Diablo16 embedded processor offering built-in graphics, text, image, and animation capabilities.

Equipped with 6 banks of 32KB Flash memory and 32KB user RAM for flexible application development. Includes multiple communication channels: 3 x I2C, 3 x SPI, and 16 GPIO pins with advanced configurable features. Micro-SD card slot supports multimedia storage and data logging functionalities.

Operates on a voltage range of 4.0 V to 5.5 V ensuring compatibility with Arduino boards. Supplied with gen4-IB interface board, 150mm FFC cable, and 4D Arduino adaptor shield for quick integration.
