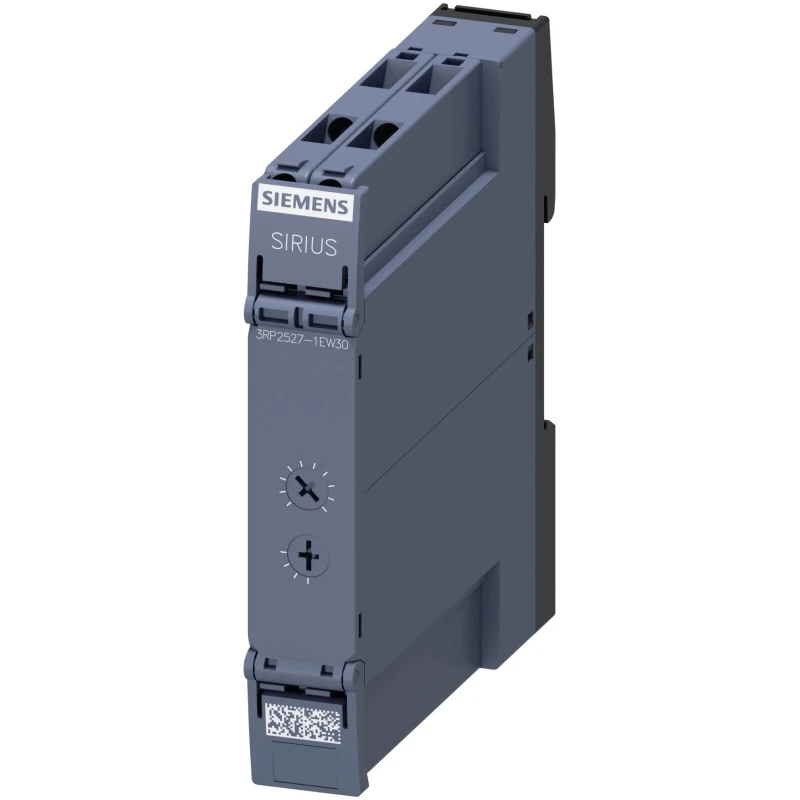

Siemens DIN Rail Timer Relay, 1-Contact SPST, 12 to 240 V AC/DC, 0.05 to 240 Seconds ON Delay 3RP2527-1EW30

Siemens brand DIN Rail Timer Relay model 3RP2527-1EW30 offers precise timing functions for industrial control and automation applications. This timing relay features a single contact with SPST (Single Pole Single Throw) configuration providing an ON delay timer function with an adjustable range from 0.05 to 240 seconds, enabling accurate delay control in switching, protection, starting, and regulation circuits.

The relay supports a wide supply voltage range from 12 to 240 volts AC or DC, accommodating versatile industrial power systems. Its compact design with a height of 100 mm, width of 91.6 mm, and length of 17.5 mm allows efficient use of DIN rail mounting spaces in control panels.

Constructed with screw-type terminals and rated IP20 protection, this timer relay is suitable for indoor industrial environments with exposure protection from solid objects. It operates reliably within a temperature range of -25°C to 60°C, ensuring broad environmental adaptability.

With a contact current rating of 0.6 A, the relay is optimized for control circuit switching tasks. Compliance with international standards IEC 60529, IEC 61812-1, EN 954-1, and IEC 60068-2-27 ensures robustness and quality assurance for demanding industrial applications.

The Siemens 3RP25 series replaces the well-established 3RP15 series, offering enhanced functionality and durability. This timer relay offers an ON delay mode with timing range from 0.05 to 240 seconds. Operates reliably on supply voltages from 12 to 240 V AC or DC.

Equipped with screw-type terminals and DIN rail mounting for easy installation. Compact dimensions of 100 mm height, 91.6 mm width, and 17.5 mm length save panel space. Rated IP20 protection for indoor industrial environments.

Contact current rating of 0.6 A suitable for control circuits. Wide operating temperature range from -25°C to 60°C ensures performance under varied conditions. Conforms to international standards IEC 60529, IEC 61812-1, EN 954-1, and IEC 60068-2-27 for reliability.

Designed and manufactured in Germany with high industrial quality standards.

This product is ideal for industrial, automation, manufacturing, HVAC, and electrical control applications requiring precise timing capabilities within compact DIN rail mounted assemblies.
