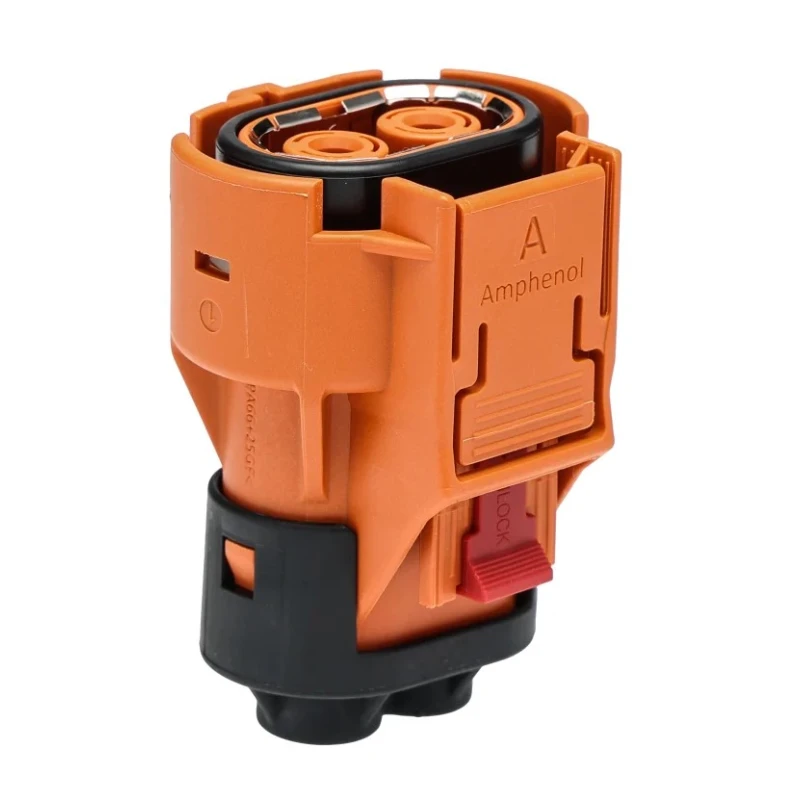

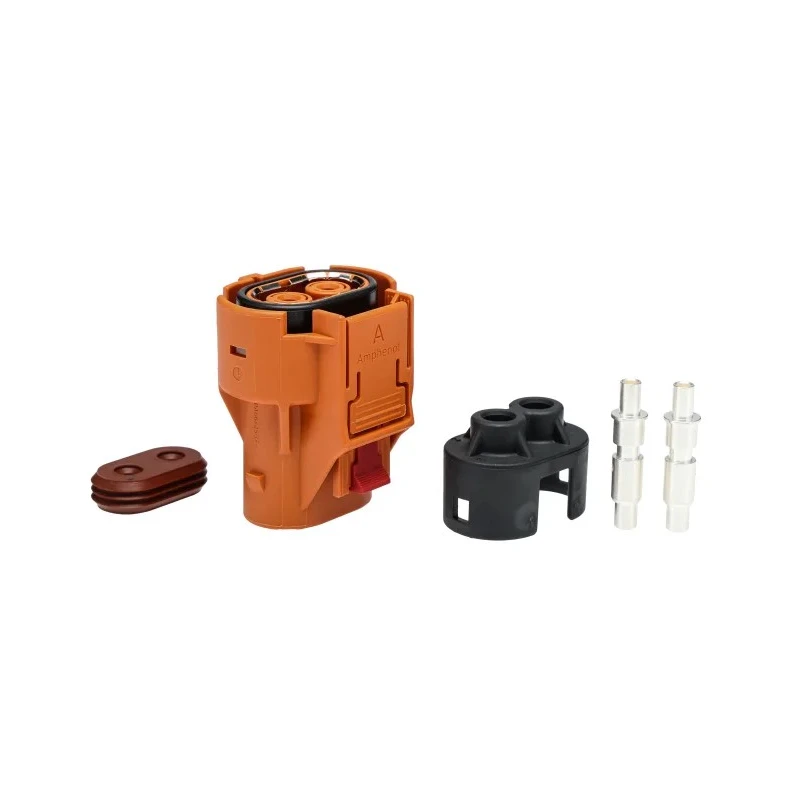

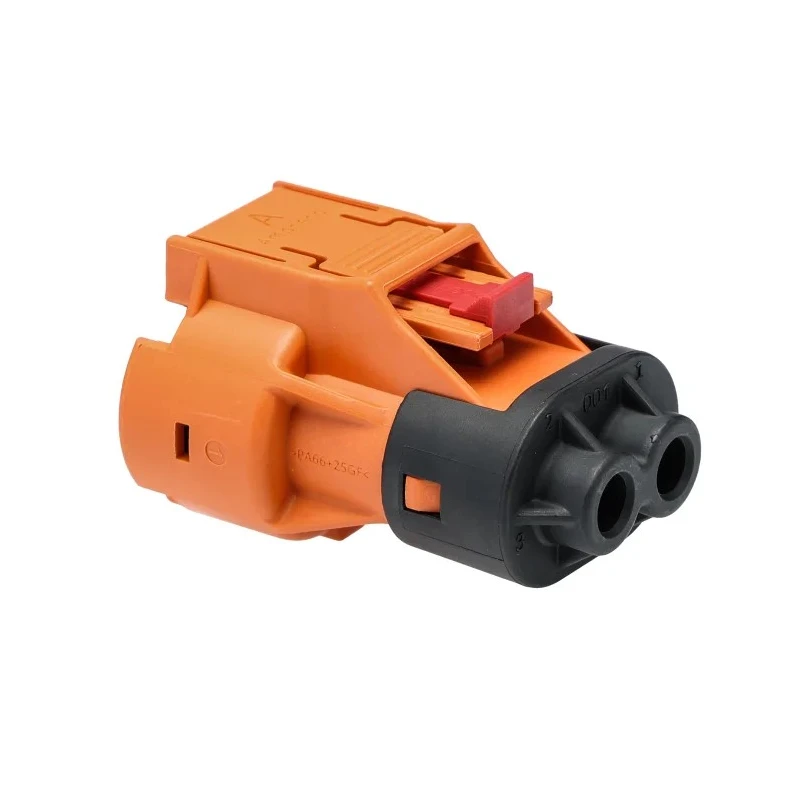

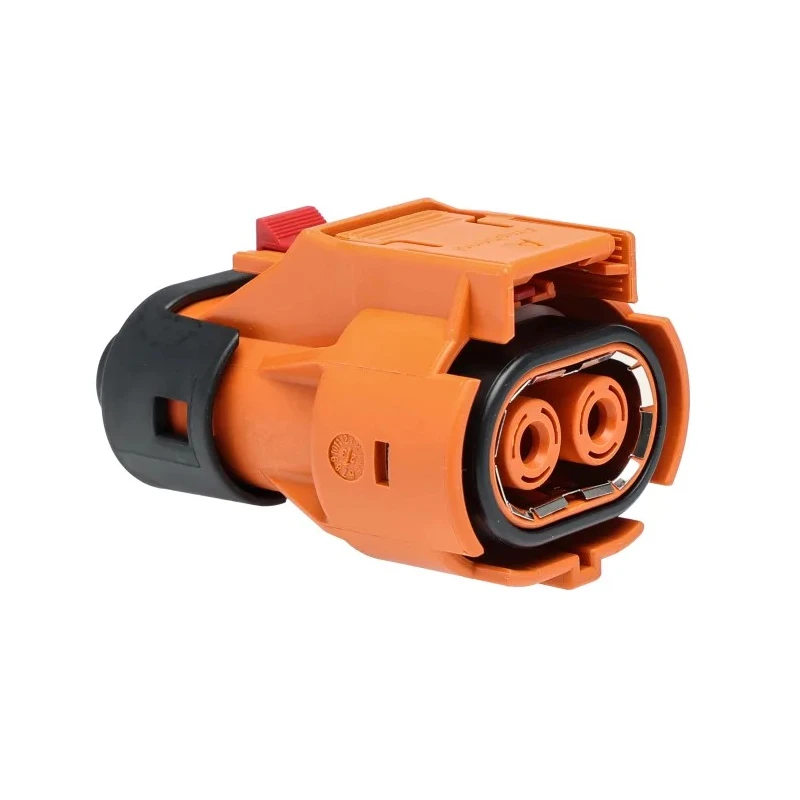

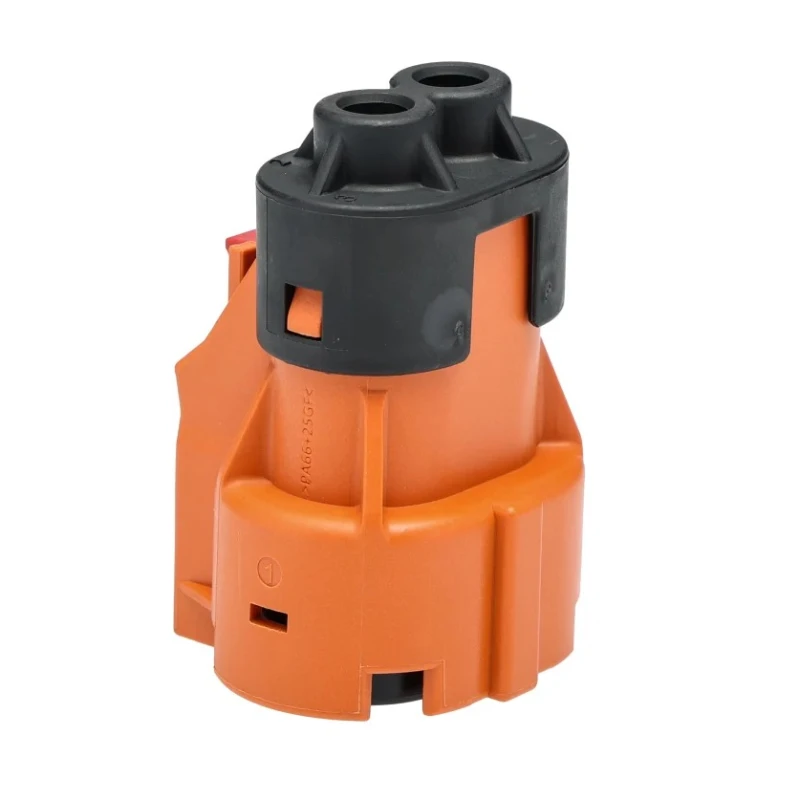

Amphenol Industrial EV Connector Epower Lite RADSOK Plug with HVIL Male 70A 800V IP67 ELP2A02 / C10-738026-2AS2
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 70A |
| Height | 36.8mm |
| Model | ELP2A02 / C10-738026-2AS2 |
| Depth | 57.8mm |
| IP Rating | IP67 |
| Connector Type | RADSOK Plug with HVIL |
| Width | 41.8mm |
| Mount Type | Cable |
| Housing Material | Plastic |
| Series | Epower Lite |
| Waterproof | IP67 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 3.6mm |
| Number of Rows | 1 |
| Wire size | 4mm² |
| Operating Voltage | 800V |
| For Use With | 2 Position ePower-Lite Receptacle with HVIL |
| Standards/Approvals | IEC 60529, UL 94 V-0 |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
| Key Type | Type A |
| Flammability | UL 94V-0 |
| Touch Proof | IEC 60529 |
Key Features
- This EV connector supports a current rating of 70 amperes.
- It features RADSOK plug technology with HVIL for enhanced safety.
- The connector operates at a voltage of 800 volts and is rated IP67 for waterproof protection.
- Designed for crimp termination with 4mm² wire size compatibility.
- The compact and lightweight design is ideal for EV and hybrid vehicle applications.
- It supports operating temperatures from -40°C to 125°C with compliance to IEC 60529 and UL 94 V-0 standards.
- Durability exceeds 100 mating cycles ensuring long service life.
- The connector is orange colored with a plastic housing and straight orientation.
Product Description
Amphenol Industrial ELP2A02 / C10-738026-2AS2 EV Connector RADSOK Plug Male 70A is a compact and lightweight connector designed specifically for electric and hybrid vehicles. Operating at 800 volts and supporting a current of 70 amperes, this connector integrates advanced RADSOK technology to provide low resistance, reduced temperature rise, and minimal voltage drop. It features a high-voltage interlock loop (HVIL) for enhanced safety during operation.
The connector is constructed with a durable plastic housing in a bright orange color for high visibility and includes a Type A key for secure mating. It is rated IP67, ensuring waterproof protection suitable for various harsh environments. The connector supports crimp termination using 4mm² wire and is designed with a straight orientation for ease of installation.
Certified to IEC 60529 for touch proof and UL 94 V-0 for flammability standards, the connector operates reliably in temperature ranges from -40°C to 125°C. The robust design provides durability for over 100 mating cycles, making it suitable for demanding automotive electrical applications.
This product is a renewable energy solution contributing to sustainable electric vehicle technologies. Its small footprint and effective design make it ideal for cable mounting in EV charging and power systems.
This EV Connector supports a current rating of 70 amperes. It features RADSOK plug technology with HVIL for enhanced safety. The connector operates at a voltage of 800 volts and is rated IP67 for waterproof protection. Designed for crimp termination with 4mm² wire size compatibility.
The compact and lightweight design is ideal for EV and hybrid vehicle applications. It supports operating temperatures from -40°C to 125°C with compliance to IEC 60529 and UL 94 V-0 standards. Durability exceeds 100 mating cycles ensuring long service life.
The connector is orange colored with a plastic housing and straight orientation.
Ideal for use in automotive electrical systems, industrial electric vehicles, and hybrid vehicle power distribution, this connector enhances reliability and safety. Discover more from Amphenol Industrial and the EnvMart catalog to find additional electric vehicle connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This EV connector supports a current rating of 70 amperes.
It operates at a maximum voltage of 800 volts.
The connector is designed for crimp termination with a wire size compatibility of 4mm².
It is rated IP67, ensuring waterproof protection suitable for harsh environments.
The operating temperature range is from -40°C to 125°C.
The connector features a plastic housing, which is also colored orange for high visibility.
This model has 2 contacts and features a male connector gender.
It complies with IEC 60529 for touch proof and UL 94 V-0 for flammability standards.
The pin diameter is 3.6mm.
It uses a Type A key for secure mating.
The design allows for durability exceeding 100 mating cycles.
It is suitable for use in electric and hybrid vehicle applications, as well as automotive electrical systems.
