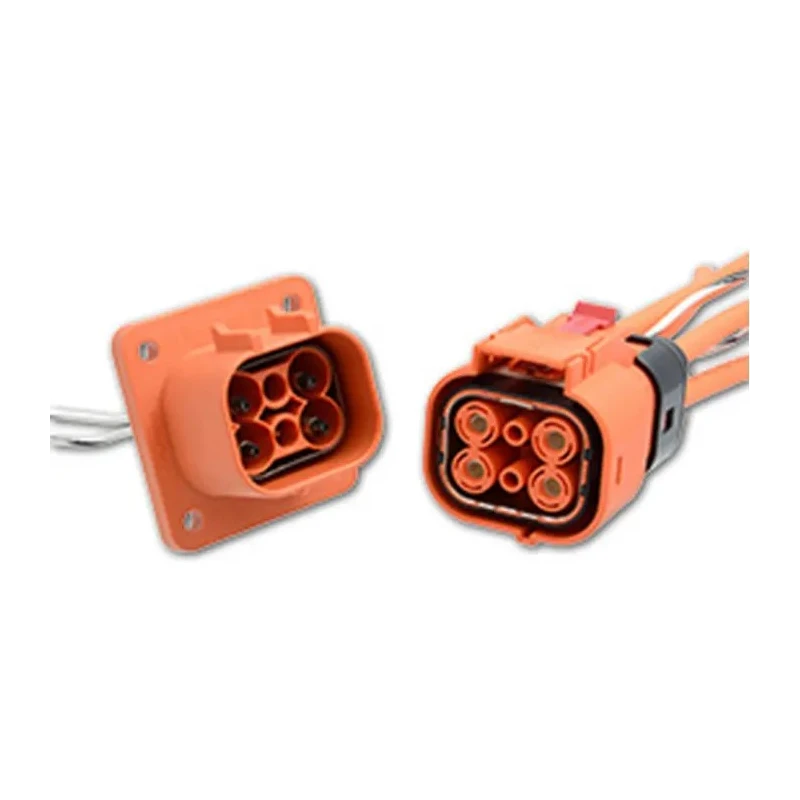

Amphenol Industrial EV Connector Epower Lite RADSOK Receptacle with HVIL Female 70A 800V ELR2A02 / C10-738025-2AP2
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 70A |
| Height | 40.6mm |
| Model | ELR2A02 / C10-738025-2AP2 |
| Depth | 37mm |
| IP Rating | IP67 |
| Connector Type | RADSOK Receptacle with HVIL |
| Width | 45.4mm |
| Mount Type | Panel Mount |
| Housing Material | Plastic |
| Series | Epower Lite |
| Waterproof | IP67 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 3.6mm |
| Number of Rows | 1 |
| Wire size | 4mm² |
| Operating Voltage | 800V |
| For Use With | 2 Position ePower-Lite Plug with HVIL |
| Standards/Approvals | IEC 60529, UL 94 V-0 |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
| Key Type | Type A |
| Flammability | UL 94V-0 |
| Touch Proof | IEC 60529 |
Key Features
- The connector offers compact and lightweight design suitable for electric and hybrid vehicles.
- It supports wire size up to 4mm² with crimp termination and male contacts.
- The connector is panel mount type with a straight orientation and panel mount capability.
- Durable plastic housing provides IP67 waterproof rating and complies with IEC 60529 and UL 94 V-0 standards.
- Operating temperature ranges from -40°C minimum to a maximum of 125°C for reliable performance under harsh conditions.
- Features include Type A key for secure mating, 1 row with 2 contacts.
- Pin diameter is 3.6mm, designed for use with 2 Position ePower-Lite Plug with HVIL.
- Its orange color enhances visual identification and supports renewable energy applications.
Product Description
Amphenol Industrial ELR2A02 / C10-738025-2AP2 is an advanced EV Connector from the Epower Lite series designed for electric and hybrid vehicle applications. This RADSOK Receptacle with HVIL features a high current rating of 70A and an operating voltage of 800V, supporting efficient power transfer with low resistance.
The connector's compact and lightweight plastic housing ensures durability, withstanding a temperature range from -40°C up to 125°C. With IP67 protection and compliance to IEC 60529 and UL 94 V-0 standards, it ensures water and dust tightness as well as flammability resistance.
The connector is a female type with crimp termination and male contacts, suitable for panel mount installation with straight orientation. It features a Type A key to prevent mis-mating and has a pin diameter of 3.6mm, compatible with a 2 Position ePower-Lite Plug with HVIL.
Its orange color aids in easy identification, and it is classified as a Better World product supporting renewable energy solutions. Amphenol Industrial's Epower Lite connector combines reliability, safety, and compact design for demanding automotive electrical connector applications.
The connector supports 4mm² wire size and offers over 100 mating cycles for longevity. Compact form factor helps save space in wiring harness installations. IP67 waterproof rating means it is protected against dust and immersion in water up to 1 meter.
Compliance with IEC 60529 and UL 94 V-0 flammability standards enhances safety performance. Durable plastic housing material provides insulation and mechanical strength.
This product is ideal for industrial, automotive, and renewable energy sectors requiring a dependable and efficient electrical connector solution. The panel mount feature ensures easy integration into assemblies and systems.
Explore more industrial power connectors and EV Connectors at EnvMart to meet all your connectivity needs.
