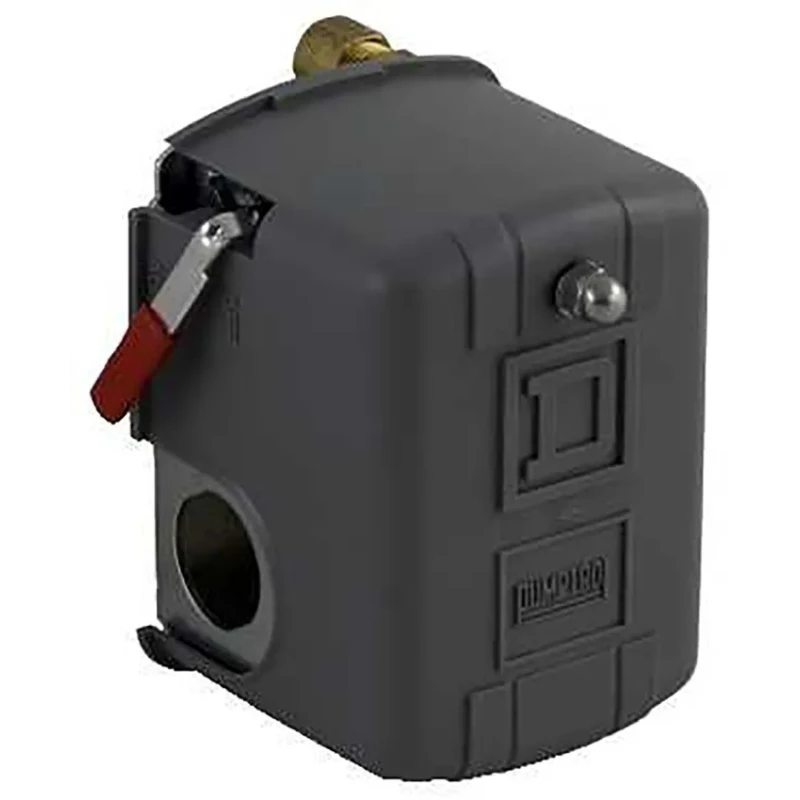

Telemecanique Sensors 9013FS Series Pressure Switch 15 psi to 65 psi, ±3% Accuracy, Noryl Thermoplastic Resin 9013FSG2J21M4

Telemecanique Sensors 9013FSG2J21M4 is a pressure switch from the 9013FS Series, optimized for precise pressure control between 15 psi and 65 psi. Featuring a diaphragm actuated design, this pressure switch reliably monitors and controls electrically driven water pumps and similar systems by opening contacts on rising pressure to start or stop pumps at pre-set parameters.

The robust housing made of Noryl thermoplastic resin ensures durability and resistance to environmental factors, making it suitable for industrial indoor use. The product supports operation in temperatures up to 257°F and carries an IP20 protection rating, designed primarily for indoor environments to guard against solid objects larger than 12 mm.

With a mechanical life expectancy of 100,000 operations and certified compliance to CSA and UL standards, it guarantees reliable performance and safety compliance. Its 2 normally closed output contacts and adjustable cut-in/out functionality provide users with flexible control over connected pumping systems. The cable mount type simplifies installation procedures in various setups.

Applications include water pump control, automation systems, and general pressure monitoring tasks in industrial and manufacturing environments. It is suitable for fresh water media measurement, making it well-suited for water treatment and HVAC systems. The switch is rated at 1-1/2 HP at 115 VAC and 2 HP at 230 VAC, covering a wide range of motor capacities.

This pressure switch uses a diaphragm actuated design for reliable pressure sensing. Constructed with a durable Noryl thermoplastic resin housing for longevity. Operates with an accuracy of ±3 % reading repeatability for precise control.

Offers two normally closed contacts for electrical control output. Rated for maximum pressure measurement of 65 psi and minimum 15 psi. Designed for fresh water media, ideal for pump control applications. Maximum operating temperature is 257°F, suitable for indoor environments.

IP20 rating ensures protection from solid objects above 12 mm size. Mechanical life rated at 100,000 operations supports long-term usage.

This Pressure Switch is an ideal choice for industrial automation, HVAC systems, water treatment plants, and manufacturing processes requiring reliable pressure monitoring and control. Explore the full range of sensors and related control gear at EnvMart for comprehensive solutions in automation and electrical supplies.
