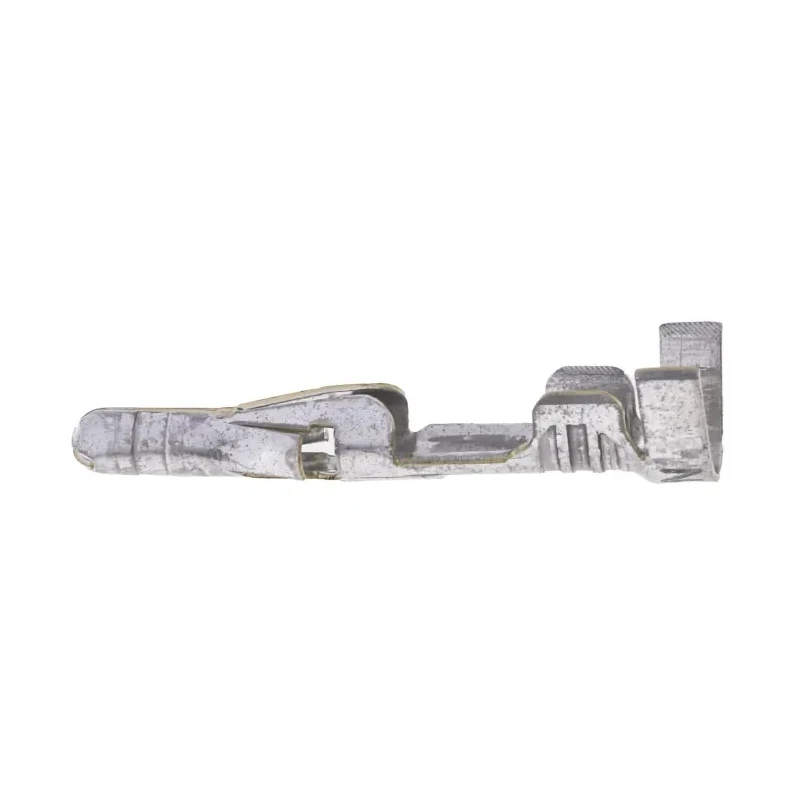

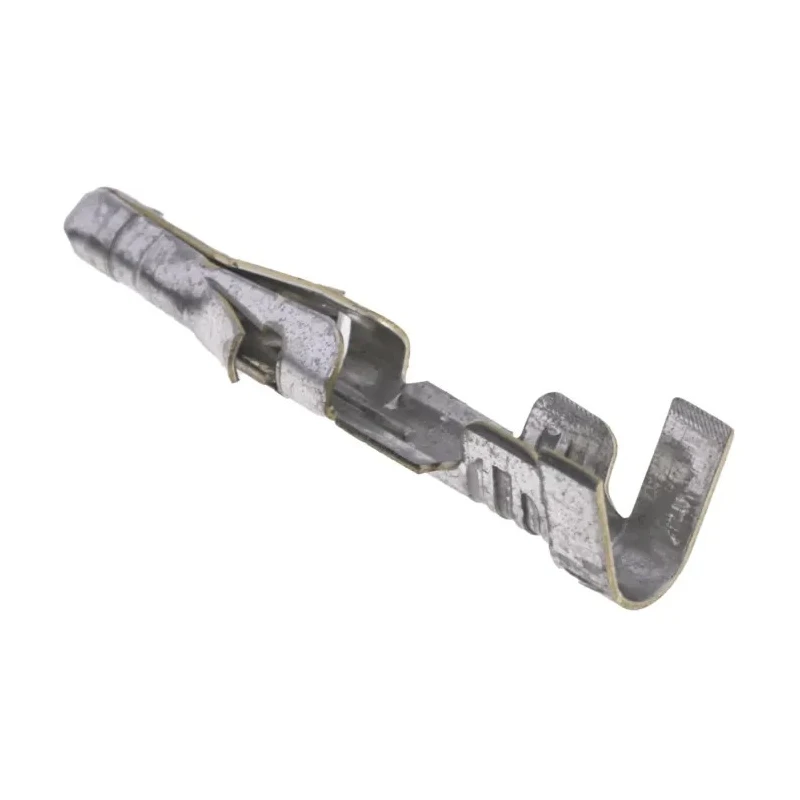

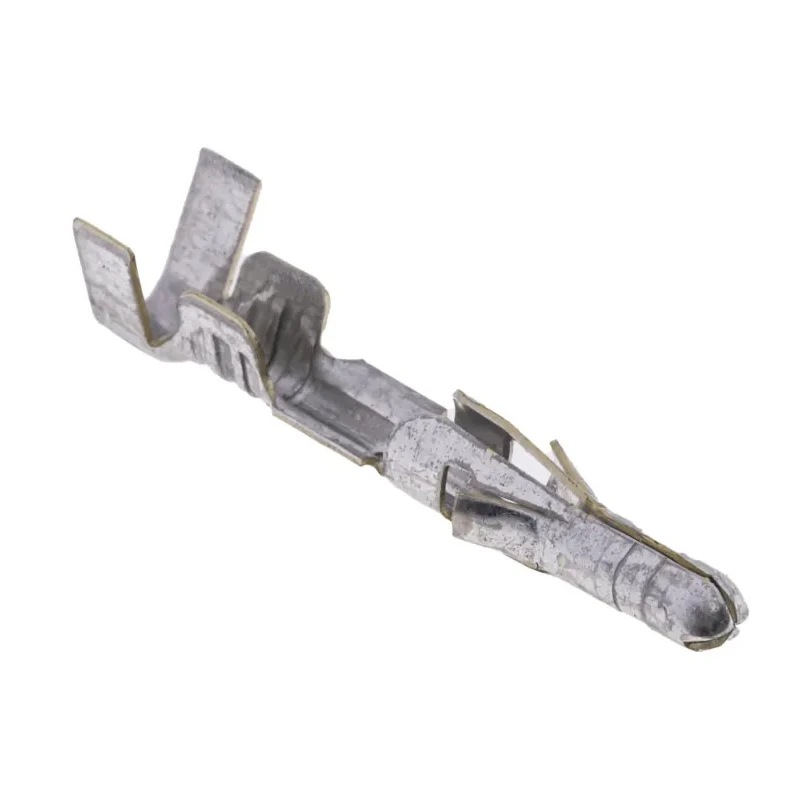

Molex 1190 Series Male Crimp Terminal, Brass, Tin Plated, 20 - 14 AWG, STANDARD .093 in Connector Housing 02-09-2103
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Gender | Male |
| Contact Material | Brass |
| Series | 1190 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | STANDARD .093 in Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 14AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Brass contact material provides high durability and reliable connectivity.
- Tin plating ensures enhanced conductivity and corrosion resistance.
- Compatible with 20 AWG minimum and 14 AWG maximum wire sizes.
- Maximum contact resistance of 10 mΩ for efficient current flow.
- Operating temperature range from -40°C to +105°C.
- Designed for crimp termination for secure wire joining.
- Ideal for consumer electronics and telecommunication devices.
- Fits Molex Standard .093 in and 3191 series connector housings.
Product Description
Molex, a global leader in connectivity solutions, offers the 1190 Series Male Crimp Terminal, model 02-09-2103, engineered for robust performance and reliable electrical connections. This terminal is designed for use with STANDARD .093 in connector housings and supports wire sizes from 20 AWG minimum to 14 AWG maximum. Manufactured from high-quality brass and finished with tin plating, it ensures excellent conductivity and long-term corrosion resistance, making it ideal for demanding environments.
Brass contact material delivers durability, strength, and stable electrical performance. Tin plating enhances conductivity and protects against oxidation and wear. Accommodates a wide range of wire sizes (0.5mm² to 2mm²), supporting various installation requirements.
Maximum contact resistance of 10 milliohms for superior current flow. Wide operating temperature range of -40°C to +105°C for versatility in challenging conditions. Crimp termination method guarantees a secure, airtight mechanical join, superior to soldering for longevity and reliability.
Industry-standard pin diameter (2.36 mm) compatible with Molex Standard .093 in and 3191 series housings, allowing for design flexibility.
This terminal is particularly suitable for consumer electronics, telecommunications, data processing, and networking equipment. Its halogen rating ensures minimal toxic emissions during overheating or fire, enhancing safety for sensitive installations.
Applications include computer systems, portable devices, networking hardware, telecommunication modules, and consumer electronic products. The crimp design guarantees robust, moisture-resistant connections, preventing degradation over time.
For maintenance, installation, and industrial production environments, the Molex 02-09-2103 ensures consistent performance, reliability, and ease of integration. Its engineering adheres to Molex's quality standards and fits a wide array of project needs where lasting electrical connections are essential.
Discover more high-quality connectivity solutions from Molex in the Crimp Terminal category on EnvMart. Browse Molex products for advanced terminal and connector solutions across electronics and industrial sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is compatible with wire sizes ranging from 20 AWG minimum to 14 AWG maximum.
The maximum operating temperature for this model is 105°C.
The contacts are made of brass, which provides high durability and reliable connectivity.
This terminal uses a crimp termination method, which ensures a secure wire joining.
The maximum contact resistance is 10 milliohms, allowing for efficient current flow.
It is designed for use with STANDARD .093 in connector housings and 3191 series housings.
The minimum operating temperature for this terminal is -40°C.
This terminal is suitable for consumer electronics, telecommunications, data processing, and networking equipment.
The pin diameter is 2.36 mm, which is standard for compatibility with specified housings.
It accommodates wire sizes from 0.5 mm² to 2 mm².
The terminal features tin plating, which enhances conductivity and provides corrosion resistance.
This product is manufactured in the United States.
