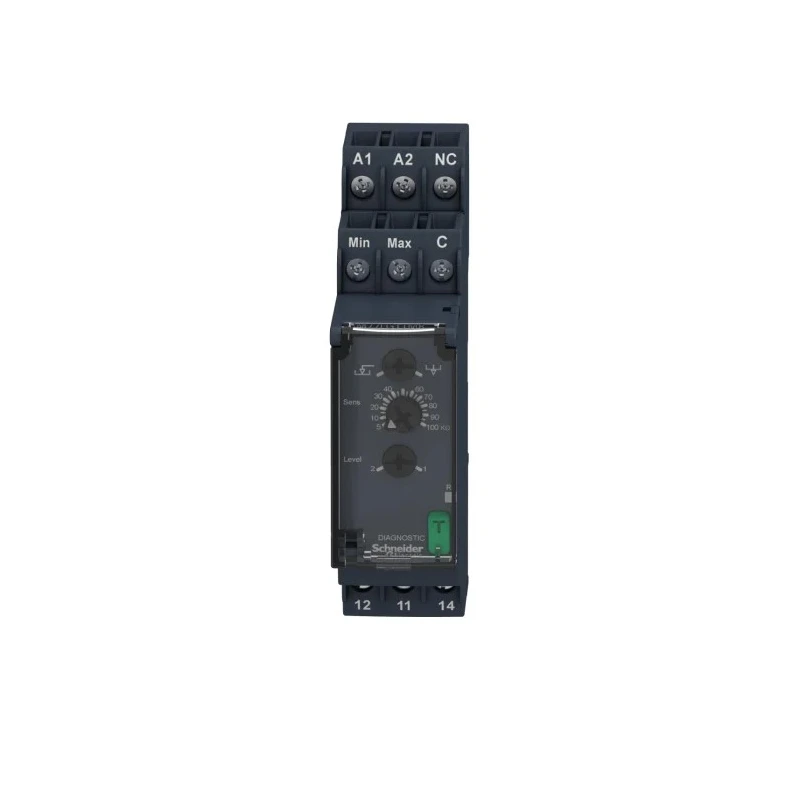

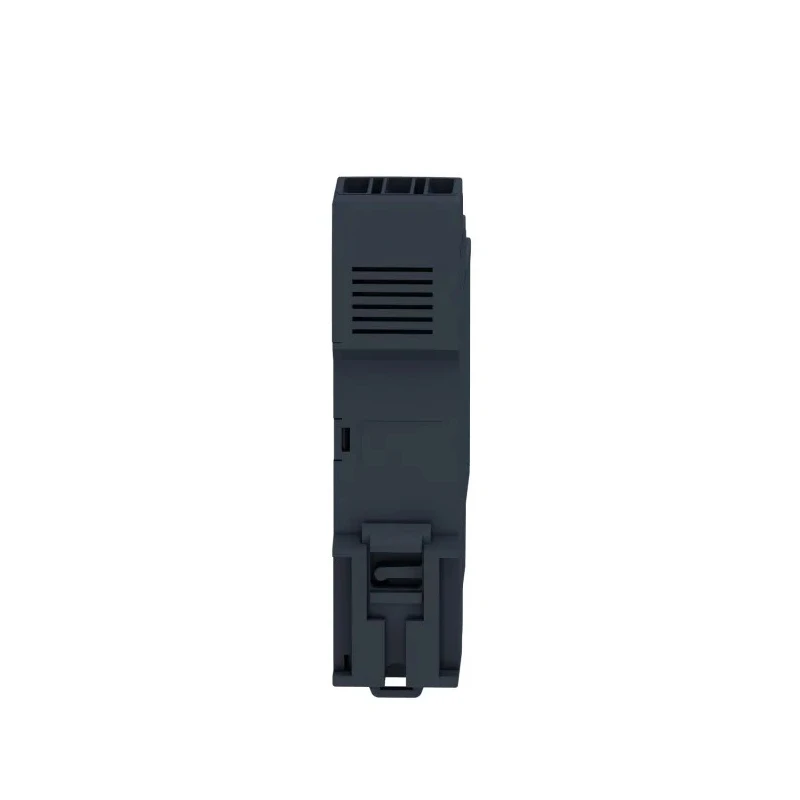

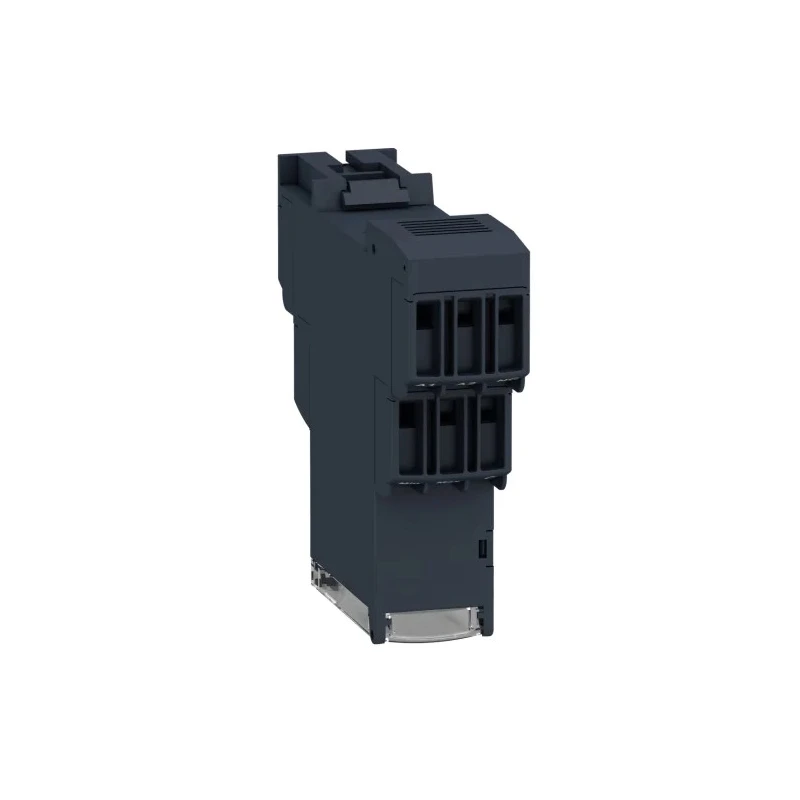

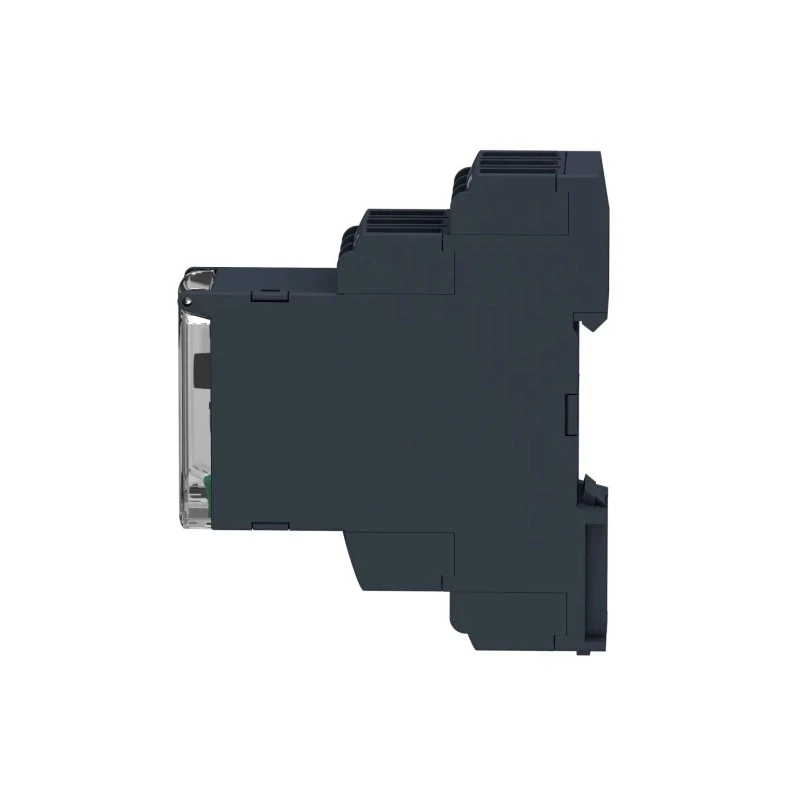

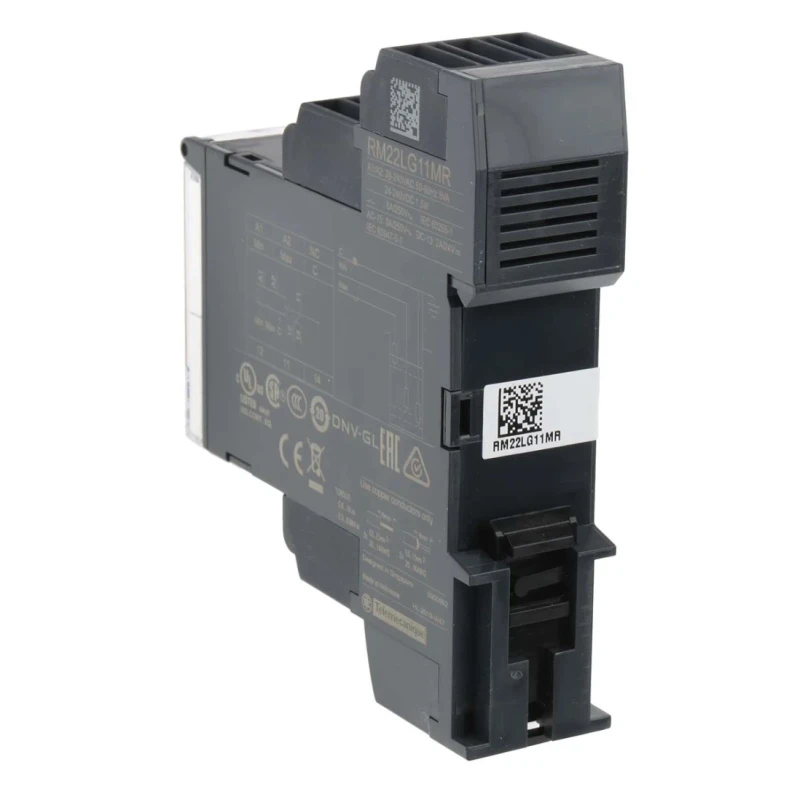

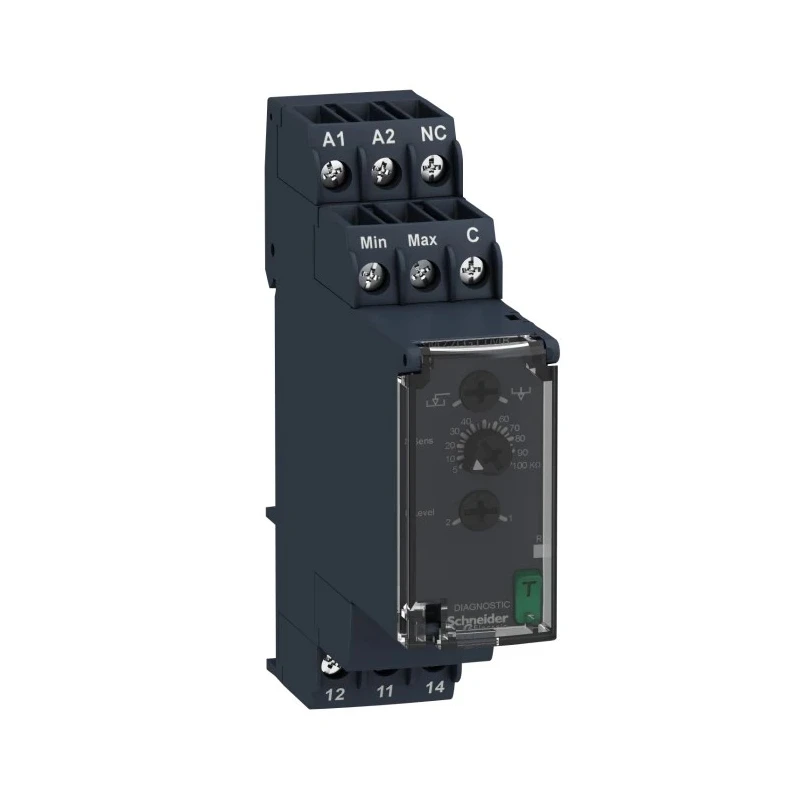

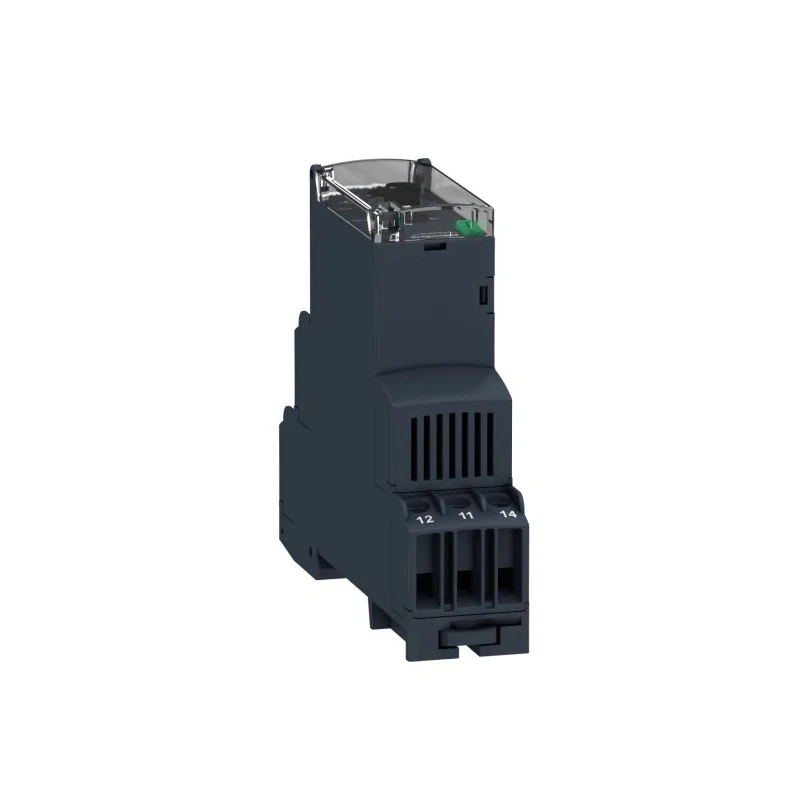

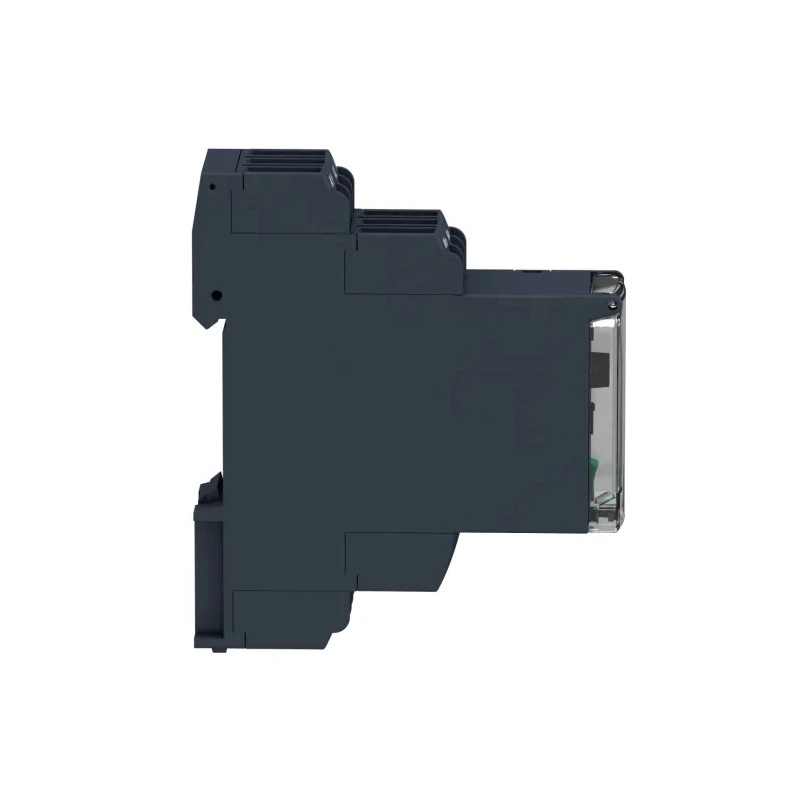

Schneider Electric Monitoring Relay 1 Phase SPDT DIN Rail Mount 24V AC 240V AC RM22LG11MR

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric Monitoring Relay 1 Phase SPDT DIN Rail Mount 24V AC 240V AC RM22LG11MR

Name: Schneider Electric Monitoring Relay 1 Phase SPDT DIN Rail Mount 24V AC 240V AC RM22LG11MR
Brand: Schneider Electric
SKU: 141776
Price: 111.55 USD
Availability: InStock



Category Monitoring Relays Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Measurement Range	5 to 100 kΩ
Brand	Schneider Electric
Height	90mm
Length	79.5mm
Model	RM22LG11MR
IP Rating	IP50, IP40, IP20
Width	22.9mm
Mount Type	DIN Rail
Series	Harmony Control
Maximum Operating Temperature	60°C
Contact Configuration	SPDT
Time Delay	1750 ms
Minimum Operating Temperature	+60°C
Terminal type	Screw
Electrical Phase	1
Standards/Approvals	CCC, CE, CSA, EAC, UL
Switching Voltage	250V ac
Contact Current	8A
Supply DC Voltage	240 V ac
Supply AC Voltage	24, 240V ac
Schneider Electric Level Monitoring Relay, SPDT, DIN RailBrand	Schneider Electric
Brodersen Controls Level Relay - DIN Rail Mount, 24 V dc 2Brand	Brodersen Controls

Key Features

The relay supports a switching voltage of up to 250V AC for versatile applications.
Screw type terminals enable secure and easy installation and maintenance.
It features a wide operating temperature range suitable for industrial environments from -20°C to +60°C.
Measurement range spans from 5 to 100 kΩ ensuring accurate resistive probe readings.
The device includes a time delay of 1750 ms to ensure controlled switching.
The front panel has a transparent hinged cover to prevent unintended changes and allow status checking.
Compact dimensions of 79.5mm length, 22.9mm width, and 90mm height support space-efficient solutions.
Complies with multiple standards including CCC, CE, CSA, EAC, and UL for global usability.

Product Description

Schneider Electric RM22LG11MR Monitoring Relay is a 1 phase, SPDT contact configuration relay designed for DIN rail mounting. It operates with supply voltages of 24V AC and 240V AC, making it suitable for a wide range of industrial and automation applications.

This relay is engineered for reliable liquid level monitoring and control, capable of regulating pumps and valves while protecting tanks from overflow conditions. It features screw terminal types that ensure secure wiring and easy maintenance.

The relay offers a measurement range from 5 to 100 kΩ for resistive probes, delivering high accuracy with a measurement error factor below 1%. It is built to withstand harsh environments with an operating temperature range from -20°C to +60°C and a time delay of 1750 ms to prevent nuisance switching.

The housing is made from self-extinguishing plastic, enhancing safety in workplace environments. The compact form factor with dimensions 79.5mm x 22.9mm x 90mm allows for efficient space usage in control panels.

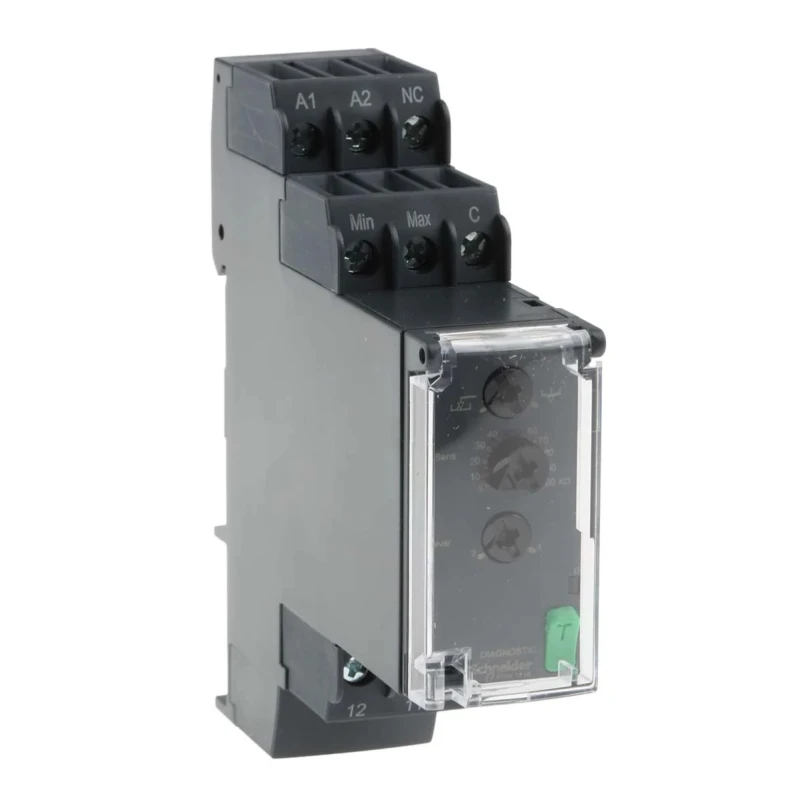

The front panel includes a transparent hinged cover that protects the relay configuration from unintended changes while allowing quick status checks. The relay meets multiple international standards and approvals including CCC, CE, CSA, EAC, and UL.

Typical applications include chemical manufacturing, reservoirs, industrial automation systems, and other environments requiring precise level monitoring and relay control. The relay supports a switching voltage up to 250V AC for flexible control options.

Screw terminals make connections straightforward and reliable. Wide temperature tolerance ensures operation in varied and challenging conditions. Resistive probe measurement range from 5 to 100 kΩ supports diverse sensor compatibility.

Time delay of 1750 ms enhances operational safety and performance. Durable self-extinguishing plastic housing improves user safety. Explore other Monitoring Relays and industrial electrical components at EnvMart for your electro-mechanical system needs.
