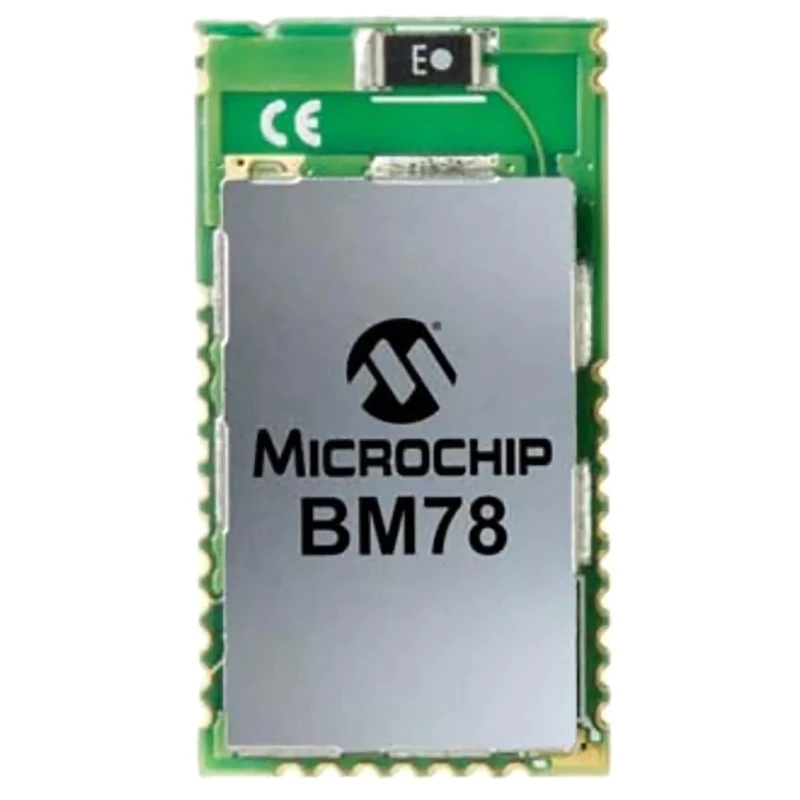

Microchip Bluetooth Chip 4.2 Dual Mode Module BM78SPPS5NC2-0002AA UART Interface 3.3-4.2V 22x12x2.4mm BM78SPPS5NC2-0002AA
Specifications
| Country of Origin | India |
|---|---|
| Frequency | 2.48GHz |
| Brand | Microchip |
| Height | 2.4mm |
| Length | 12mm |
| Model | BM78SPPS5NC2-0002AA |
| Width | 22mm |
| Series | BM78 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Receiver Sensitivity | -90dBm |
| Interface Type | UART, SMP, GATT |
| Bluetooth Version | 4.2 |
| Maximum Supply Voltage | 4.2V |
| Minimum Supply Voltage | 3.3V |
| Bluetooth Class | Class 2 |
| Compact surface mount module | 22 x 12 x 2.4 mm |
Key Features
- Supports Bluetooth Classic (BR/EDR) and Bluetooth Low Energy (LE) protocols.
- Certified Bluetooth SIG compliant with full on-board Bluetooth stack.
- Offers maximum output power of 1.5 dBm and data rate of 1 Mbps.
- Operates within voltage range 3.3 V to 4.2 V for versatile power options.
- Compact surface mount module measuring 22 x 12 x 2.4 mm for space-saving designs.
- Includes multiple I/O pins for control and status functions.
- Receiver sensitivity of -90 dBm ensures reliable wireless communication.
- Operating temperature range from -20°C to 70°C supports various industrial environments.
Product Description
Microchip BM78SPPS5NC2-0002AA Bluetooth Chip 4.2 is a high-performance dual mode Bluetooth module supporting both BR/EDR and BLE communication standards. Operating with a fully certified Bluetooth stack, this module significantly reduces development time by eliminating the need for RF design regulatory approvals and compliance testing.
The module features a transparent UART interface, simplifying integration with host MCUs and enabling seamless serial data transfer. Configurable through a Windows-compatible Graphical User Interface or direct MCU commands, it provides flexible and secure Bluetooth communication solutions.
This Bluetooth Class 2 module delivers a maximum output power of 1.5 dBm with a data rate of 1 Mbps, operating on a 2.48 GHz frequency band. With a receiver sensitivity of -90 dBm, the device ensures reliable connections in challenging environments. It supports GAP, SDP, SPP, and GATT profiles, catering to a wide range of wireless applications.
The compact surface mount module measures 22 mm in width, 12 mm in length, and 2.4 mm in height, making it suitable for space-constrained industrial and commercial devices. It functions within an operating temperature range of -20°C to 70°C and requires a supply voltage between 3.3 and 4.2 volts.
Key features include secure AES128 encryption, firmware field upgrades via UART, and multiple input/output pins for enhanced control and status monitoring. This module is ideal for industrial, manufacturing, communication, and IoT applications demanding robust Bluetooth connectivity.
Supports Bluetooth Classic and Low Energy protocols for versatile connectivity. Fully Bluetooth SIG certified with integrated full stack firmware. Transparent UART mode simplifies host MCU integration. Compact 22 x 12 x 2.4 mm surface mount design for limited spaces.
Operating voltage from 3.3 V to 4.2 V supports various power scenarios. Operating temperature range from -20°C up to 70°C for industrial use. Includes multiple GPIO pins for control and status functions. Supports GAP, SDP, SPP, GATT Bluetooth profiles.
Secure AES128 encryption and firmware upgradable via UART. Ideal for wireless communication and IoT device integration. Explore the extensive selection of Bluetooth Modules and Semiconductor products at EnvMart to find tailored solutions for your wireless communication needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bluetooth module operates within a supply voltage range of 3.3 V to 4.2 V.
This compact surface mount module measures 22 mm in width, 12 mm in length, and 2.4 mm in height.
It supports both Bluetooth Classic (BR/EDR) and Bluetooth Low Energy (LE) protocols.
The receiver sensitivity of this module is -90 dBm, ensuring reliable wireless communication.
It operates within an ambient temperature range from -20°C to 70°C.
The module supports GAP, SDP, SPP, and GATT profiles, catering to a wide range of wireless applications.
The module operates at a frequency of 2.48 GHz.
It includes secure AES128 encryption and allows for firmware upgrades via UART, enhancing security and functionality.
This module is ideal for industrial, manufacturing, communication, and IoT applications that require robust Bluetooth connectivity.
The country of origin for this module is India.
