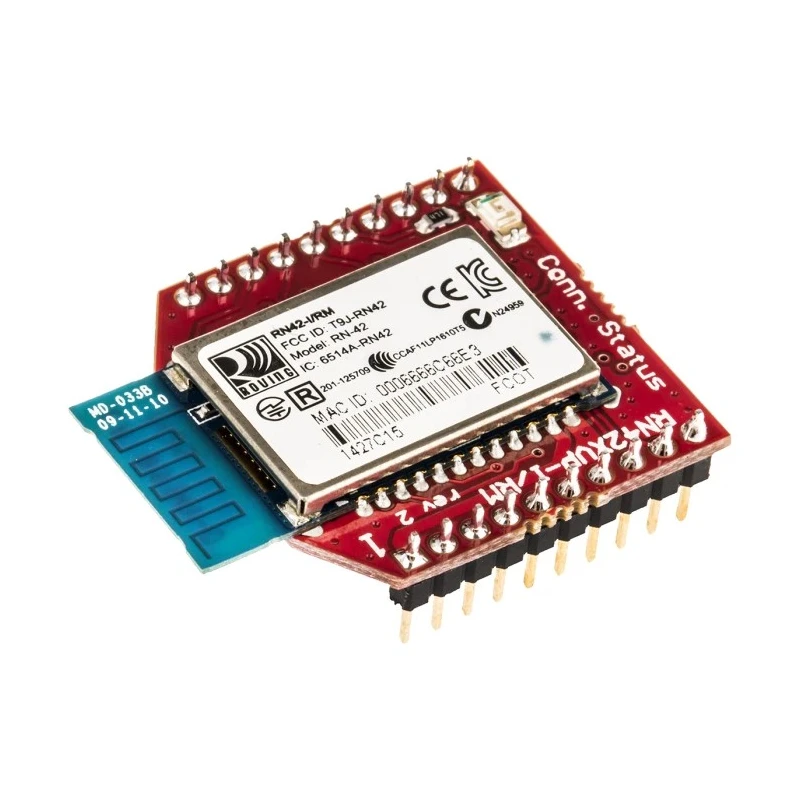

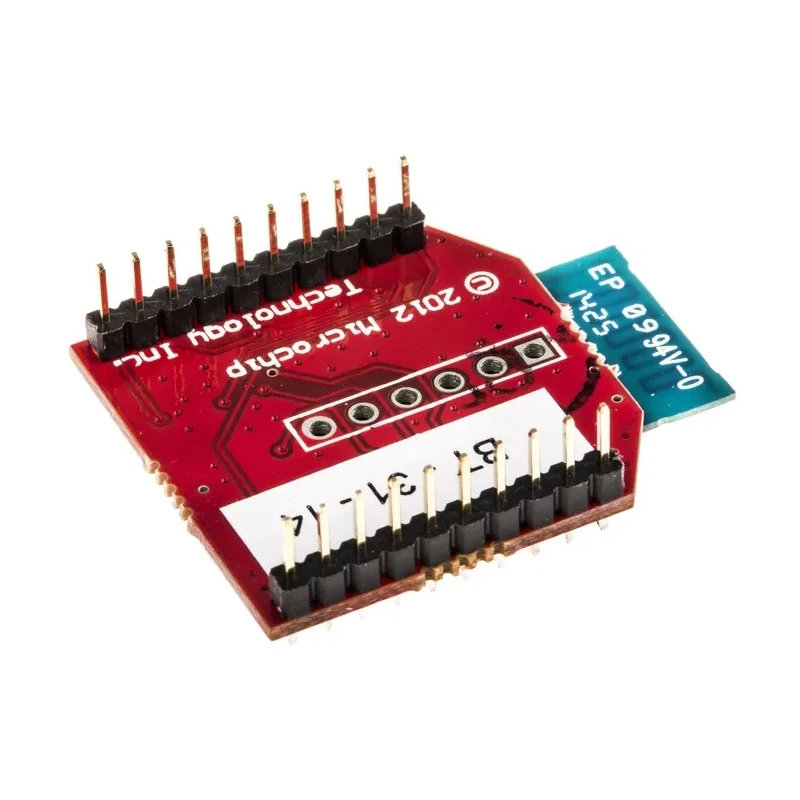

Microchip RN42XVP-I/RM Bluetooth Chip 2.1, Class 2, 4 dBm Output Power, USB & UART Interface RN42XVP-I/RM

Microchip RN42XVP-I/RM Bluetooth Chip 2.1 is a fully certified, compact Class 2 Bluetooth module designed for wireless communication integration in embedded systems. It operates at a frequency of 2.48 GHz with a maximum output power of 4 dBm, supporting Bluetooth version 2.1 with Enhanced Data Rate (EDR) for improved data throughput up to 3 Mbps.

This module features ultra-low power consumption, drawing just 26 μA in sleep mode and 3 mA when connected, making it ideal for battery-powered or low-power applications. It provides flexible interfaces including UART (with SPP or HCI modes) and USB (HCI only), enabling easy integration with various host controllers.

The embedded Bluetooth stack supports multiple profiles such as Generic Access Profile (GAP), Service Discovery Protocol (SDP), RFCOMM, and L2CAP, including Serial Port Profile (SPP), Human Interface Device (HID), and Dial-Up Networking (DUN), facilitating versatile use cases. Security is enhanced with AES-128 encryption to protect wireless data communications.

The RN42XVP-I/RM module is mounted using castellated SMT pads and includes a PCB antenna for reliable transmission within a typical range of up to 10 metres. It operates over a wide temperature range from -40°C to 85°C, suitable for industrial, commercial, and consumer applications.

Compatibility with Microchip microcontroller families, including PIC16F, PIC18F, PIC24F/H, dsPIC33, and PIC32, enables seamless system design and development. This module supports robust wireless communication requirements in industrial automation, IoT devices, consumer electronics, and more.

Fully certified Bluetooth 2.1 + EDR Class 2 module. Low power consumption with sleep and active modes. UART and USB data interfaces facilitating flexible integration. Embedded Bluetooth stack supporting multiple profiles.

Compact design with PCB antenna and SMT mounting pads. Operating temperature range from -40°C to 85°C. Maximum output power of 4 dBm and receiver sensitivity of -70 dBm. Data rate up to 3 Mbps supporting fast data transfer.

Secure AES-128 encryption for protected wireless communications. Compatible with Microchip PIC and dsPIC microcontroller families.

This Bluetooth chip module is suitable for a wide range of applications, including industrial automation systems, IoT device connectivity, wireless sensor networks, and embedded communication solutions. It provides a reliable and straightforward solution to add Bluetooth wireless communication to electronic designs.
