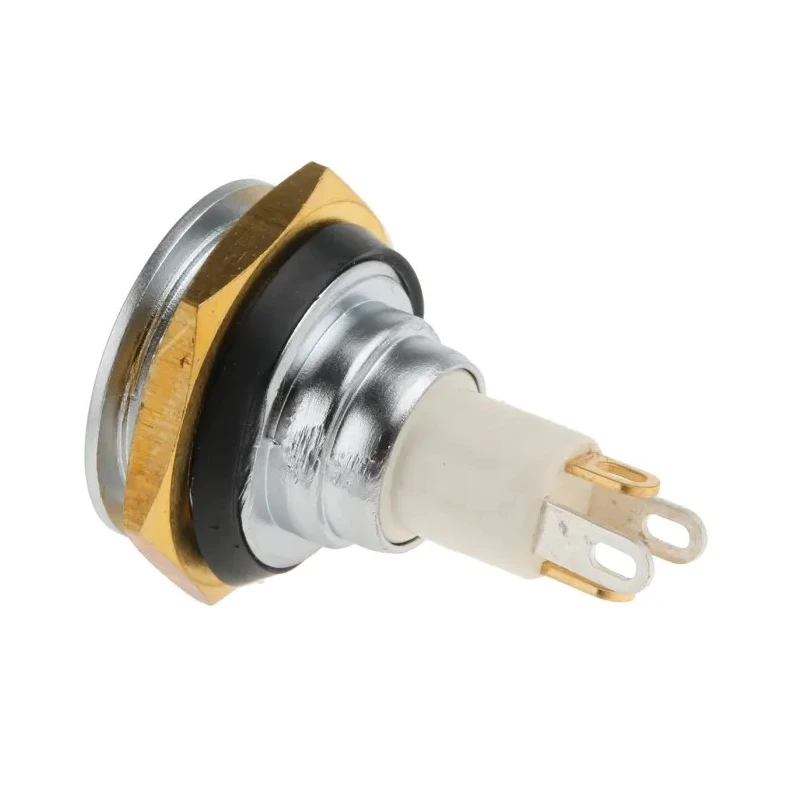

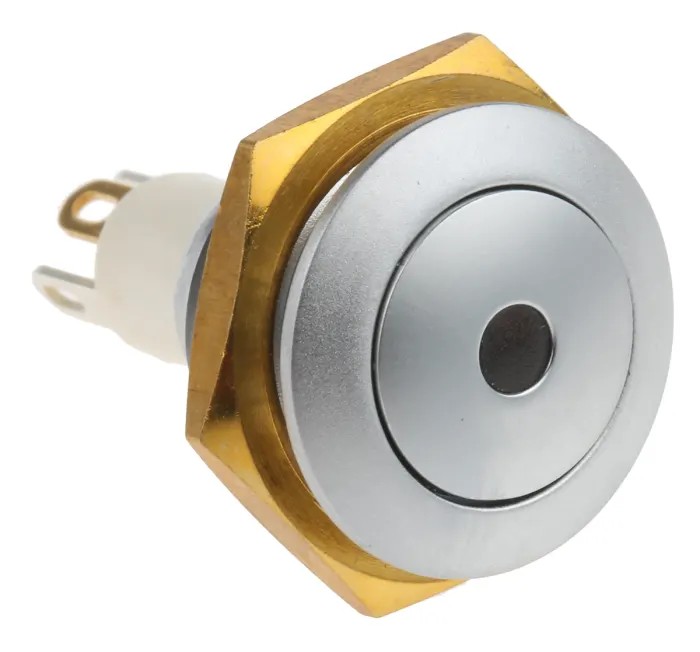

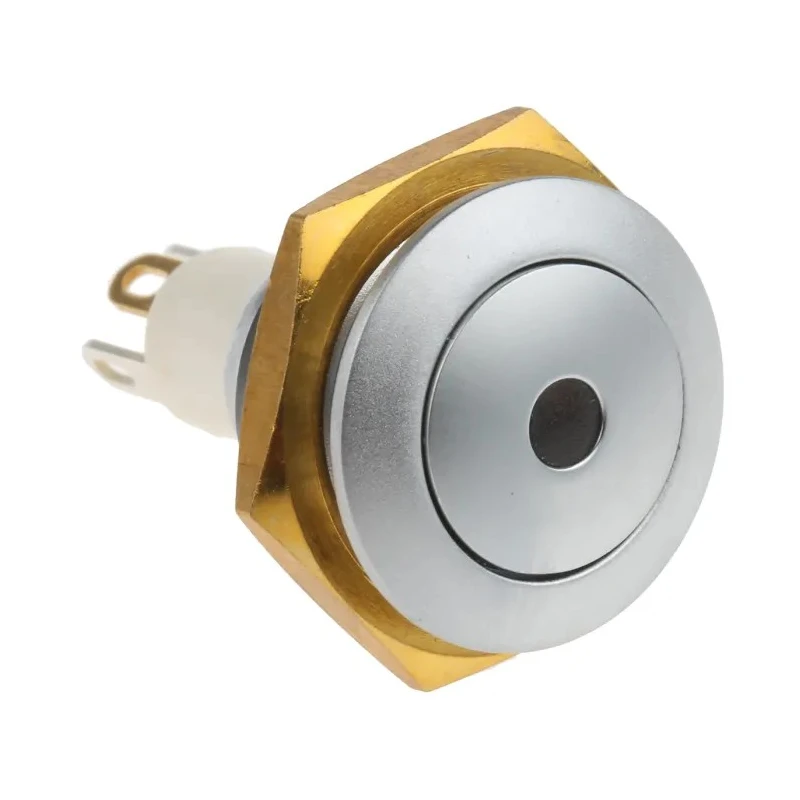

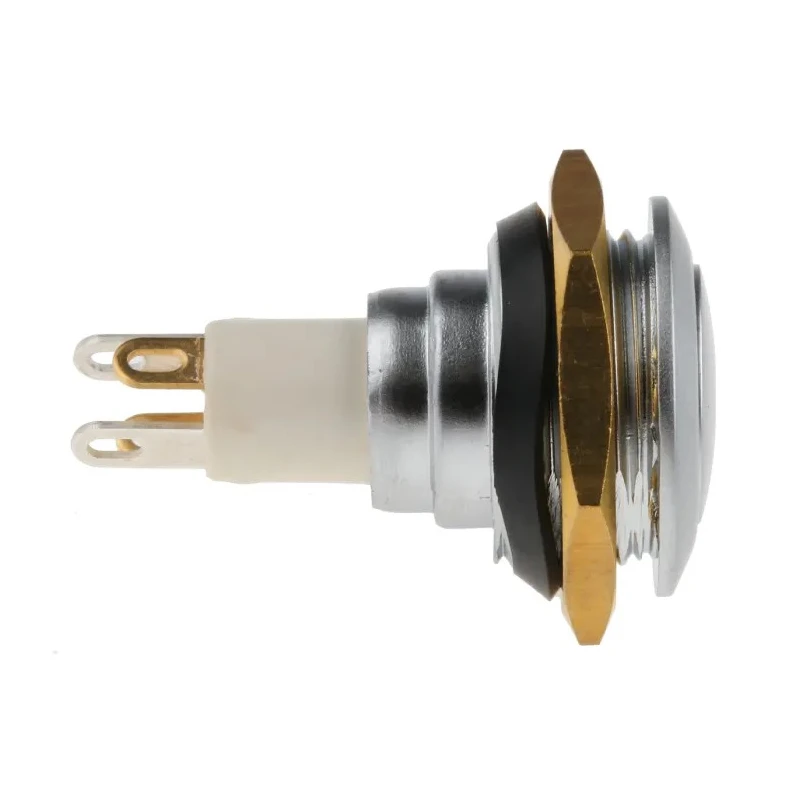

ITW Switches 57 Series Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 14.75 mm Cutout, SPST 57-112R

Name: ITW Switches 57 Series Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 14.75 mm Cutout, SPST 57-112R
Brand: ITW Switches
SKU: 141008
Price: 19.4 USD
Availability: InStock



Category Push Button Switches & Components Brand ITW Switches Condition New

Specifications

Country of Origin	Belize
Brand	ITW Switches
Model	57-112R
IP Rating	IP67
Mount Type	Panel
Series	57
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Switch Configuration	On-Off
Minimum Operating Temperature	-40°C
Panel Cutout Size	14.75 mm
Terminal type	Solder
Standards/Approvals	UL, CSA
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	125V
Actuator Style	Button
Switch Contact Current	400mA
Contact AC Voltage	125V ac

Key Features

Panel sealed to IP67 rating, providing protection against dust and temporary immersion.
Momentary switch operation with on-off switch configuration.
Compact 14.75 mm panel cutout size suitable for industrial standards.
Zinc alloy body with velour chrome plating for durability.
Gold plated contacts and terminals ensure reliable conductivity.
Suitable for harsh environments including industrial control and medical equipment.
Switch rated for 125V AC/DC contact voltage and 400 mA contact current.
Operating temperature range from -40°C to 125°C for extended use.

Product Description

ITW Switches 57-112R is a high-quality miniature illuminated push button switch designed for rugged industrial environments. This momentary operated switch features a panel mounting style with a precise 14.75 mm cutout, fitting the industrial standard of 16 mm diameter. The switch is equipped with a Single Pole Single Throw (SPST) contact configuration and a red LED indicator for illumination.

The robust zinc alloy body is velour chrome plated, providing excellent corrosion resistance and longevity. Gold plated contacts and terminals contribute to outstanding electrical reliability and low contact resistance, essential for industrial and medical equipment applications.

Sealed to an IP67 rating, this switch offers complete protection against dust ingress and temporary immersion in water up to 1 meter depth for 30 minutes, making it ideal for harsh and demanding environments such as transportation, food processing, and military equipment.

Operating temperature ranges from -40°C to 125°C, ensuring performance stability under extreme conditions. The switch supports contact voltages up to 125V AC or DC and a contact current of 400 mA. Its flush mounting design offers resistance to frequent use and mechanical wear.

This switch is suitable for use in industrial control panels, medical devices, security equipment, and computer hardware where ruggedness and reliability are critical. Panel sealed to IP67 provides dust tightness and water resistance.

Momentary on-off operation with red LED illumination. Zinc alloy velour chrome plated durable body. Gold plated contacts and terminals for enhanced conductivity. Compatible with industrial and medical equipment applications.

Operating temperature from -40°C to 125°C ensures reliability. SPST contact configuration for simple on/off control. Panel mounting with 14.75 mm cutout size matches industrial standards. Flush mounting design resists high use and wear.

Manufactured in Belize with compliance to UL and CSA standards. Explore the wide range of ITW Switches products on EnvMart for industrial automation and electrical applications.
