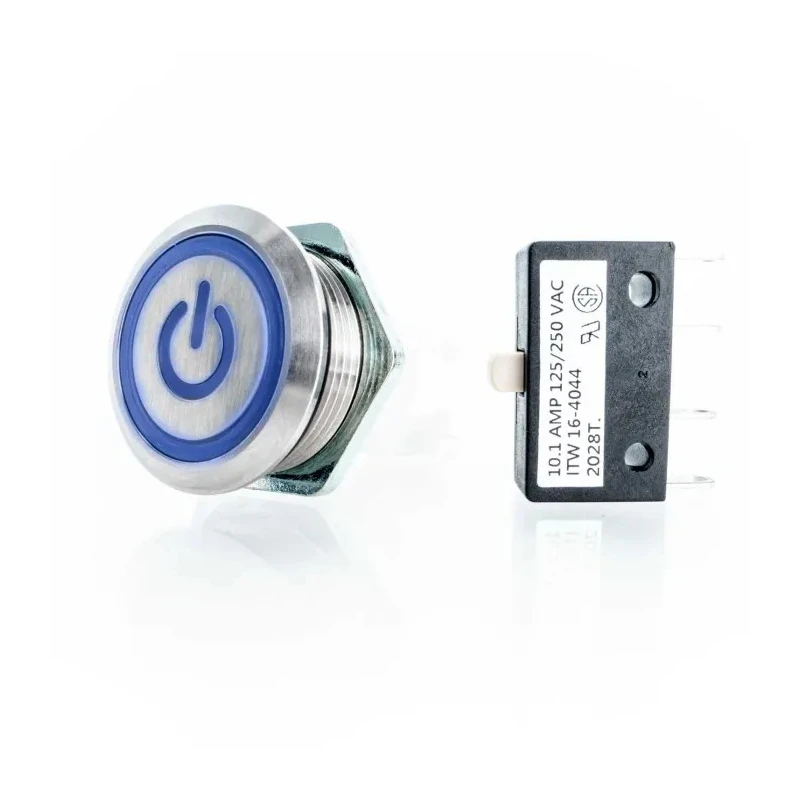

ITW Switches H48M Series Illuminated Push Button Switch, Latching, Panel Mount, 19.6 mm Cutout, SPDT Contact, Blue H48M-213B

ITW Switches H48M-213B Illuminated Push Button Switch is a rugged, industrial-grade switch designed for reliable operation in demanding environments. This latching push button switch is constructed with a premium stainless steel housing for enhanced durability and corrosion resistance. The device features a round white actuator with integrated blue LED illumination, making it suitable for clear visual indication in control panels.

The switch is intended for panel mounting, compatible with a 19.6 mm cutout size, and configured with SPDT contacts offering single pole double throw functionality. The terminal type is solder for secure electrical connections. It supports a contact rating up to 10 A and can safely handle 250 V for both AC and DC voltages, making it suitable for a variety of electrical systems.

With an IP67 frontal sealing rating, the switch offers excellent protection against dust ingress and water jets, suitable for harsh industrial environments. The operating temperature range from -25°C to 65°C allows use in both cold and warm conditions. Certified by UL and CSA, the H48M series push buttons provide reliable compliance with international safety standards.

This switch series offers spot and ring illumination options and can be used widely in applications such as security systems, food processing equipment, medical installations, industrial machinery, and mass transit vehicles. The panel thickness supported ranges from 0.5 mm to 4.5 mm, ensuring versatile mounting options.

The product originates from Taiwan, Province Of China, and is intended as a robust solution for industrial and commercial control panel requirements. Set includes the ITW H48M-213B push button switch with specified features as described.

Constructed with premium stainless steel housing for durability. Features a round white actuator with blue LED illumination. Designed for 19.6 mm panel cutout and SPDT contact configuration. IP67 rated frontal sealing ensures protection against dust and water.

Suitable for use with 250 V AC/DC and 10 A contact current. Operational temperature range from -25°C to 65°C. UL and CSA approved for safety and quality compliance. Explore more industrial Push Button Switches and components at EnvMart for your automation and electrical control needs.
