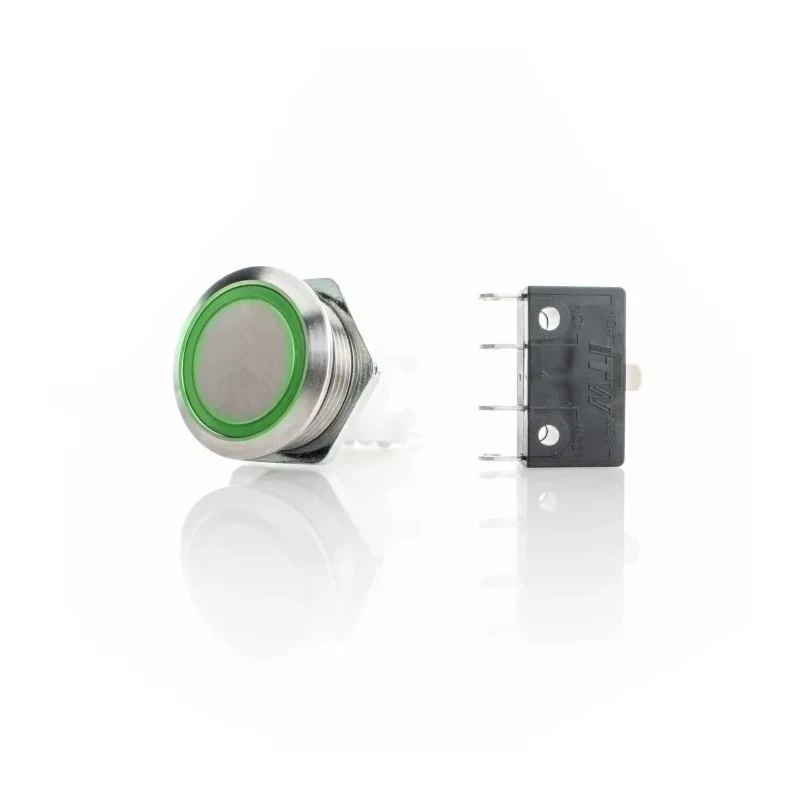

ITW Switches Illuminated Push Button Switch, Latching, Panel Mount, 19.6 mm Cutout, SPDT, Green LED, IP67, 250 V H48M-212G
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | ITW Switches |
| Model | H48M-212G |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | H48M |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 19.6 mm |
| Terminal type | Solder |
| Standards/Approvals | UL, CSA |
| LED Colour | Green |
| Switch Operation | Latching |
| Actuator Colour | White |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 10A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch has a stainless steel construction with a white actuator.
- It provides single pole double throw (SPDT) contact configuration.
- Green LED illumination indicates the ON/OFF status clearly.
- The device is rated IP67 for panel sealing with frontal o-ring protection.
- It supports up to 250 V AC/DC voltage with a contact current of 10A.
- Suitable for panel thicknesses ranging from 0.5 mm to 4.5 mm.
- Operating temperature ranges from -25°C to 65°C.
- Approved to UL and CSA standards for safety and quality assurance.
Product Description
ITW Switches H48M-212G Illuminated Push Button Switch is a rugged, stainless steel electromechanical switch designed for latching operation in demanding industrial environments.
The switch features a round white actuator with green LED illumination, providing clear indication of the switch state. It is suitable for panel mounting with a precise 19.6 mm cutout and compatible with panel thicknesses from 0.5 mm to 4.5 mm. The frontal sealing with an o-ring offers IP67 ingress protection, ensuring reliable operation in harsh conditions including dust and water exposure.
This model supports a contact configuration of SPDT (Single Pole Double Throw) and can handle contact voltages up to 250 V AC or DC with a maximum contact current of 10A. It is designed for on-off switch configuration allowing secure control in applications where latching functionality is required.
The H48M series switches are widely used in external control equipment, industrial machinery, security devices, medical equipment, food processing, mass transit, and lift trucks. With approvals including UL and CSA, this product meets rigorous safety and quality standards.
Operating temperature ranges from -25°C to 65°C, making it suitable for varied climates and environments. The push button's durable stainless steel housing ensures longevity and reliable performance in industrial and commercial applications.
The switch includes electro-mechanical operation with premium materials. Illumination options include the green LED for status indication. Robust IP67-rating protects the switch in dusty and wet environments. Designed for easy panel mounting on 0.5 mm to 4.5 mm thick panels.
Applicable across diverse industrial, medical, and security uses. Explore more in our Electronics & Electricals Switches category to find compatible Push Button Switches and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Double Throw (SPDT) contact configuration, allowing it to control two different circuits with one switch.
This model supports a maximum contact voltage of 250 V AC or DC.
The switch can handle a maximum contact current of 10A.
It has an IP67 rating, providing protection against dust and water ingress.
The operating temperature ranges from -25°C to 65°C, making it suitable for various environments.
The switch requires a panel cutout size of 19.6 mm for proper installation.
It is designed for panel mounting, compatible with panel thicknesses from 0.5 mm to 4.5 mm.
It features a green LED illumination that indicates the ON/OFF status of the switch clearly.
This model is approved to UL and CSA standards, ensuring it meets safety and quality requirements.
The switch has a stainless steel construction with a white actuator, providing durability in industrial environments.
The switch operates in a latching configuration, allowing it to maintain its state until toggled again.
The switch uses solder terminals for electrical connections.
