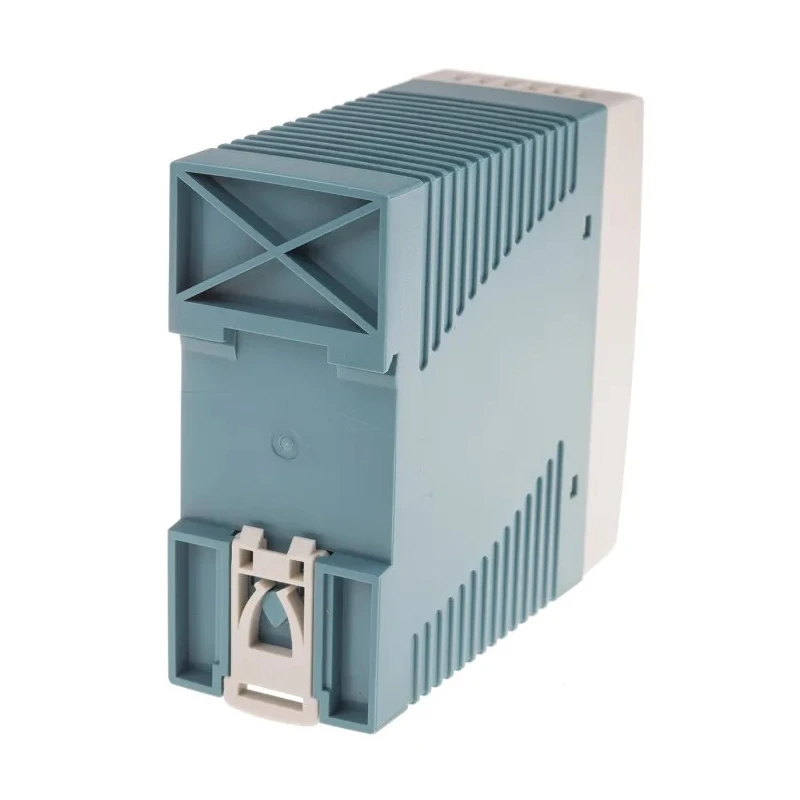

MEAN WELL DRA Switched Mode DIN Rail Power Supply 370 V dc, 264V ac AC/DC Input 15 V dc, 5 A Output 60 W DRA-60-12
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 60W |
| Height | 90mm |
| Model | DRA-60-12 |
| Depth | 100mm |
| Width | 40mm |
| Series | DRA |
| Output Current | 5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Electrical Phase | 1 |
| Standards/Approvals | TUV EN 609501, RoHS, UL |
| Maximum Output Voltage | 15V dc |
| Minimum Input Voltage | 90V ac |
Key Features
- Compact 40 mm width allows installation in space-constrained areas.
- Universal AC input supports 90 V ac minimum up to 370 V dc maximum voltage.
- Built-in 3-in-1 dimming function supports 1 V dc to 10 V dc, PWM, or resistance dimming.
- Equipped with protections against short circuit, overload, and over voltage conditions.
- Operates with high efficiency up to 87% and convection cooling with no fan required.
- Can be mounted on DIN Rail TS-35/7.5 or 15 mm rails for flexible installation.
- LED indicator for power status and 100% full load burn-in test ensure reliability.
- Wide operating temperature range from -30°C to 70°C for harsh environments.
Product Description
MEAN WELL DRA-60-12 is a switched mode power supply unit designed for DIN rail mounting, providing a stable 15 V dc voltage output with a current capacity of 5 A and total power of 60 W. It supports a universal AC/DC input voltage range up to 370 V dc or 264 V ac, making it compatible with diverse industrial power sources.
The power supply features a compact design with a width of only 40 mm, height of 90 mm, and depth of 100 mm, enabling space-saving installation on DIN Rail TS-35/7.5 or 15 mm. It includes a built-in 3-in-1 dimming function that permits adjustment of LED lighting intensity via 1 V dc to 10 V dc, PWM signals, or resistance dimming methods.
MEAN WELL’s DRA series units are known for high efficiency up to 87% and convection cooling that eliminates the need for fans, thus reducing maintenance and noise. The device is equipped with comprehensive protections including short-circuit, overload, and over-voltage safeguards to ensure operational safety and longevity.
Operating reliably within temperature ranges from -30°C to 70°C, this power supply meets TUV EN 609501, RoHS, and UL standards, assuring compliance with international safety and environmental regulations.
Typical applications include machine vision inspection systems, industrial automation, plant cultivation systems, and other scenarios requiring reliable DC power through compact DIN rail mounted power supplies.
Compact 40 mm width for space-constrained installations. Universal AC/DC input from 90 V ac up to 370 V dc. Built-in 3-in-1 dimming function for versatile lighting control. Short circuit, overload, and over voltage protection.
High efficiency up to 87% with convection cooling. DIN rail mounting on TS-35/7.5 or 15 mm rails. LED power-on indicator and full load burn-in test. Operating temperatures from -30°C to 70°C. Compliance with TUV EN 609501, RoHS, and UL standards.
Ideal for industrial, automation, and plant cultivation applications. Explore the full range of DIN Rail Power Supplies at EnvMart for industrial, laboratory, and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 15 V dc with a current capacity of 5 A, resulting in a total power output of 60 W.
This unit has a compact design with dimensions of 40 mm in width, 90 mm in height, and 100 mm in depth, allowing for space-saving installation.
The power supply features a built-in 3-in-1 dimming function that supports dimming via 1 V dc to 10 V dc, PWM signals, or resistance dimming methods.
It is equipped with protections against short circuits, overloads, and over-voltage conditions to ensure operational safety.
This model can be mounted on DIN Rail TS-35/7.5 or 15 mm rails, providing flexible installation options.
The DRA-60-12 operates with high efficiency, achieving up to 87% efficiency with convection cooling, eliminating the need for fans.
It complies with TUV EN 609501, RoHS, and UL standards, ensuring adherence to international safety and environmental regulations.
Typical applications include machine vision inspection systems, industrial automation, and plant cultivation systems, requiring reliable DC power.
The DRA-60-12 features a single output, designed for straightforward power delivery.
The country of origin for this model is China.
