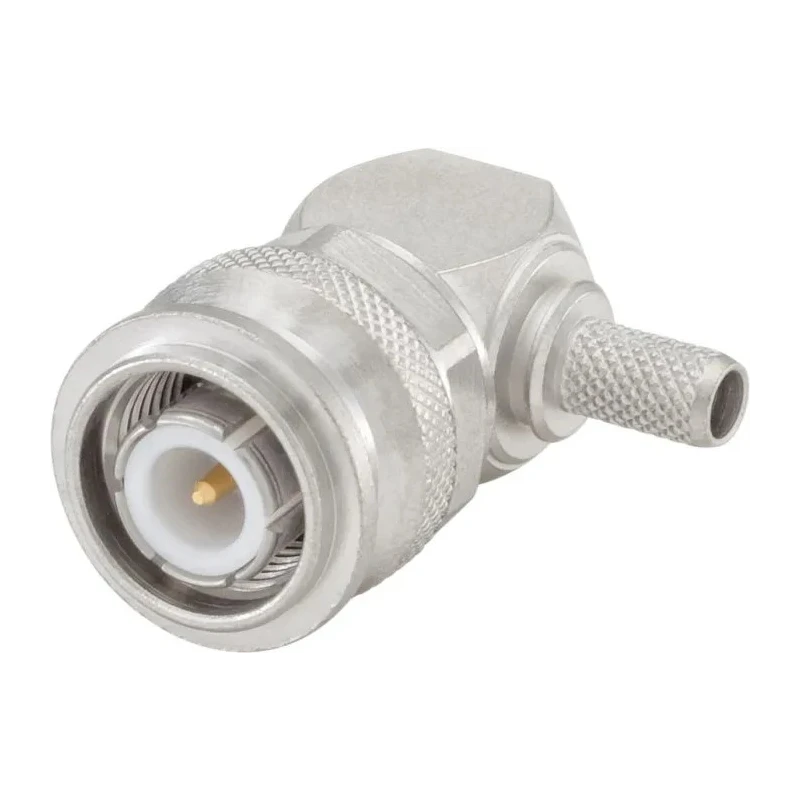

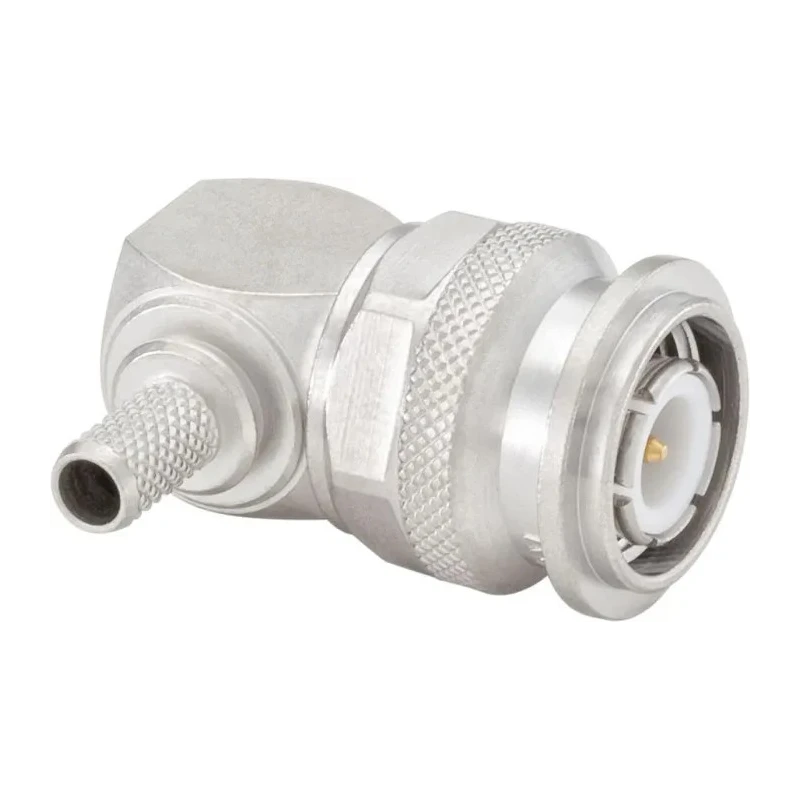

Rosenberger TNC Series Coaxial Connector Cable, Flange Male TNC, 50 Ω, Right Angle Body 56S209-308N5
Specifications
| Country of Origin | Hungary |
|---|---|
| Size | Standard |
| Brand | Rosenberger |
| Orientation | Right Angle |
| Model | 56S209-308N5 |
| Mount Type | Cable, Flange |
| Operating Frequency | 10GHz |
| Contact Material | Brass |
| Series | TNC |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG142, RG223, RG400 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | TNC |
| Body Plating | White Bronze |
Key Features
- Operates within a frequency range up to 10 GHz.
- Compatible with RG142, RG223, and RG400 cable types.
- Body plating is white bronze for enhanced durability.
- Gold plated brass centre contacts provide superior conductivity.
- Designed for high vibration environments with threaded screw coupling.
- Supports operating temperatures ranging from -65°C to 165°C.
- Constructed with brass contact material for strength and reliability.
- Meets interface standards IEC 60169-17, MIL-PRF-39012, and DIN EN 122200.
Product Description
Rosenberger 56S209-308N5 TNC Series Coaxial Connector Cable is a high-quality cable mount plug designed to provide a dependable 50 Ω RF connection. Featuring a flange mount with a male TNC connector and a right angle body, this cable connector supports high vibration environments due to its threaded screw coupling design.
The connector is constructed with brass bodies and gold plated brass centre contacts, ensuring superior electrical performance and longevity. The body plating in white bronze enhances corrosion resistance, making it suitable for demanding industrial applications.
This coaxial connector operates efficiently over a frequency range from DC to 10 GHz, compatible with common cable types such as RG142, RG223, and RG400. It supports wide temperature ranges from -65°C minimum to 165°C maximum, catering to harsh environmental conditions.
The product complies with established interface standards including IEC 60169-17, MIL-PRF-39012, and DIN EN 122200, ensuring broad compatibility and reliability. Its normal polarity and male contact gender provide standard connectivity options for various setups.
Ideal for use in antennas, industrial electronics, wireless communication, military equipment, and broadband networks, this Rosenberger TNC Series coaxial connector ensures robust and consistent signal transmission in critical applications.
Operates within a frequency range up to 10 GHz. Compatible with RG142, RG223, and RG400 cable types. Body plating is white bronze for enhanced durability. Gold plated brass centre contacts provide superior conductivity. Designed for high vibration environments with threaded screw coupling.
Supports operating temperatures ranging from -65°C to 165°C. Constructed with brass contact material for strength and reliability. Meets interface standards IEC 60169-17, MIL-PRF-39012, and DIN EN 122200. Suitable for industrial, military, wireless, and broadband applications.
This product originates from Hungary and is supplied new to meet quality and performance requirements. Explore more Coaxial Connectors and related components on EnvMart for your electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently over a frequency range from DC to 10 GHz.
It is compatible with RG142, RG223, and RG400 cable types.
This connector supports operating temperatures ranging from -65°C to 165°C.
The connector is constructed with brass for the contact material and features gold plating for the centre contacts, while the body is plated with white bronze.
It features a flange mount with a right angle body design.
It meets established interface standards including IEC 60169-17, MIL-PRF-39012, and DIN EN 122200.
This connector has an impedance rating of 50 Ω.
The connector has a male contact gender.
Yes, it is designed for high vibration environments with a threaded screw coupling.
This product originates from Hungary.
The gold plated brass centre contacts provide superior conductivity, enhancing electrical performance.
It is ideal for use in antennas, industrial electronics, wireless communication, military equipment, and broadband networks.
