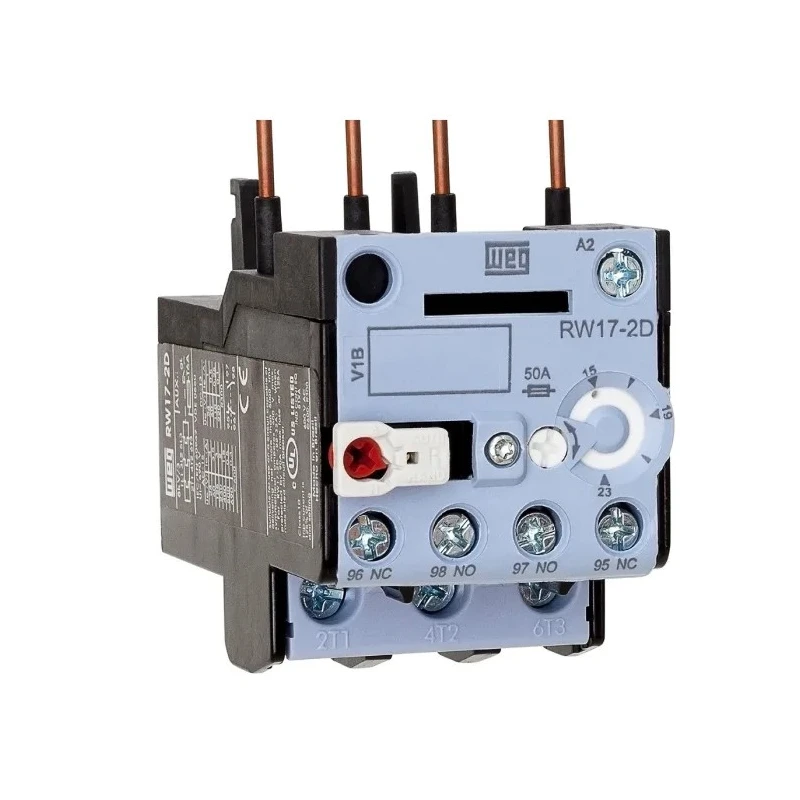

WEG Thermal Overload Relay RW17, 15A F.L.C, 10 to 15A Adjustable Current, 1.4W Power Rating



Category Overload Relay Brand WEG Condition New

Specifications

Country of Origin	Brazil
Brand	WEG
Length	71.5mm
Model	RW17
Depth	82.5mm
IP Rating	IP20, IP10
Width	45mm
Mount Type	DIN Rail
Series	RW17
Power Rating	1.4W
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Supply Voltage	100, 50V
Contact Voltage	690V ac
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Relay Contact Current	10, 15A
Number of Auxiliary Contacts	2
Pole and Throw Configuration	3
FLC Motor Rating	15A
Adjustable Current Range	10 → 15 A

Key Features

Designed for motor protection with thermal overload functionality.
Supports 1 Normally Open and 1 Normally Closed contact configuration.
Mounts easily on DIN rails for convenient installation.
Equipped with screw terminals and automatic/manual reset method options.
Operates reliably within -25°C to 60°C temperature range for diverse environments.
IP20 and IP10 rated for protection against solid objects and limited ingress of dust.
Compact dimensions of 71.5mm length, 45mm width, and 82.5mm depth.
Compliant with IEC 60034-30-1, IEC 60947-1, IEC 60947-4-1 standards, and EU directives.

Product Description

WEG RW17-2D3-U015 Thermal Overload Relay is designed for precise motor protection in industrial and automation applications. Featuring a 15A full load current rating and adjustable current range from 10 to 15A, this relay ensures effective overload detection and motor safety. The relay utilizes a thermal mechanism with selectable automatic or manual reset modes allowing flexible operation.

Boasting 1 Normally Open and 1 Normally Closed contact configuration and two auxiliary contacts, the RW17 series offers reliable electrical control with screw terminal connections mounted on DIN rails for secure installation. It functions well within a wide temperature range from -25°C to 60°C and is IP20 and IP10 rated, providing basic protection against solid particles and dust ingress.

Compact with dimensions 71.5mm x 45mm x 82.5mm (LxWxD), it fits various panel sizes without consuming excess space. The device conforms to IEC 60034-30-1, IEC 60947-1, and IEC 60947-4-1 standards and complies with EU regulations, ensuring quality and safety.

This thermal overload relay is particularly suited for industrial automation, electrical distribution systems, manufacturing plants, and HVAC motor protection applications. The relay contact current rating ranges from 10A to 15A ensuring effective motor circuit control and fault prevention.

Designed for motor protection with thermal overload functionality. Supports 1 Normally Open and 1 Normally Closed contact configuration. Mounts easily on DIN rails for convenient installation. Equipped with screw terminals and automatic/manual reset method options.

Operates reliably within -25°C to 60°C temperature range for diverse environments. IP20 and IP10 rated for protection against solid objects and limited ingress of dust. Compact dimensions of 71.5mm length, 45mm width, and 82.5mm depth.

Compliant with IEC 60034-30-1, IEC 60947-1, IEC 60947-4-1 standards, and EU directives. Suitable for industrial automation, electrical control panels, and motor applications requiring reliable overload protection. Explore WEG Overload Relays and other high-quality electrical control products for industrial and commercial use on EnvMart.
