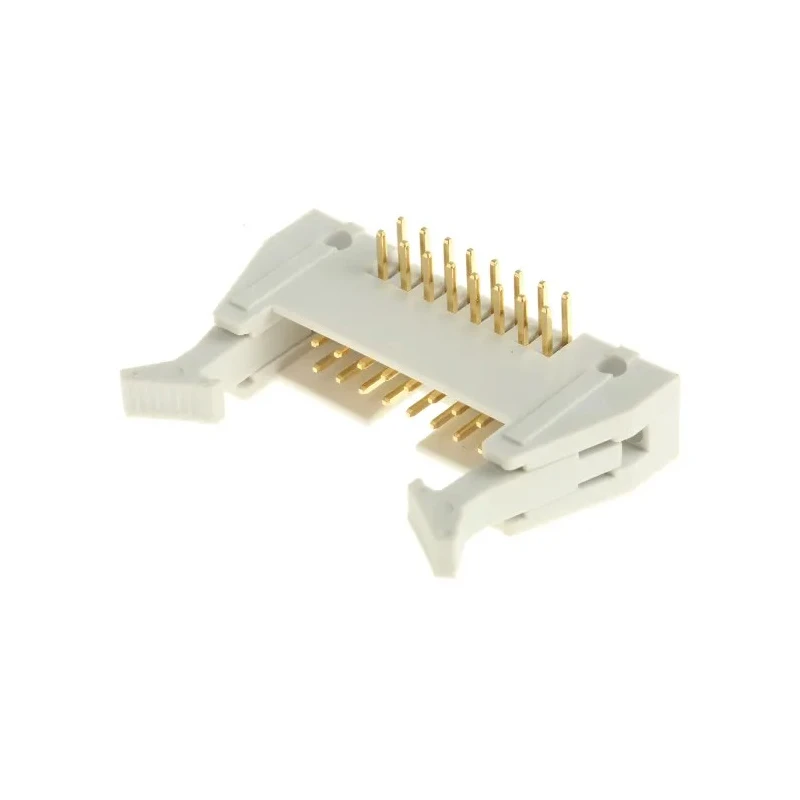

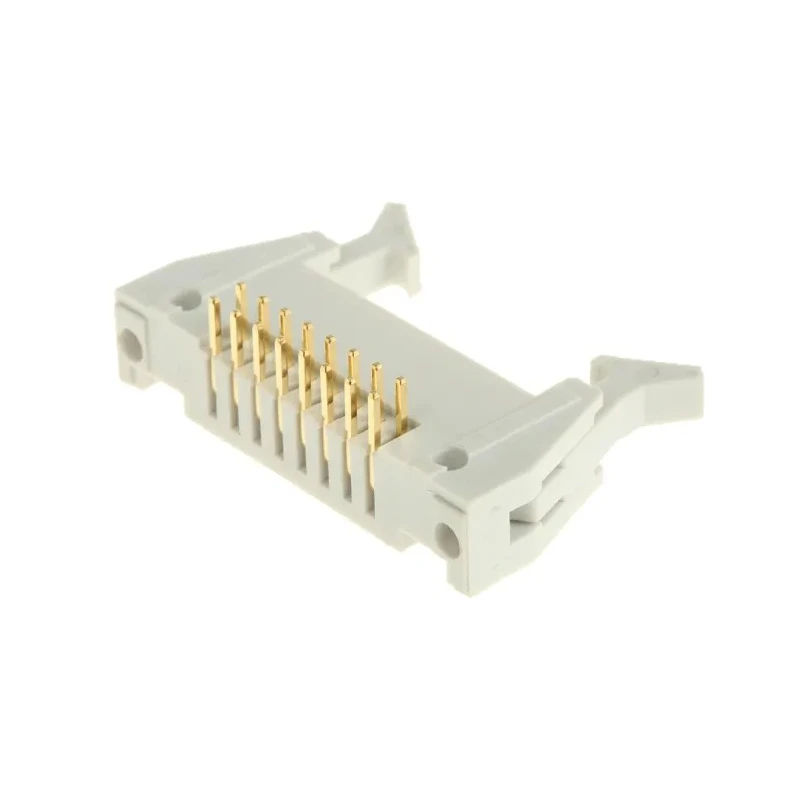

RS PRO Right Angle Through Hole PCB Header 16 Contacts 2.54 mm Pitch 2 Row Shrouded 471-121
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Orientation | Right Angle |
| Current | 1A |
| Model | 471-121 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -45°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- This PCB header has a right angle orientation for space-saving board layouts.
- It features 2 rows of 8 gold-plated brass contacts for reliable electrical connection.
- The housing is made from thermoplastic material and is fully shrouded for protection.
- The component is designed for through-hole mounting with solder termination.
- Operating temperature range from -45°C to 105°C ensures durability in various environments.
- Supports a maximum current of 1 ampere, suitable for low power signals.
- Manufactured in Taiwan, Province Of China to high industrial standards.
Product Description
RS PRO 471-121 Right Angle Through Hole PCB Header features 16 gold-plated brass male contacts arranged in 2 rows with a standard 2.54 mm pitch. This fully shrouded connector is manufactured with a durable thermoplastic housing designed to withstand operating temperatures from -45°C to a maximum of 105°C. The right angle orientation and through-hole mount type make it ideal for compact printed circuit board assemblies requiring secure and stable connections.
This PCB header supports a current rating of 1 ampere, making it suitable for typical signal and low-power applications in industrial automation, consumer electronics, medical devices, and prototype development. The gold plating on contacts ensures excellent corrosion resistance and reliable conductivity. The shrouded design with long ejection latches on either side provides robust mechanical protection and prevents bent pins during handling or insertion.
Produced in Taiwan, the component conforms to recognized industrial quality standards, making it a dependable choice for designers and manufacturers requiring high-quality PCB connectors. It is compatible with a wide range of compatible connectors conforming to BS9525-F0023 standards.
This PCB header has a right angle orientation for space-saving board layouts. It features 2 rows of 8 gold-plated brass contacts for reliable electrical connection. The housing is made from thermoplastic material and is fully shrouded for protection.
The component is designed for through-hole mounting with solder termination. Operating temperature range from -45°C to 105°C ensures durability in various environments. Supports a maximum current of 1 ampere, suitable for low power signals.
Manufactured in Taiwan, Province Of China to high industrial standards.
RS PRO provides a range of industrial-grade electronic components known for quality, durability, and value. Browse the PCB Headers category for compatible connectors and components designed for electronic assembly and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 1 ampere, making it suitable for low power signals.
The contacts in this model are arranged with a standard pitch of 2.54 mm.
The housing is made from thermoplastic material, and the contacts are made of brass with gold plating for reliable electrical connection.
This PCB header operates within a temperature range of -45°C to 105°C, ensuring durability in various environments.
It is designed for through-hole mounting with solder termination, providing secure installation on printed circuit boards.
This model features a total of 16 contacts arranged in 2 rows.
This PCB header has a right angle orientation, which is ideal for space-saving board layouts.
Yes, it is compatible with a wide range of connectors conforming to BS9525-F0023 standards.
It provides a male connection type with gold-plated contacts for improved conductivity and corrosion resistance.
This component is manufactured in Taiwan, Province Of China, adhering to high industrial standards.
The shrouded design with long ejection latches on either side provides robust mechanical protection and prevents bent pins during handling or insertion.
It is suitable for typical signal and low-power applications in industrial automation, consumer electronics, medical devices, and prototype development.
