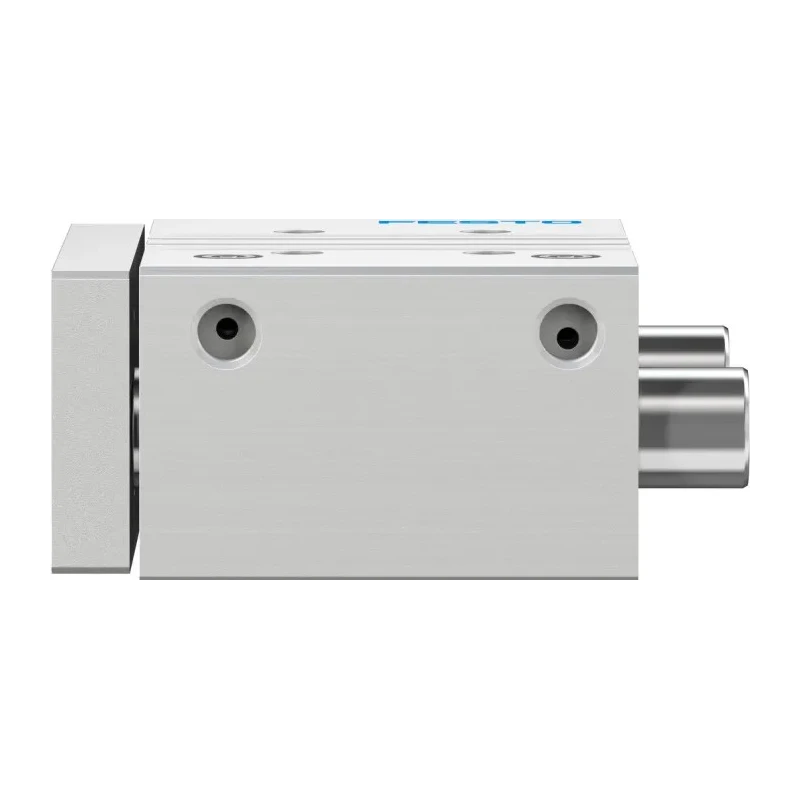

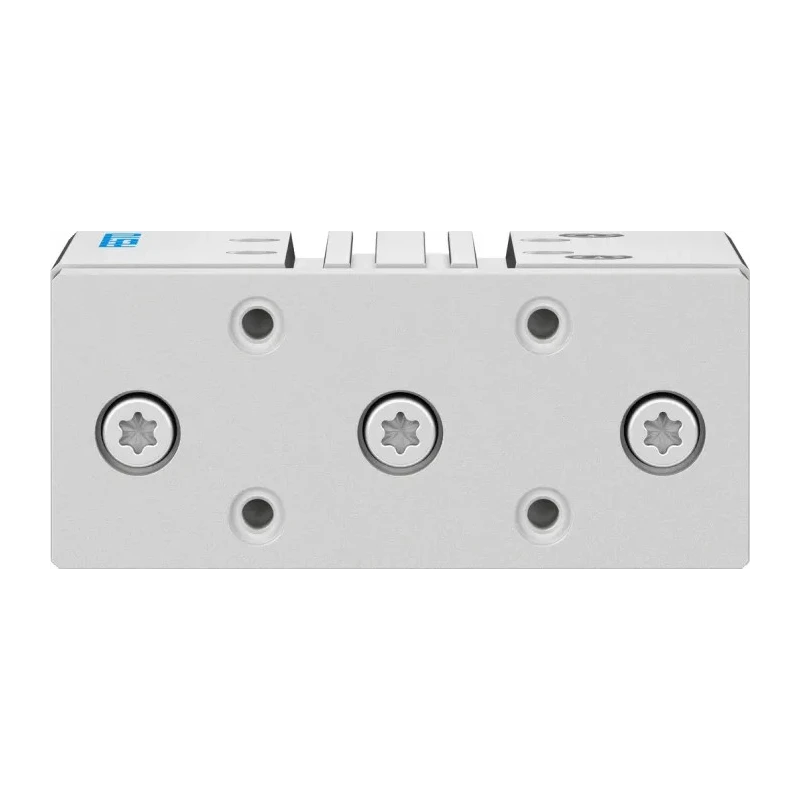

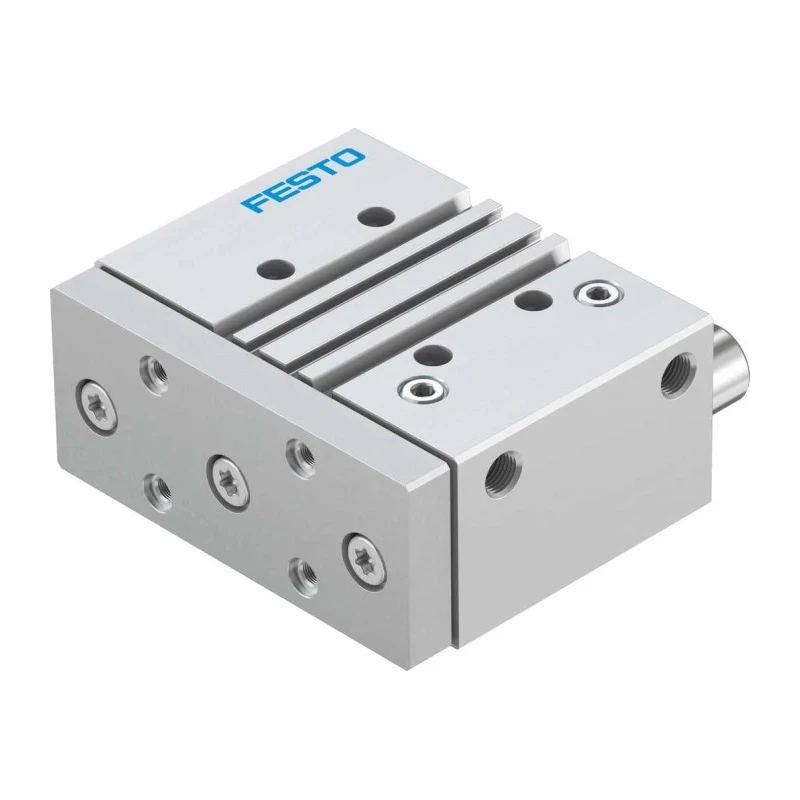

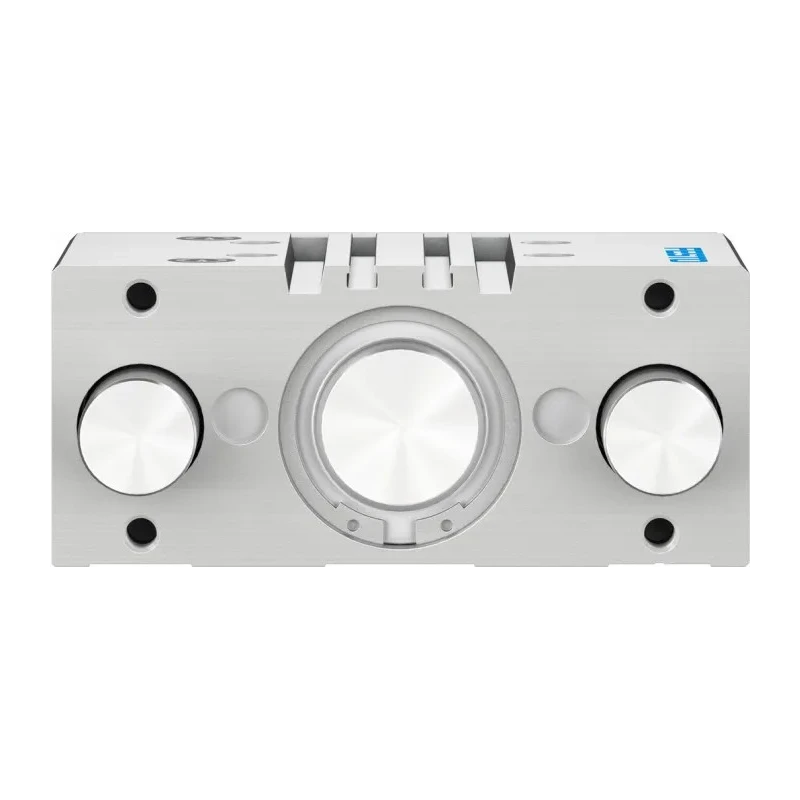

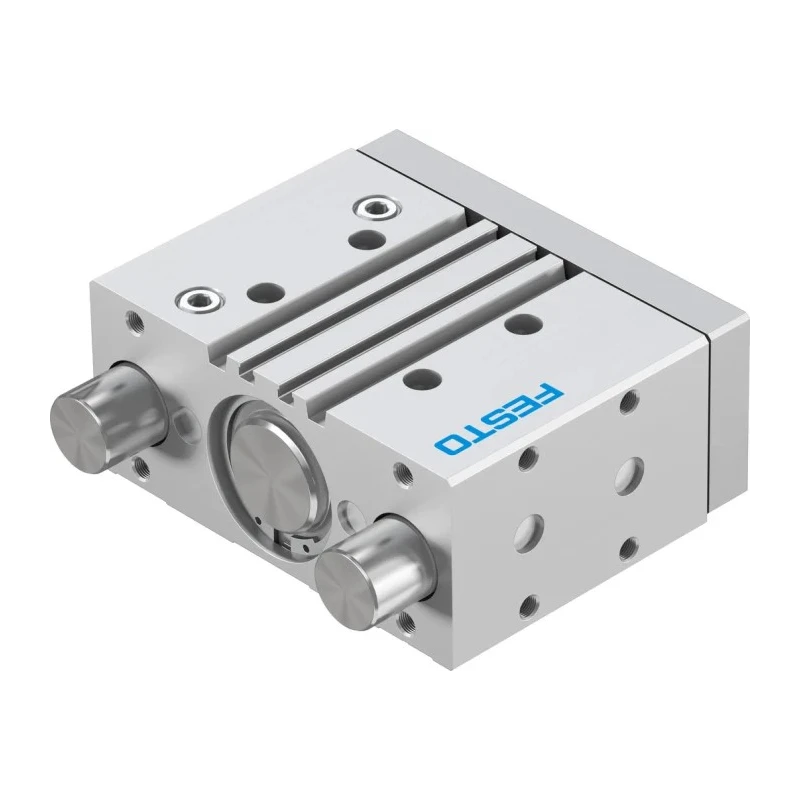

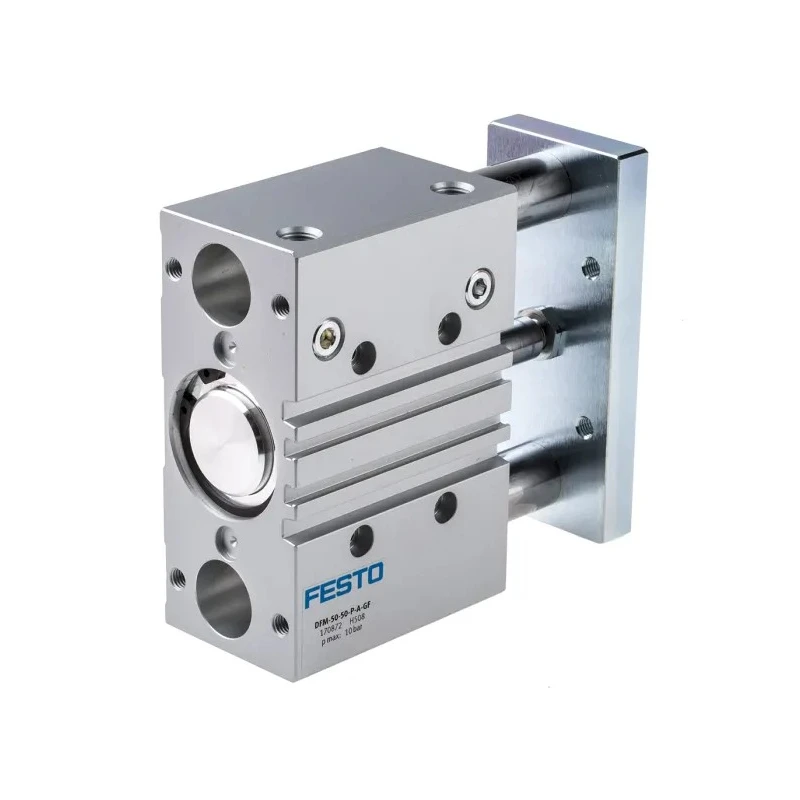

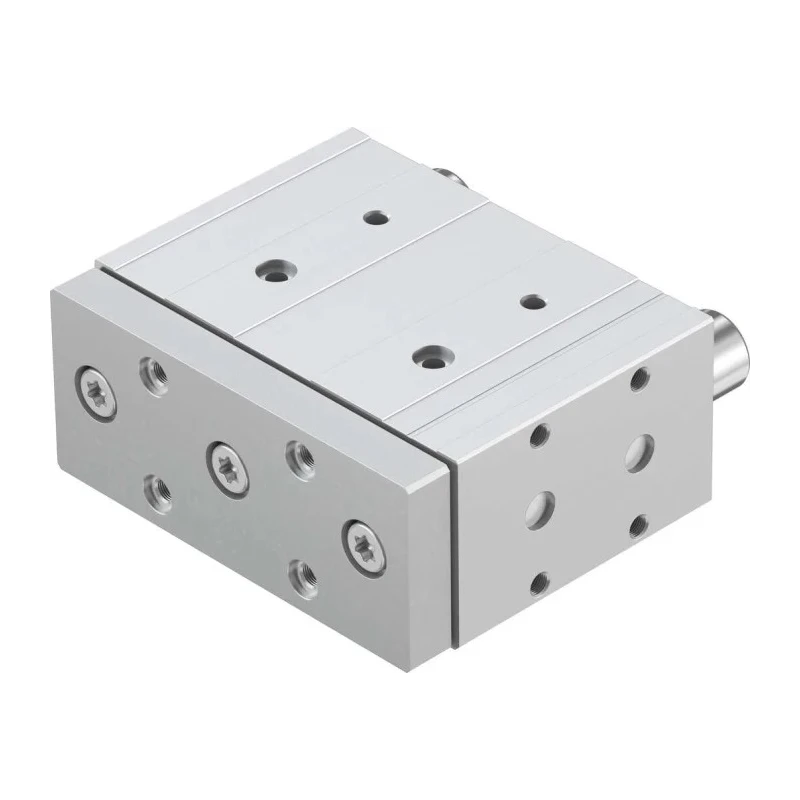

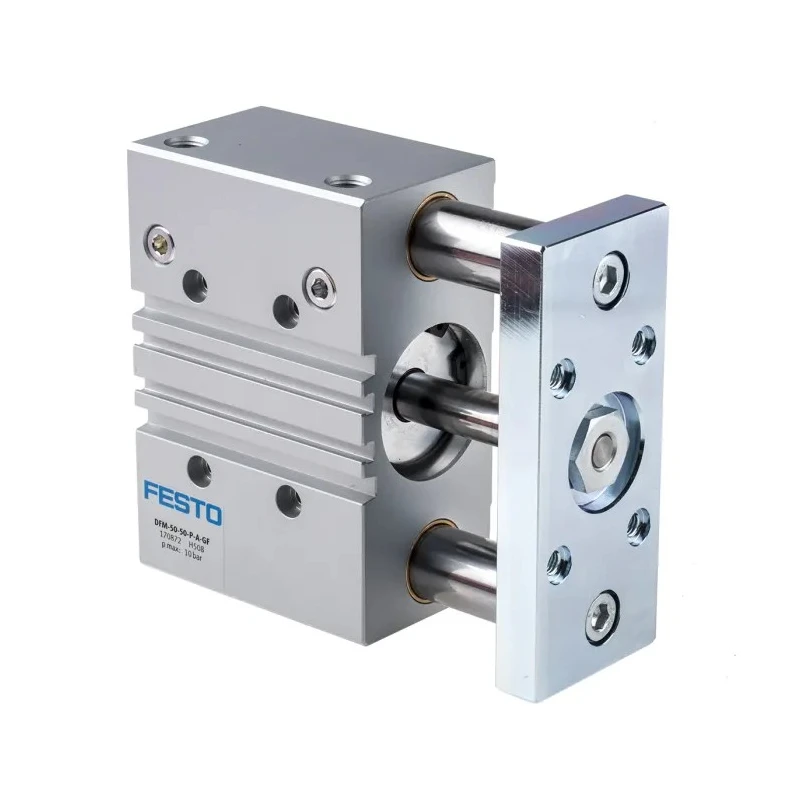

Festo Pneumatic Guided Cylinder DFM Series 50 mm Bore Double Acting Through Hole Mount 10 bar Pressure DFM-50-50-P-A-GF

Festo DFM-50-50-P-A-GF pneumatic guided cylinder from the DFM series is designed for precise and reliable double acting pneumatic motion in industrial automation.

This cylinder has a 50 mm bore diameter with a stroke length of 50 mm, capable of operating safely within a pressure range up to 10 bar. It features through hole mounting allowing flexible installation options, including the integration of proximity sensors via dedicated slots in the body.

The robust construction employs a combination of high alloy stainless steel for the piston rod, nitrile rubber, polyurethane, tempered steel, and a wrought aluminium alloy housing to provide excellent durability and corrosion resistance in demanding environments. The elastomer cushioning at both ends of the cylinder effectively absorbs impact to reduce noise, vibration, and wear.

Its single rod design with plain bearing guides ensures smooth operation suitable for applications requiring rigidity and accurate guiding, such as robotics systems, agricultural machinery, and oil and gas equipment. The operating temperature range from -20°C to +80°C makes it adaptable for various industrial conditions.

Maximum operating pressure of 10 bar for versatile pneumatic applications. Material composition enhances corrosion resistance and mechanical strength. Equipped with elastomer cushioning for quiet and reliable operation. Ideal for precise positioning and movement in industrial automation.

Compact dimensions: length 143 mm, width 148 mm, height 64 mm optimize system integration. Includes ISO 1179-1 and ISO 228-1 standard compliant piston rod threads. Weight of 4.1 kg balances ruggedness and ease of handling.

Manufactured in Germany, ensuring high quality and reliability.

This pneumatic guided cylinder is extensively used in oil and gas industry automation, agricultural equipment setups, and robotic systems for pushing, pulling, lifting, and lowering workpieces with precision.
