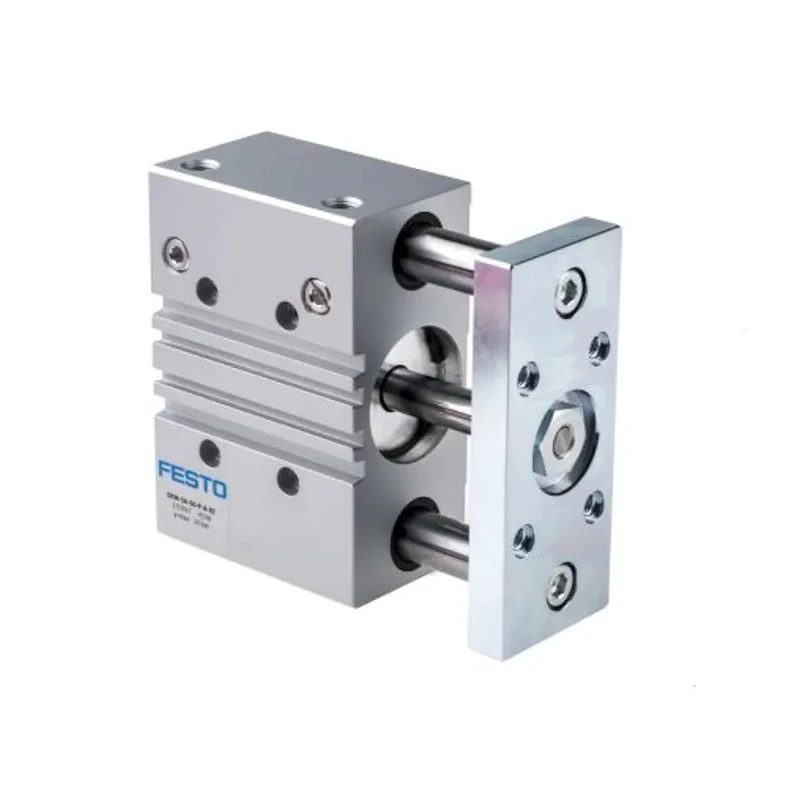

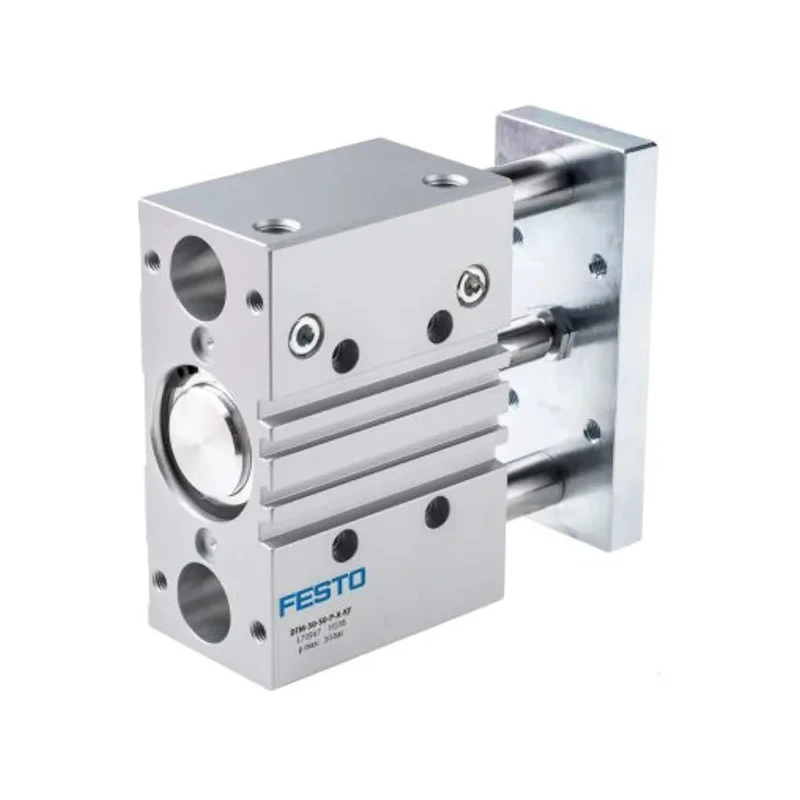

Festo Pneumatic Guided Cylinder Double Acting 50mm Bore 80mm Stroke Through Hole Mount DFM-50-80-P-A-KF

Festo DFM-50-80-P-A-KF pneumatic guided cylinder is a double acting drive and guide unit integrated into a single housing, designed for industrial pneumatic applications requiring high load capacity and precision. Featuring a 50mm bore diameter and 80mm stroke length, it offers powerful linear movement with exceptional resistance to torque loads due to its recirculating ball bearing guides and compact rigid aluminium construction.

This cylinder is constructed from high-quality wrought aluminium alloy, tempered steel, and stainless steel components, combined with polyurethane and nitrile rubber seals, offering durability and maintenance-free operation. The flexible elastomer cushioning enhances operational smoothness and reduces noise, extending the service life of the unit.

With a maximum operating pressure of 10 bar and temperature range between -5°C to 60°C, the Festo DFM cylinder is ideal for applications such as clamping, stopping, lifting, and material handling in industrial, manufacturing, and automation settings. Through hole mounting and multiple air supply ports on top and side provide adaptable installation options.

The guided cylinder offers reliable performance under lateral and torque forces, making it suitable for precise positioning tasks. Compact dimensions (194mm length × 148mm width × 64mm height) and a single rod design contribute to efficient space utilization in machinery.

Key features include ISO 228-1 and ISO 1179-1 piston rod thread standards, and compliance with ISO 8573-1:2010 air quality specifications. Weighing approximately 4.5kg, this new condition cylinder originates from Germany and meets RoHS requirements.

Double acting guided cylinder combining drive and guide in one unit. Recirculating ball bearings for torque load resistance and precision. Through hole mount and flexible air supply port positioning. Robust construction from aluminium alloy and tempered steel.

Flexible cushioning plates to reduce noise and increase lifespan. Operating temperature range of -5°C to 60°C for diverse environments. ISO standards compliance ensures quality and compatibility. Compact size fitting tight spaces in industrial machinery.

Suitable for clamping, lifting, stopping, and handling applications. Maintenance free and highly durable for long-term industrial use. Explore EnvMart’s selection of precision Pneumatic Guided Cylinders and actuators from Festo for robust automation solutions.
