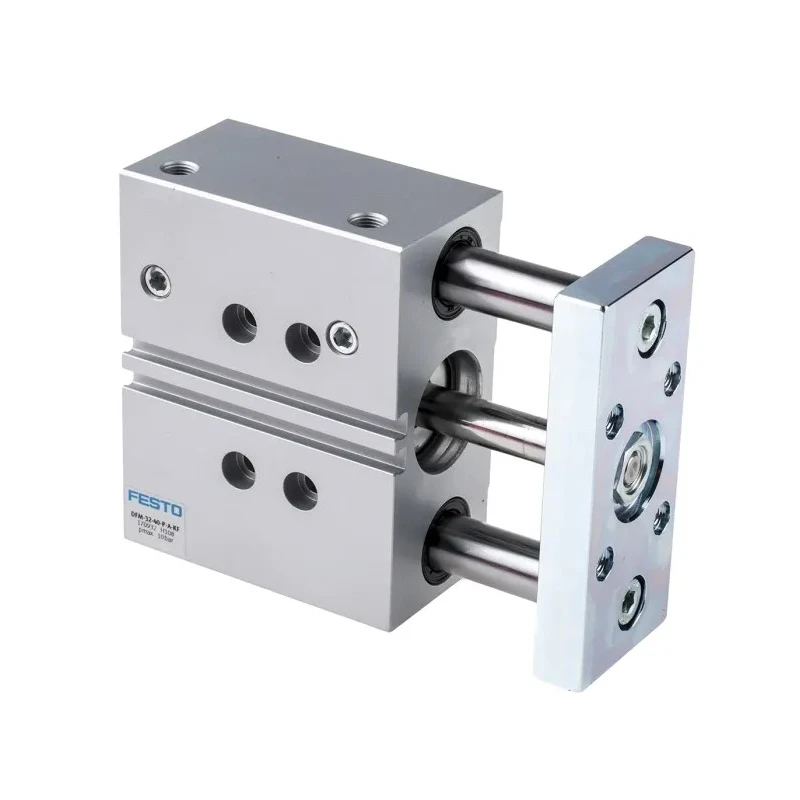

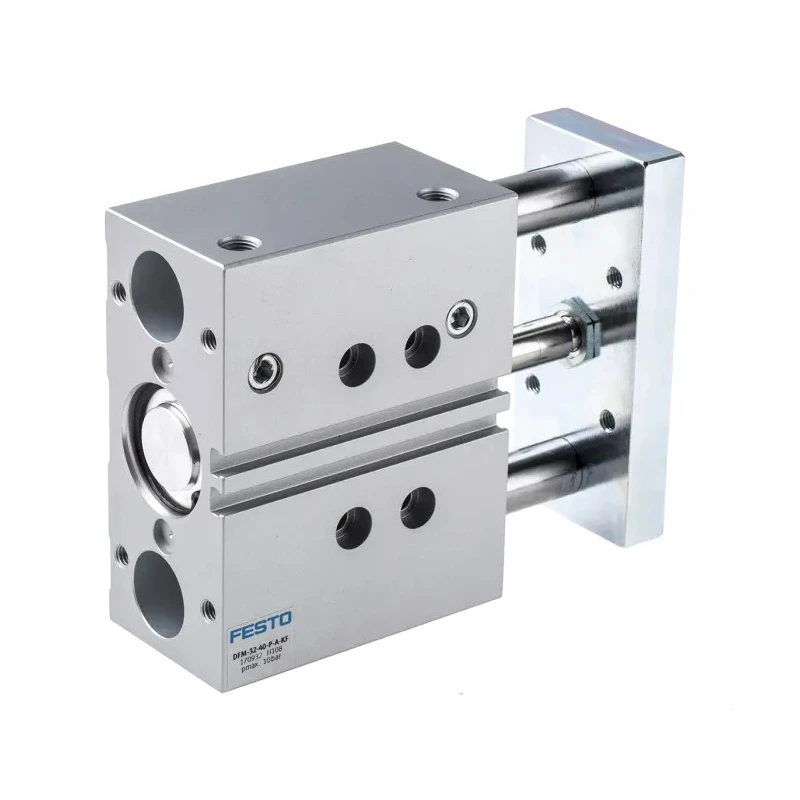

Festo Pneumatic Guided Cylinder DFM Series Double Acting 32mm Bore 40mm Stroke DFM-32-40-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | High Alloy Stainless Steel, Wrought Aluminium Alloy, Polyurethane, Nitrile Rubber (NBR), Tempered Steel |
| Maximum Operating Pressure | 10 bar |
| Height | 49mm |
| Length | 121mm |
| Model | DFM-32-40-P-A-KF |
| Gross Weight | 1.8kg |
| Width | 110mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 40mm |
| Bore Diameter | 32mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 1179-1 and ISO 228-1 |
| Cushioning Type | Elastomer |
| Guide Type | Plain Bearing, Ball Bearing |
Key Features
- Driven by recirculating ball bearings ideal for torque load applications.
- Compact and rigid aluminium construction offers high resistance to torque and lateral forces.
- Through hole mount type provides flexible installation options.
- Equipped with flexible cushioning plates to reduce operational noise and extend service life.
- Includes supply ports on the top and side for versatile mounting positions.
- Suitable for clamping, stopping, material handling, and lifting in industrial environments.
- Maintenance free with precise aluminium construction and integrated guide body.
- Operates reliably within a temperature range of -5°C to 60°C and pressure up to 10 bar.
Product Description
Festo DFM-32-40-P-A-KF Pneumatic Guided Cylinder from the DFM series features a 32mm bore and 40mm stroke length. This double acting cylinder combines drive and guide functions in a single housing, utilizing recirculating ball bearings to withstand torque loads efficiently. The sturdy aluminium alloy construction ensures high resistance to torque and lateral external forces, making it ideal for demanding industrial, manufacturing, and automation applications.
The cylinder has a through hole mount design for flexible and secure installation. It is equipped with elastomer cushioning plates to mitigate noise and improve durability during operation. Supply ports are provided both on the top and the side of the cylinder body, allowing versatile positioning in various machine layouts.
With a maximum operating pressure of 10 bar and capable of operating in temperatures ranging from -5°C to 60°C, this guided cylinder is suitable for clamping, lifting, stopping, and other pneumatic functions in fluid power systems. Its maintenance-free design and precision engineering make it a reliable component in pneumatic guided actuators.
Drive and guide unit integrated in a single housing. Recirculating ball bearings support applications with torque loads. Compact rigid aluminium construction offers high durability. Flexible cushioning plates reduce noise and extend service life.
Top and side air supply ports for flexible mounting options. Through hole mount type ensures adaptable installation. Operating temperature range from -5°C to 60°C. Maximum operating pressure of 10 bar.
This guided cylinder is engineered for industrial automation, manufacturing, material handling, and other pneumatic-driven applications requiring precision, reliability, and resistance to external forces. It is manufactured in Germany under Festo’s high standards of quality.
Explore the full range of Pneumatic Guided Cylinders at EnvMart to find compatible components and accessories for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 32mm.
The stroke length is 40mm.
It has a maximum operating pressure of 10 bar.
This model operates reliably within a temperature range of -5°C to 60°C.
It is equipped with elastomer cushioning plates to reduce noise and extend service life.
The dimensions are 121mm in length, 110mm in width, and 49mm in height.
It features a through hole mount type for flexible installation options.
The body is made from high alloy stainless steel, wrought aluminium alloy, polyurethane, nitrile rubber (NBR), and tempered steel.
It complies with ISO 1179-1 and ISO 228-1 standards.
This model features a double acting action type.
It is suitable for clamping, stopping, material handling, and lifting in industrial environments.
