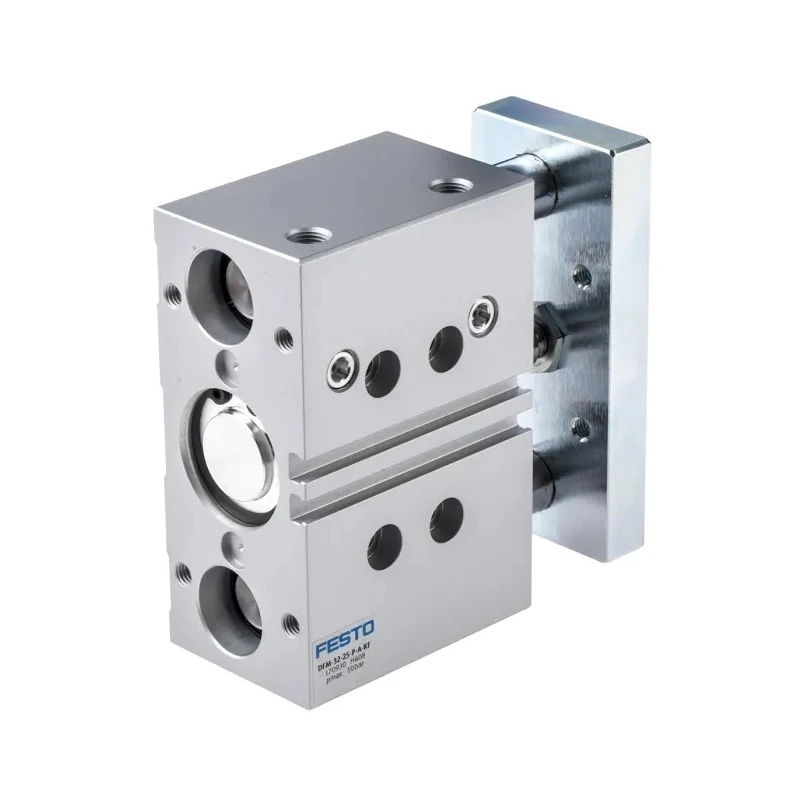

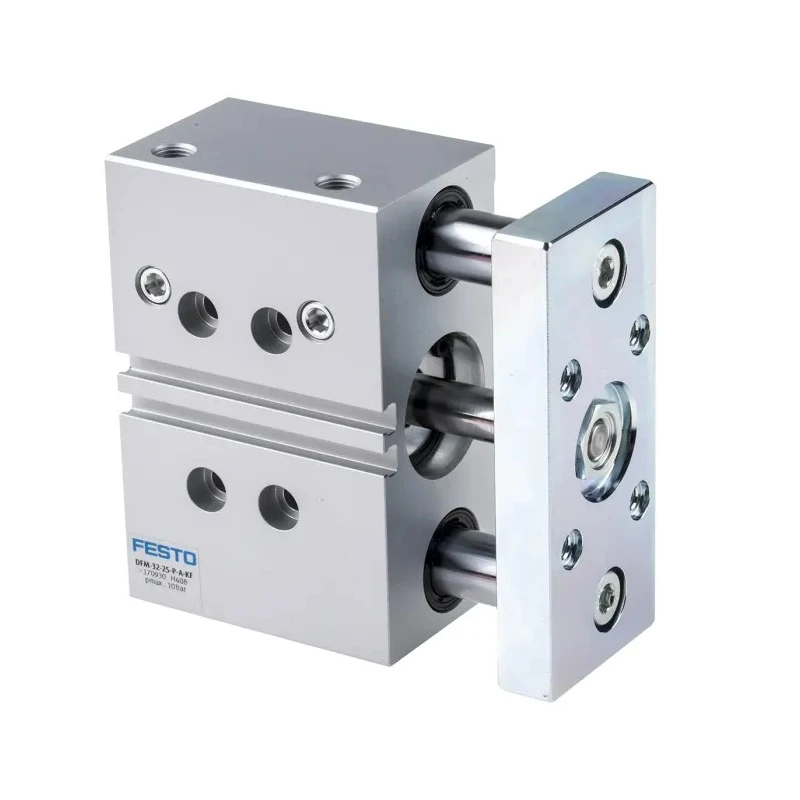

Festo Pneumatic Guided Cylinder 32mm Bore, DFM Series, 25 mm Stroke, Double Acting, 10 bar Pressure, Model DFM-32-25-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Maximum Operating Pressure | 10 bar |
| Height | 49mm |
| Length | 106mm |
| Model | DFM-32-25-P-A-KF |
| Gross Weight | 1.6kg |
| Width | 110mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 25mm |
| Bore Diameter | 32mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Elastomer |
| Guide Type | Ball Bearing, Plain Bearing |
| Piston Rod Thread Standard | ISO 228-1, ISO 1179-1 |
| Piston Rod Thread Size | 12 mm |
| Standards/Approvals ISO 1179-1, ISO 228-1, ISO 8573-1 | 2010 (7:4:4), RoHS |
Key Features
- The cylinder combines drive and guide units with recirculating ball bearings for torque load resistance.
- Designed for high load pneumatic tasks such as clamping, stopping, material handling, and lifting.
- Compact and maintenance-free aluminium construction with high resistance to torque and lateral forces.
- Flexible cushioning plates minimize noise and extend service life during operation.
- Air supply ports on both top and side offer flexible mounting and positioning options.
- Integrated slots allow for proximity sensor installation to monitor piston linear motion.
- Suitable for industrial uses including manufacturing, construction, and automation processes.
- Operating temperature range from -5°C to 60°C.
Product Description
Festo DFM-32-25-P-A-KF pneumatic guided cylinder from the DFM Series is a highly reliable industrial actuator combining drive and guide components in a single housing. It features a 32 mm bore diameter and a 25 mm double acting stroke, suitable for demanding pneumatic applications where torque and lateral forces are present.
The cylinder uses recirculating ball bearings to drive guide rods, making it ideal for loads requiring precise guiding such as clamping, stopping, lifting, and material handling. The robust aluminium construction is maintenance free and offers high resistance to external mechanical stresses.
Flexible elastomer cushioning plates reduce operational noise and enhance the service life of the cylinder. Its compact design includes air supply ports on both the top and the side, enabling adaptable installation configurations. Additionally, integrated slots allow for the use of proximity sensors to accurately measure piston movement.
This guided actuator operates within a temperature range of -5°C to 60°C and supports a maximum operating pressure of 10 bar. The piston rod is single type with a 12 mm thread size compliant with ISO 228-1 and ISO 1179-1 standards.
Industrially suitable for applications in manufacturing automation, construction machinery, and material handling systems, this pneumatic guided cylinder meets stringent standards such as ISO 1179-1, ISO 228-1, ISO 8573-1:2010, and RoHS compliance. The product's origin is Germany, ensuring premium manufacturing quality.
The cylinder integrates drive and guide units for combined operation. Recirculating ball bearings allow effective handling of torque loads. Compact aluminium construction with high mechanical resistance. Flexible cushioning reduces noise and prolongs lifespan.
Air ports on top and side provide mounting versatility. Integrated slots for proximity sensor attachment. Operating temperature range: -5°C to 60°C. Maximum operating pressure of 10 bar. Compliant with ISO and RoHS standards.
Explore the Festo Pneumatic Guided Cylinder range and other pneumatic actuators for enhanced industrial automation solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
This unit has a stroke length of 25 mm.
The bore diameter of this cylinder is 32 mm.
The dimensions are 106 mm in length, 110 mm in width, and 49 mm in height.
It operates as a double acting cylinder.
The cylinder features a compact and maintenance-free aluminium construction.
The operating temperature range is from -5°C to 60°C.
It uses elastomer cushioning to minimize noise and extend service life during operation.
It is compliant with ISO 1179-1, ISO 228-1, ISO 8573-1:2010, and RoHS standards.
This cylinder uses a combination of ball bearing and plain bearing for guiding.
Yes, it includes integrated slots that allow for the installation of proximity sensors to monitor piston linear motion.
The gross weight of this model is 1.6 kg.
