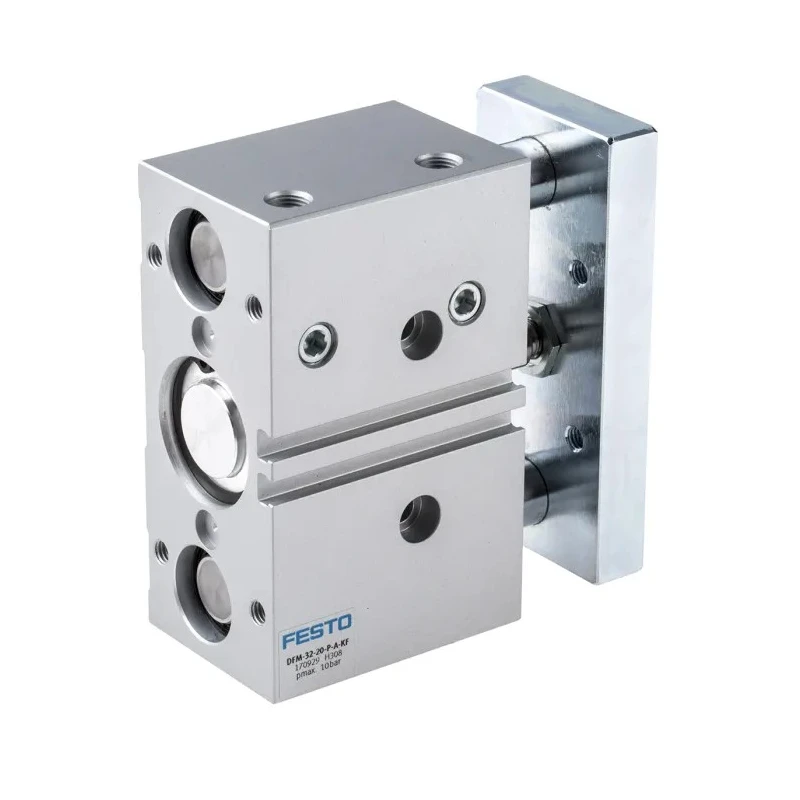

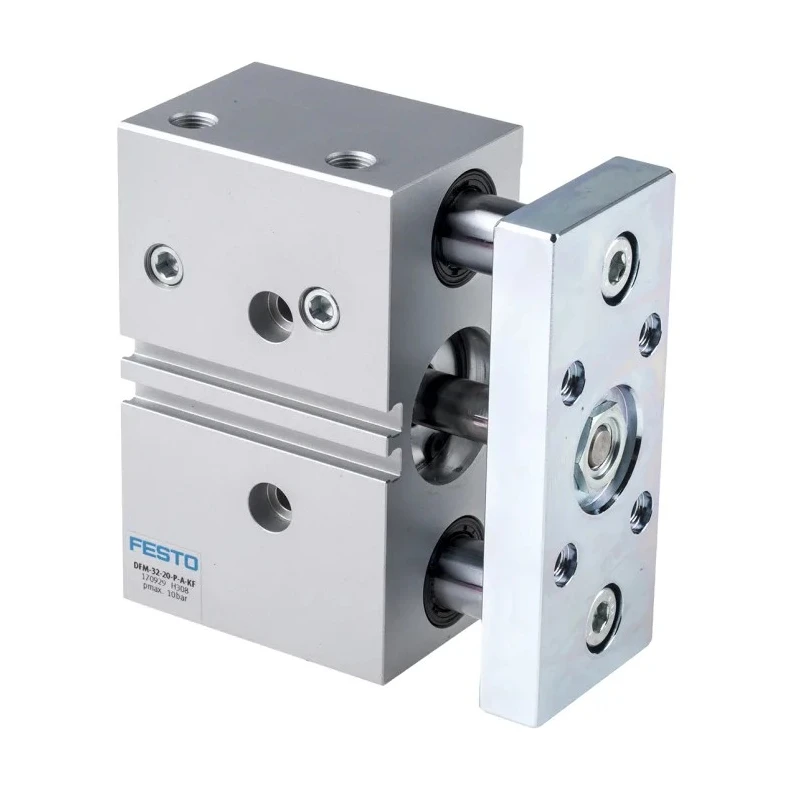

Festo Pneumatic Guided Cylinder 32mm Bore Double Acting Through Hole Mount 10 bar Pressure DFM-32-20-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Nitrile Rubber (NBR), Polyurethane, Tempered Steel, Wrought Aluminium Alloy, High Alloy Stainless Steel |
| Maximum Operating Pressure | 10 bar |
| Height | 49mm |
| Length | 101mm |
| Model | DFM-32-20-P-A-KF |
| Gross Weight | 1.6kg |
| Width | 110mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 20mm |
| Bore Diameter | 32mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Elastomer |
| Guide Type | Plain Bearing, Ball Bearing |
| Piston Rod Thread Standard | ISO 228-1, ISO 1179-1 |
Key Features
- The cylinder supports a maximum operating pressure of 10 bar for robust industrial performance.
- Constructed with nitrile rubber, polyurethane, tempered steel, wrought aluminium alloy, and high alloy stainless steel ensuring durability.
- Equipped with elastomer cushioning and ball bearings for quiet operation and high resistance to torque and lateral forces.
- Suitable for temperatures ranging from -5°C to 60°C for versatile applications.
- Compact dimensions with 101mm length, 110mm width, and 49mm height facilitate installation in constrained spaces.
- The piston rod follows ISO 228-1 and ISO 1179-1 thread standards for compatibility.
- Maintenance free design with flexible cushioning plates to extend service life.
- Includes supply ports on top and side to enable flexible mounting orientations.
Product Description
Festo DFM-32-20-P-A-KF pneumatic guided cylinder is a high-precision actuator featuring a 32mm bore and a 20mm stroke. This double acting cylinder integrates drive and guide units in a single compact housing, making it well-suited for industrial automation tasks requiring reliable linear motion.
The cylinder’s construction uses durable materials including nitrile rubber (NBR), polyurethane, tempered steel, wrought aluminium alloy, and high alloy stainless steel. This robust build ensures high resistance to torque and lateral external forces, offering maintenance-free operation in demanding environments.
Featuring elastomer cushioning and ball bearings, the cylinder operates quietly and smoothly at a maximum piston speed of 0.8 mm/s. Its through hole mount type and flexible supply port locations provide ease of installation and versatility for pneumatic systems.
The DFM series guided cylinders are ideal for applications such as clamping, stopping, lifting, and material handling in industrial manufacturing, automation, and mechanical processing settings. The integrated slots allow proximity sensors installation to measure piston position accurately.
The compact rigid aluminium housing ensures high precision and durability. Recirculating ball bearings support operations involving torque loads for improved reliability. Flexible cushioning plates reduce operational noise and extend the cylinder’s lifespan.
Operating temperature range from -5°C to 60°C supports diverse environmental conditions. Adheres to standards including RoHS and ISO 8573-1:2010 (7:4:4), ensuring quality and compliance. Dimensions: Length 101 mm, Width 110 mm, Height 49 mm; Gross Weight: 1.6 kg.
This model is manufactured in Germany, reflecting Festo's engineering excellence. Suitable for industrial and manufacturing pneumatic applications requiring precise guided motion control.
Explore more products in Pneumatic Guided Cylinders to find compatible components and system accessories for your pneumatic automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic guided cylinder is 10 bar.
This model has a stroke length of 20mm.
The dimensions of this cylinder are 101mm in length, 110mm in width, and 49mm in height.
The bore diameter of this model is 32mm.
It can operate within a temperature range of -5°C to 60°C.
This pneumatic cylinder uses elastomer cushioning for smooth operation and noise reduction.
The cylinder is constructed from nitrile rubber, polyurethane, tempered steel, wrought aluminium alloy, and high alloy stainless steel.
This model supports through hole mounting for versatile installation options.
The gross weight of this cylinder is 1.6 kg.
It adheres to RoHS and ISO 8573-1:2010 (7:4:4) standards, ensuring quality and compliance.
This model features a double acting action type, allowing for versatile motion control.
The rod type used in this model is a single rod.
