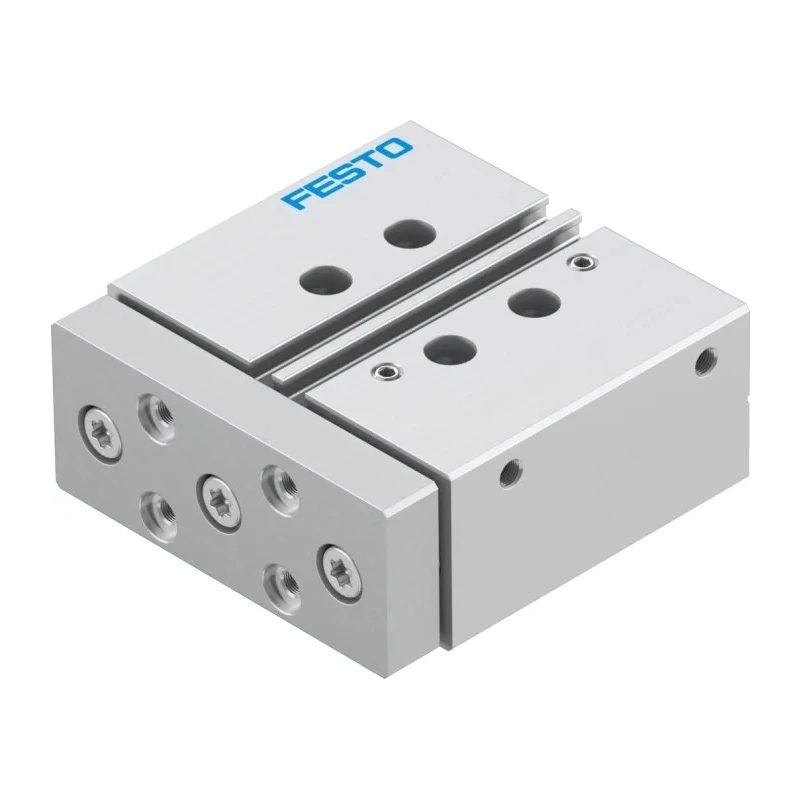

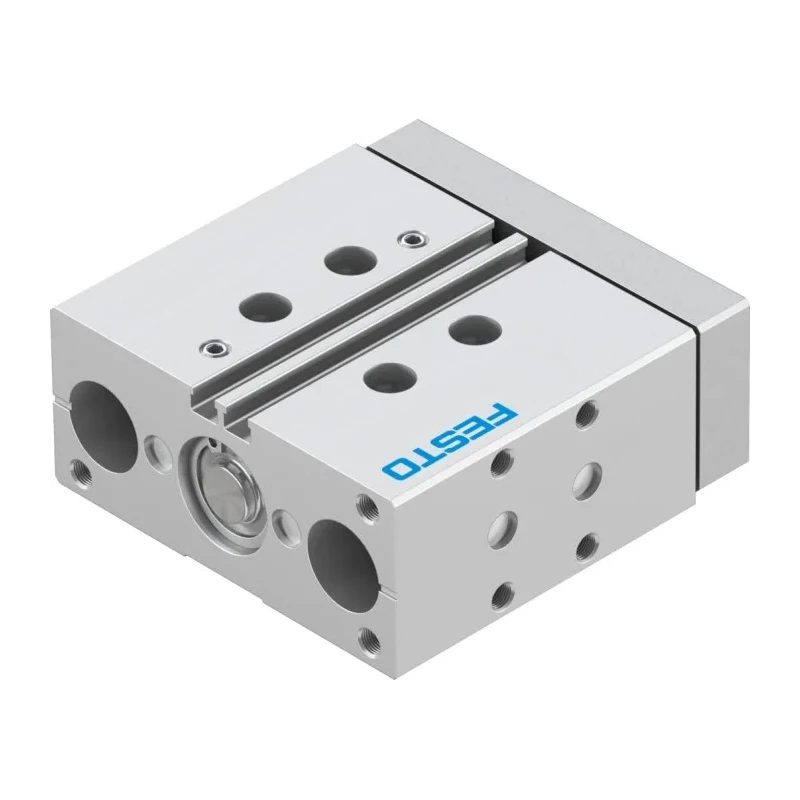

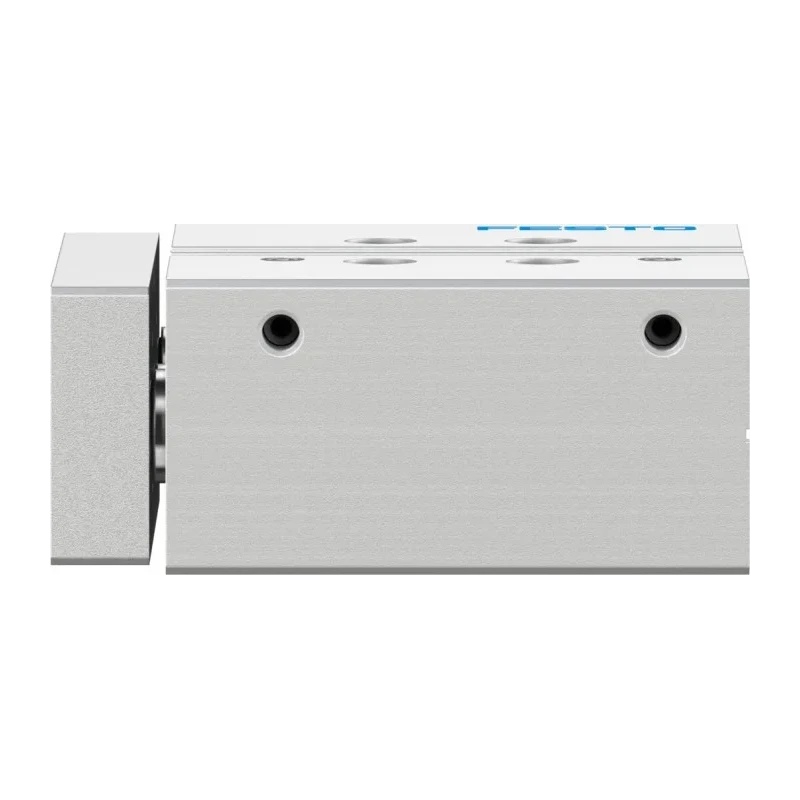

Festo Pneumatic Guided Cylinder DFM Series 20mm Bore, 30mm Stroke Double Acting with Elastic Cushioning and DFM-20-30-P-A-GF

Festo DFM-20-30-P-A-GF Pneumatic Guided Cylinder from the DFM Series is engineered for precise linear motion control in industrial automation applications. This pneumatic guided cylinder features a 20mm bore and a 30mm stroke length within a double acting mechanism that allows both push and pull actions for versatile motion control. Manufactured from anodised wrought aluminium alloy, the body offers excellent structural integrity and corrosion resistance, ensuring durability in demanding environments.

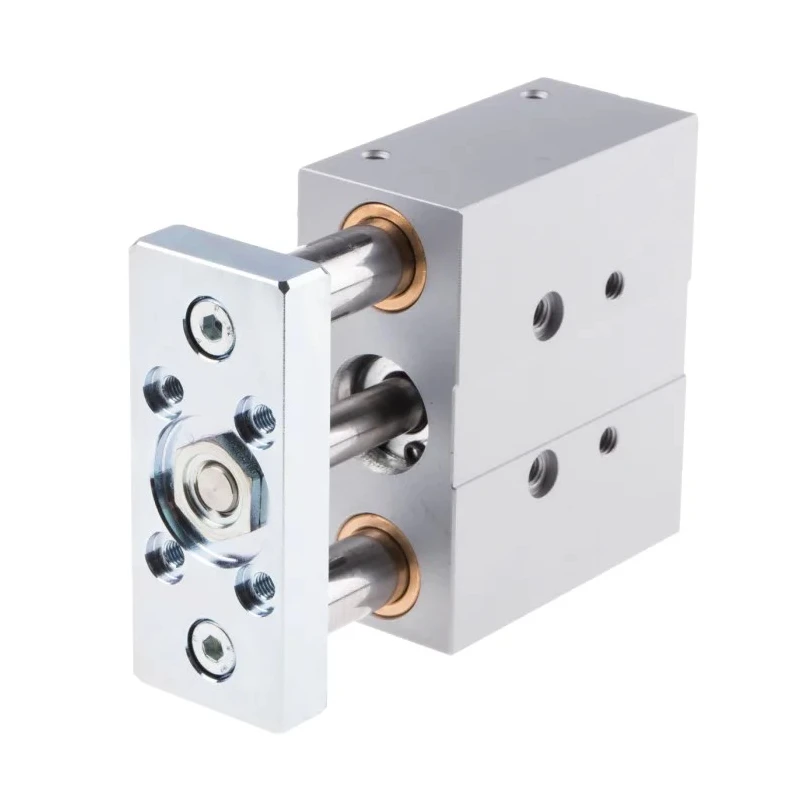

The cylinder employs a plain bearing guide system that significantly reduces lateral movement of the rod, providing guided and stable actuation. The elastic cushioning rings at the stroke ends provide smooth deceleration, enhancing operational precision and minimizing mechanical shock. It is capable of withstanding maximum operating pressures up to 10 bar, making it suitable for a variety of pneumatic systems requiring robust loading capacity.

Designed with user convenience in mind, this pneumatic guided cylinder includes through-hole mounting provisions to directly secure the unit to machine frames or subplates for sturdy integration. It operates efficiently within a broad temperature range from -20°C to 80°C, suitable for diverse industrial environments.

The compact physical footprint of 85 mm length, 83 mm width, and 36 mm height combined with its relatively light weight of 850 grams facilitates easy incorporation into space-constrained automation setups. This model is ideal for precision applications such as pick-and-place stations, clamping and locating fixtures, robotic short-travel positioning, and other handling equipment requiring guided motion.

Constructed from anodised wrought aluminium alloy for corrosion resistance. Double acting pneumatic operation for push and pull control. Plain bearing guide reduces lateral play for precise guided motion. Elastic cushioning rings provide smooth stroke deceleration.

Supports maximum operating pressure of 10 bar. Through-hole mounting for secure system integration. Compact size and lightweight design enable flexible installation. Operates within temperature range of -20°C to 80°C.

This Festo pneumatic guided cylinder is suitable for various applications in industrial tools and equipment sectors including manufacturing automation, material handling, and robotics. It is a robust component for fluid power and pneumatic driven systems. For exploring a wide range of pneumatic components and accessories, you can browse the Pneumatic Guided Cylinder category at EnvMart.
