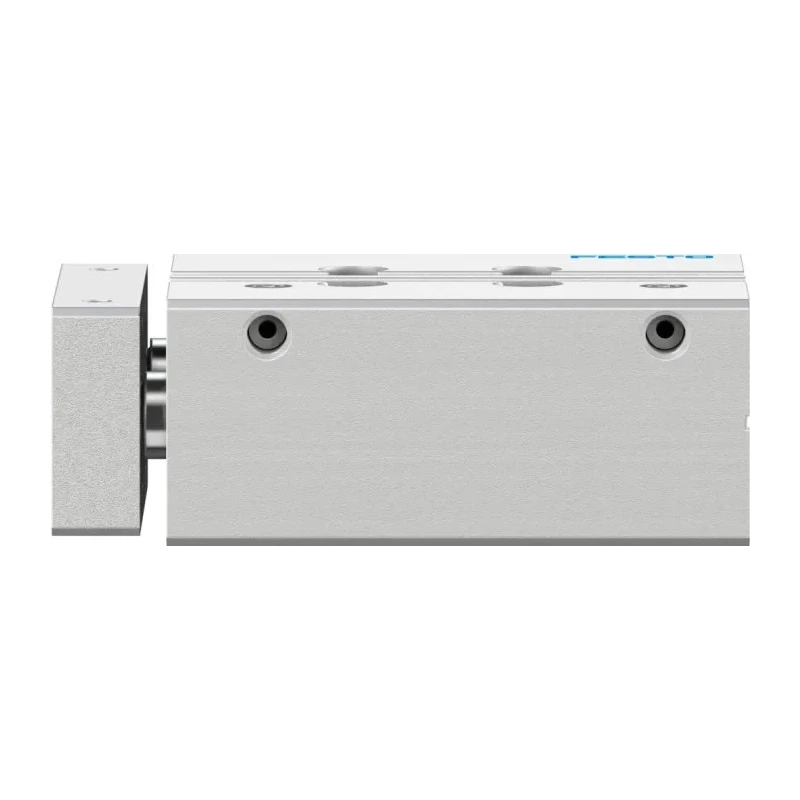

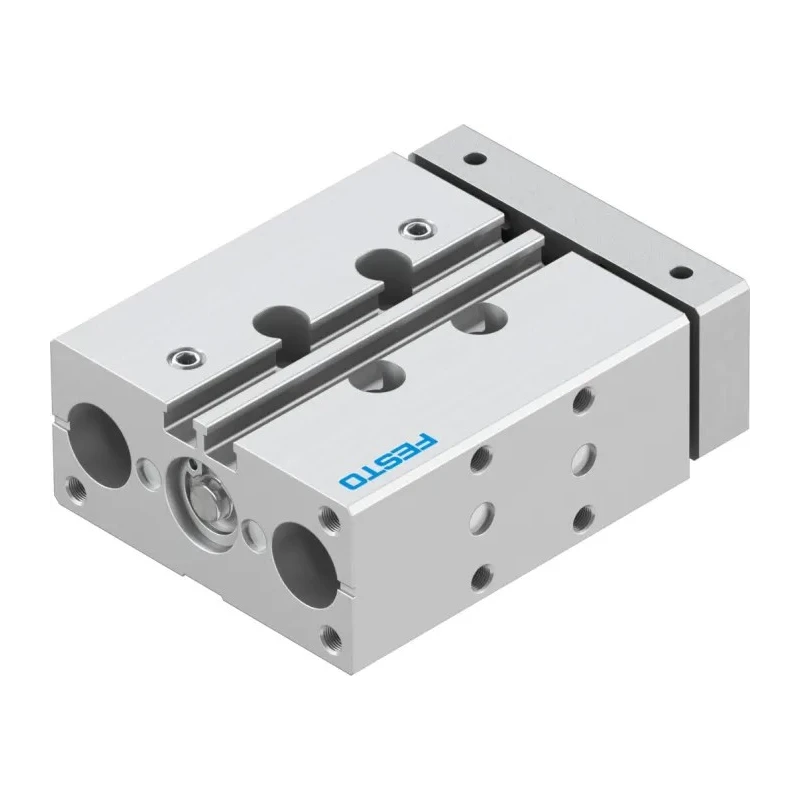

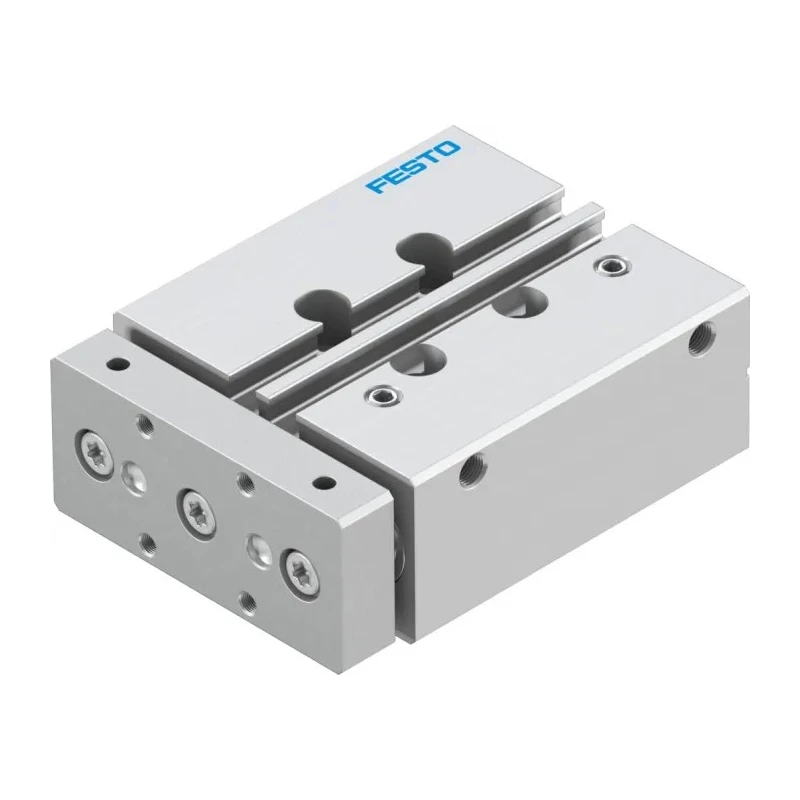

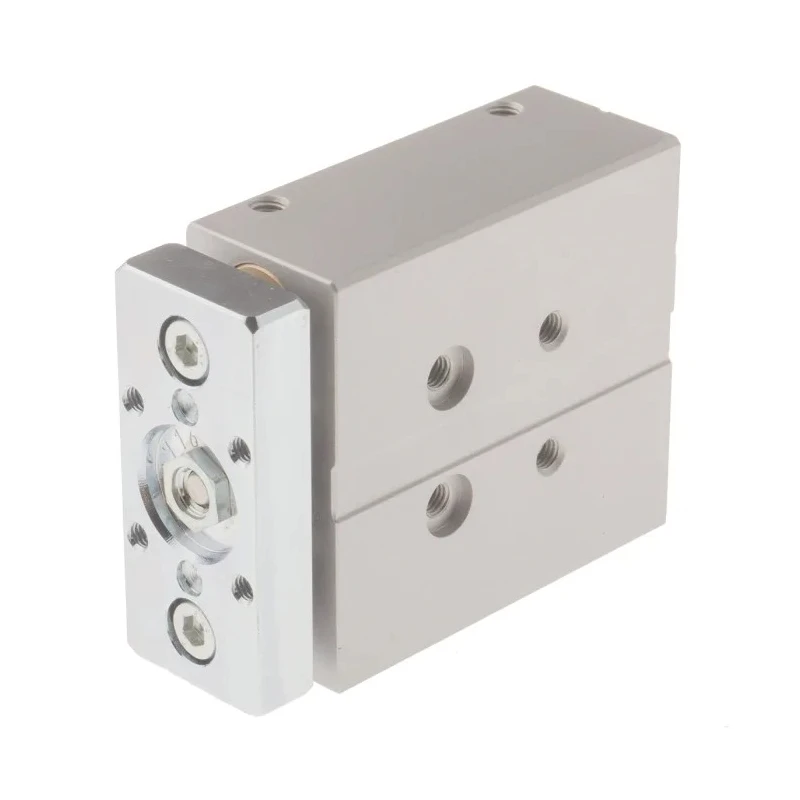

Festo Pneumatic Guided Cylinder 12mm Bore 30mm Stroke Double Acting Through Hole Mount DFM-12-30-P-A-GF

Festo DFM-12-30-P-A-GF Pneumatic Guided Cylinder is a high-precision double-acting pneumatic actuator featuring a 12mm bore and 30mm stroke length. Designed for guided linear motion, it ensures controlled lateral stability and repeatable stroke cycles in pneumatic automation systems.

The cylinder's body is made from wrought aluminium alloy, lending strength while maintaining lightweight and corrosion resistance for long-term industrial use. It operates effectively within a temperature range of -20°C to 80°C and withstands maximum operating pressures up to 10 bar.

This model uses a through-hole mount system for secure fixing to machine frames or plates. The double-acting piston rod with an M5 thread allows precise push and pull motions, supported by elastic cushioning rings that provide shock absorption and impact reduction at travel limits. The plain bearing type guide ensures smooth lateral guidance and wear resistance, making it suitable for repetitive high-speed cycles with a maximum piston speed of 0.8 m/s.

Typical applications include pick-and-place assemblies requiring guided end-of-stroke control, cleanroom environments needing particulate control, compact clamping in automated production, lateral guidance in transfer mechanisms, and positioning of components in laboratory automation equipment.

12mm bore with precise M5 piston rod for optimal actuation force. Double acting operation for versatile push and pull movement. Through-hole mount for reliable installation and alignment. Maximum operating pressure of 10 bar for industrial pneumatic systems.

Elastic cushioning minimizes impact, prolonging component life. Plain bearing design offers smooth, wear-resistant guidance. Lightweight, corrosion-resistant aluminium alloy construction. Supports maximum piston speed of 0.8 m/s for fast cycle times.

Operates in temperatures from -20°C to 80°C for diverse environments. Single rod with M5 threaded piston rod suitable for multiple fittings.

This pneumatic guided cylinder is ideal for industrial, mechanical, laboratory, and manufacturing applications. Its robust construction and precise control make it a preferred choice for automation systems requiring clean, reliable, and repeatable linear movements.
