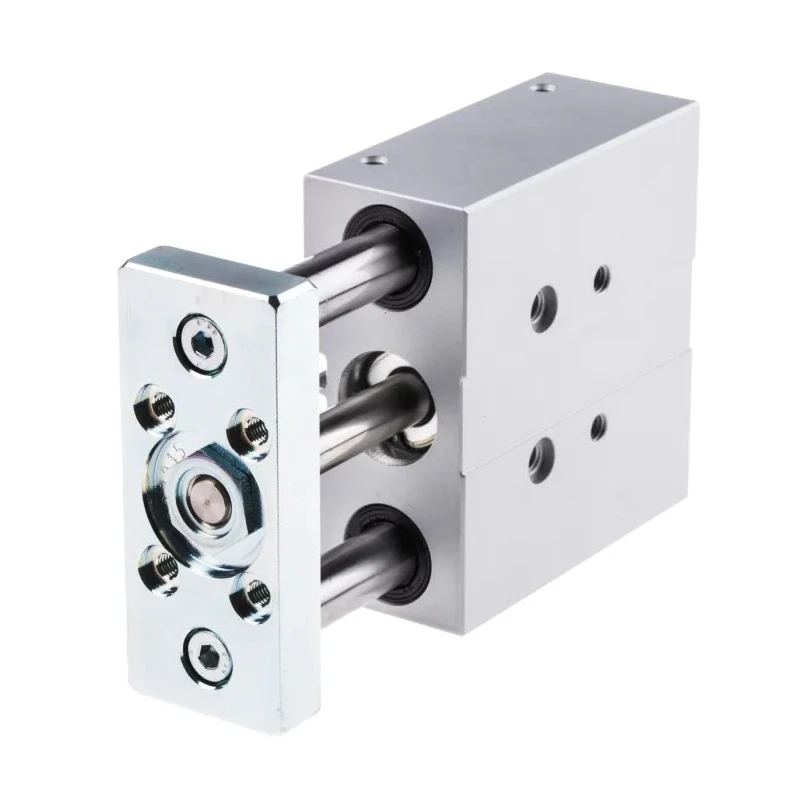

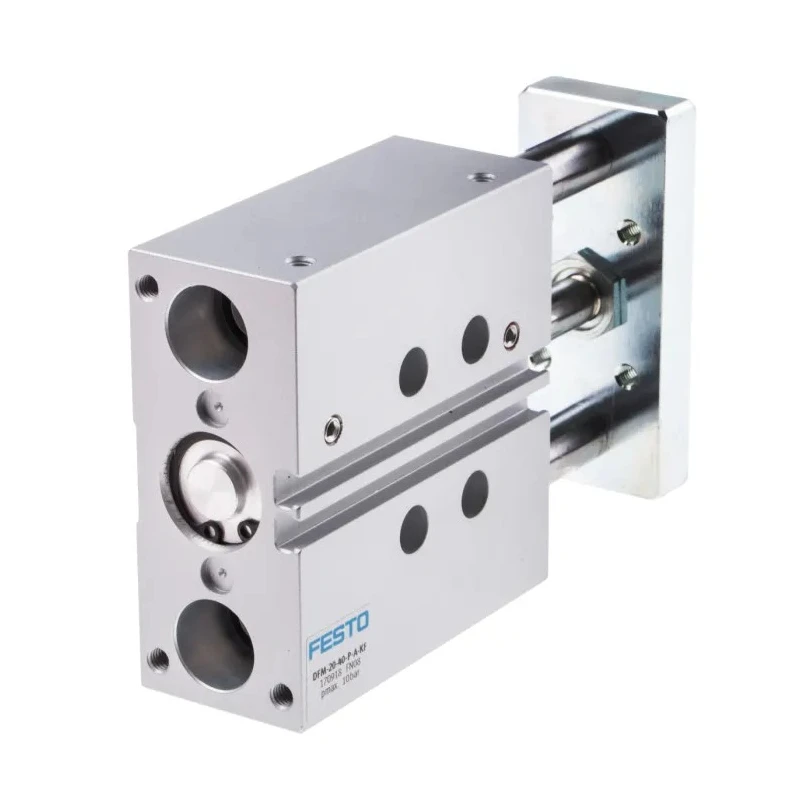

Festo Pneumatic Guided Cylinder 20mm Bore, DFM Series, Double Acting, 40mm Stroke, Through Hole Mount DFM-20-40-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Anodised Wrought Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 36mm |
| Length | 121mm |
| Model | DFM-20-40-P-A-KF |
| Gross Weight | 967g |
| Width | 83mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 40mm |
| Bore Diameter | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 228-1, ISO 1179-1, RoHS |
| Cushioning Type | Elastomer |
| Guide Type | Ball Bearing, Plain Bearing |
Key Features
- Features a robust anodised aluminium alloy body with ball and plain bearing guide types.
- Operates at a maximum pressure of 10 bar with a 40 mm stroke length.
- Equipped with elastomer cushioning plates for noise reduction and extended service life.
- Supports flexible mounting with through-hole mount and air supply ports on top and side.
- Designed for applications requiring high resistance to torque and lateral forces.
- Functions reliably between operating temperatures of -5°C to 60°C.
- Includes integrated slots for proximity sensors to monitor piston linear motion.
Product Description
Festo DFM-20-40-P-A-KF pneumatic guided cylinder delivers a compact, durable double acting drive and guide unit combining a 20 mm bore with a 40 mm stroke length. Designed for demanding industrial, manufacturing, and automation applications, its anodised wrought aluminium alloy body ensures lightweight rigidity and resistance to lateral and torque forces.
This guided cylinder features ball bearing and plain bearing guides with circulating ball bearings that facilitate smooth operation under torque loads. The elastomer cushioning plates reduce operational noise and enhance longevity. The unit includes versatile through-hole mounting and multiple air supply port options for convenient installation.
Operating within a pressure range up to 10 bar and temperature range from -5°C to 60°C, this cylinder performs reliably in clamping, stopping, material handling, and lifting tasks requiring precise linear motion control. Its maintenance-free design and integrated sensor slots provide enhanced operational efficiency.
The product measures 121 mm in length, 83 mm in width, and 36 mm in height, weighing approximately 967 g. Manufactured in Germany, this model complies with ISO 228-1, ISO 1179-1, and RoHS standards.
Robust double acting pneumatic guided cylinder combining drive and guide in one body. Anodised aluminium alloy construction for durability and light weight. Ball bearing, plain bearing guide types with recirculating ball bearings for torque load handling.
Elastomer cushioning plates minimize noise and extend service life. Flexible through-hole mount with top and side air supply ports for installation versatility. Operating pressure up to 10 bar and temperature range from -5°C to 60°C.
Compact dimensions and integrated sensor slots for precise linear motion detection.
This Festo pneumatic guided cylinder is ideally suited for industrial automation, production line machinery, material handling systems, and other applications requiring precise controlled movement and resistance to lateral forces. Discover more solutions in the Pneumatic Guided Cylinder category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
This unit measures 121 mm in length, 83 mm in width, and 36 mm in height.
The stroke length of this cylinder is 40 mm.
The body of this model is made from anodised wrought aluminium alloy.
It operates reliably within a temperature range of -5°C to 60°C.
This unit is equipped with elastomer cushioning plates for noise reduction and extended service life.
It is designed for high resistance to torque and lateral forces, featuring ball bearing and plain bearing guides.
It supports flexible mounting with through-hole mount and has air supply ports on the top and side.
This pneumatic guided cylinder complies with ISO 228-1, ISO 1179-1, and RoHS standards.
This model weighs approximately 967 g.
It is suitable for applications requiring precise linear motion control, such as clamping, stopping, material handling, and lifting tasks.
Yes, it includes integrated slots for proximity sensors to monitor piston linear motion.
