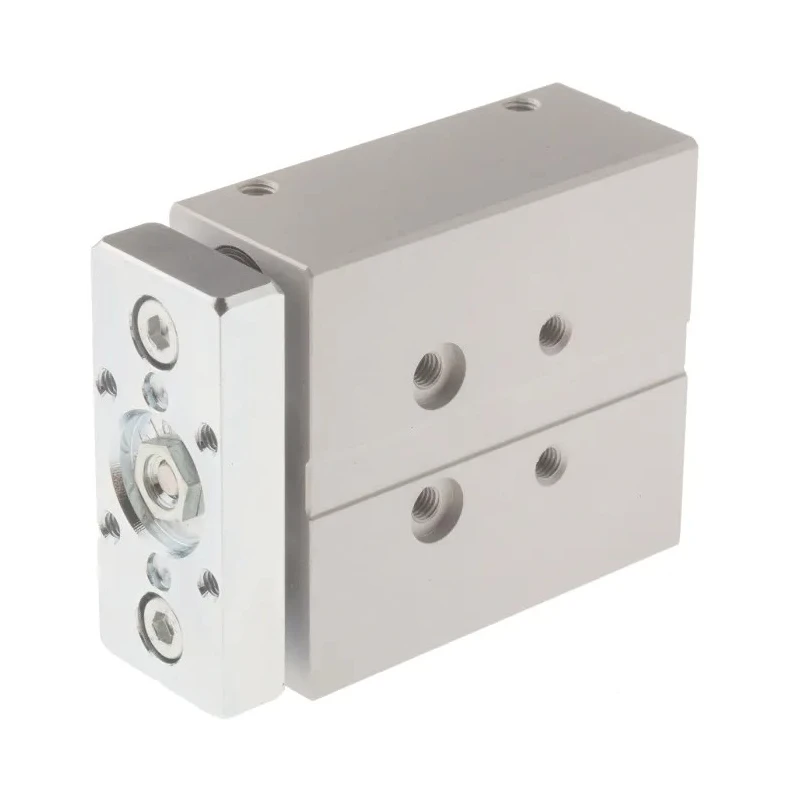

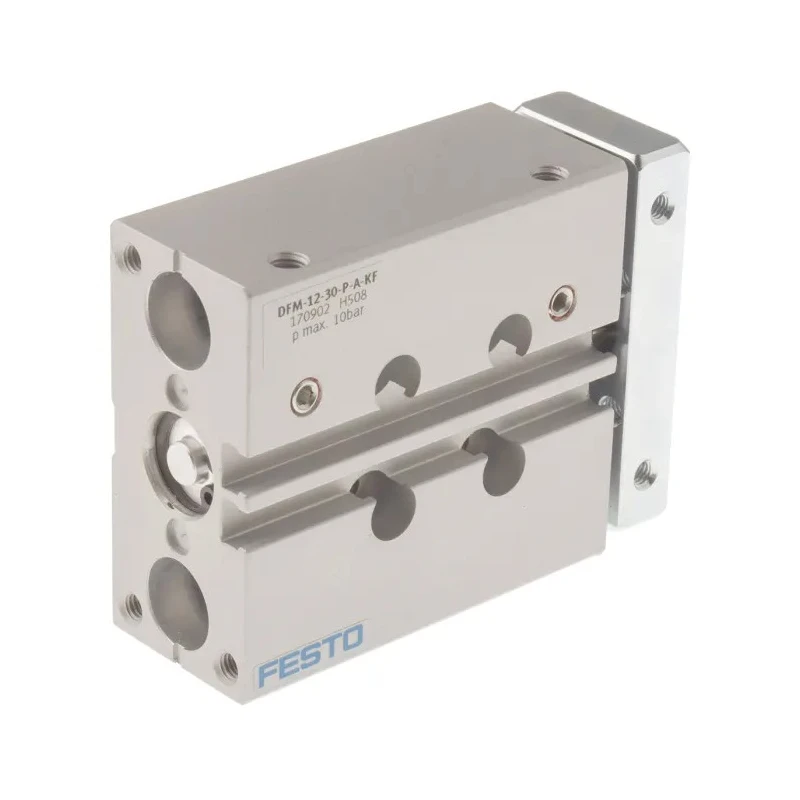

Festo Pneumatic Guided Cylinder 12mm Bore Double Acting 30mm Stroke Through Hole Mount DFM Series DFM-12-30-P-A-KF

Festo DFM-12-30-P-A-KF pneumatic guided cylinder offers a reliable double acting drive and guide unit in a single housing, specifically designed for demanding pneumatic applications.

This cylinder features a 12mm bore and compact 30mm stroke, with a sturdy aluminium alloy body providing maintenance-free operation and exceptional resistance to torque and lateral forces.

The innovative recirculating ball bearings integrated into the guide rods enhance performance under torque loads, making it ideal for precise clamping, stopping, lifting, and material handling tasks in industrial environments.

Flexible elastomer cushioning plates help to minimize operational noise and extend service life. The cylinder is suitable for temperatures ranging from -5°C to 60°C and operates safely up to 10 bar pressure with a piston speed limit of 0.8 m/s.

Mounting flexibility is enhanced with through hole mount type and air supply ports positioned on both top and side, allowing versatile installation configurations. Included features such as slide bearing guides, a single rod design, and M5 piston rod thread size support rugged industrial usage conditions while maintaining precision.

This product weighs 403 grams and measures 79mm in length, 60mm in width, and 28mm in height, making it suitable for cleanroom environments (Class 6) and compliant with standards such as VDMA24364-B1/B2-L, RoHS, and ISO 8573-1:2010 (7:4:4).

Typical industrial applications include pneumatic clamping, stopping heavy loads up to 150 kg, and dynamic lifting within manufacturing, automation, material handling, and laboratory settings.

Double acting pneumatic cylinder with 12mm bore diameter. Compact 30mm stroke length with through hole mount type for versatile installation. Constructed from wrought aluminium alloy for durability and corrosion resistance.

Equipped with elastomer cushioning plates to reduce noise and increase service life. Maximum operating pressure of 10 bar and piston speed up to 0.8 m/s. Operating temperature range from -5°C to 60°C suitable for varied environments.

Integrated recirculating ball bearings provide excellent resistance to torque loads. Designed for high load pneumatic applications including clamping, stopping, material handling, and lifting. Lightweight construction at 403g with compact dimensions of 79mm length, 60mm width, and 28mm height.

Slide bearing guide type with single rod and M5 piston rod thread size.

This Festo pneumatic guided cylinder is an essential component for fluid power and pneumatic systems in industrial machinery and automation solutions. Explore more products in the Pneumatic Guided Cylinder category to find complementary industrial pneumatic solutions.
