binder Circular Connector, 5 Contacts, Cable Mount, M9 Size, Socket Female, IP40 Protection, 125V, 3A, 711 Series IP40
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V |
| Brand | binder |
| Orientation | Straight |
| Current | 3A |
| Model | IP40 |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Contact Material | Bronze |
| Series | 711 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Female |

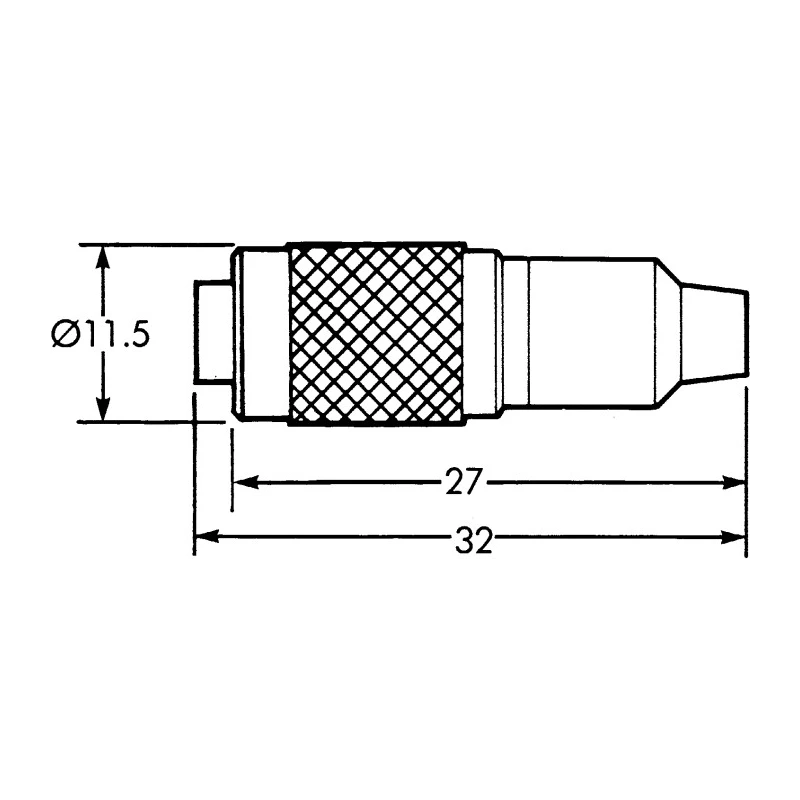

| Shell Size | 11.5 mm |
| Mating Type | Screw-On |
| Connector Size | M9 |
| Plug/Socket | Socket |
Key Features
- Features IP40 ingress protection for reliable environmental resistance.
- Constructed with polymer housing for durability and lightweight design.
- Gold plated bronze contacts ensure high conductivity and corrosion resistance.
- Designed for solder termination with screw-on mating type for secure connections.
- Operates reliably between -40°C to 85°C temperature range.
- Compact shell size of 11.5 mm suits subminiature connector requirements.
- Straight orientation cable connector with integrated strain relief for cable protection.
- High reliability supports frequent connect and disconnect cycles.
Product Description
binder IP40 circular connector model IP40, part of the 711 series, is a subminiature female cable socket connector with 5 contacts. It operates at 125V and 3A current rating, designed for industrial and electronic applications requiring reliable cable connections.
The connector features a polymer housing with gold-plated bronze contacts for enhanced conductivity and corrosion resistance. Its IP40 ingress protection rating provides adequate protection against solid objects, while allowing for light environmental resistance.
The solder termination type and screw-on mating mechanism ensure a secure and durable connection. With a shell size of 11.5 mm and straight orientation, the connector supports subminiature cable assemblies and integrates strain reliefs to protect against cable strain.
Operating temperature ranges from -40°C minimum to 85°C maximum, making it suitable for diverse industrial environments. This connector is ideal for industrial, manufacturing, electronic equipment, and automation use cases requiring compact, reliable cable connections.
Features IP40 ingress protection for reliable environmental resistance. Constructed with polymer housing for durability and lightweight design. Gold plated bronze contacts ensure high conductivity and corrosion resistance.
Designed for solder termination with screw-on mating type for secure connections. Operates reliably between -40°C to 85°C temperature range. Compact shell size of 11.5 mm suits subminiature connector requirements. Straight orientation cable connector with integrated strain relief for cable protection.
High reliability supports frequent connect and disconnect cycles.
Choose from the complete range of binder Industrial Circular Connectors for applications in industrial automation, electronics manufacturing, and power distribution setups at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage of 125V and has a current rating of 3A.
It has an IP40 ingress protection rating, providing adequate protection against solid objects and light environmental resistance.
The connector features a polymer housing and gold-plated bronze contacts, ensuring high conductivity and corrosion resistance.
It operates reliably between -40°C to 85°C, making it suitable for diverse industrial environments.
This connector has 5 contacts.
It is designed for solder termination with a screw-on mating type for secure connections.
The shell size is 11.5 mm, which suits subminiature connector requirements.
It features a straight orientation for the cable connector.
It is ideal for industrial, manufacturing, electronic equipment, and automation use cases requiring reliable cable connections.
The country of origin for this connector is Germany.
It utilizes a screw-on mating mechanism, ensuring a secure and durable connection.
Gold plating on the contacts enhances conductivity and provides corrosion resistance, improving overall performance.
