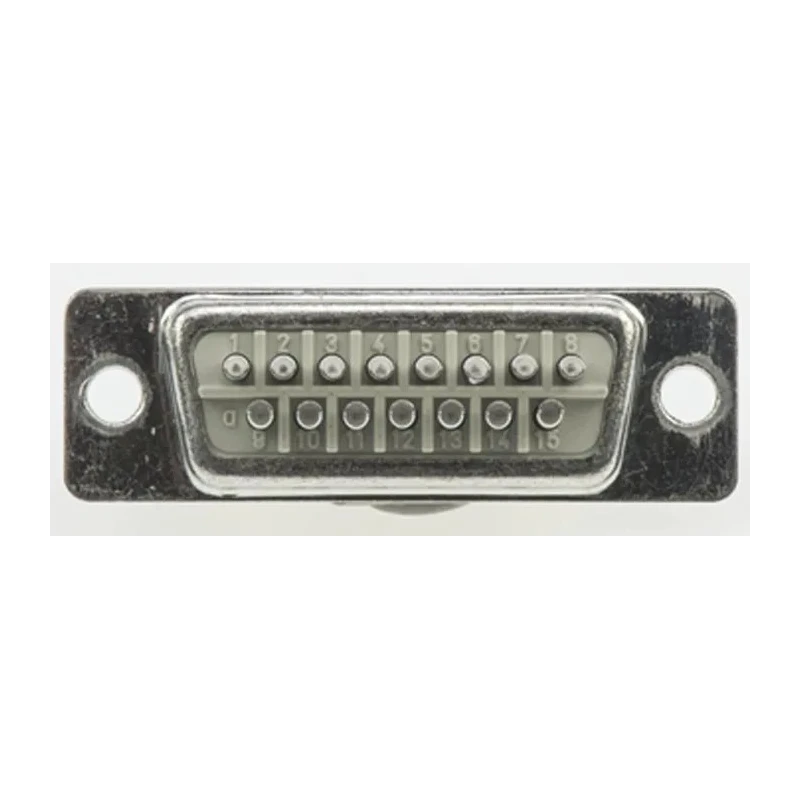

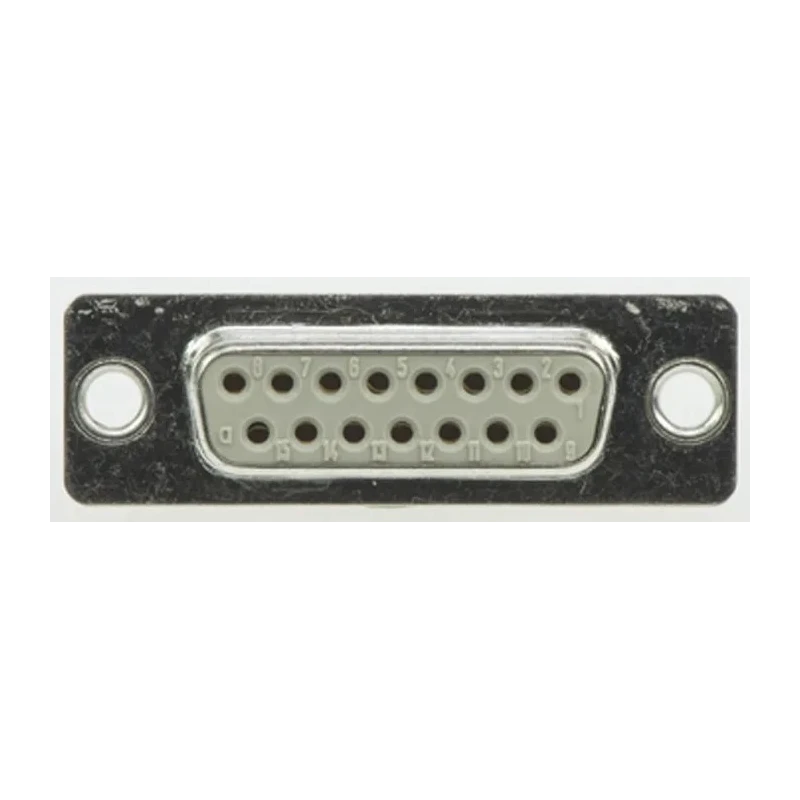

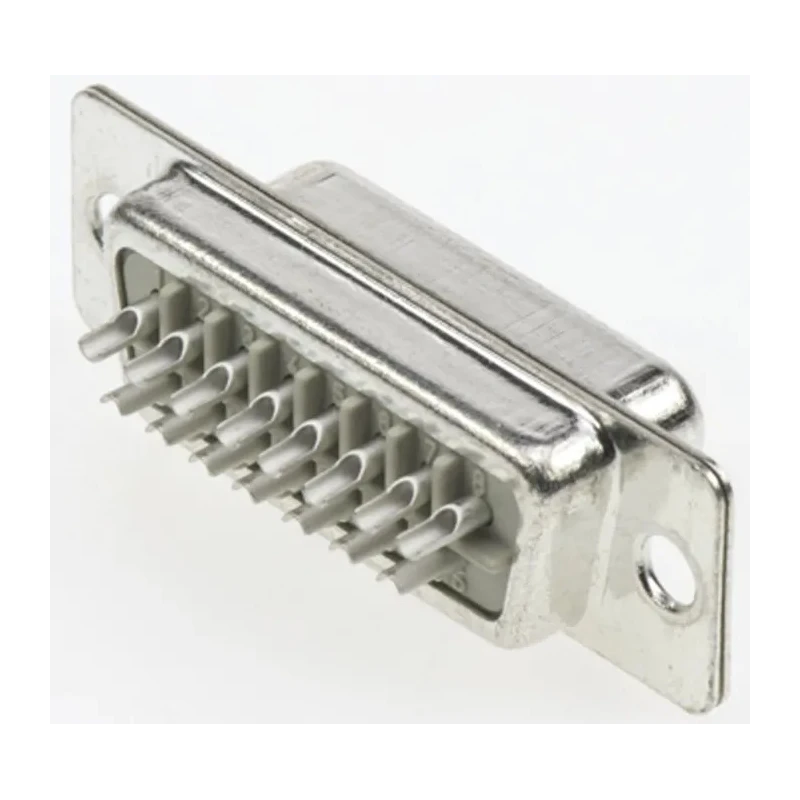

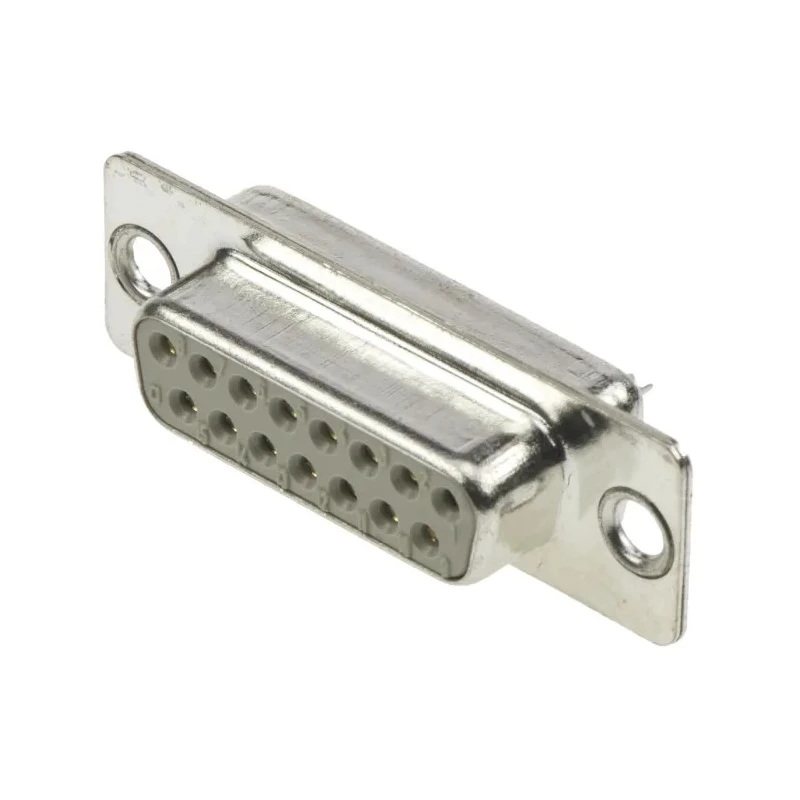

HARTING D-Sub 15 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector Female 09670154704
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 7.5A |
| Mount Type | Panel Mount |
| Housing Material | Metal |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | A |
| Part Numbers | 09 67 xxx xxx5 have a Performance level 2 (250 cycles) |
| Provertha TMC 15 Way Straight Panel Mount D-Sub Connector FemaleBrand | Provertha |
Key Features
- Features 15 female contacts with a pitch of 2.77 mm ensuring compact connection.
- Panel mount design facilitates secure and stable mounting on equipment panels.
- Supports a maximum current rating of 7.5A for robust electrical performance.
- Constructed with metal housing and copper alloy contacts for durability and conductivity.
- Rated for voltage up to 1kV and operates reliably between -55°C to 125°C.
- Termination type is solder bucket for secure cable attachments.
- Complies with IEC 60807 standard ensuring industry compatibility.
- Turned contacts provide superior performance with 50 to 250 mating cycles.
Product Description
HARTING 09670154704 is a panel mount D-Sub connector featuring 15 female contacts spaced at 2.77 mm pitch, designed for reliable signal and power connections in industrial, manufacturing, and electronic equipment environments. The straight orientation and robust metal housing ensure secure mounting and mechanical strength.
This connector supports a current rating of 7.5A and withstands voltages up to 1kV, suitable for varied electronic and power connector applications. Its solder bucket termination facilitates stable cable connections for communication interfaces and control systems.
Operable within a wide temperature range from -55°C to 125°C, this connector demonstrates resilience in harsh and demanding environments. Made with high-quality copper alloy contacts and a metal shell, it ensures excellent conductivity and mechanical protection.
The 09670154704 model belongs to the D-Sub series with turned contacts known for enhanced contact reliability and durability, supporting 50 mating cycles with performance level 3 and up to 250 cycles for other types, making it suitable for repeated connections.
Common applications include data communication, instrumentation, industrial automation, and other electronic component assemblies requiring compact and durable female D-Sub connectors. Country of origin is Germany, signifying premium build quality.
Features 15 female contacts with a pitch of 2.77 mm ensuring compact connection. Panel mount design facilitates secure and stable mounting on equipment panels. Supports a maximum current rating of 7.5A for robust electrical performance.
Constructed with metal housing and copper alloy contacts for durability and conductivity. Rated for voltage up to 1kV and operates reliably between -55°C to 125°C. Termination type is solder bucket for secure cable attachments.
Complies with IEC 60807 standard ensuring industry compatibility. Turned contacts provide superior performance with 50 to 250 mating cycles. Explore more connectors and electronic components in the Power Connectors and D-Sub Connector categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 7.5A, ensuring robust electrical performance in various applications.
It is rated for voltages up to 1kV, making it suitable for high-voltage applications.
This connector operates reliably between -55°C and 125°C, allowing it to function in extreme environments.
It features 15 female contacts, arranged with a pitch of 2.77 mm for compact connections.
The termination type is solder bucket, which facilitates secure cable attachments.
It is constructed with a metal housing and copper alloy contacts, ensuring durability and excellent conductivity.
This connector is designed for panel mount installation, providing secure and stable mounting on equipment panels.
It supports between 50 to 250 mating cycles, depending on the type of contacts used, ensuring reliable performance over time.
It complies with the IEC 60807 standard, ensuring compatibility with industry requirements.
This model features a straight orientation, which is common for panel mount applications.
The country of origin for this connector is Germany, indicating a high standard of manufacturing quality.
It belongs to the D-Sub series, which is known for its reliability in signal and power connections.
