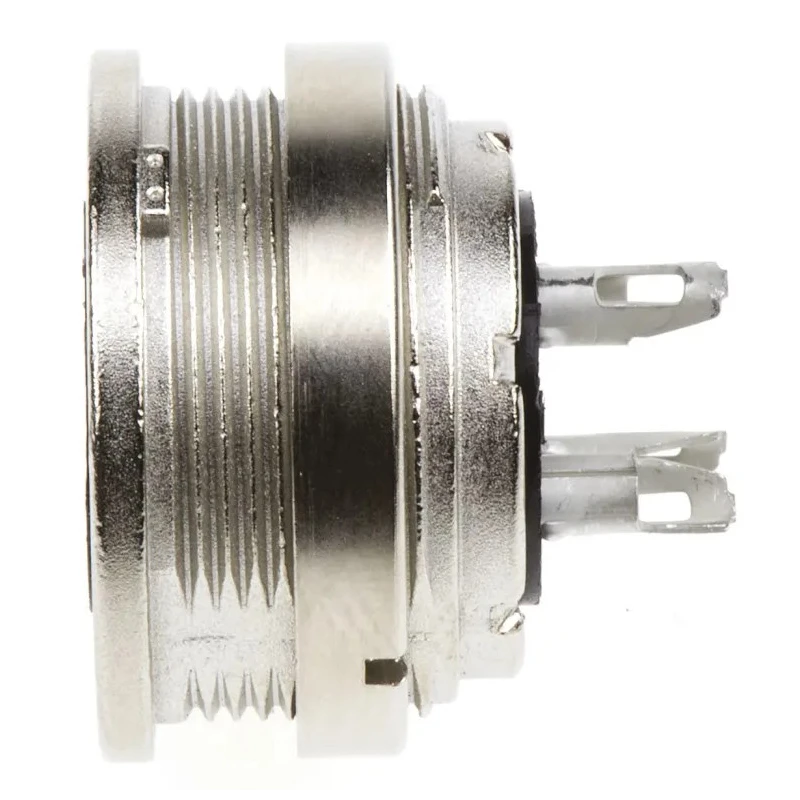

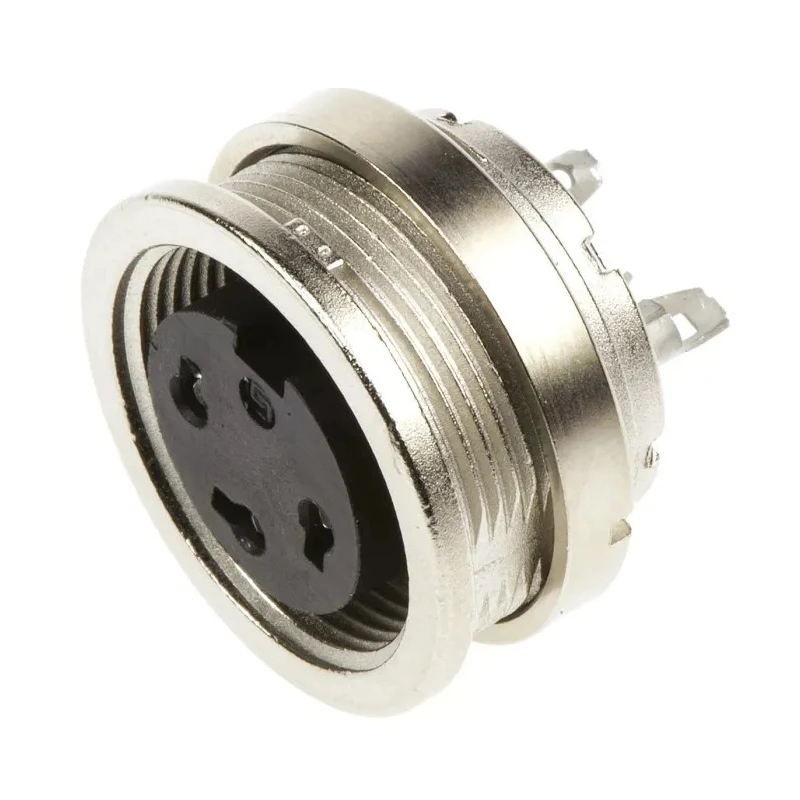

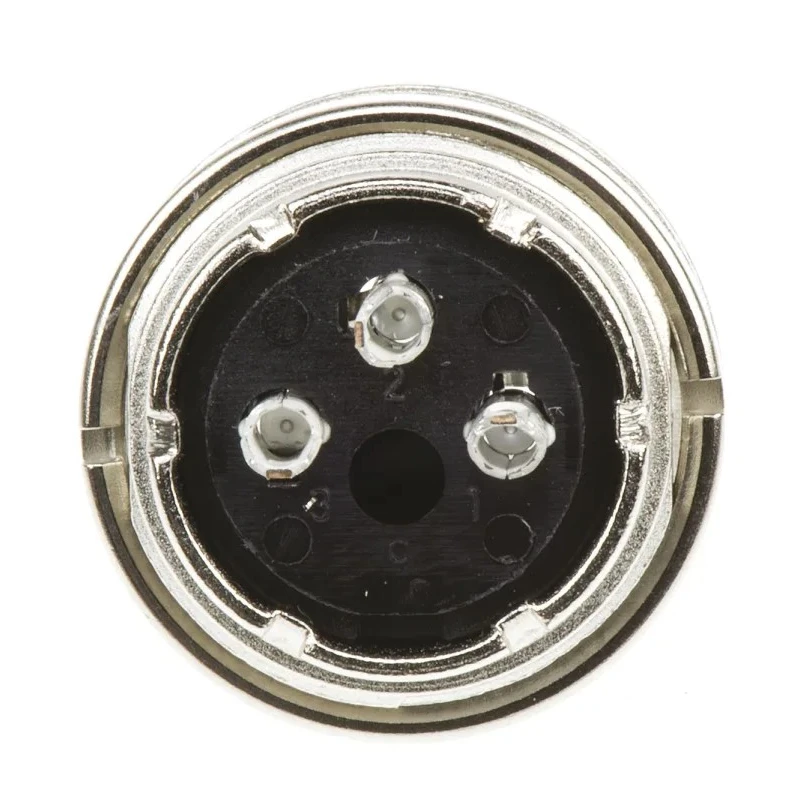

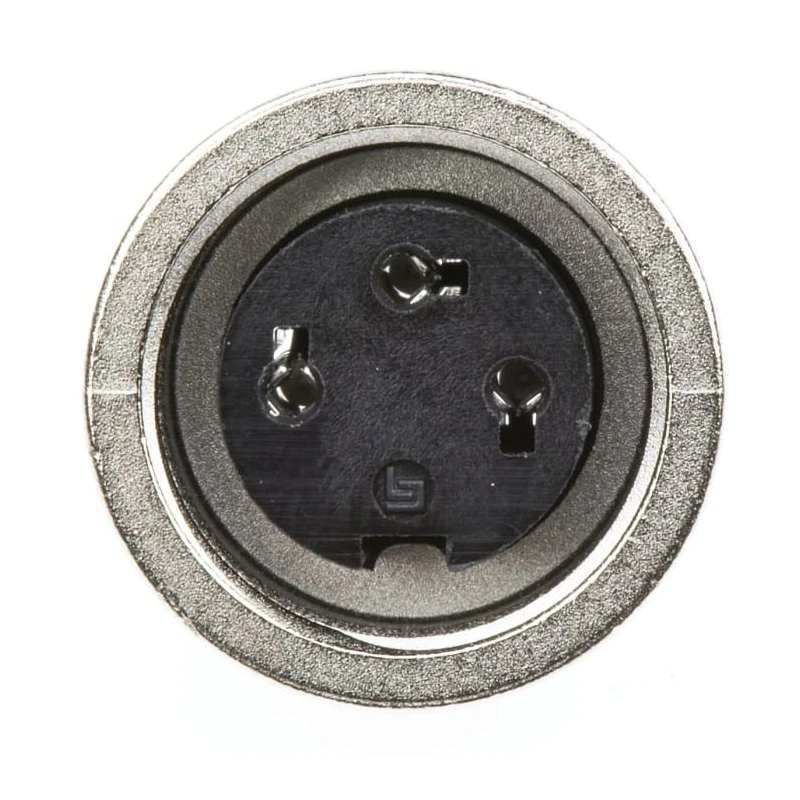

binder Circular Connector, 3 Contacts, Panel Mount, M16 Connector, Socket, Female, IP40, 250V, 7A, Die Cast 09-0308-00-03
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | binder |
| Orientation | Straight |
| Current | 7A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Die Cast Zinc |
| Contact Material | Brass |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | DIN EN 61076-2-106 |
| Contact Plating | Silver |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 18.5 mm |
| Connector Size | M16 |
| Plug/Socket | Socket |
Key Features
- This panel mount connector features a robust die cast zinc housing for durability.
- It has silver-plated brass contacts that prevent oxidation and ensure reliable conductivity.
- The connector size is M16 with a shell diameter of 18.5 mm.
- Operating temperature ranges from -40°C to +85°C, suitable for harsh environments.
- Termination is by solder, providing stable and secure connections.
- It has an IP40 rating, offering protection against solid objects larger than 1 mm.
- It complies with DIN EN 61076-2-106 standards ensuring industrial quality and safety.
- Commonly used in medical equipment, machine tool control, industrial automation, and instrumentation.
Product Description
binder 09-0308-00-03 Circular Connector is a premium 3-contact panel mount socket from the 680 Series, designed for industrial applications requiring high reliability and durability. Rated at 250V and 7A, it supports secure and efficient electrical connections.
The connector features a sturdy die cast zinc housing that ensures robust mechanical protection and longevity. The contacts are made of brass with a silver plating that prevents oxidation and maintains consistent conductivity over time, ideal for environments where reliability is critical.
With a connector size of M16 and a shell size of 18.5 mm, this straight body socket is perfect for panel mount installations. The solder termination type offers solid connection integrity for demanding applications. It operates effectively within a temperature range from -40°C to +85°C, making it suitable for challenging industrial and outdoor settings.
The IP40 ingress protection rating safeguards the connector against ingress of solid particles greater than 1 mm, ensuring safe operation in dusty environments. Compliance with DIN EN 61076-2-106 guarantees the connector meets stringent industrial standards and certifications.
3 contacts for stable and reliable signal transmission. Female socket design for secure mating connections. Panel mount configuration facilitates easy installation in control panels and equipment. Ideal for medical devices, machine tool controls, industrial automation systems, and instrumentation applications.
Robust die cast zinc housing withstands mechanical stress. Silver plated brass contacts prevent corrosion and enhance signal integrity. Wide operating temperature range from -40°C to +85°C. IP40 rated for dust protection in industrial environments.
Conforms to DIN EN 61076-2-106 standards for quality and safety.
Binder connectors are trusted across industrial sectors for their durable construction and dependable electrical performance. This 680 series panel mount circular connector offers an excellent solution for demanding applications requiring compact size and robust reliability.
Explore more industrial electrical connectors and accessories at EnvMart to complete your setup with confidence in quality and performance.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 250V and 7A, making it suitable for various industrial applications requiring reliable electrical connections.
It has an IP40 rating, which provides protection against solid objects larger than 1 mm, suitable for dusty environments.
The housing is made of die cast zinc, while the contacts are made of brass with silver plating to prevent oxidation and enhance conductivity.
This unit operates effectively within a temperature range of -40°C to +85°C, making it suitable for harsh environments.
It features 3 contacts, designed for stable and reliable signal transmission in various applications.
The connector utilizes solder termination, providing stable and secure connections for demanding applications.
The shell diameter of this connector is 18.5 mm, which is standard for M16 connectors.
It complies with DIN EN 61076-2-106 standards, ensuring it meets stringent industrial quality and safety requirements.
This model is designed for panel mount installations, facilitating easy integration into control panels and equipment.
It is commonly used in medical equipment, machine tool control, industrial automation, and instrumentation applications.
The connector features a straight orientation, suitable for various installation scenarios.
