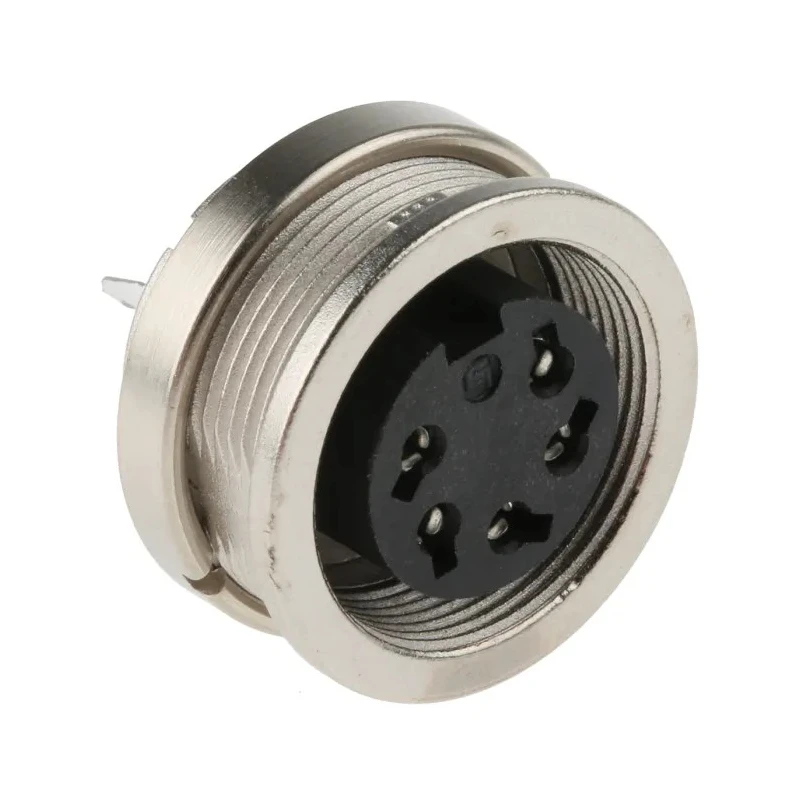

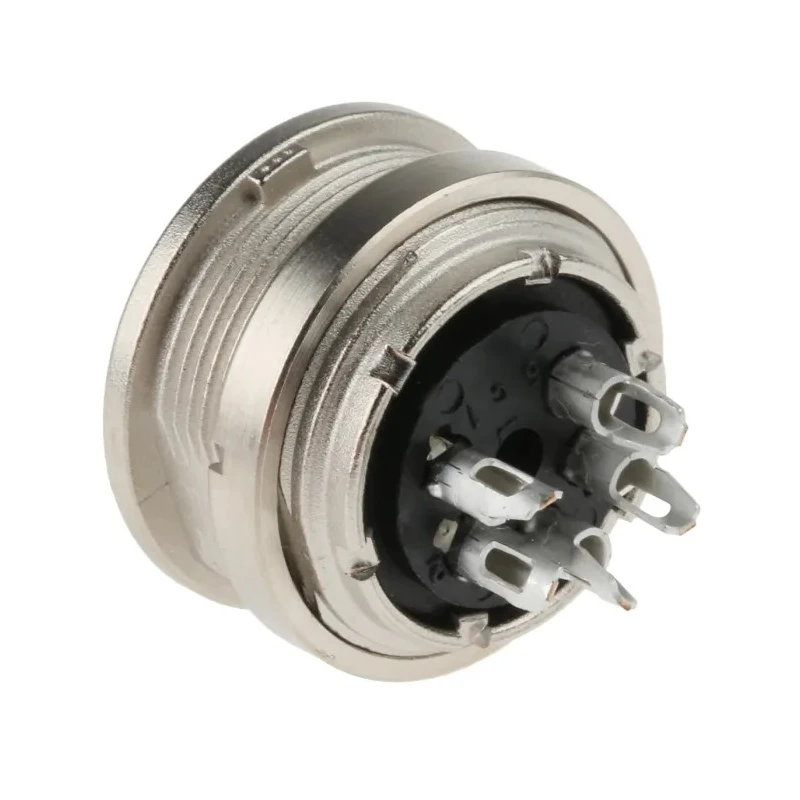

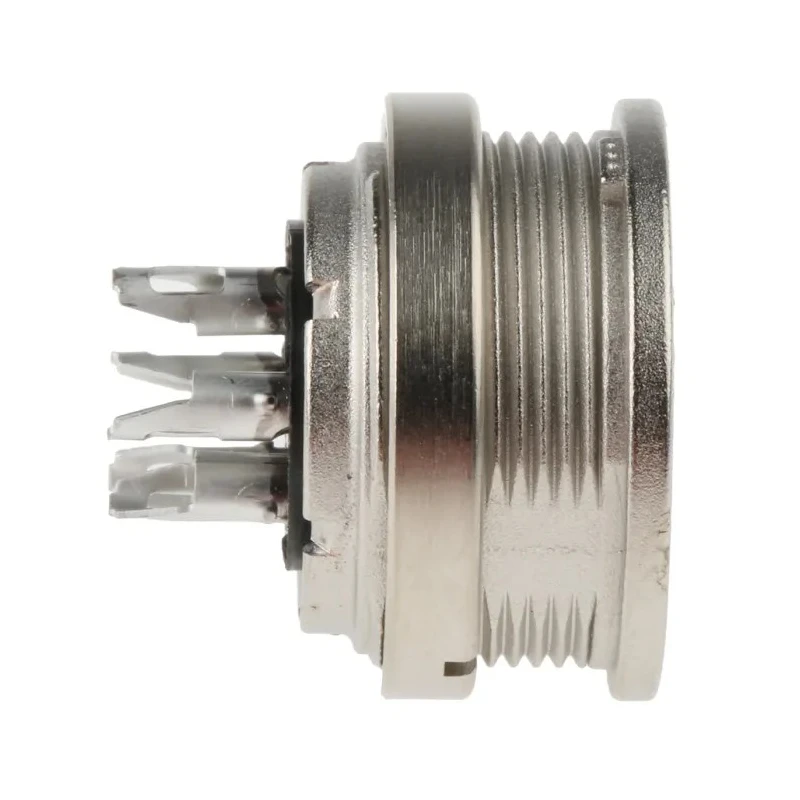

binder Circular Connector 5 Contacts Panel Mount M16 Socket Female IP40 Die Cast Zinc 680 Series 09-0316-00-05
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | binder |
| Orientation | Straight |
| Current | 6A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Die Cast Zinc |
| Contact Material | Brass |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | DIN EN 61076-2-106 |
| Contact Plating | Silver |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Shell Size | 18.5 mm |
| Connector Size | M16 |
| Plug/Socket | Socket |
Key Features
- Built with a die cast zinc housing for robust durability.
- Silver plated brass contacts provide excellent conductivity and oxidation resistance.
- Supports a voltage rating up to 250V and current rating of 6A.
- Suitable for solder termination and panel mounting with a straight orientation.
- Operating temperature range from -40°C to +85°C ensures reliability in various environments.
- Compliance with DIN EN 61076-2-106 standard ensures industrial quality.
- Ideal for use in medical equipment, industrial automation, machine tool control, and instrumentation.
Product Description
binder 09-0316-00-05 circular connector is a high-quality industrial circular connector featuring 5 contacts with panel mount installation. It has an M16 connector size with a socket female configuration, offering secure and reliable connections for various industrial applications.
The connector is constructed with a die cast zinc housing that ensures physical robustness with an IP40 rating for protection against solid objects larger than 1 mm. Its contacts are made from brass and plated with silver, providing excellent corrosion resistance and electrical conductivity. The connector has a shell size of 18.5 mm and supports a voltage up to 250 V and current of 6 A, suitable for a wide range of power and signal transmission requirements.
Designed for easy solder termination and featuring a straight orientation, this panel mount connector operates reliably in harsh environments with a temperature range from -40°C to 85°C. It complies with the DIN EN 61076-2-106 industrial standard, reflecting its quality and suitability for critical equipment.
This 680 Series connector is commonly used in medical devices, industrial automation systems, machine tool controls, and instrumentation setups, where durability and reliable signal transmission are essential. Its design supports efficient assembly and long lifespan due to high-quality materials and plating to prevent oxidation.
Built with a die cast zinc housing for robust durability. Silver plated brass contacts provide excellent conductivity and oxidation resistance. Supports a voltage rating up to 250V and current rating of 6A. Suitable for solder termination and panel mounting with a straight orientation.
Operating temperature range from -40°C to +85°C ensures reliability in various environments. Compliance with DIN EN 61076-2-106 standard ensures industrial quality. Ideal for use in medical equipment, industrial automation, machine tool control, and instrumentation.
Explore more Industrial Circular Connectors and related components on EnvMart for reliable and quality-assured electronic components aligned with your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage rating of up to 250V and a current rating of 6A.
The operating temperature range is from -40°C to 85°C, allowing it to function reliably in various environments.
The housing is made from die cast zinc, and the contacts are brass with silver plating for excellent conductivity and oxidation resistance.
It has an IP40 rating, which provides protection against solid objects larger than 1 mm.
This model features 5 contacts in a socket female configuration.
It is suitable for solder termination, which allows for secure connections.
The shell size is 18.5 mm, which is standard for the M16 connector size.
It complies with the DIN EN 61076-2-106 standard, ensuring industrial quality.
This connector is designed for panel mount installation, providing a secure fitting.
It is commonly used in medical equipment, industrial automation, machine tool control, and instrumentation setups.
The connector features a straight orientation, facilitating straightforward installation.
The country of origin for this connector is Germany.
