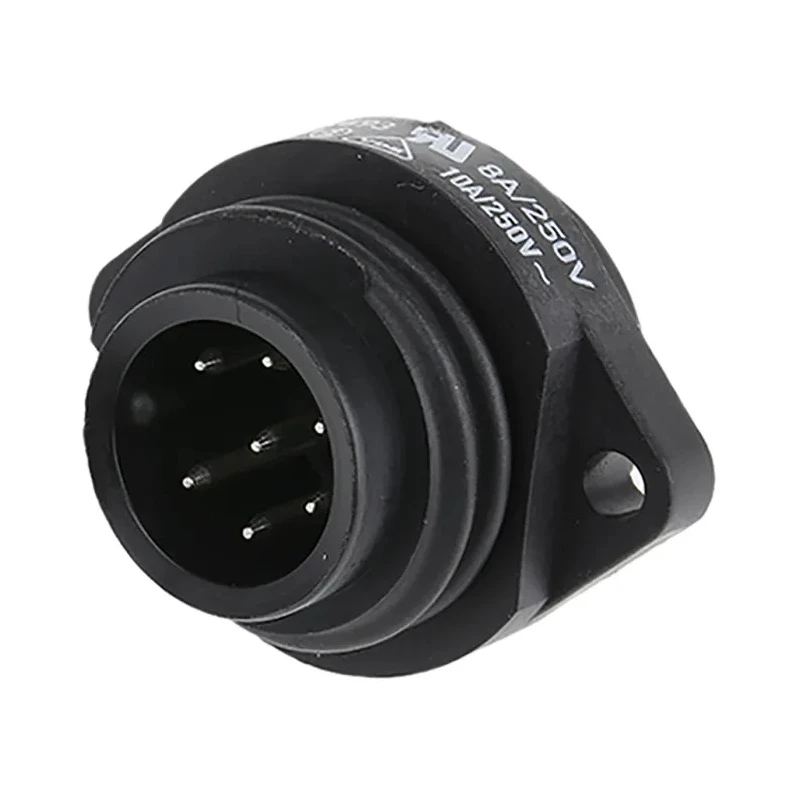

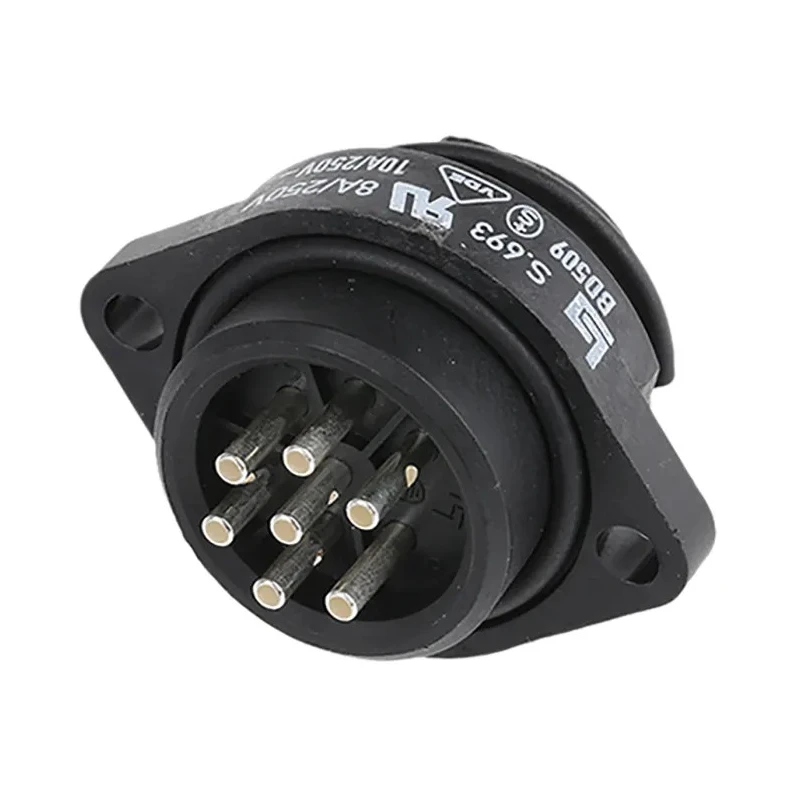

binder Circular Connector, 7 Contacts, Panel Mount, Socket, Male, IP67, Nylon Housing, 10A, 250V, 693 Series 09-4227-00-07
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | binder |
| Orientation | Straight |
| Current | 10A |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | 693 |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 6+PE |
| Contact Plating | Silver |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shell Size | 21.5 mm |
| Plug/Socket | Socket |
Key Features
- Connector housing made from durable nylon for chemical resistance and high dimensional stability.
- Silver plating over brass contacts provides wear resistance and excellent durability.
- Waterproof rating of IP67 when mated ensures high protection against dust and water ingress.
- Screw locking system with solder termination for secure and reliable connections.
- Suitable for harsh environmental conditions with operating temperature range from -40°C to +100°C.
- Straight orientation design assists in reducing cable strain.
- Complies with VDE No. 2751, ideal for instrumentation, medical applications, machine tools, and robotics.
- Up to 500 mating cycles ensuring long service life.
Product Description
binder 09-4227-00-07 Circular Connector is a 7-contact industrial circular connector designed for robust panel mount applications. Featuring a socket configuration with male contacts, this connector is designed to operate safely at 10A current and 250V voltage, making it suitable for various industrial and electronic environments.
The connector housing is crafted from high-quality nylon material, offering excellent chemical resistance, dimensional stability, and flame-retardant properties that comply with UL 94-V0 standards. The contacts are brass with silver plating, enhancing wear and corrosion resistance and ensuring reliable performance even at elevated temperatures.
This connector is rated IP67, providing waterproof protection when mated, making it ideal for harsh environments that demand durability against dust and water exposure. The 693 series complies with standard VDE No. 2751, making it suitable for use in instrumentation, medical devices, machine tools, and robotic systems.
The device uses a screw locking mechanism for secure and stable connections, with solder termination for easy installation. Its straight orientation aids in preventing cable strain and provides ease of usage in panel mount setups.
With operating temperatures ranging from -40°C to +100°C and up to 500 mating cycles, this connector offers high reliability and longevity essential for industrial applications. Durable nylon connector housing resists chemicals and harsh conditions.
Silver-plated brass contacts ensure high conductivity and corrosion resistance. IP67 rated waterproof protection for use in extreme conditions. Screw locking system with solder termination provides secure connections. Operating temperature from -40°C to +100°C supports diverse environments.
Compliant with VDE No. 2751, suitable for instrumentation and robotics. Straight orientation design minimizes cable strain. Supports up to 500 mating cycles for extended service life.
This binder industrial circular connector is an ideal choice for demanding electronic and industrial applications requiring robust, reliable, and waterproof connections. Explore more connectors and electronic components at EnvMart.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 10A and a voltage rating of 250V, making it suitable for various industrial applications.
It has an IP67 rating, providing waterproof protection when mated, which ensures high resistance against dust and water ingress.
The housing is made from nylon, while the contacts are brass with silver plating, enhancing wear resistance and conductivity.
It operates within a temperature range of -40°C to +100°C, suitable for diverse environmental conditions.
This model features 7 contacts, with a male contact configuration.
It is designed for panel mount applications, allowing for secure installation in various setups.
The connector uses a solder termination type, facilitating easy installation and secure connections.
The screw locking system provides secure and stable connections, ensuring reliability in demanding applications.
The shell size of this model is 21.5 mm, which is important for compatibility with panel mount applications.
It supports up to 500 mating cycles, ensuring a long service life for industrial applications.
Yes, it complies with VDE No. 2751, making it suitable for instrumentation, medical applications, machine tools, and robotics.
It features a straight orientation design, which helps in reducing cable strain during installation and use.
