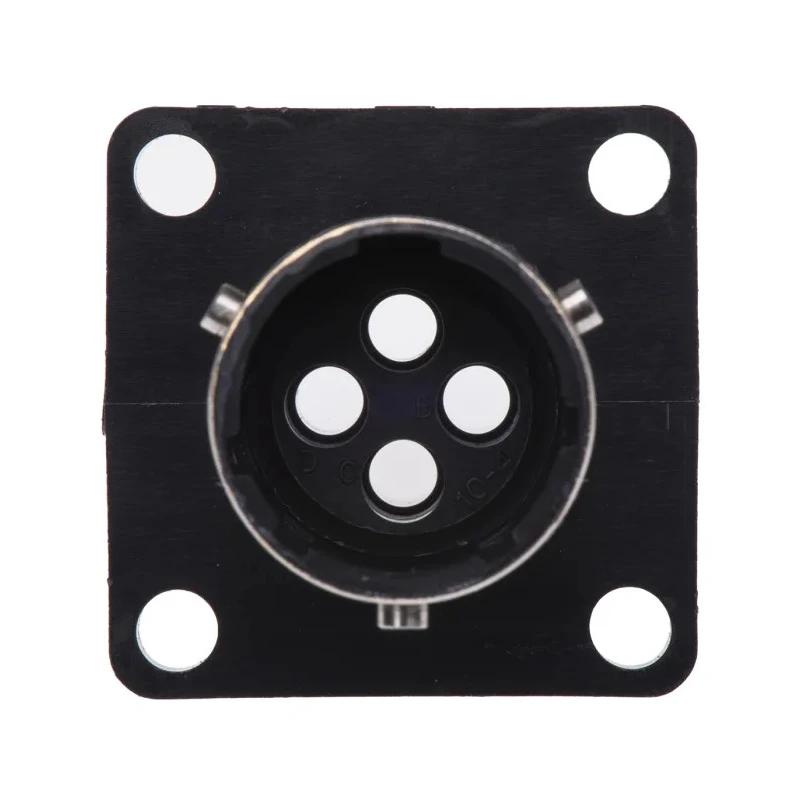

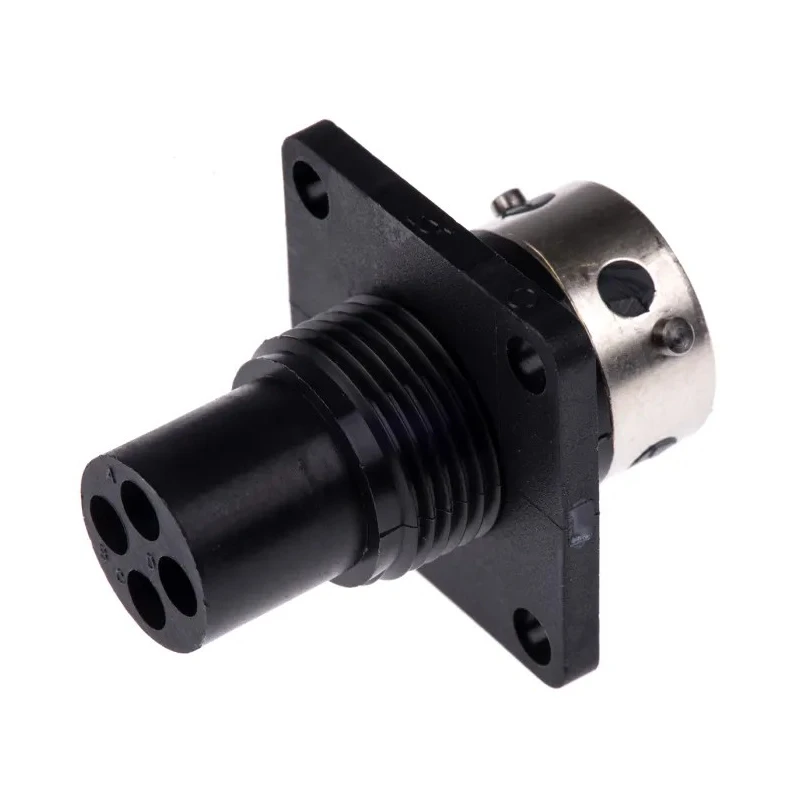

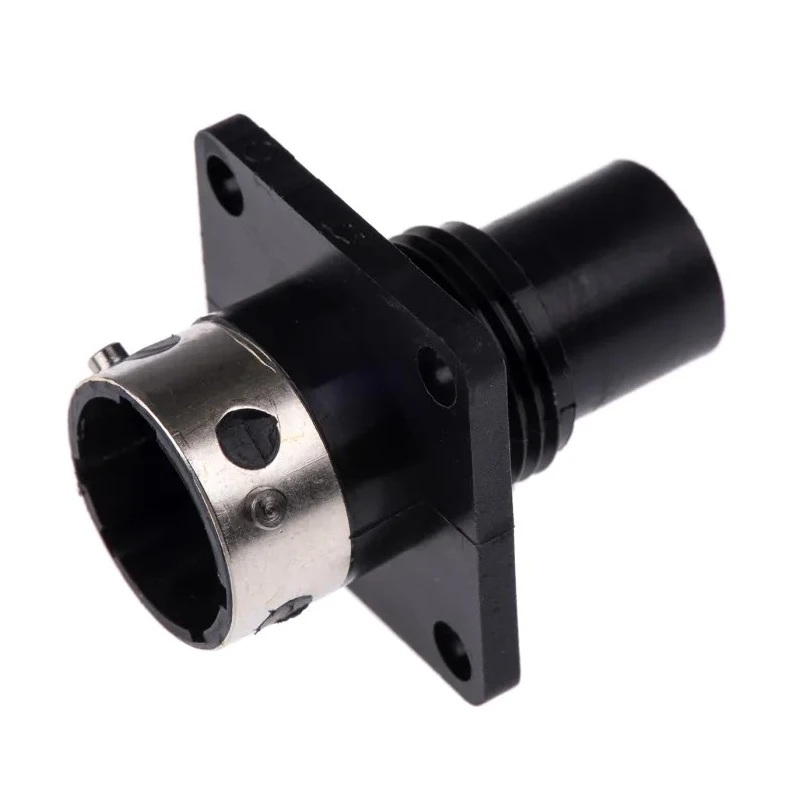

ITT Cannon Circular Connector 4 Contacts Panel Mount Socket Male 250V 16A IP65 Trident Ringlock TR1004RMS1NB / 192926-0440
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 16A |
| Model | TR1004RMS1NB / 192926-0440 |
| IP Rating | IP65 |
| Mount Type | Panel Mount |
| Housing Material | Polymer |
| Contact Material | Copper Alloy |
| Series | Trident Ringlock |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 4 |
| Contact Plating | Nickel |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shell Size | 10 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- Panel mount connector with a bayonet locking system for secure connections.
- Socket type with male copper alloy contacts plated with nickel.
- Rugged design suitable for industrial and automation applications.
- Operates reliably between -55°C and 105°C temperature range.
- Polymer housing ensures thermal and physical shock resistance.
- Shell size of 10 mm and straight orientation for ease of installation.
- Trident Ringlock series compliant connector designed for harsh environments.
- Termination achieved by crimping for fast and reliable assembly.
Product Description
ITT Cannon TR1004RMS1NB / 192926-0440 circular connector is a high-quality panel mount socket connector with 4 contacts, rated at 250 volts and 16 amperes. This standard size connector belongs to the Trident Ringlock series, featuring a metal bayonet coupling mechanism for secure and easy mating in industrial and automation environments.
The connector uses male copper alloy contacts with nickel plating to ensure reliable electrical conductivity and resistance to corrosion. Its polymer housing provides strong resistance to thermal and physical shocks, making it suitable for harsh operating conditions.
Designed with a shell size of 10 mm and a straight orientation, this connector supports crimp termination and complies with IP65 ingress protection requirements when mated, ensuring it is dust tight and protected against water jets. It is capable of operating in a wide temperature range from -55°C to 105°C, making it ideal for demanding industrial applications.
Typical use cases include industrial electronics, machine building, process control, manufacturing equipment, instrumentation, and robotic systems. The Trident Ringlock circular connectors provide exemplary durability, featuring a positive bayonet locking system, shell-to-shell keying, and compatibility with both two-piece T2P and three-piece T3P crimp contacts.
Panel mount design with bayonet locking for secure connections. Socket connector with durable male contacts and nickel plating. Polymer housing offering outstanding thermal and physical shock resistance. Wide operating temperature range of -55°C to 105°C.
IP65 rated protection when mated for dust and water ingress. Compatible with industrial and automation environments. Shell size of 10 mm with straight orientation. Crimp termination for easy assembly and maintenance. Trident Ringlock series supports up to 500 mating cycles.
Ideal for process control, robotics, and manufacturing equipment.
This robust connector series from ITT Cannon offers reliable performance under demanding industrial conditions and is tailored for engineers and technicians requiring dependable circular connectors.
Explore more products in Industrial Circular Connectors at EnvMart for diverse, reliable connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for 250 volts and 16 amperes.
It has an IP65 rating, ensuring it is dust tight and protected against water jets when mated.
The connector features a polymer housing and male contacts made of copper alloy with nickel plating.
It operates reliably within a temperature range of -55°C to 105°C.
This model has 4 contacts.
It uses crimp termination for fast and reliable assembly.
The shell size of this connector is 10 mm.
The connector features a metal bayonet coupling mechanism that provides secure and easy mating, suitable for industrial environments.
It is designed for industrial electronics, machine building, process control, manufacturing equipment, instrumentation, and robotic systems.
This connector has a straight orientation for ease of installation.
The Trident Ringlock series supports up to 500 mating cycles.
The country of origin for this connector is India.
