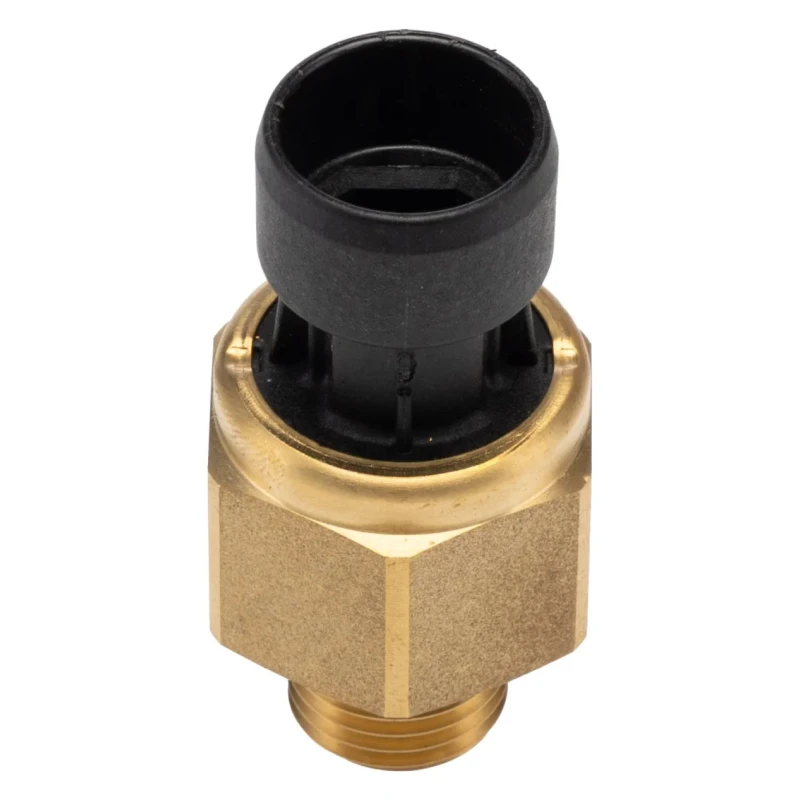

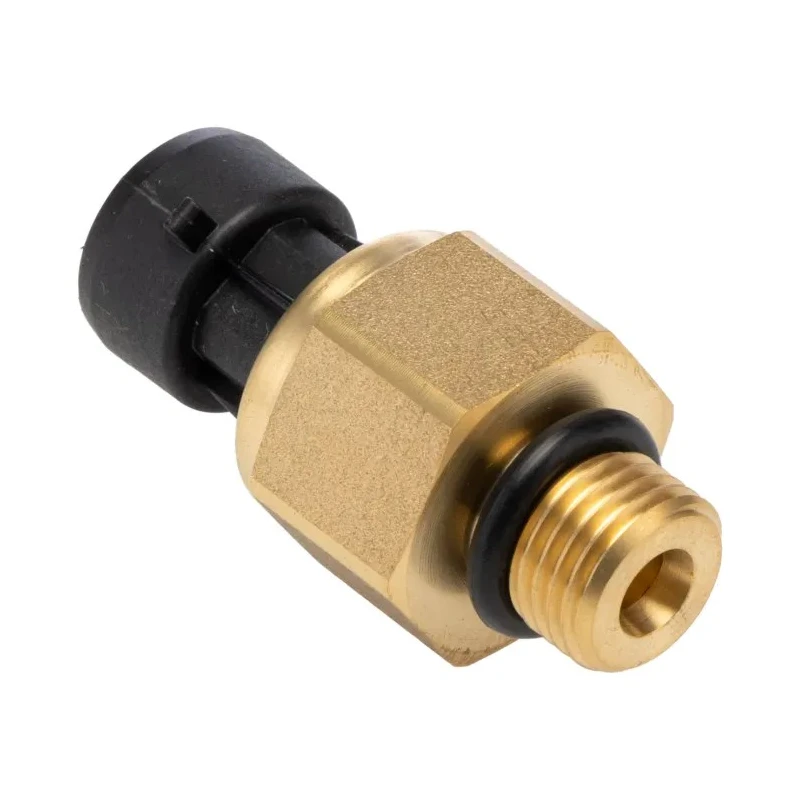

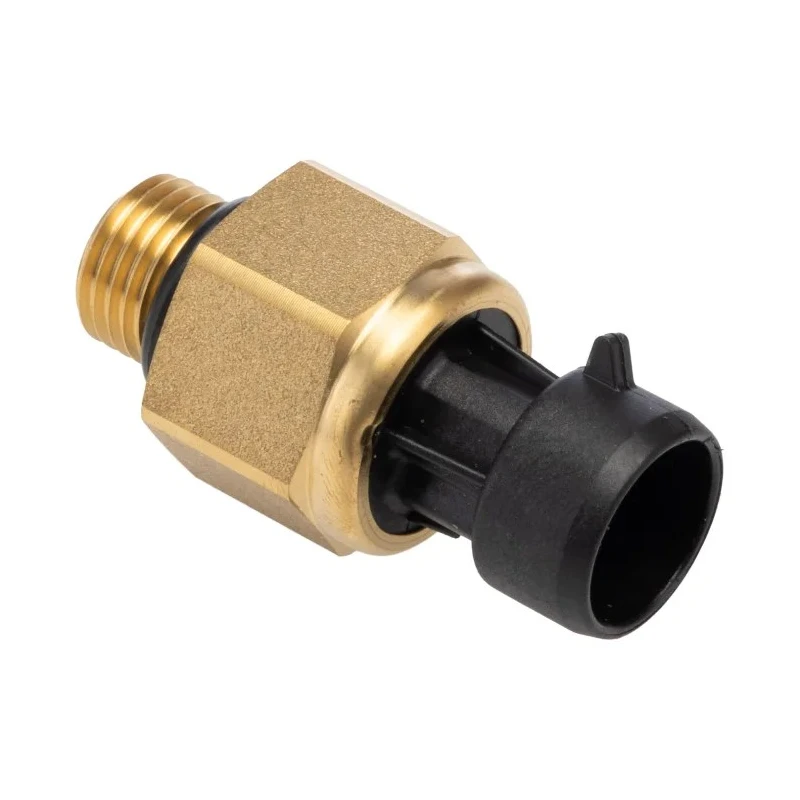

Honeywell Technologies PX3 Series Pressure Sensor, Ratiometric Output, Absolute Reading 0 to 46 bar PX3AG1BH046BSAAX
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell Technologies |
| Response time | 2ms |
| Model | PX3AG1BH046BSAAX |
| IP Rating | IP67 |
| Housing Material | Brass |
| Output type | Ratiometric |
| Pressure Range | 1 bar to 46 bar (absolute and sealed gage) |
| Series | PX3 |
| Maximum Operating Temperature | 125°C |
| Dielectric strength | AC1500V, 1 min. or AC1800, 1 s |
| Current consumption | 3.5 mA max |
| Minimum Operating Temperature | -40°C |
| Terminal type | Metri-Pack |
| Standards/Approvals | RoHS, REACH, and CE |
| Maximum Pressure Measurement | 46bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 5.25V dc |
| Minimum Supply Voltage | 4.75V |
| Pressure Reading Type | Absolute |
Key Features
- Capable of measuring absolute pressure from 0 to 46 bar.
- Features a ratiometric output for enhanced signal accuracy.
- Brass housing ensures durability and robustness.
- IP67 rated for excellent ingress protection in harsh environments.
- Calibrated and compensated for offset, sensitivity, temperature effects, and non-linearity.
- Operating temperature range from -40°C to 125°C.
- Fast response time of 2 milliseconds for real-time monitoring.
- Low current consumption of maximum 3.5 mA for energy efficiency.
Product Description
Honeywell Technologies PX3AG1BH046BSAAX PX3 Series pressure sensor is a heavy-duty, high-precision transducer designed for absolute pressure sensing applications up to 46 bar. It incorporates piezoresistive sensing technology combined with ASIC signal conditioning housed in a robust brass body, providing reliable performance and long-term stability.
Fully calibrated and temperature compensated, this sensor maintains accuracy within ±0.25% over a wide temperature range of -40°C to 125°C, making it suitable for demanding industrial and commercial applications.
The PX3 sensor offers a ratiometric output type, which enhances the fidelity of the signal relative to the supply voltage, reducing measurement errors and enabling easier integration with control and monitoring systems.
Its IP67 ingress protection rating ensures excellent resistance to dust and water, allowing use in harsh environments. The sensor has a fast response time of 2 ms and low current consumption capped at 3.5 mA, optimizing it for real-time system feedback and energy-efficient operations.
Electrical connections are facilitated via Metri-Pack terminals to guarantee secure and consistent connectivity. The sensor complies with global safety and environmental requirements, including RoHS, REACH, and CE certifications.
Capable absolute pressure measurement from 0 to 46 bar. Precision accuracy of ±0.25% with temperature compensation. Robust brass housing with IP67 protection. Fast 2 ms response time and low 3.5 mA current consumption. Ratiometric output for improved signal stability.
Wide operating temperature range from -40°C to 125°C. Metri-Pack terminal type for reliable electrical connections. Certified RoHS, REACH, and CE compliant. This pressure sensor is ideal for industrial automation, hydraulic systems, HVAC, and process control applications where precise and reliable pressure monitoring is critical.
Explore Honeywell Technologies and PX3 Series Pressure Sensors on EnvMart for robust sensor solutions guaranteed to meet industrial standards.
