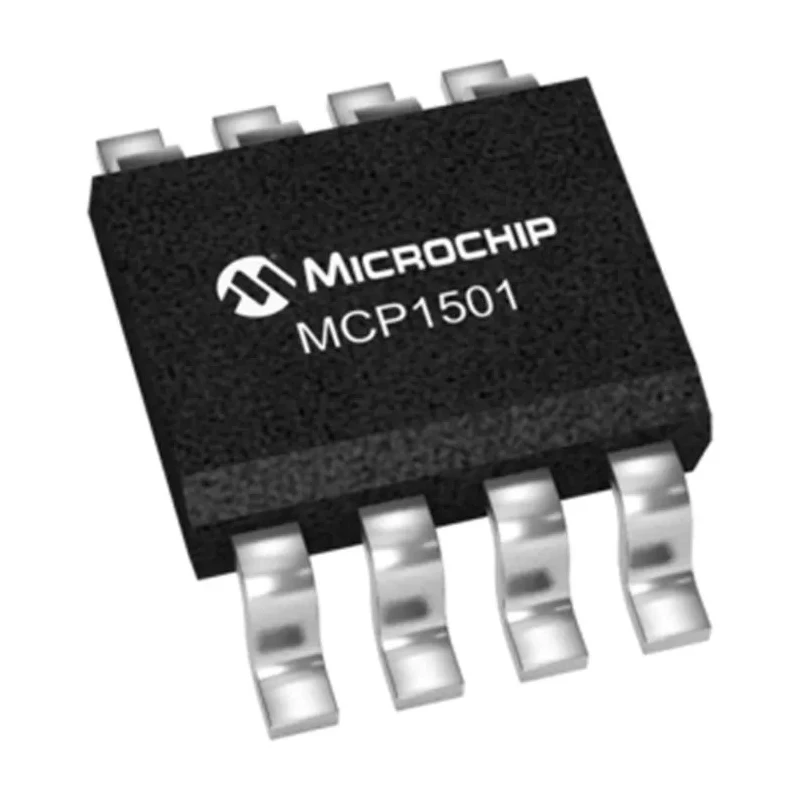

Microchip Fixed Series Voltage Reference 1.25V ±0.08% Accuracy 8-Pin SOIC MCP1501-12E/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Operating Temperature Range | -40 to +125°C |
| Length | 4.9mm |
| Model | MCP1501-12E/SN |
| Mount Type | Surface |
| Output type | Fixed |
| Series | MCP1501 |
| Temperature Coefficient | 10 ppm/°C |
| Output Current | 30mA |
| Topology | Series |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Load Regulation | 70 ppm/mA (Source), 40 ppm/mA (Sink) |
| Minimum Operating Temperature | -40°C |
| Reference Type | Fixed |
| Maximum Input Voltage | 5.5V |
| Line Regulation | 50 ppm/V |
| Minimum Input Voltage | 1.65V |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Reference Voltage | 1.25V |
| Initial Accuracy | ±0.08 % |
| Maximum Temperature Coefficient | 50 ppm/°C from -40°C to +125°C |
| Low Typical Operating Current | 140 μA |
Key Features
- Provides a fixed reference voltage of 1.25V for accurate circuit operation.
- Operates within a temperature range of -40°C to +125°C ensuring reliability in harsh conditions.
- Low typical operating current of 140 μA reduces power consumption.
- Features excellent line regulation of 50 ppm/V and load regulation of 70 ppm/mA (Source), 40 ppm/mA (Sink).
- Includes AEC-Q100 automotive standard compliance for extended automotive applications.
- Compact 8-pin SOIC package measures 4.9mm in length and 1.5mm in height.
- Supports output current sourcing and sinking up to 30mA suitable for high precision applications.
- Minimal output noise below 0.1 μVP-P (0.1 Hz to 10 Hz), ideal for sensitive circuits.
Product Description
Microchip MCP1501-12E/SN is a high-precision fixed Voltage Reference IC designed to provide stable 1.25V output voltage with exceptional accuracy of ±0.08% over a broad operating temperature range of -40°C to +125°C. Packaged in a compact 8-pin SOIC surface-mount outline, the device integrates low-drift, chopper-stabilized amplifiers to maintain zero drift and minimize output noise, making it suitable for precision industrial, automotive, and instrumentation applications.
This device supports both sourcing and sinking currents up to 30mA, enabling robust load regulation with minimal voltage deviation. Its low typical operating current of 140 μA contributes to efficient low-power circuit designs, while the excellent line regulation of 50 ppm/V ensures stable voltage under varying input supply conditions. The MCP1501 also meets the stringent AEC-Q100 automotive grade standard, suitable for demanding automotive environments requiring reliability across broad temperature extremes.
The 8-pin SOIC package measures 4.9mm in length and 1.5mm in height, optimized for surface mount assembly with a pin count conducive to easy PCB integration. The device operates effectively from a minimum input voltage of 1.65V up to a maximum input voltage of 5.5V. Its minimal output noise (.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a fixed reference voltage of 1.25V.
The accuracy is ±0.08% over its operating range.
It operates within a temperature range of -40°C to +125°C.
The maximum input voltage is 5.5V.
The typical operating current is 140 μA, which helps reduce power consumption.
The load regulation is 70 ppm/mA for sourcing and 40 ppm/mA for sinking.
It is packaged in an 8-pin SOIC format, measuring 4.9mm in length and 1.5mm in height.
The line regulation is 50 ppm/V, ensuring stable voltage under varying input conditions.
It can source and sink currents up to 30mA.
Yes, it complies with the AEC-Q100 automotive standard for reliability in automotive applications.
The minimal output noise is below 0.1 μVP-P over the frequency range of 0.1 Hz to 10 Hz.
It is suitable for precision industrial, automotive, and instrumentation applications due to its stability and accuracy.
