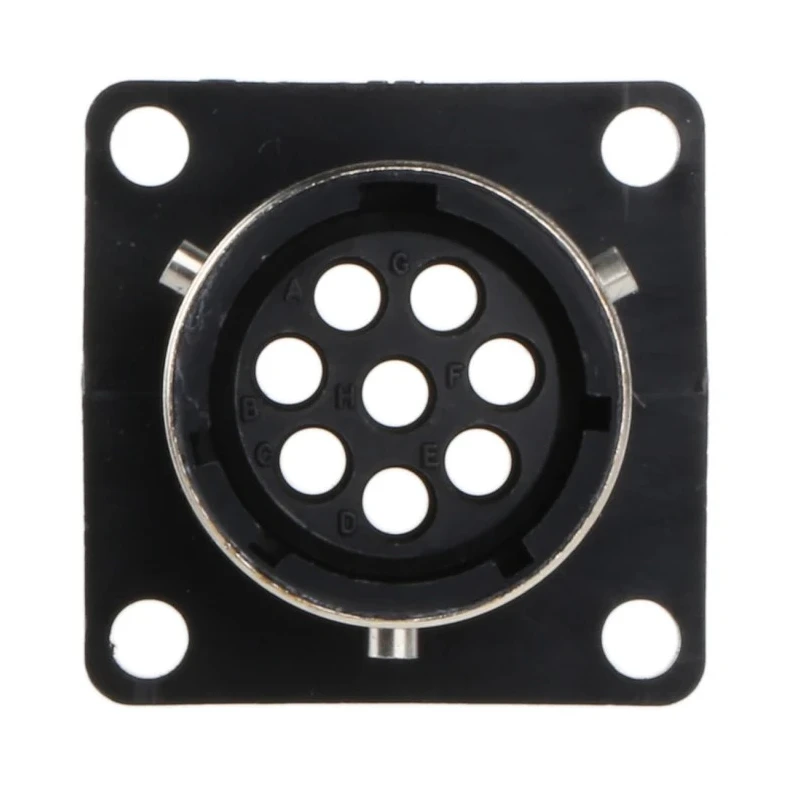

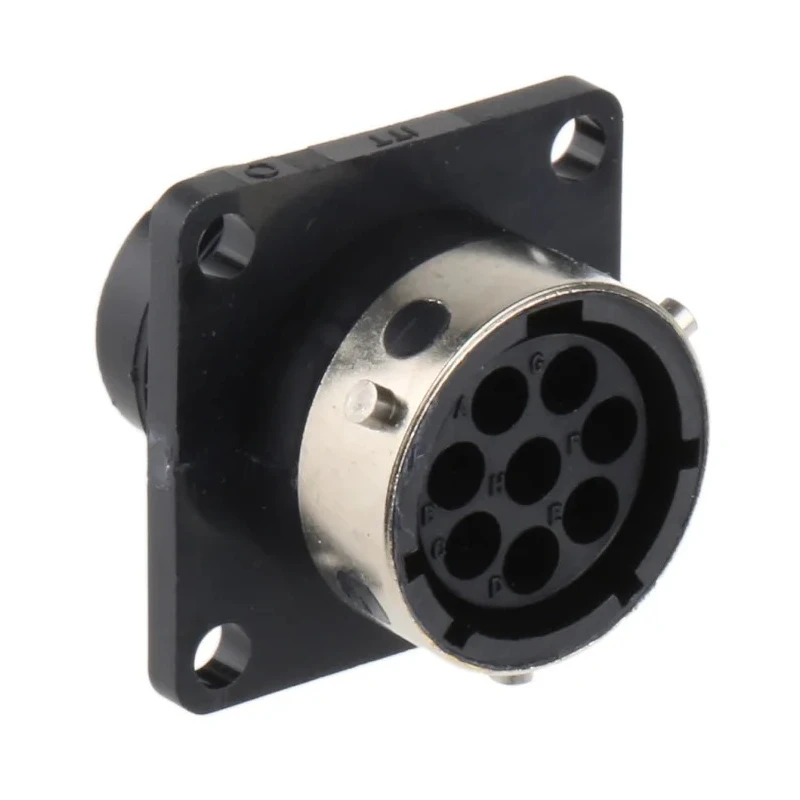

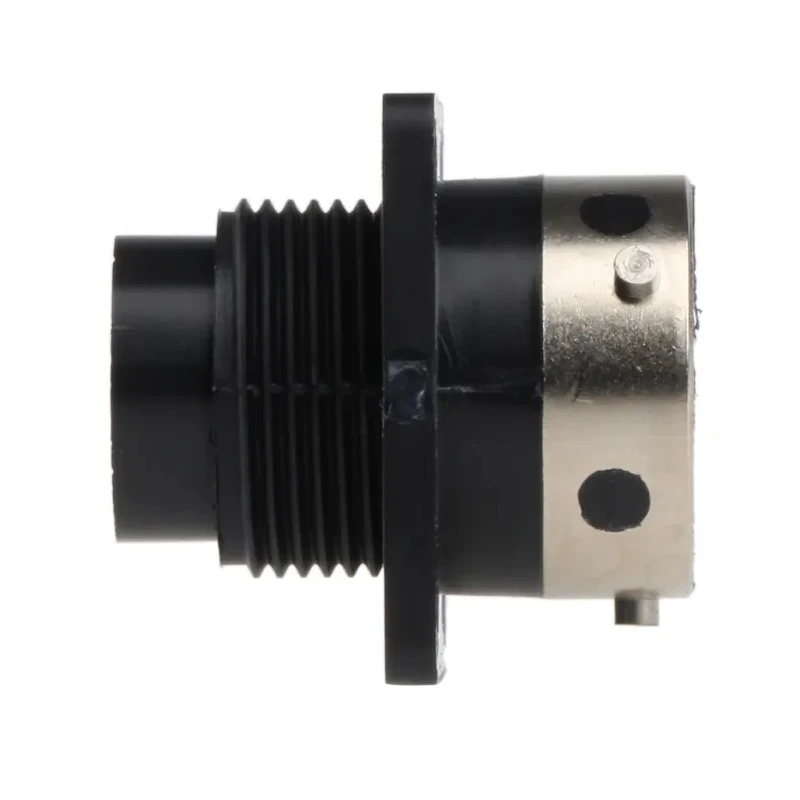

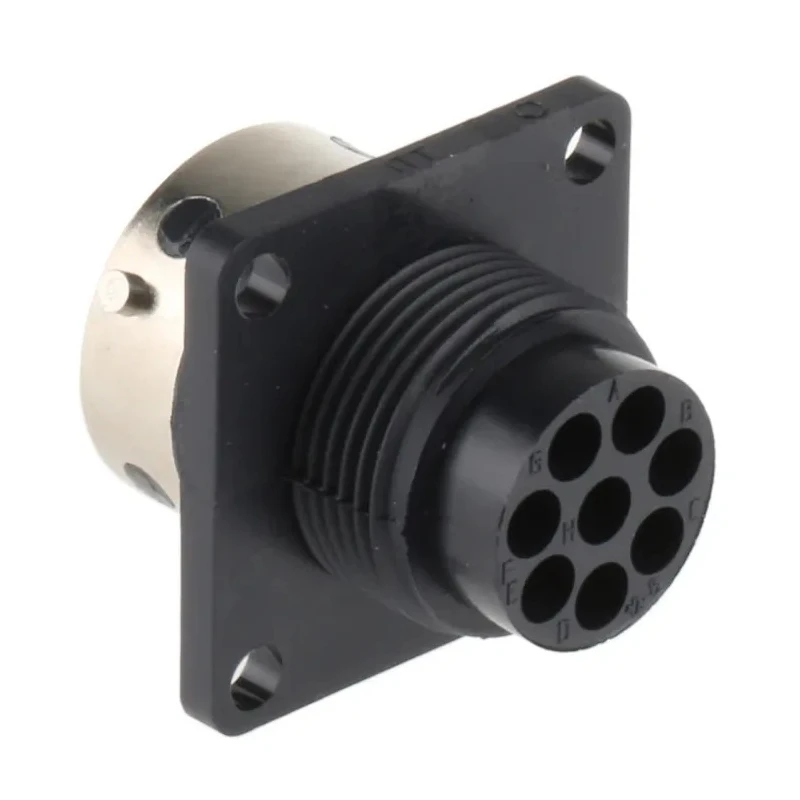

ITT Cannon Circular Connector 8 Contacts Panel Mount Socket Female IP65 Trident Ringlock TR1208RFS1NB / 192922-1200

ITT Cannon TR1208RFS1NB / 192922-1200 circular connector is a high-performance 8-contact socket female panel mount connector designed for industrial environments. Rated for 13A current and 250V voltage, it features a standard shell size 12 and is equipped with a Trident Ringlock bayonet locking system ensuring secure, single rotation mating and unmating.

The connector housing is manufactured from durable black nylon with UL94 V-0 flammability rating and is fitted with copper alloy contacts plated in nickel to guarantee excellent electrical conductivity and corrosion resistance. It supports crimp termination type contacts, enhancing ease of assembly and field repair.

This panel receptacle offers IP65 ingress rating when mated with the appropriate mating half, providing effective protection against dust ingress and water jets, suitable for tough industrial applications. Operating temperature range from -55° C to 105° C makes it suitable for harsh temperature conditions encountered in manufacturing, automation, and process control industries.

These rugged connectors withstand thermal and physical shocks and vibrations, providing ultra-reliable connections for robotic systems, instrumentation, machine building, printing, and manufacturing equipment. The shell to shell keying system prevents mismating while the Trident Ringlock coupling mechanism ensures quick and secure connections.

The product is manufactured in Hungary and exemplifies quality craftsmanship for industrial use. Panel shells accept female socket contacts, which mate with cable mount connectors equipped with male pin contacts. This connector is ideal for industrial electronics requiring resilient, high-quality interconnect solutions.

Features 8 contacts suitable for industrial power connections. Panel mount type with a standard shell and bayonet mating. Rated at 13A current and 250V voltage for reliable performance. Constructed with black nylon housing and copper alloy contacts plated with nickel.

Offers IP65 ingress protection when mated, ensuring resistance to dust and water. Operates within a temperature range of -55° C to 105° C for harsh environments. Utilizes crimp termination and supports female socket contacts.

Trident Ringlock design provides a positive bayonet locking mechanism. Ideal for industrial automation, process control, and robotics applications. Explore similar Industrial Circular Connectors on EnvMart to find the ideal solution for your electrical and automation needs.
