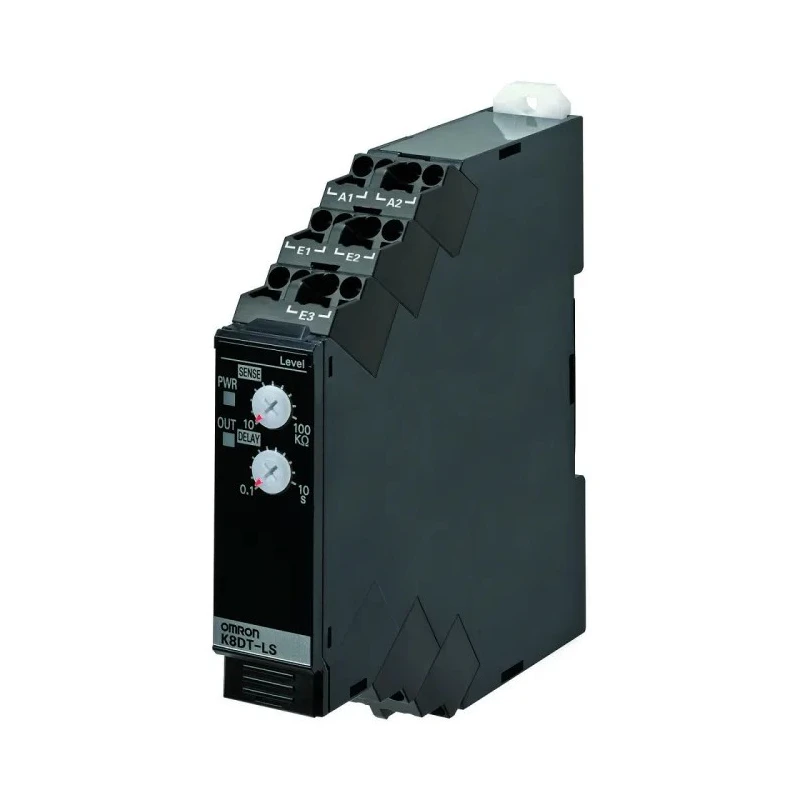

Omron Monitoring Relay 3 Phase SPDT DIN Rail Mount K8DT-LS1CA
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 90mm |
| Length | 90mm |
| Model | K8DT-LS1CA |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | K8DT-LS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Time Delay | 0.1 to 10 s |
| Minimum Operating Temperature | +60°C |
| Terminal type | Push-in |
| Electrical Phase | 3 |
Key Features
- Monitors three-phase electrical systems for equipment protection.
- SPDT contact configuration allows simple changeover switching.
- DIN rail and screw mounting options for flexible installation.
- Push-in terminals enable fast and secure wiring connections.
- Adjustable time delay from 0.1 to 10 seconds for precise trip coordination.
- Operates reliably in ambient temperatures from -20°C to 60°C.
- Compact width of 17.5 mm supports high-density panel layouts.
- Meets multiple safety and EMC standards including EN 61010-1 and UL 61010-1.
Product Description
The Omron K8DT-LS1CA is a precision monitoring relay designed for industrial control panels to protect three-phase electrical systems. Featuring a single pole double throw (SPDT) contact configuration, this relay supports reliable changeover switching and control in automation and motor protection applications.
This device is engineered for DIN rail or screw mounting, accommodating varied panel layouts with a compact 17.5 mm width to maximize space efficiency. It features tool-free push-in terminals which speed installation while ensuring secure wiring connections.
The K8DT-LS1CA offers an adjustable time delay from 0.1 to 10 seconds, facilitating accurate trip coordination to safeguard equipment. It operates within an ambient temperature range of -20°C to 60°C, suitable for diverse environmental conditions.
The housing maintains an IP20 rating, providing protection against solid objects larger than 12 mm but not against water ingress. This relay complies with several standards including EN 61010-1, CCC:GB14048.5, the Korean Radio Waves Act, EN 61326-1, and UL 61010-1 listing, ensuring broad regulatory acceptance.
Applications include phase-loss detection on three-phase motors and drives, control cabinet installations requiring compact phase monitoring, supervisory interlocks with automation PLCs, and preventive shutdowns in motor protection schemes.
Set contains one monitoring relay suitable for high-density industrial control installations. Monitors three-phase electrical systems for equipment protection. SPDT contact enables changeover switching in control circuits.
DIN rail and screw mounting for versatile installation. Push-in terminals provide rapid, tool-free wiring. Time delay adjustable between 0.1 and 10 seconds. Operates in ambient temperatures from -20°C to 60°C. Compact 17.5 mm width for dense panel installations.
Complies with EN 61010-1, UL 61010-1 and other safety standards. Ideal for industrial, automation, manufacturing, and motor control applications. Explore more Monitoring Relay solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole double throw (SPDT) contact configuration, allowing for reliable changeover switching in control circuits.
The time delay for the K8DT-LS1CA is adjustable from 0.1 to 10 seconds, facilitating precise trip coordination.
It operates reliably at a maximum ambient temperature of 60°C.
This monitoring relay has a compact width of 17.5 mm, making it suitable for high-density panel installations.
It can be mounted using DIN rail or screw mounting options, providing flexibility for installation in various panel layouts.
The K8DT-LS1CA has an IP20 rating, which protects against solid objects larger than 12 mm but does not protect against water ingress.
It features push-in terminals that enable fast and secure wiring connections without the need for tools.
The minimum operating temperature for the K8DT-LS1CA is -20°C, allowing it to function in diverse environmental conditions.
This model complies with multiple safety standards, including EN 61010-1 and UL 61010-1, ensuring broad regulatory acceptance.
It is suitable for applications such as phase-loss detection on three-phase motors, control cabinet installations, and preventive shutdowns in motor protection schemes.
The dimensions of this monitoring relay are 90 mm in height, 90 mm in length, and 17.5 mm in width.
This monitoring relay is designed for three-phase electrical systems, making it suitable for various industrial applications.
