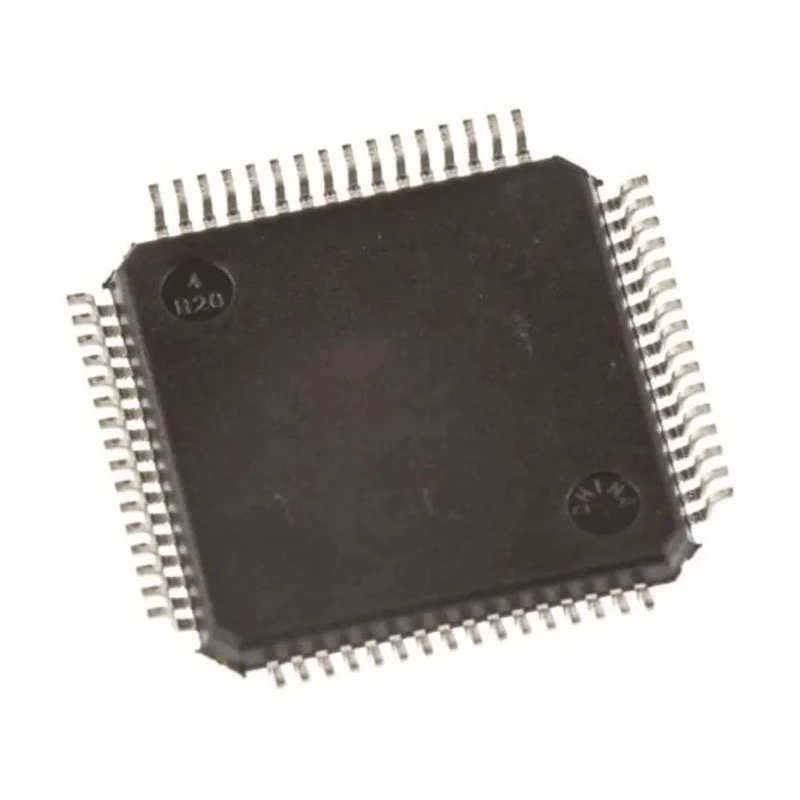

STMicroelectronics STM32F4 Series 32-bit ARM Cortex M4 Microcontroller 512kB Flash 84MHz 64-Pin LQFP STM32F401RET6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 10mm |
| Model | STM32F401RET6 |
| Width | 10mm |
| Mount Type | Surface |
| Series | STM32F4 |
| Maximum Operating Temperature | 85°C |
| Performance | 84 MHz, 105 DMIPS/285 Core Mark performances |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Ram size | 96kB |
| Flash Memory | up to 256 KB |
| Standards/Approvals | FBI |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 313mW |
| Minimum Supply Voltage | 1.7V |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 512kB |
| Maximum Clock Frequency | 84MHz |
| Number of Timers | 6 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
| SRAM | up to 64 KB |
| Operation Voltage | 1.7 to 3.6 V |
| Small package | 3 x 3 mm |
Key Features
- Based on a 32-bit ARM Cortex M4 core with DSP and floating-point unit.
- Features 512kB of FLASH program memory and 96kB of RAM for complex applications.
- Operates at a maximum clock frequency of 84 MHz for efficient processing.
- Includes 16 channels of 12-bit ADCs and versatile communication interfaces including USB 2.0, USART, SPI, and I2C.
- Designed for use in industrial, consumer, medical, and embedded system applications.
- Supports operating voltage from 1.7 V to 3.6 V ensuring flexible power design.
- Compact dimensions of 10 mm x 10 mm x 1.45 mm in a surface-mount LQFP package.
- Power dissipation capped at 313 mW for energy efficient designs.
Product Description
STMicroelectronics STM32F401RET6 is a high-performance 32-bit ARM Cortex M4 microcontroller designed for efficient embedded applications. It operates at a maximum clock speed of 84 MHz and integrates 512kB of FLASH program memory along with 96kB of SRAM, making it well suited for demanding processing tasks.
This microcontroller features versatile peripherals including 16 channels of 12-bit ADCs, multiple 16-bit timers, and communication interfaces such as USB 2.0 OTG FS/HS, USART, SPI, and I2C. It supports advanced digital signal processing and floating point operations with its dedicated DSP and FPU units, enabling real-time signal processing capabilities.
The STM32F401RET6 operates within an extended supply voltage range of 1.7 to 3.6 V, offering flexibility in power management. Its compact 64-pin LQFP surface-mount package measures 10 mm by 10 mm with a height of 1.45 mm, optimized for space-constrained designs. The microcontroller dissipates a maximum power of 313 mW and supports operation across a wide temperature range from -40°C to 85°C, suitable for industrial and automotive applications.
This microcontroller is a member of the STM32F4 series by STMicroelectronics, which is known for high-performance embedded MCUs with DSP and floating-point capabilities. It is ideal for applications in medical, consumer electronics, industrial automation, and embedded computing.
High-performance 32-bit ARM Cortex M4 core with DSP and FPU. 512kB FLASH memory and 96kB SRAM for complex application support. Multiple communication interfaces including USB 2.0 OTG FS/HS, USART, SPI, and I2C. 16 channels of 12-bit ADC for precise analog input conversion.
Compact 64-pin LQFP surface-mount package measuring 10x10x1.45 mm. Operates across an extended temperature range from -40°C to 85°C. Flexible voltage supply range between 1.7 V and 3.6 V. Max power dissipation limited to 313 mW ensures power efficiency.
Suitable for medical, industrial, consumer, and embedded system applications. Explore more STM32 Microcontrollers and related semiconductor products to find the optimal device for your embedded design projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F401RET6 operates at a maximum clock frequency of 84 MHz.
It features 512kB of FLASH program memory.
The operating voltage range is from 1.7 V to 3.6 V.
This microcontroller has compact dimensions of 10 mm x 10 mm x 1.45 mm.
It includes USB 2.0, USART, SPI, and I2C communication interfaces.
The STM32F401RET6 features 16 channels of 12-bit ADCs.
It has 96kB of RAM.
The maximum power dissipation is capped at 313 mW.
It operates within a temperature range from -40°C to 85°C.
It comes in a 64-pin LQFP surface-mount package.
This model includes 6 timers.
It is based on a 32-bit ARM Cortex M4 core with DSP and floating-point unit.
