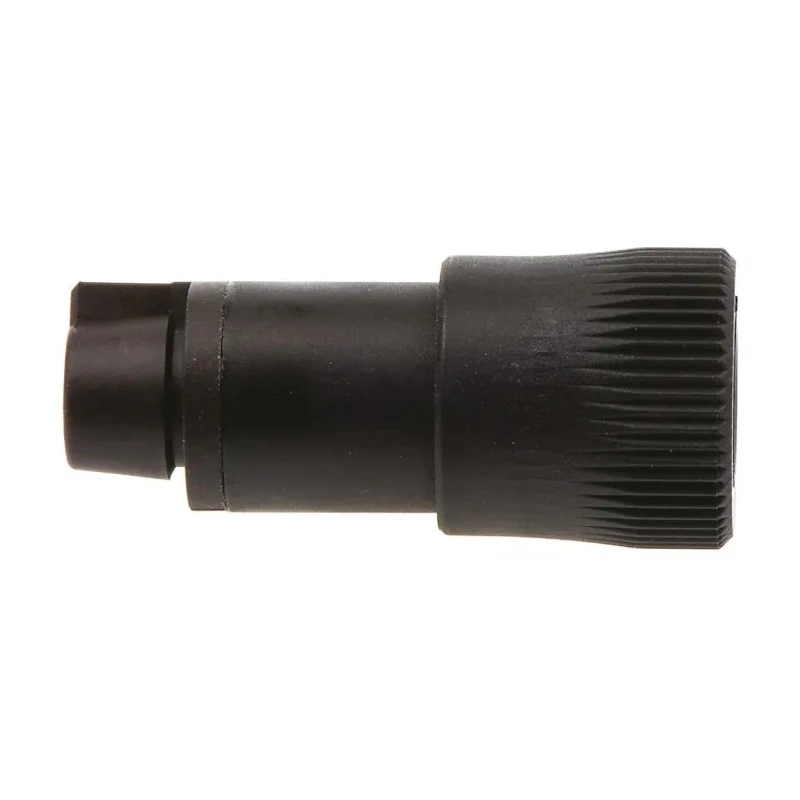

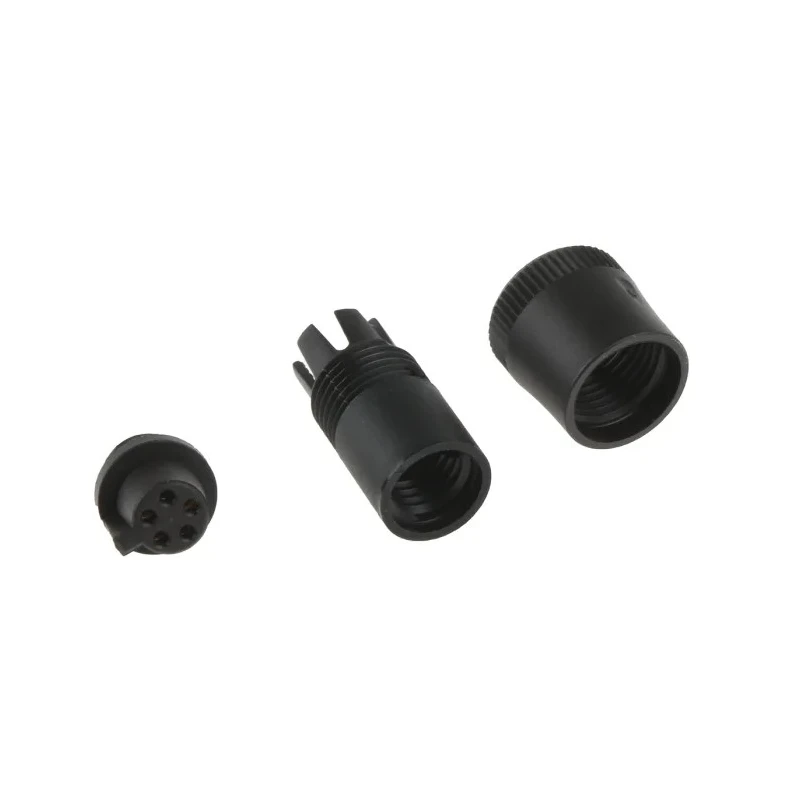

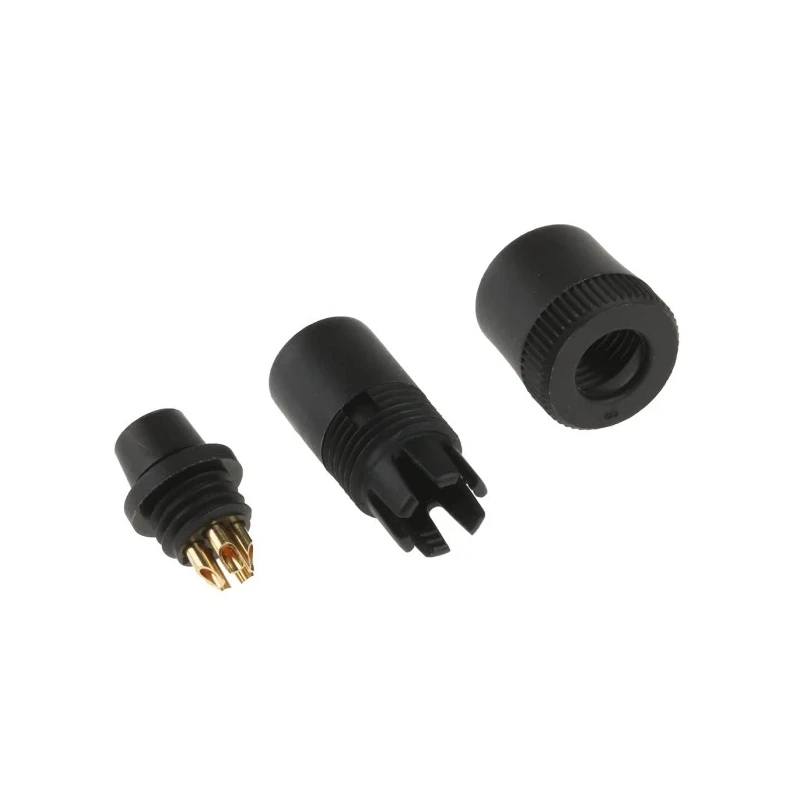

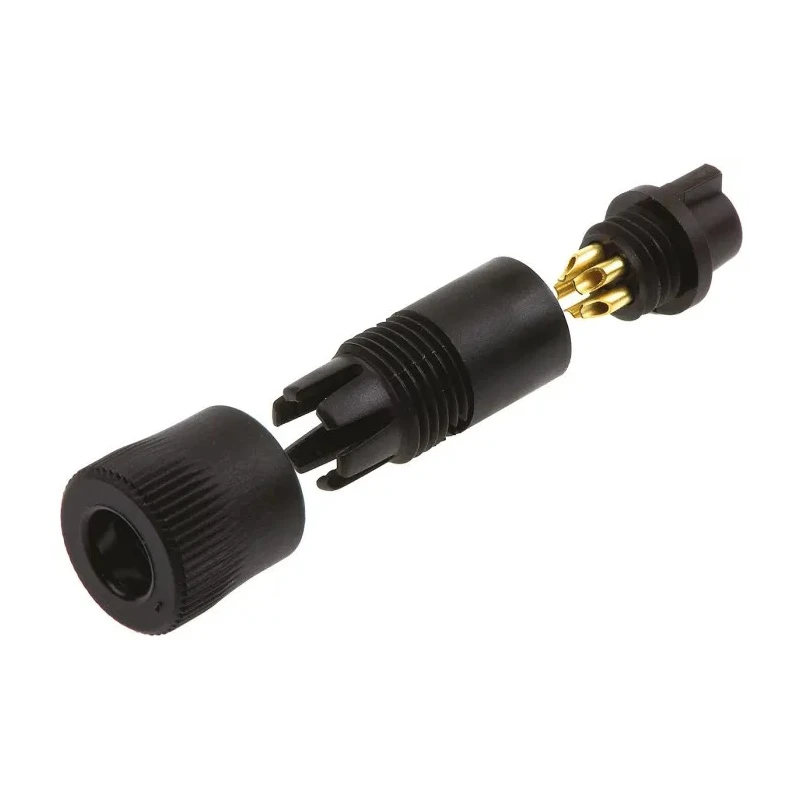

binder Circular Connector, 5 Contacts, Cable Mount, Subminiature Socket, Female, IP40, 60V, 3A, Polyamide 09-9790-71-05

Free Delivery in India | Lowest Global Shipping Charges

binder Circular Connector, 5 Contacts, Cable Mount, Subminiature Socket, Female, IP40, 60V, 3A, Polyamide 09-9790-71-05

Name: binder Circular Connector, 5 Contacts, Cable Mount, Subminiature Socket, Female, IP40, 60V, 3A, Polyamide 09-9790-71-05
Brand: binder
SKU: 138722
Price: 9.04 USD
Availability: InStock



Category Industrial Circular Connectors Brand binder Condition New

Specifications

Country of Origin	Germany
Voltage	60V
Brand	binder
Orientation	Straight
Current	3A
IP Rating	IP40
Mount Type	Cable
Housing Material	Polyamide
Contact Material	Brass
Series	719
Termination Type	Solder
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Contact Plating	Gold
Number of Contacts	5
Contact Gender	Female
Shell Size	5 mm
Mating Type	Threaded
Connector Size	Subminiature
Plug/Socket	Socket

Key Features

The connector is designed for cable mounting with a snap-in locking system for easy connect and disconnect.
It includes a threaded mating type and solder termination suitable for wire sizes up to 0.25mm².
Operates reliably in temperatures ranging from -25°C to 70°C.
The connector shell size is 5 mm and is part of binder's 719 series.
Constructed for female contact gender with a straight orientation for precise connections.
Ideal for instrumentation, microelectronics, and other industrial electronics requiring small form factor connectors.
Manufactured in Germany ensuring quality and durability.

Product Description

binder 09-9790-71-05 Circular Connector Socket is a 5-contact, subminiature cable mount circular connector designed for reliable industrial and electronic connectivity. Rated for 60 volts and 3 amperes, it features gold-plated brass contacts housed in durable polyamide material.

This connector offers a snap-in locking mechanism, facilitating quick and secure connections and disconnections in instrumentation and microelectronics applications. The cable socket is designed with a threaded mating system and solder termination to accept wire sizes up to 0.25 mm², ensuring robust electrical contact and mechanical stability.

The 5 mm shell size with female contact orientation and straight alignment supports precision, compact installations where space is limited. The IP40 rating provides protection against solid objects larger than 1 mm, suitable for controlled environments.

Operating temperature ranges from -25°C to 70°C, making it suitable for various industrial and laboratory conditions. The connector is designed for cable mounting with a snap-in locking system for easy connect and disconnect.

It includes a threaded mating type and solder termination suitable for wire sizes up to 0.25 mm². Operates reliably in temperatures ranging from -25°C to 70°C. The connector shell size is 5 mm and is part of binder's 719 series.

Constructed for female contact gender with a straight orientation for precise connections. Ideal for instrumentation, microelectronics, and other industrial electronics requiring small form factor connectors. Manufactured in Germany ensuring quality and durability.

This circular connector is commonly used in industrial automation, measurement instrumentation, telecommunications equipment, and laboratory testing setups. Its compact size and reliable contact plating ensure consistent signal and power transfer in sensitive electronics environments.
