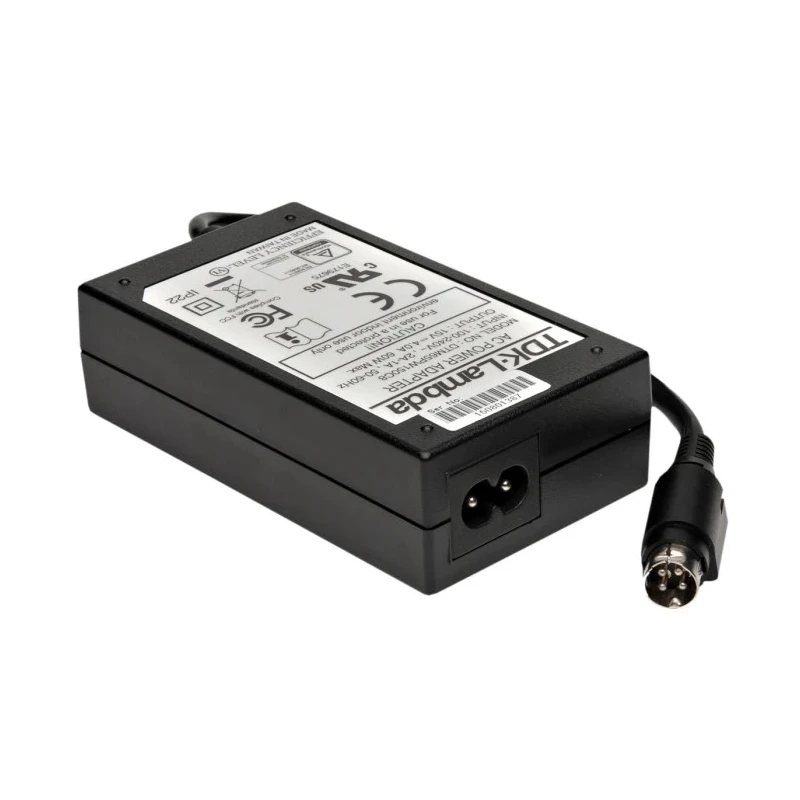

TDK-Lambda AC/DC Power Adapter 65W 12V DC Output 5A KPPx-4P Connector C8 Plug DTM-65PW-120-C8

TDK-Lambda DTM-65PW-120-C8 AC/DC Power Adapter is a medical-approved desktop power supply designed with robustness for industrial and medical use. This 65W power adapter outputs 12V DC at a current of 5A through an industry-standard KPPx-4P 4-pin DIN connector, compatible with various systems requiring reliable power delivery.

The adapter features a C8 IEC 320 input connector supporting a universal AC input voltage range of 85V to 264V, making it suitable for global operation. Its compact dimensions (106mm length, 60mm width, 31mm depth) and cable length of 1050mm provide practical deployment in constrained environments.

Operating efficiently at 88% efficiency and compliant with Energy Efficiency Level VI, this power adapter reduces energy consumption and operational costs. The unit also conforms to stringent medical safety standards including CE, EN 60601-1, IEC 60601-1, and UL 60601-1 certifications, emphasizing its applicability in healthcare technology and life sciences.

This power adapter operates reliably within the 0°C to 60°C temperature range and maintains load regulation of ±5%, assuring stable output voltage for sensitive electronics. The Class II design eliminates the need for an earth cable, facilitating safer home healthcare applications.

Typical applications include medical devices, industrial computing, laboratory instruments, and life sciences equipment demanding consistent and energy-efficient power supply. Outputs 12V dc voltage at 5 amps current. Power rating of 65 watts suitable for medical and industrial applications.

Equipped with KPPx-4P output connector and IEC 320-C8 input connector. Operating temperature range from 0°C to 60°C. Energy-efficient with 88% efficiency compliant to Level VI standards. Compact form factor with dimensions 106mm (L) x 60mm (W) x 31mm (D).

Single output configuration with cable length of 1050mm. Meets CE, EN 60601-1, IEC 60601-1, UL 60601-1 medical safety approvals. Wide input voltage range from 85V to 264V AC for global operation. Load regulation within ±5% ensuring stable output voltage.

The TDK-Lambda DTM-65PW-120-C8 power adapter is a dependable choice for industrial, medical, and laboratory environments requiring certified safety and energy efficiency. Explore our selection of AC/DC Adapters and power supplies on EnvMart for compatible products and accessories.
