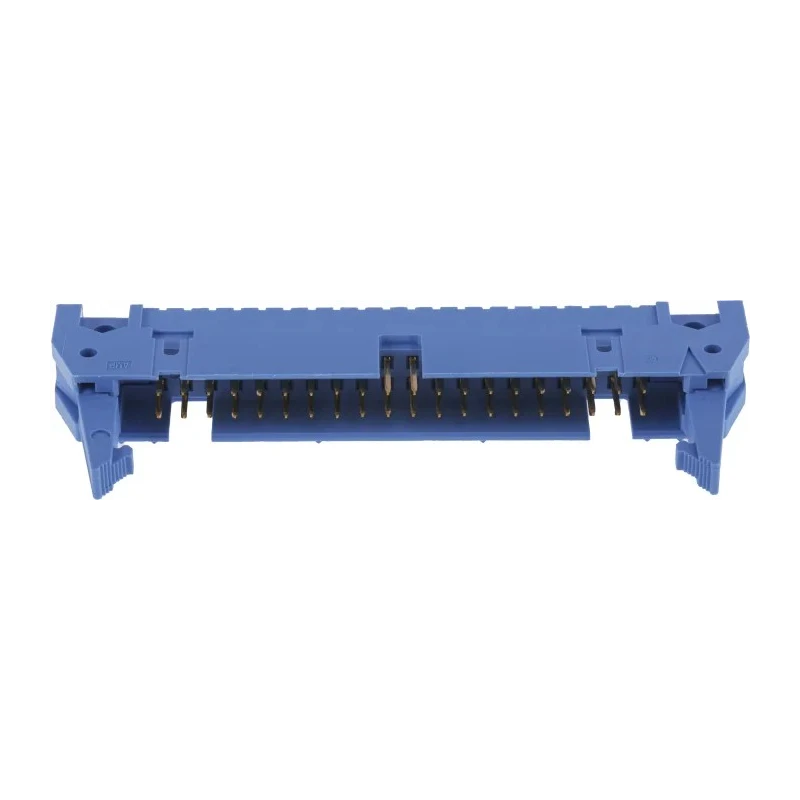

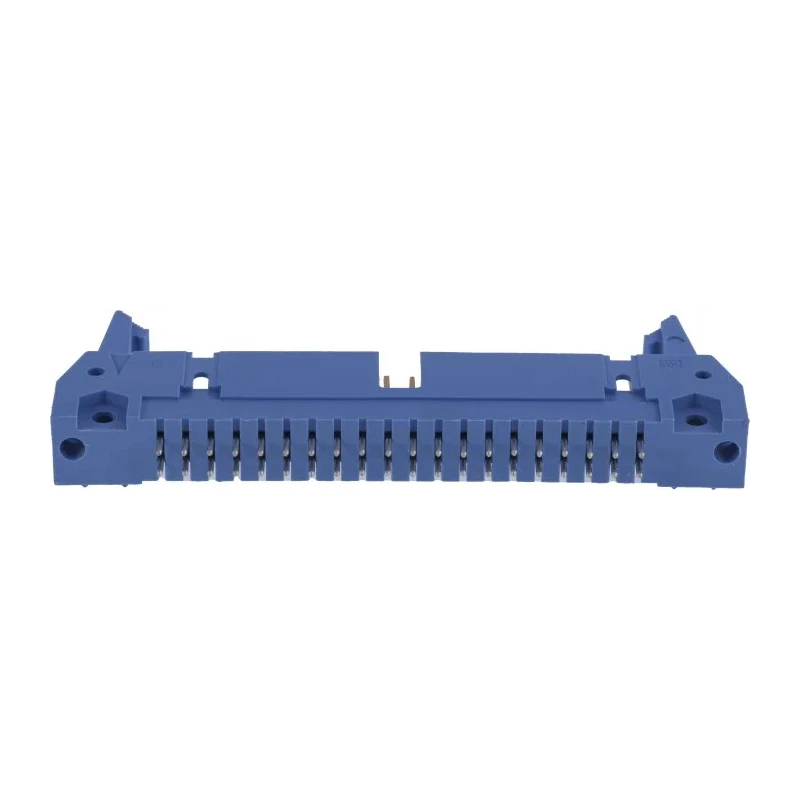

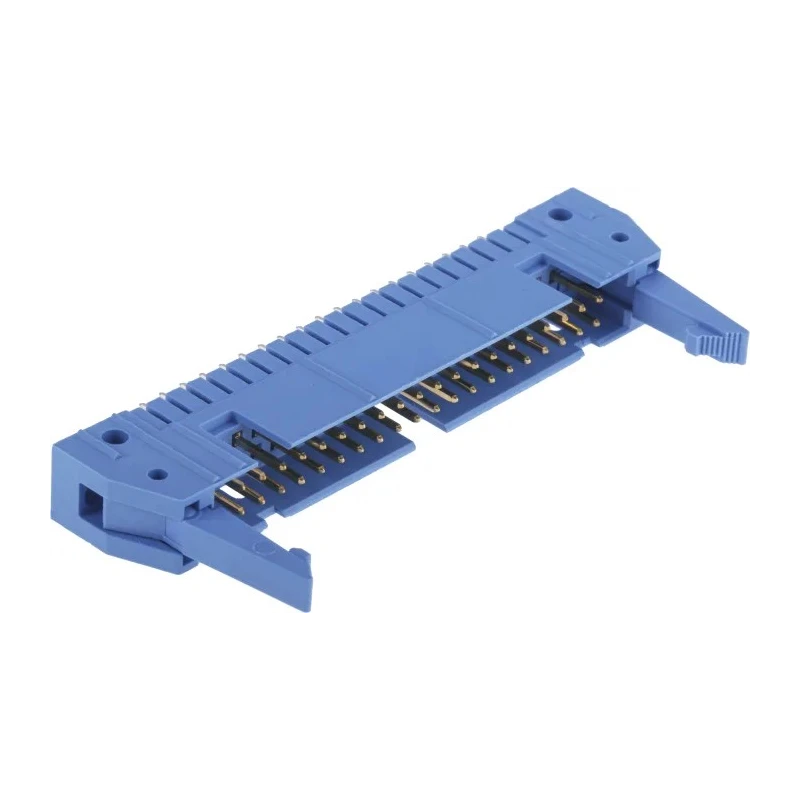

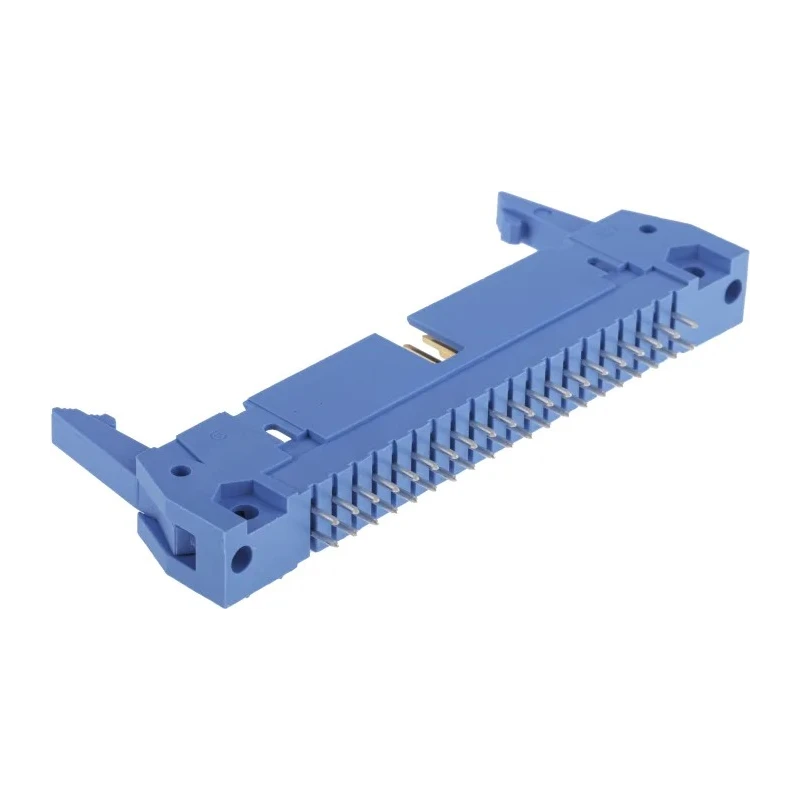

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 40 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 2-5499206-9
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
Key Features
- Series AMP-LATCH providing universal ejection style for easy mating and removal.
- Through hole mount type for sturdy PCB attachment.
- Contact material of phosphor bronze with gold plating for enhanced conductivity and durability.
- Suitable operating temperature range from -65°C to 105°C.
- Supports 1 A current and voltage up to 250 V.
- Contact gender male with tail pin length of 2.79 mm.
- Shrouded connector system preventing accidental contact and ensuring reliable operation.
- Nylon housing material providing robust insulation and mechanical strength.
Product Description
TE Connectivity 2-5499206-9 AMP-LATCH Series Straight Through Hole PCB Header is a high-quality electronic component designed for wire-to-board connections. This shrouded PCB header features 40 male contacts arranged in 2 rows with a precise 2.54 mm pitch and row pitch, ensuring compatibility with standard ribbon cable assemblies.
Constructed with a durable nylon housing, this PCB header incorporates phosphor bronze contacts plated with gold to provide superior conductivity and resistance to corrosion. The through-hole mount type facilitates strong mechanical stability on printed circuit boards.
Engineered for reliable performance, it supports a maximum current of 1 A and voltage up to 250 V withstanding operating temperatures ranging from -65°C to 105°C. The AMP-LATCH universal ejection style includes options for long and short ejector latches, enabling secure mating and easy removal from mating IDC ribbon cable receptacle connectors.
This PCB header is suitable for demanding industrial applications including computers, business equipment, medical devices, storage and networking equipment, and industrial controls. Its shrouded design enhances safety by preventing accidental contact during connection and handling.
Series AMP-LATCH providing universal ejection style for easy mating and removal. Durable nylon housing ensures mechanical strength and electrical insulation. Phosphor bronze contacts with gold plating deliver high conductivity and corrosion resistance.
Operating temperature range from -65°C to 105°C suitable for varied environments. 1 A current rating and 250 V voltage rating for reliable electronic performance. Through-hole mounting type for secure PCB installation. Shrouded connectors enhance safety and reduce damage risk.
Compatible with multiple applications in electronics and industrial fields. Contact tail pin length of 2.79 mm optimized for soldering and mechanical stability. Designed to meet rigorous industrial and commercial use standards.
This product is ideal for industrial, manufacturing, electronics assembly, commercial equipment, and laboratory applications. Select the TE Connectivity AMP-LATCH 2-5499206-9 PCB Header for precision engineered connectivity solutions.
Explore the extensive range of electronic components available on EnvMart for quality and trusted products.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 250 V.
This model supports a maximum current of 1 A.
The operating temperature range for this component is from -65°C to 105°C.
This PCB header has 40 contacts arranged in 2 rows.
The pitch of the contacts in this header is 2.54 mm.
The housing of this PCB header is made of nylon, providing mechanical strength and electrical insulation.
This model uses solder termination type.
The tail pin length of the contacts is 2.79 mm, optimized for soldering.
This PCB header is shrouded, which helps prevent accidental contact.
The connector system type for this model is wire-to-board.
The contacts in this PCB header are made of phosphor bronze and are plated with gold for enhanced conductivity.
This PCB header is manufactured in India.
