Wireless Vibration Sensor WBS1
Specifications
| Accuracy | + / - 5% @ 150 Hz| 1 g |
|---|---|
| Frequency range | Vel & Disp (10 ~ 1|000 Hz)| Acc (2 ~ 5000Hz) |
| Capacity | 750 mAh |
| Type | Li-ion |
| Operating Temperature | -30 ~ 70 |
| Dimensions | 41.8 x 69.4 mm |
| Mounting | M6 threaded hole |
| Wireless Range | Upto 50 meters depending on the environment |
| Protection Type | IP67 |
| Humidity | 0% to 95% relative humidity (RH) |
| Weight | 228 g |
| Charging Time | 1 - 2 hours |
| Sensing element | Piezoelectric / Annual shear mode |
| Signal | RMS| Peak| peak to peak| Bearing status value |
| LED indicator | Red| Green| Blue |
| Frequency response | 3dB 0.4 Hz - 10 KHz |
| ISO standard | compliance ISO 10816-3 |
| Full scale | 50 g |
| Signal-to-Noise ratio | Greater Than 80 dB |
| Explosion proof | Exib IIC T4 Ga |
| FFT resolution | 6400 lines |
| Waveform type | WAcceleration| Velocity| Displacement| Envelopeaveform type |
| Bearings condition | BCLess Than 1| well| 1 |
| Measurement duration | 3s typical (affected by distance & communication) |
| Vibration setup | Automatic definition of the measurements based on the machine class |
| Operating lifetime | more than 10 hours (Continuously) |
| Rechargable | with marching charger |
| Wireless protocol | Wifi point to point |
| Standard mobile system compatibility | Android |
| Sampling frequency | Max 25.6 Khz |
Key Features

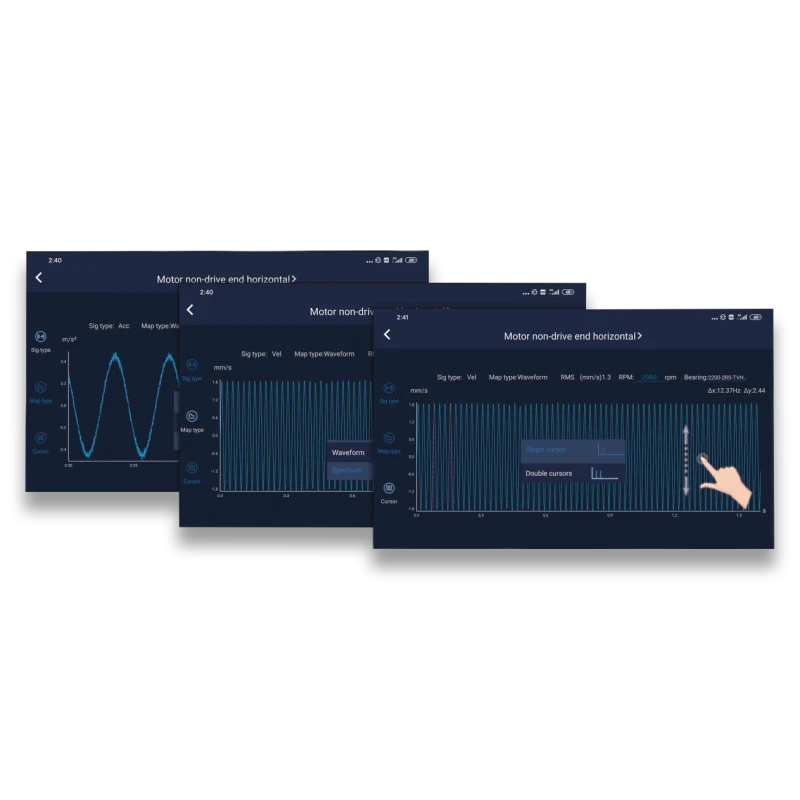

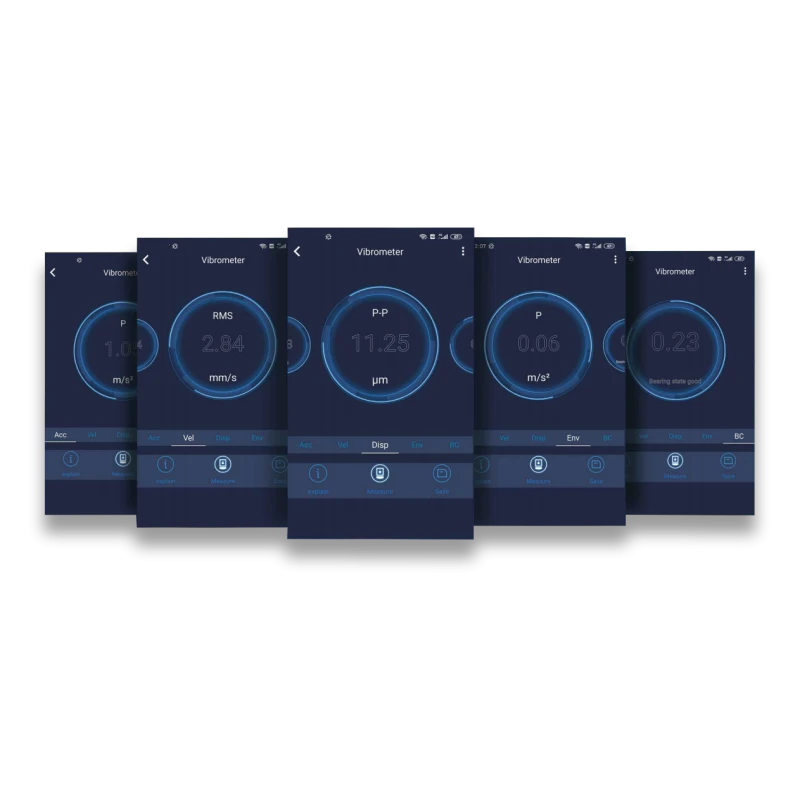

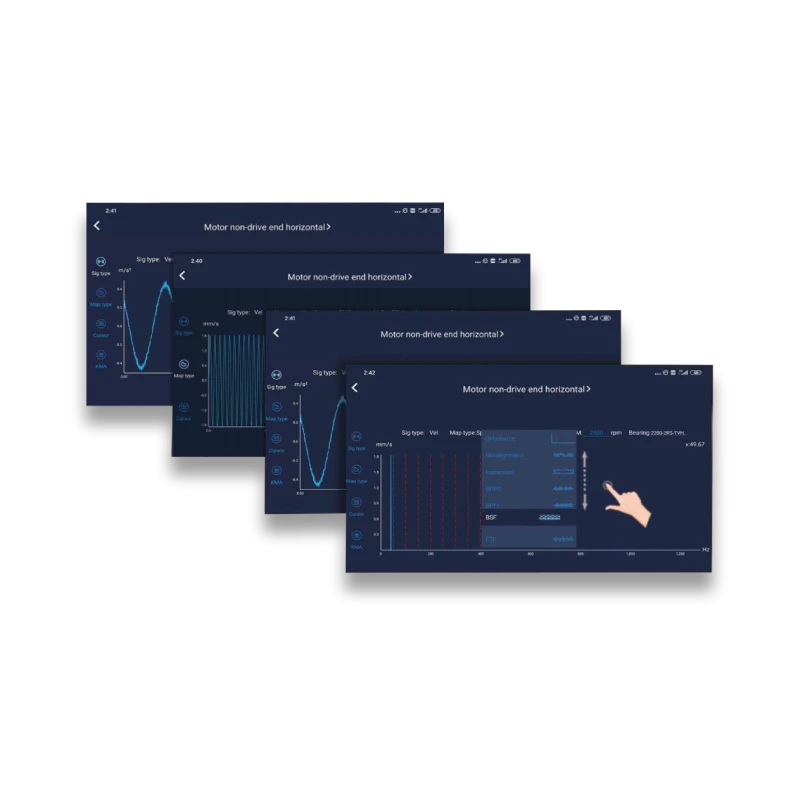

- Multiple parameter collection- Support for multiple signal types: ACC, Vel, Disp, Env, BC, FFT, Time waveform
- Wireless Signal acquistion Wireless communication range up to 50 meters (depending on field condition)
- Ultra low power consumption 10 hours of operation on a single charge
Product Description
Wireless Vibration Sensor (WBS1) is a handheld single-axis piezoelectric wireless accelerometer that runs on Android Mobile / Tab. The ROKADE WBS1 is a wireless ultra-low noise accelerometer with a bandwidth of 10 kHz, which outperforms most conventional accelerometers in particular.
- Quick installation Built-in magnetic suction base
- Premium protection IP67 industrial grade protection with Ex Proof certification
- Easy to charging Standard USB connector helping you charging at any time
