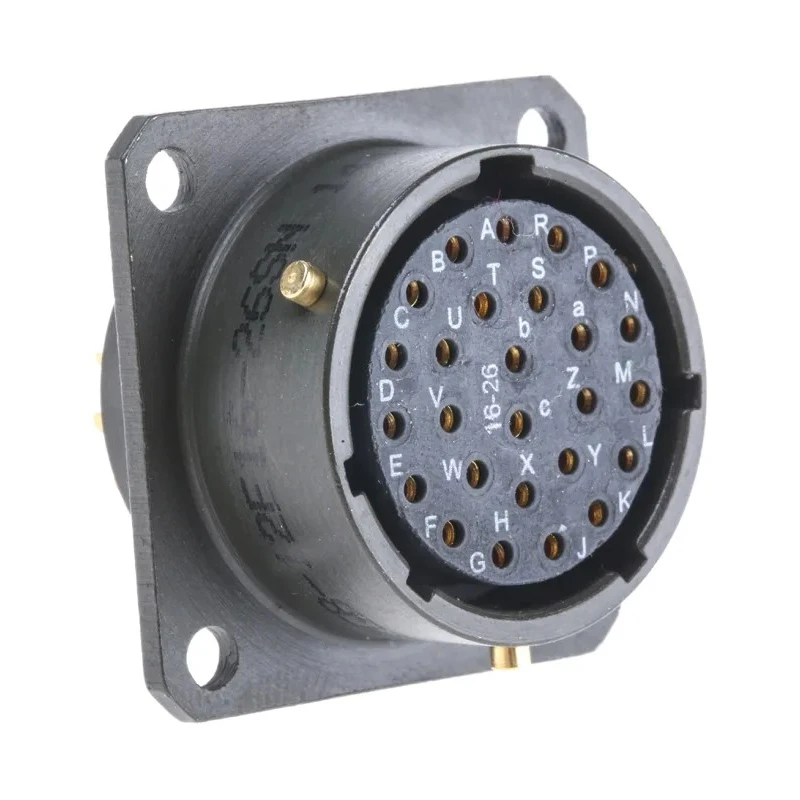

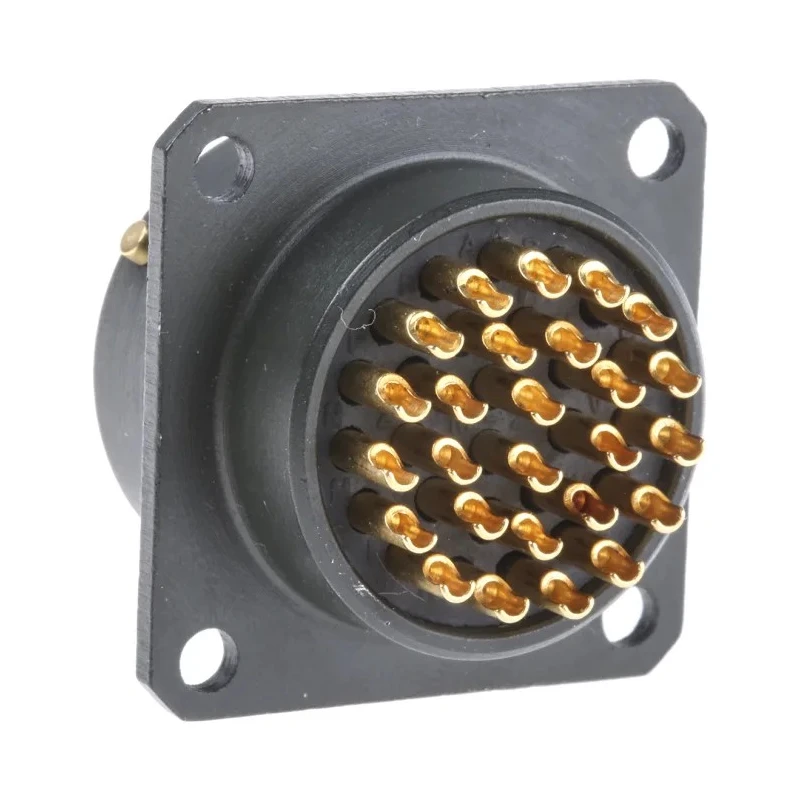

Amphenol Limited MIL Spec Circular Connector 26 Contacts Female Box Mount Straight Olive Aluminium Zinc 62GB-12E16-26SN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500, 700V ac |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Model | 62GB-12E16-26SN |
| Mount Type | Box Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Tin |
| Series | 62GB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Resistance | 5 mΩ max |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 16 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Shell Plating | Zinc Cobalt |

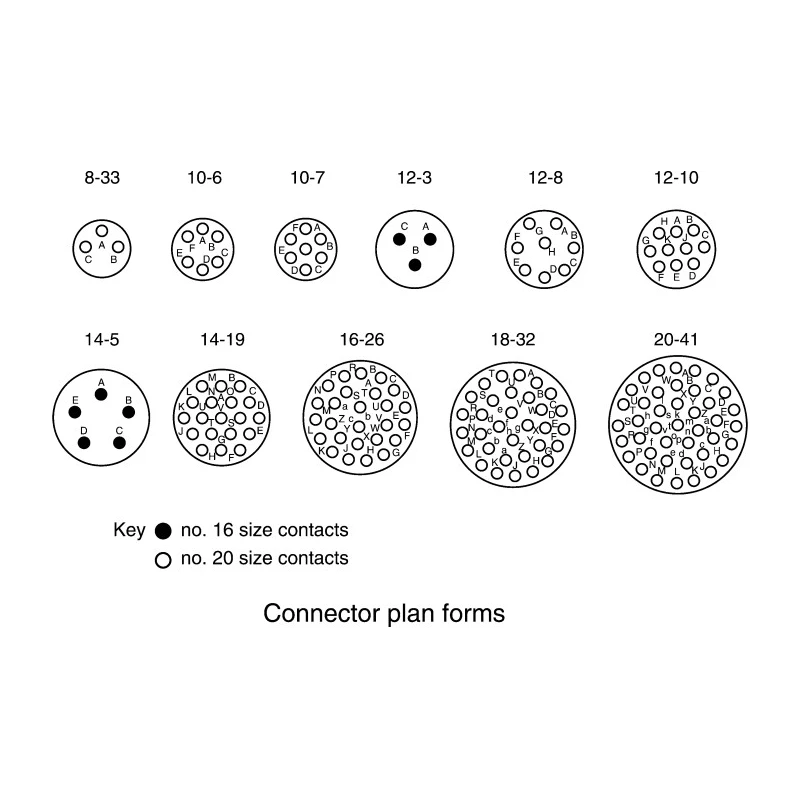

| Insert Arrangement | 16-32 |
| Connector, circular, UK 105, MIL C 26482, socket, chassis mount, 26 wayBrand | AB Electronic |
Key Features
- This miniature connector features an aluminium housing with zinc cobalt plating for corrosion resistance.
- The olive-coloured connector provides electrical insulation with polychloroprene rubber inserts.
- A bayonet locking system ensures secure mating and prevents mis-mating with keyed design.
- Rated for 500 and 700V AC, the connector can operate in extreme temperatures from -55°C to 125°C.
- Gold-plated copper tin contacts offer low electrical resistance of 5 mΩ max.
- Strain relief is incorporated to enhance mechanical durability and reliability.
- This connector is ideal for military and industrial environments requiring robust and environmentally sealed connections.

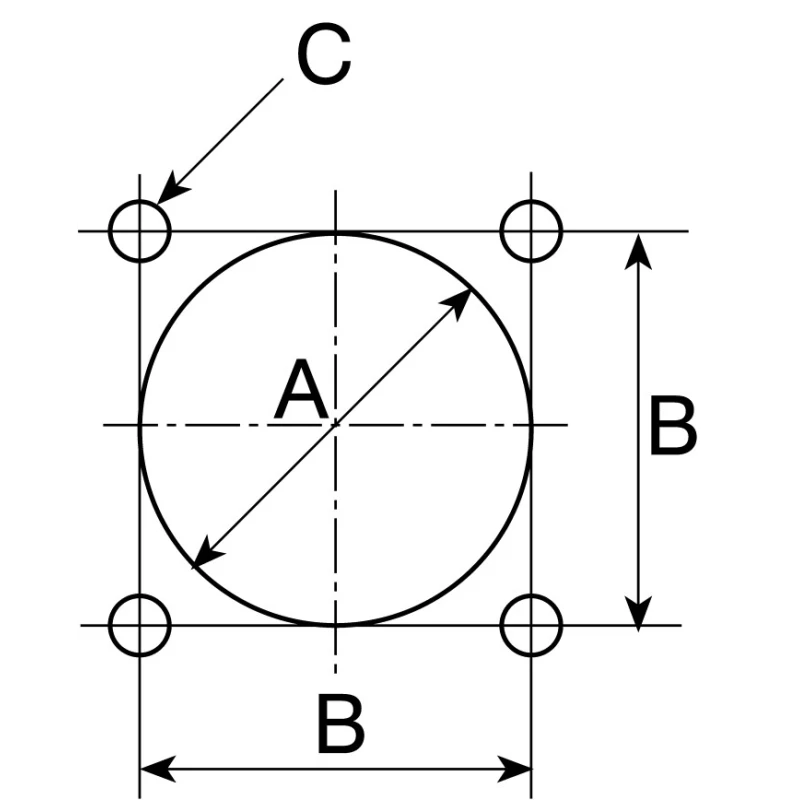

- Box mount design facilitates chassis installation with a square flange.
Product Description
Amphenol Limited 62GB-12E16-26SN MIL Spec Circular Connector is a miniature 26-contact female box mount connector with straight orientation, designed to meet the stringent MIL-DTL-26482 military standard for durable and reliable electrical connections. It operates at voltages of 500 and 700V AC, with a temperature range of -55°C to 125°C, making it suitable for harsh environments.
The connector housing is made from solid aluminium with a zinc cobalt plating finished in an olive drab colour, providing excellent corrosion resistance and durability. Polychloroprene rubber inserts provide environmental sealing, protecting the contacts and electrical connections from contaminants.
This connector features gold-plated copper tin contacts with a maximum contact resistance of 5 milliohms, ensuring excellent electrical performance. The bayonet locking mating system offers secure and fast connection, while the added keyway prevents mis-mating with incompatible connectors.
Designed as a box mount, the connector includes a square flange for secure chassis mounting, making it suitable for military, industrial, aerospace, transportation, and harsh environment applications. Strain relief features enhance mechanical stability during operation.
These connectors are widely used in military and industrial sectors where reliable signal and power transmission is critical under extreme conditions. This miniature Mil Spec Circular Connector provides high reliability in harsh environments.
Durable aluminium shell with zinc cobalt plating resists corrosion. Bayonet lock system prevents accidental disconnection and mis-mating. Gold-plated copper tin contacts ensure low resistance and high conductivity. Rated for operation from -55°C to 125°C and voltages of up to 700V AC.
Box mount with square flange enables easy and secure chassis installation. Environmentally sealed with rubber inserts for contamination protection. Strain relief protects connections from mechanical stress and damage. Explore the Amphenol Limited range at EnvMart for trusted military-grade circular connectors and related industrial electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for operation at 500 and 700V AC.
It can operate in extreme temperatures ranging from -55°C to 125°C.
The connector features 26 contacts.
The housing is made from aluminium with zinc cobalt plating, and the contacts are made from gold-plated copper tin.
It utilizes a bayonet locking system to ensure secure mating and prevent mis-mating.
The maximum contact resistance is 5 milliohms.
It features a box mount design with a square flange for secure chassis installation.
It meets the MIL-DTL-26482 military standard for reliable electrical connections.
This connector has a straight orientation.
Yes, it includes polychloroprene rubber inserts for environmental sealing, protecting the contacts from contaminants.
The shell size of this model is 16.
It is suitable for military, industrial, aerospace, transportation, and harsh environment applications.
