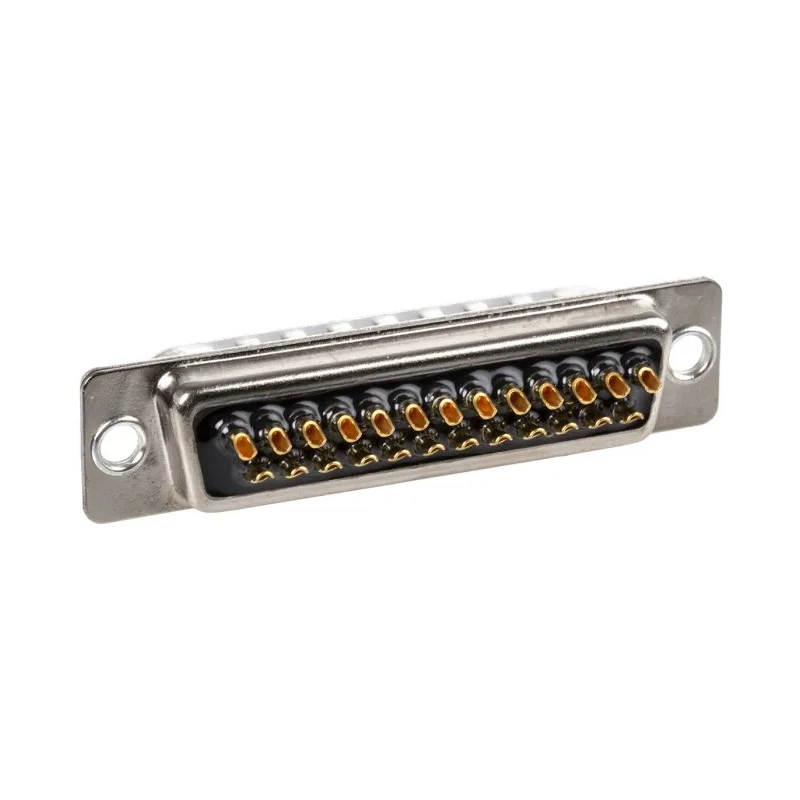

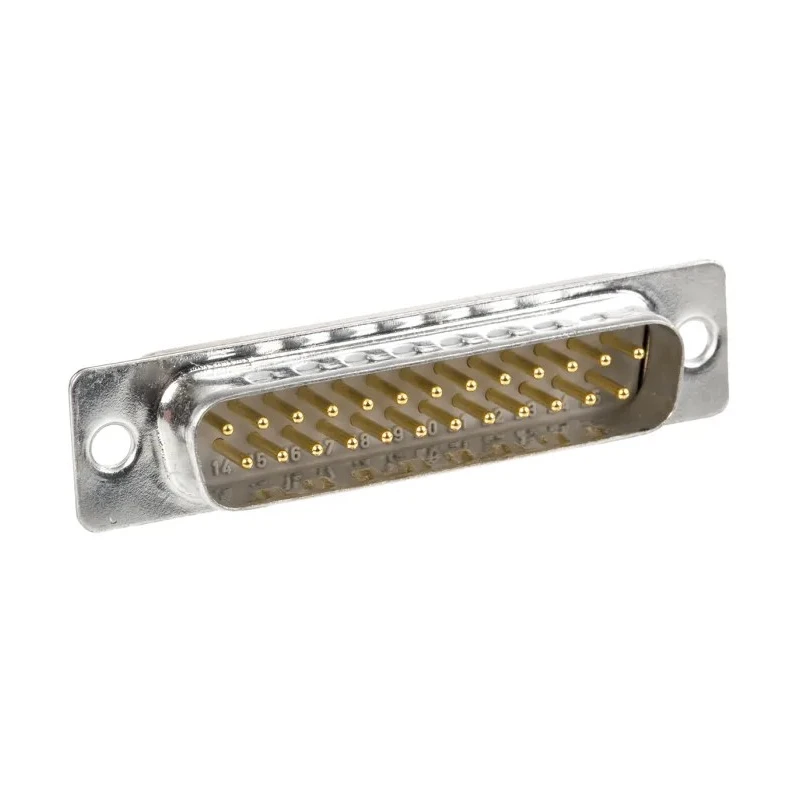

Cinch Filtered D-Sub Connector 25 Way Straight 2.76 mm Pitch Panel Mount Male 200V 5A FDB-25PTI2/1

Free Delivery in India | Lowest Global Shipping Charges

Cinch Filtered D-Sub Connector 25 Way Straight 2.76 mm Pitch Panel Mount Male 200V 5A FDB-25PTI2/1

Name: Cinch Filtered D-Sub Connector 25 Way Straight 2.76 mm Pitch Panel Mount Male 200V 5A FDB-25PTI2/1
Brand: Cinch
SKU: 137899
Price: 53.23 USD
Availability: InStock



Category D-Sub Connector Brand Cinch Condition New

Specifications

Country of Origin	United Kingdom
Voltage	200V
Brand	Cinch
Orientation	Straight
Current	5A
Model	FDB-25PTI2/1
Mount Type	Panel Mount
Housing Material	Steel
Contact Material	Copper Alloy
Series	FD
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-25°C
Pitch	2.76mm
Contact Plating	Nickel
Number of Contacts	25
Contact Gender	Male
Connector Gender	Male
Flammability Rating	UL94V-0
Connector Type D	Filtered
D-Sub Shell Size	B
ITT Cannon DJK/DJT 25 Way Filtered PCB D-Sub Connector PlugBrand	ITT Cannon

Key Features

This connector has 25 contacts with 2.76 mm pitch providing reliable connections.
It supports a current rating of 5A and voltage rating of 200V.
The housing is made of steel with a bright tin finish for EMI/RFI shielding.
Contacts are male, made of copper alloy with nickel plating for durability.
Operates in temperatures ranging from -25°C to a maximum of 125°C.
Termination type is solder for secure cable connection.
Features filtered design with 1000 pF capacitors to reduce cable borne EMI.
Suitable for panel mount applications with mounting hole diameter of 3.05 mm.

Product Description

Cinch FDB-25PTI2/1 Filtered D-Sub Connector with 25 way straight male contacts and 2.76 mm pitch is engineered for robust performance in demanding industrial, military, and commercial applications.

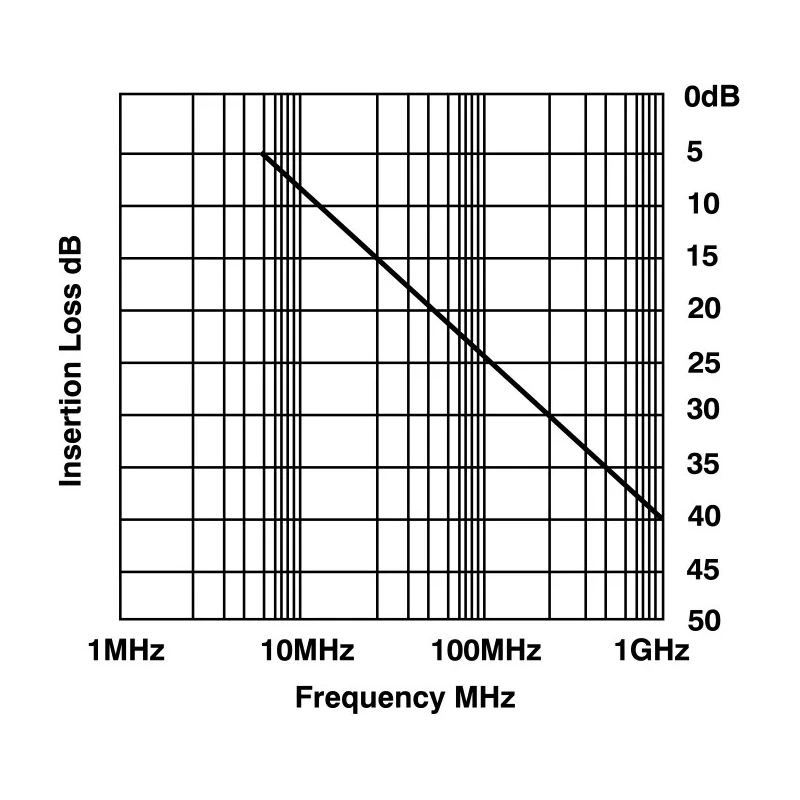

The connector’s steel housing, finished with bright tin, provides excellent shielding against electromagnetic interference (EMI) and radio frequency interference (RFI). Its filtered design incorporates epoxy encapsulated tubular capacitors rated at 1000 pF between each contact and ground, effectively reducing cable borne EMI, enhancing signal integrity in very high frequency (VHF) and ultra high frequency (UHF) bands.

The connector supports a current of 5A and voltage rating of 200V with operating temperature from -25°C to 125°C, making it suitable for harsh environments. Contacts are made from copper alloy with nickel plating for corrosion resistance and reliable conductivity. Solder termination ensures secure attachment to cables, and the panel mount style fits securely with 3.05 mm diameter mounting holes.

Its flammability rating of UL94V-0 enhances safety in industrial settings. This product meets various standards including CECC-73301-802, MIL-C-24308, DIN-14652, BS-9523, F0013, BT-217, and HE-501, ensuring compliance and quality.

Typical applications include military equipment, industrial machinery, computer interfacing, and other commercial installations requiring high-performance EMI filtered connectors. 25 contacts for extensive connectivity needs.

2.76 mm pitch for compact and precise pin layout. Steel housing with bright tin finish maximizes EMI/RFI shielding. Nickel plated copper alloy contacts provide durability and conductivity. Solder termination for secure and reliable cable connection.

Operating temperature range from -25°C to 125°C enables use in demanding environments. Filtered connectors reduce EMI for improved signal quality. Panel mount type offers stable mechanical installation. Meets rigorous international and military standards.

UL94V-0 flammability rating improves safety. Explore more precision connectors within the EnvMart Electronics & Electricals category to find compatible parts and accessories.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports a current rating of 5A and a voltage rating of 200V.

The contacts have a pitch size of 2.76 mm, providing a compact and precise pin layout.

The housing is made of steel with a bright tin finish, while the contacts are made of copper alloy with nickel plating for enhanced conductivity and corrosion resistance.

It operates within a temperature range of -25°C to a maximum of 125°C, making it suitable for harsh environments.

This unit features solder termination for secure attachment to cables.

The flammability rating is UL94V-0, which enhances safety in industrial settings.

It has 25 contacts, allowing for extensive connectivity needs.

This model is designed for panel mount applications with a mounting hole diameter of 3.05 mm.

It meets various standards including CECC-73301-802, MIL-C-24308, DIN-14652, BS-9523, F0013, BT-217, and HE-501.

It features a filtered design with 1000 pF capacitors to reduce cable borne EMI, enhancing signal integrity in high frequency bands.

Typical applications include military equipment, industrial machinery, computer interfacing, and other commercial installations requiring high-performance EMI filtered connectors.
