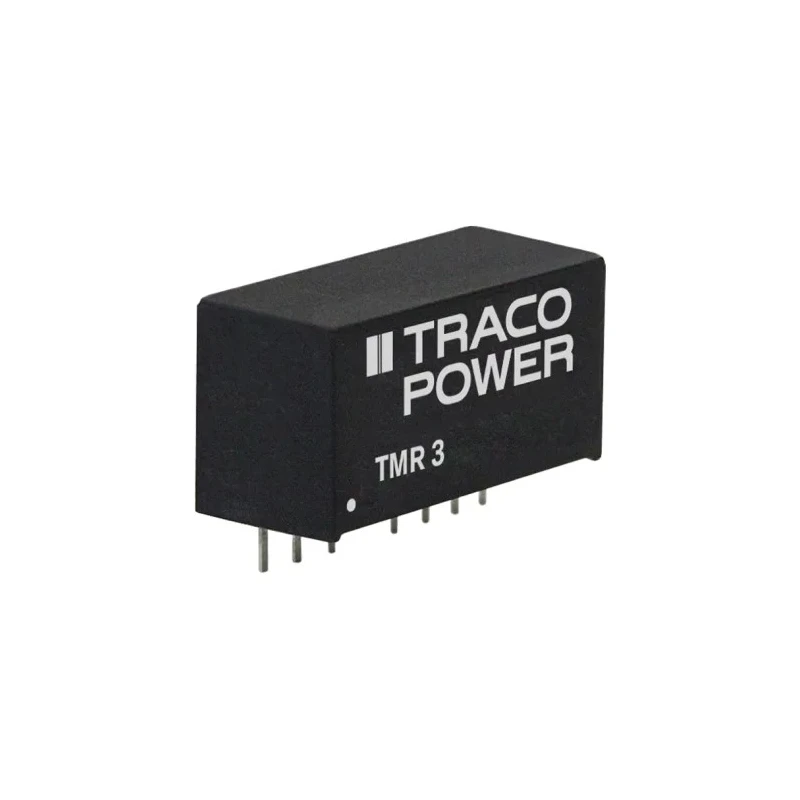

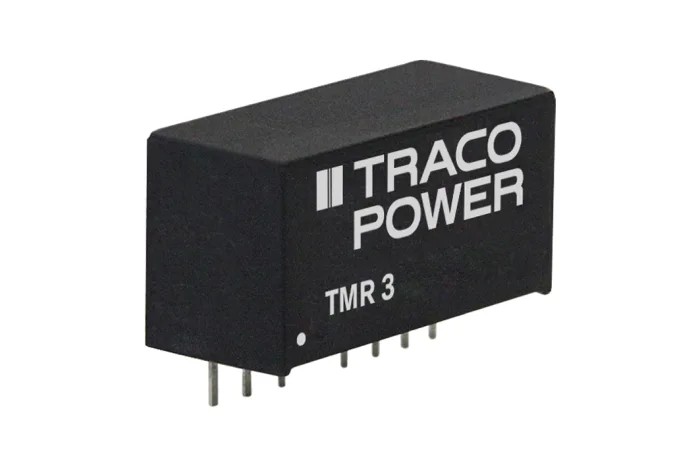

TRACOPOWER Compact 3W Regulated Dual Output DC/DC Converter 15V dc, 100 mA, 18V dc Input, Through Hole SIP Package TMR 3-1223
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMR 3 DC/DC Converter, 15V dc/ 100 mA |
| Brand | TRACOPOWER |
| Efficiency | 83% |
| Length | 21.8mm |
| Model | TMR 3-1223 |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | TMR 3 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 4870000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 100mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -15V dc |
| Wide 2 | 1 input voltage range |
Key Features
- This converter delivers a primary output voltage of 15V dc with a maximum output current of 100 mA.
- The device supports isolation voltage up to 1.5kV dc between input and output for enhanced safety and noise immunity.
- Designed for through-hole mounting in a robust SIP-8 package measuring 21.8mm in length and 9.2mm in width.
- The unit operates efficiently at 83%, suitable for industrial, communication, and instrumentation applications.
- Rated for continuous short circuit protection ensuring reliable operation under fault conditions.
- Operating temperature range spans from -40°C to 85°C, making it suitable for harsh environments.
- Approvals include RoHS compliance and standards IEC/EN 60950-1 and UL 60950-1 certified.
- The converter has a high mean time between failures (MTBF) of 4,870,000 hours, indicating high reliability.
Product Description
TRACOPOWER TMR 3-1223 is a highly reliable 3W DC/DC converter housed in a compact SIP-8 package designed for industrial and commercial electronics applications requiring regulated dual output power.
This converter delivers a nominal 15V dc output at up to 100 mA current, accommodating an input voltage range from 9V to 18V dc with a typical input ratio of 2:1. It offers isolation voltage up to 1.5kV dc between input and output which provides enhanced protection against electrical interference.
Featuring continuous short circuit protection and remote On/Off control, the TMR 3-1223 ensures safe and flexible operation within demanding electrical environments. The unit’s 7-pin through-hole SIP package with dimensions of 21.8mm length, 9.2mm width, and 11.1mm depth simplifies PCB mounting and system integration.
With an efficiency of 83% and electrical approvals including RoHS and IEC/EN 60950-1 along with UL 60950-1 certification, this converter is suited for use in communication equipment, instrumentation, industrial electronics, power supplies, and manufacturing processes where compact regulated isolated DC/DC conversion is required.
Wide 2:1 input voltage range accommodates variable power sources. Regulated dual outputs ensure stable power delivery to sensitive electronics. Isolation voltage of 1.5kV dc safeguards circuitry from voltage spikes. Continuous short circuit protection safeguards against overloads.
Remote On/Off control enables efficient power management. Compact SIP-8 package with robust UL94V-0 housing material. Operating temperature range from -40°C to 85°C suits harsh industrial environments. MTBF of 4,870,000 hours attests to product reliability.
Package contains a single TRACOPOWER TMR 3-1223 DC/DC Converter, ready for through-hole PCB mounting. Ideal for R&D, test labs, manufacturing electronics, communication systems, and industrial automation systems. Explore more power supply and DC/DC converter solutions in the Electronics & Electricals category at EnvMart.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 3W.
It accommodates an input voltage range from 9V to 18V dc.
The dimensions of this unit are 21.8mm in length, 9.2mm in width, and 11.1mm in depth.
It operates with an efficiency of 83%.
The operating temperature range spans from -40°C to 85°C.
It features two outputs.
The primary output voltage is 15V dc with a maximum output current of 100 mA, and the secondary output is -15V dc.
This unit is designed for through-hole mounting.
It includes continuous short circuit protection to ensure reliable operation under fault conditions.
This model is RoHS compliant and certified to IEC/EN 60950-1 and UL 60950-1 standards.
It is suitable for industrial, communication, and instrumentation applications.
