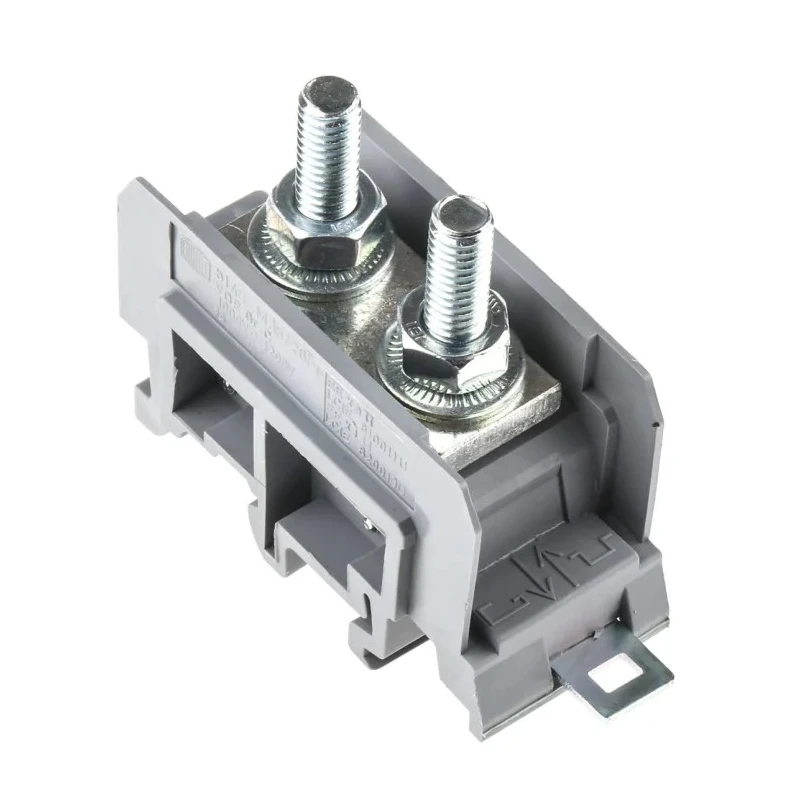

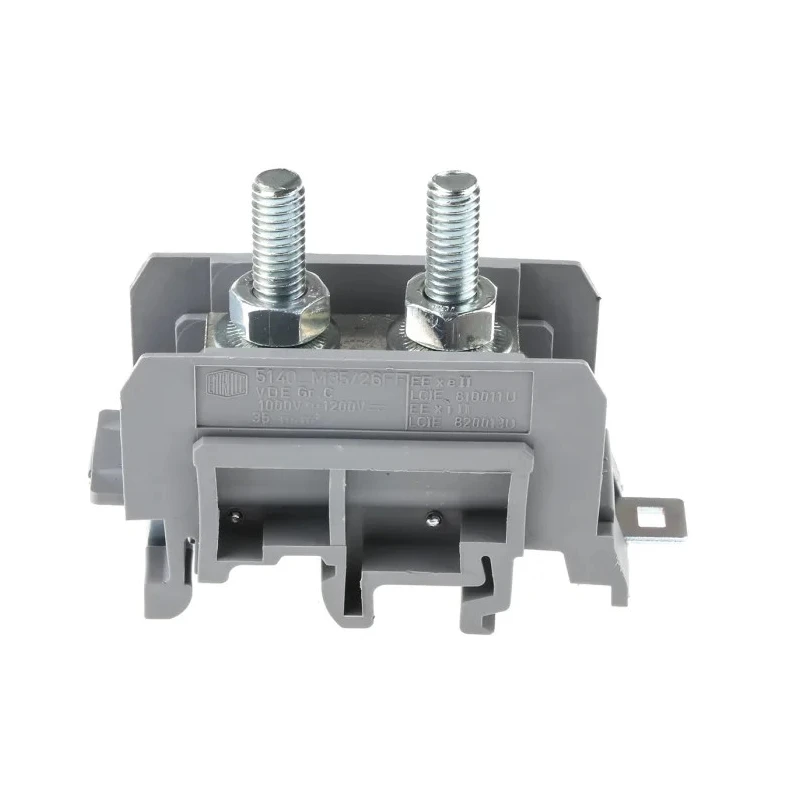

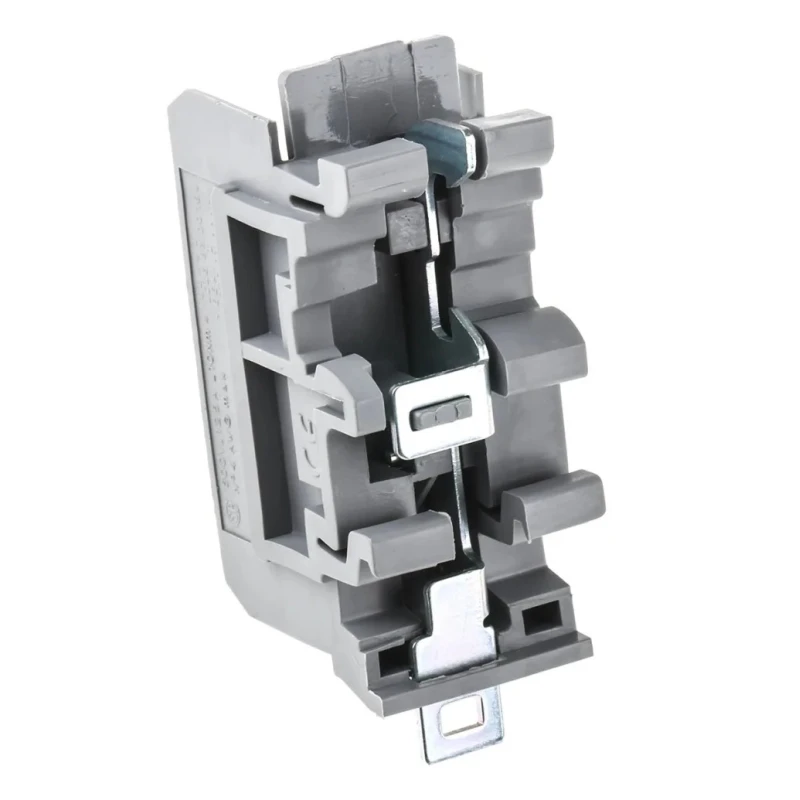

Entrelec SNA Series DIN Rail Terminal Block Grey 25mm² 1-Level Bolt Termination 1SNA115140R2300
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV ac |
| Brand | Entrelec |
| Colour | Grey |
| Model | 1SNA115140R2300 |
| Series | SNA |
| Termination Type | Bolt |
| Maximum Operating Temperature | 40°C |
| Number of Levels | 1 |
| Sub Type | Feed Through |
| Minimum Operating Temperature | -5°C |
| Pitch | 26mm |
| Minimum Wire Size AWG | 10AWG |
| Maximum Wire Size AWG | 2AWG |
| Cable CSA | 25mm² |
| Terminal Block Current | 101A |
| Entrelec M Series Grey Non-Fused DIN Rail Terminal, Clamp TerminationBrand | Entrelec |
Key Features
- Rated for 101A current and 1kV AC voltage operation.
- Accepts wire sizes from 2 AWG to 10 AWG with 25mm² cable cross-sectional area capacity.
- Single-level feed through terminal block with a pitch of 26mm.
- Durable grey housing designed for DIN rail mounting with bolt type terminals.
- Operating temperature range from -5°C to 40°C suitable for common industrial environments.
- Includes high current double stud terminals and shrouds for enhanced safety.
- Ideal for connecting power flexible cables in control panels and distribution boards.
- No hazardous area certification but constructed to reliable electrical component standards.
Product Description
Entrelec 1SNA115140R2300 SNA Series DIN Rail Terminal Block is a grey, single-level feed through terminal block designed for use in industrial electrical installation and maintenance.
Constructed for mounting on standard DIN rails, this terminal block handles electrical currents up to 101A and withstands AC voltage up to 1kV, making it suitable for power distribution and control circuits.
The device accepts flexible cable sizes ranging from 2 AWG to 10 AWG with a cable cross-sectional area of 25mm². It features bolt-type termination which ensures secure and stable electrical connections.
Operating within a temperature range of -5°C to 40°C, it is engineered to perform reliably in common industrial and commercial electrical environments.
Key design highlights include high current double stud terminals and shrouds that provide enhanced isolation and safety. A set of 4 spacers can be fitted between terminals to increase isolation further. Additionally, a translucent snap-on cover is available that spans three adjacent terminals for protection.
While this model does not carry hazardous area certifications, it meets the stringent quality standards of the Entrelec SNA series. Rated current: 101A. Voltage rating: 1kV AC. Wire size range: 2 AWG to 10 AWG (25mm²). Single-level feed-through terminal block.
Bolt termination type. Operating temperature: -5°C to 40°C. DIN rail mountable with 26mm pitch. This product is ideal for industrial electrical panels, machinery power connections, and automation systems requiring secure and high-current terminal blocks.
For reliable and durable terminal block solutions, explore more products in the Entrelec range on EnvMart.
Explore more products in our DIN Rail Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block is rated for a maximum current of 101A.
It can withstand an AC voltage of up to 1kV.
It accepts wire sizes ranging from 2 AWG to 10 AWG, with a cable cross-sectional area of 25mm².
The operating temperature range is from -5°C to 40°C.
It features a bolt termination type for secure connections.
The pitch for this model is 26mm, suitable for standard DIN rail mounting.
This is a single-level feed-through terminal block.
It includes high current double stud terminals and shrouds for enhanced isolation and safety.
Yes, a translucent snap-on cover is available that spans three adjacent terminals for protection.
The country of origin for this terminal block is India.
It is ideal for use in industrial electrical panels, machinery power connections, and automation systems.
No, this model does not carry hazardous area certifications but meets reliable electrical component standards.
