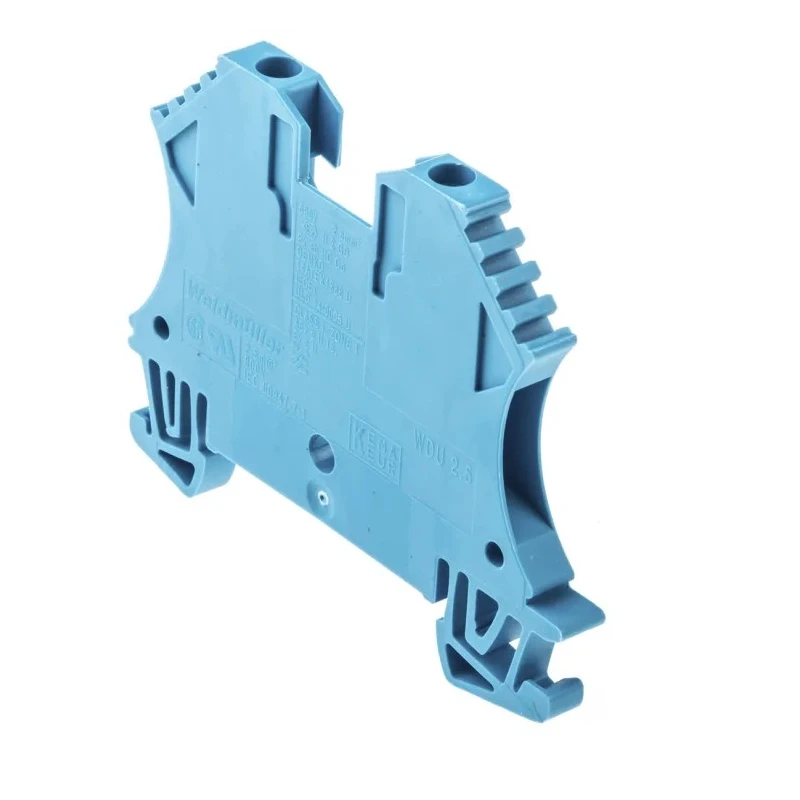

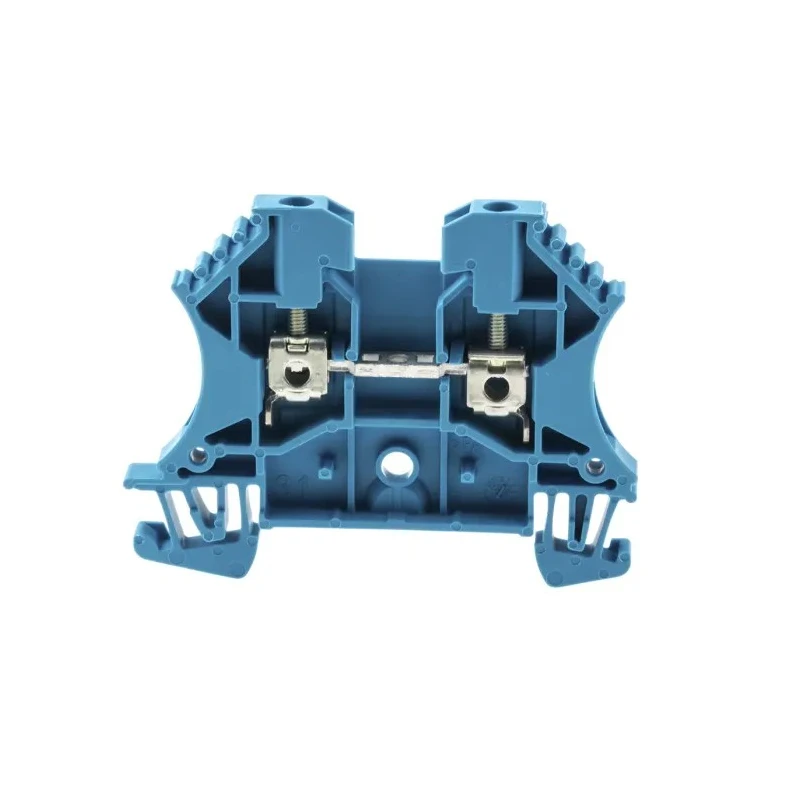

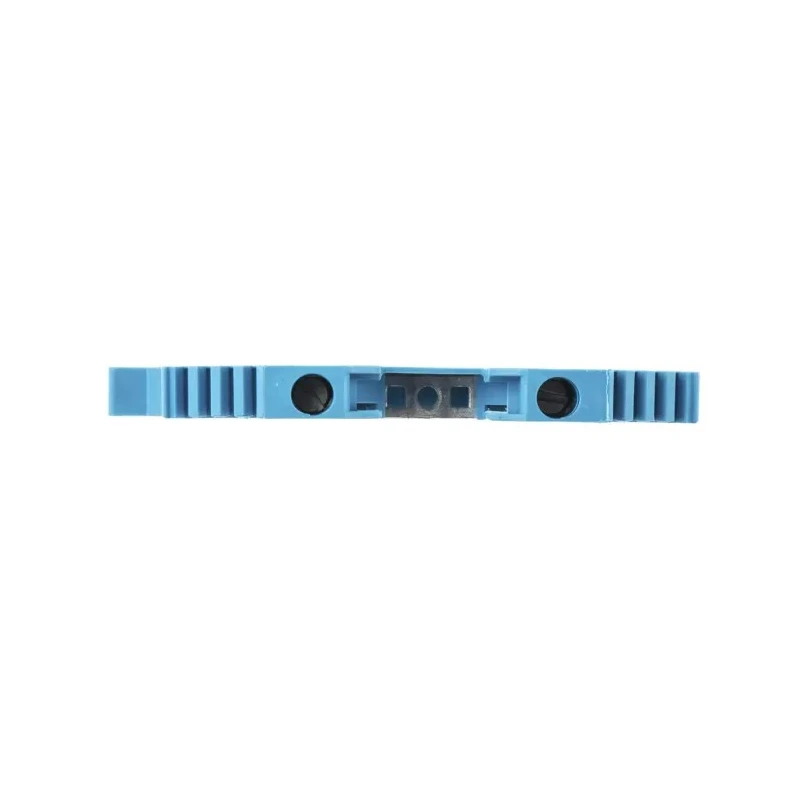

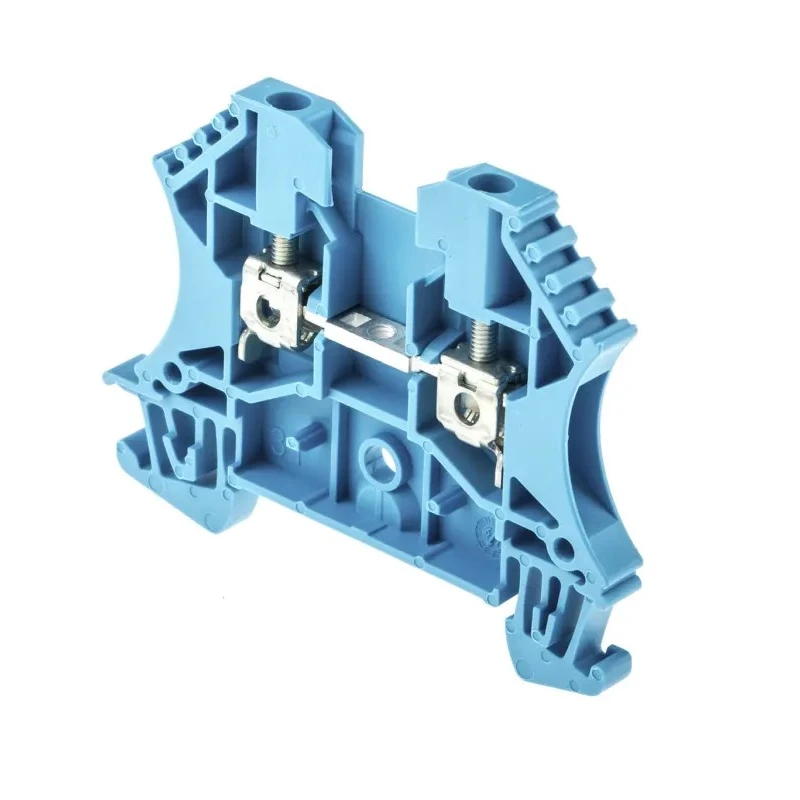

Weidmüller WDU Series Feed Through Terminal Block Blue 2.5mm² 1-Level Screw ATEX 1020080000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 800V |
| Brand | Weidmüller |
| Colour | Blue |
| Series | WDU |
| Termination Type | Screw |
| Maximum Operating Temperature | +120°C |
| Number of Levels | 1 |
| Sub Type | Terminal |
| Minimum Operating Temperature | -50°C |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | CCC, CSA, CSAEX, DNV, EAC, Exi, ROHS, UKCA |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 2.5mm² |
| Terminal Block Current | 24A |
| RS PRO DIN Rail Terminal Block Blue, 2.5mm², 1-Level, ScrewBrand | RS PRO |
Key Features
- The terminal block features a blue insulated frame made of Wemid thermoplastic for electrical safety.
- Screw-type termination ensures firm and reliable wire connections.
- Supports wire sizes from 30 AWG to 12 AWG with a cable cross-sectional area of 2.5mm².
- Rated for 24A current and 800V voltage, suitable for demanding industrial electrical circuits.
- Operating temperature range extends from -50°C to +120°C, ideal for harsh environments.
- ATEX hazardous area certification provides safety compliance in explosive atmospheres.
- Compact dimensions of 60mm length, 5.1mm width, and 46.5mm height enable installation in tight DIN rail spaces.
- Snap-on mounting for standard 35mm DIN rails allows easy and tool-free installation.
Product Description
Weidmüller 1020080000 WDU Series Feed Through Terminal Block is designed for industrial and commercial electrical systems requiring safe, reliable wire terminations. Manufactured in Germany, it provides enhanced protection with its blue Wemid thermoplastic insulated housing that prevents shock hazards.
The terminal block allows accommodating wire sizes from 30 AWG up to 12 AWG with a maximum cable cross-section of 2.5mm² and supports a continuous current rating of 24 amperes at an operational voltage of up to 800 volts. Its screw termination mechanism ensures solid wire clamping and easy wiring.
Compactly sized at 60mm x 5.1mm x 46.5mm, it is suitable for installation on a standard 35mm DIN rail and the snap-on design offers quick and tool-free mounting. The unit withstands a wide temperature range from -50°C to +120°C, allowing it to be used reliably in challenging industrial environments.
This terminal block is equipped with ATEX hazardous area certification, making it safe for use in potentially explosive atmospheres. Additionally, it meets multiple other certifications and approvals including CCC, CSAEX, DNV, EAC, ROHS, and UKCA, ensuring strict compliance with safety and performance standards.
The blue insulated frame is made of self-extinguishing Wemid thermoplastic material. Suitable for wires ranging from 30 AWG to 12 AWG with 2.5mm² cable CSA. Rated for 24A current and 800V voltage to handle industrial electrical loads.
Operates safely within -50°C to +120°C for versatile industrial applications. Includes screw termination type for secure clamping of wires. Snaps onto standard 35mm DIN rail for ease of installation. ATEX certification ensures suitability for hazardous environments.
Compact dimensions enable use in limited-space installations. Complies with many industry standards such as CCC, CSA, DNV, EAC, ROHS, and UKCA.
This feed through terminal block is ideal for assembling power supplies, lighting control systems, and building management panels in industrial, manufacturing, and electrical distribution environments. It provides a reliable, safe, and robust connection point, reducing installation time and improving system safety.
For browsing related products or other Weidmüller components, explore the Electronics & Electricals category focused on DIN Rail Terminal Blocks at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a continuous current of 24A and an operational voltage of up to 800V.
It supports wire sizes from 30 AWG to 12 AWG, with a maximum cable cross-sectional area of 2.5mm².
The operating temperature range extends from -50°C to +120°C, making it suitable for harsh environments.
It features a screw termination type, ensuring secure clamping of wires for reliable connections.
The compact dimensions of this model are 60mm in length, 5.1mm in width, and 46.5mm in height.
Yes, it has ATEX hazardous area certification, making it safe for use in potentially explosive atmospheres.
The frame is made of blue Wemid thermoplastic, which provides electrical safety and is self-extinguishing.
It features a snap-on design for easy and tool-free installation on standard 35mm DIN rails.
This terminal block complies with multiple standards including CCC, CSA, DNV, EAC, ROHS, and UKCA.
It is ideal for assembling power supplies, lighting control systems, and building management panels in industrial and commercial settings.
This model is a 1-level terminal block, designed for straightforward wire connections.
It is manufactured in Germany, ensuring compliance with high industrial standards.
