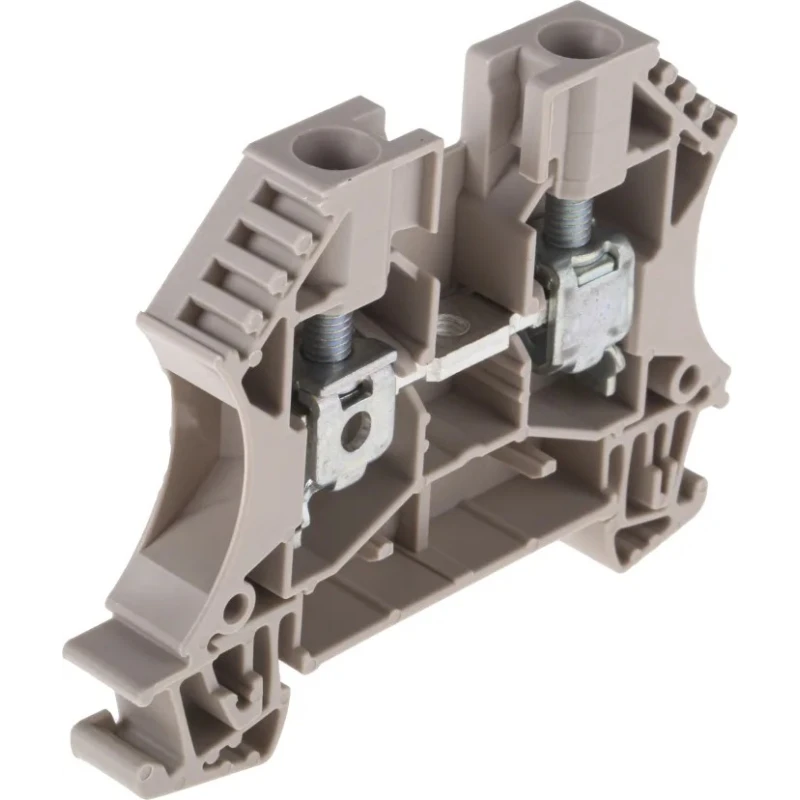

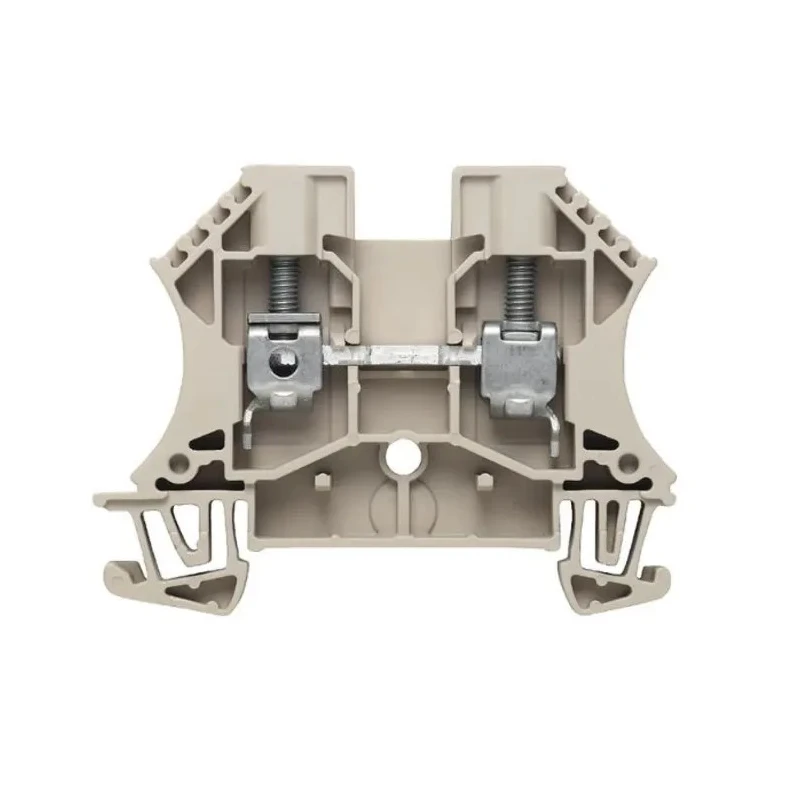

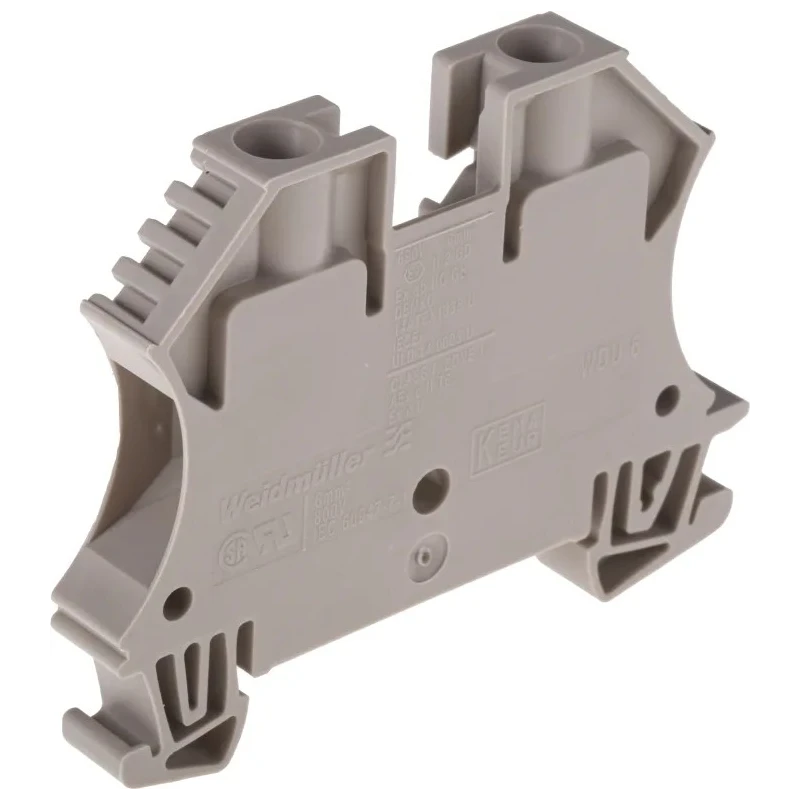

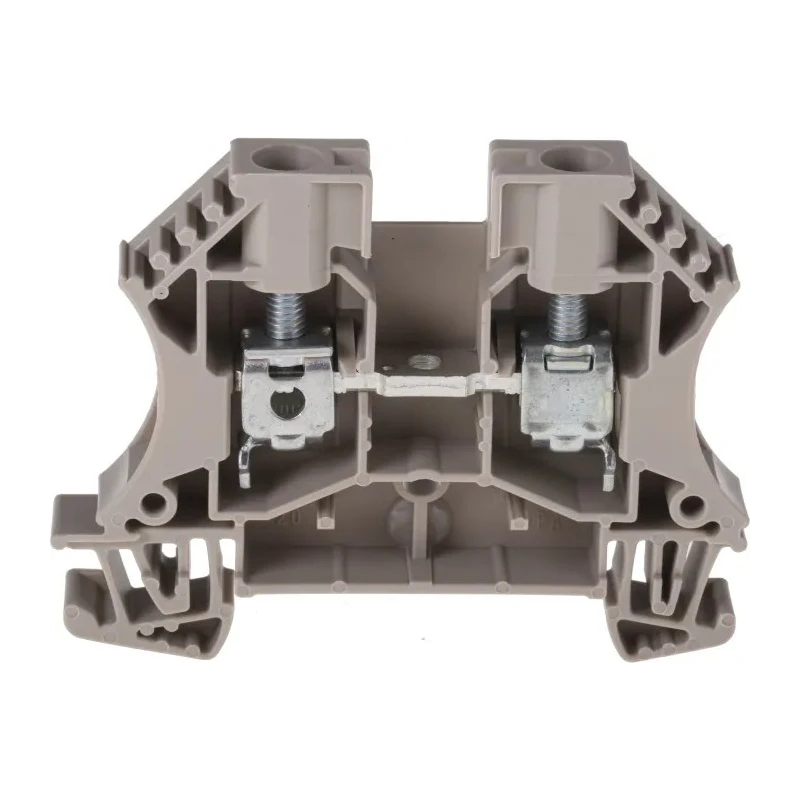

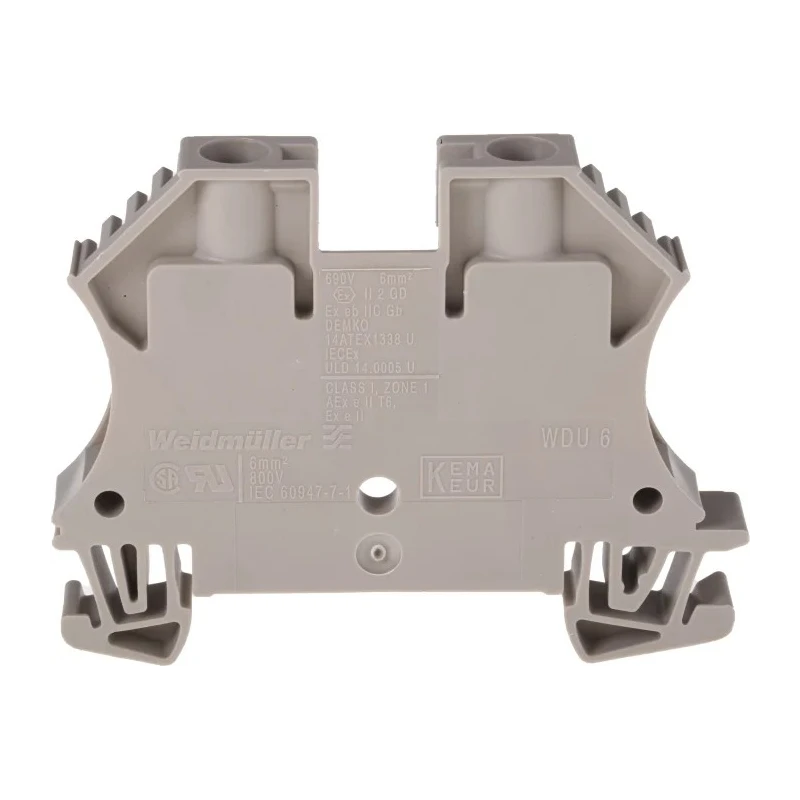

Weidmüller WDU Series Feed Through Terminal Block Brown, 6mm² Cable CSA, 1-Level, Screw Termination, 41A Current 1020200000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 800V |
| Brand | Weidmüller |
| Colour | Brown |
| Series | WDU |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -50°C |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | UL, UKCA, RoHS, IECEX, EAC, DNV, CSA, CE, CCC |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 8AWG |
| Cable CSA | 6mm² |
| Terminal Block Current | 41A |
Key Features
- Designed for snap-on mounting to DIN rails for fast installation without tools.
- Constructed with conductive 10mm electrolytic copper bars for enhanced current capacity.
- Self-extinguishing nylon 6.6 housing ensures safety and compliance with fire standards.
- Wide operating temperature range from -50°C to 120°C suitable for harsh industrial environments.
- Certified ATEX hazardous area protection guarantees usage in explosive atmospheres.
- Compact dimensions allow installation in tight spaces within electrical panels.
- Screw termination provides secure and reliable wire clamping.
- Complies with multiple international standards including UL, UKCA, RoHS, IECEX, EAC, DNV, CSA, CE, and CCC.
Product Description
Weidmüller model 1020200000 from the WDU series is a premium feed through terminal block engineered for secure and efficient electrical connections in industrial and commercial applications. Its brown nylon 6.6 housing offers durability and self-extinguishing properties rated to UL94V-0, making it safe in environments where fire hazards are a concern.
This terminal block supports wires sized from 26 AWG to 8 AWG with a cross-sectional area of 6mm² and carries currents up to 41A. The screw termination method ensures robust wire clamping, minimizing connection loosening risks in vibration or harsh conditions. It is designed for easy snap-on installation onto standard DIN rails, significantly reducing assembly time and tool requirements.
With a compact footprint of 60 mm length, 7.9 mm width, and 46.5 mm height, it fits well in dense electrical panels. It operates reliably within a broad temperature range from -50°C to 120°C, addressing demanding HVAC, telecommunications, and industrial electrical installation needs.
The product carries ATEX certification, making it suitable for use in hazardous atmospheres. It also meets multiple global certifications and approvals such as UL, UKCA, RoHS, IECEX, EAC, DNV, CSA, CE, and CCC, reflecting its compliance with rigorous safety and material standards.
Snap-on DIN rail mounting for fast installation without specialized tools. Conductive 10 mm electrolytic copper bars increase current loading capacity. Self-extinguishing nylon housing enhances safety in fire-prone environments.
Supports wire sizes from 26 AWG to 8 AWG with 6mm² cable capacity. Wide temperature operation range from -50°C to 120°C. Certified for hazardous areas under ATEX standards. Compact dimensions enable installation in tight spaces.
Complies with multiple international certifications ensuring broad usability.
Weidmüller terminal blocks are widely used in industrial electrical installations, HVAC systems, and telecommunications due to their reliability and ease of use. This model enhances assembly efficiency and ensures a safe and stable electrical connection in demanding environments.
This product is part of the comprehensive range of electronic components available at EnvMart. Explore the category for compatible DIN rail accessories and related terminal block solutions.
Explore more products in our DIN Rail Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block can carry a maximum current of 41A.
It supports wire sizes from 26 AWG to 8 AWG with a cross-sectional area of 6mm².
It operates reliably within a temperature range from -50°C to 120°C.
Yes, it is certified for use in hazardous areas under ATEX standards.
This model utilizes a screw termination method for secure wire clamping.
It has a compact footprint with dimensions of 60 mm in length, 7.9 mm in width, and 46.5 mm in height.
It features a self-extinguishing nylon 6.6 housing and conductive 10mm electrolytic copper bars.
It complies with multiple standards including UL, UKCA, RoHS, IECEX, EAC, DNV, CSA, CE, and CCC.
The voltage rating for this terminal block is 800V.
It is designed for snap-on mounting to standard DIN rails, allowing for fast installation without tools.
It is widely used in industrial electrical installations, HVAC systems, and telecommunications.
This terminal block is manufactured in Germany.
