RS PRO SPST On-Off Panel Mount Nylon Rocker Switch 10A 28V DC 250V AC 419-798

Free Delivery in India | Lowest Global Shipping Charges

RS PRO SPST On-Off Panel Mount Nylon Rocker Switch 10A 28V DC 250V AC 419-798

Name: RS PRO SPST On-Off Panel Mount Nylon Rocker Switch 10A 28V DC 250V AC 419-798
Brand: RS PRO
SKU: 137034
Price: 221.14 INR
Availability: InStock



Category Rocker Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	419-798
IP Rating	IP66
Mount Type	Panel
Housing Material	Nylon
Series	RS PRO
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	On-Off
Minimum Operating Temperature	-20°C
Panel Cutout Size	19.2 x 13 mm
Terminal type	Quick Connect
Standards/Approvals	RoHS, BS, CSA, UL, CE, VDE
Switch Operation	On-Off
Actuator Colour	Black, White
Contact DC Voltage	28V dc
Actuator Style	Rectangular
Switch Contact Current	10A
Contact AC Voltage	250V ac
RS PRO SPST, On-Off On-Off Rocker Switch PanelBrand	RS PRO

Key Features

Uses single pole single throw (SPST) configuration.
Designed with a 19.2 x 13 mm panel cutout for snap-in mounting.
Suitable for AC voltages up to 250V and DC voltages up to 28V.
Features quick connect terminals and a durable nylon UL94V-2 housing.
Operates reliably between -20°C to 85°C temperature range.
IP66 rated for protection against dust and water ingress.
Non-illuminated with black actuator featuring white I/O markings.
Complies with RoHS, BS, CSA, UL, CE, and VDE standards.

Product Description

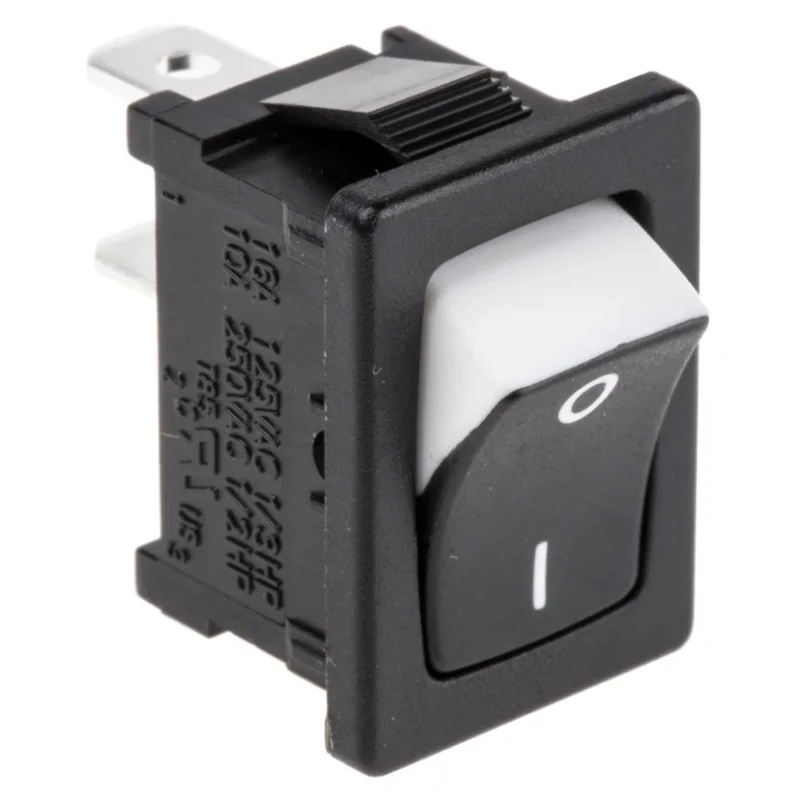

RS PRO 419-798 is a miniature rocker switch with single pole single throw (SPST) On-Off functionality, designed for panel mounting in industrial and commercial electrical equipment. The switch features a robust nylon UL94V-2 housing to ensure durability and safety during operation.

The panel cutout size measures 19.2 x 13 mm, allowing easy snap-in installation with secure retention by quick release prongs. The actuator is rectangular, black in color with white I/O markings for clear on/off status indication. This rocker switch supports a contact current of 10A, functioning at DC voltages up to 28V and AC voltages up to 250V, suitable for a wide range of low and medium power electrical circuits.

Designed to withstand environmental stresses, it has an IP66 rating, ensuring it is protected against dust ingress and powerful water jets, making it suitable for harsh industrial environments. Operating temperature range extends from -20°C to 85°C, allowing reliable performance in varied climatic conditions.

Terminal connections are provided as 4.8 mm quick connect blade terminals, enabling fast and reliable wiring without soldering. The non-illuminated design makes it ideal for control panels and equipment where indication lighting is not required.

RS PRO rocker switches conform to international standards such as RoHS, BS, CSA, UL, CE, and VDE, ensuring compliance for both safety and environmental regulations. These switches are widely used in applications including power supplies, audio and video equipment, white goods, computers, automation controls, and automotive electrical systems.

Single pole single throw On-Off switch configuration. Nylon housing meeting UL94V-2 flame retardant classification. Snap-in panel mount with 19.2 x 13 mm cutout size. Quick connect 4.8 mm blade terminals for easy installation.

Rated for 10A contact current at 28V DC and 250V AC. Operating temperature from -20°C to 85°C. IP66 rated for dust and water protection. Non-illuminated with black actuator and white I/O marking. Complies with RoHS, BS, CSA, UL, CE, and VDE standards.

This RS PRO SPST Rocker Switch panel is a reliable component choice for industrial, laboratory, HVAC, manufacturing, water treatment, agricultural, and commercial electrical systems. Explore more RS PRO switches and electrical components on EnvMart for your control panel and automation needs.
