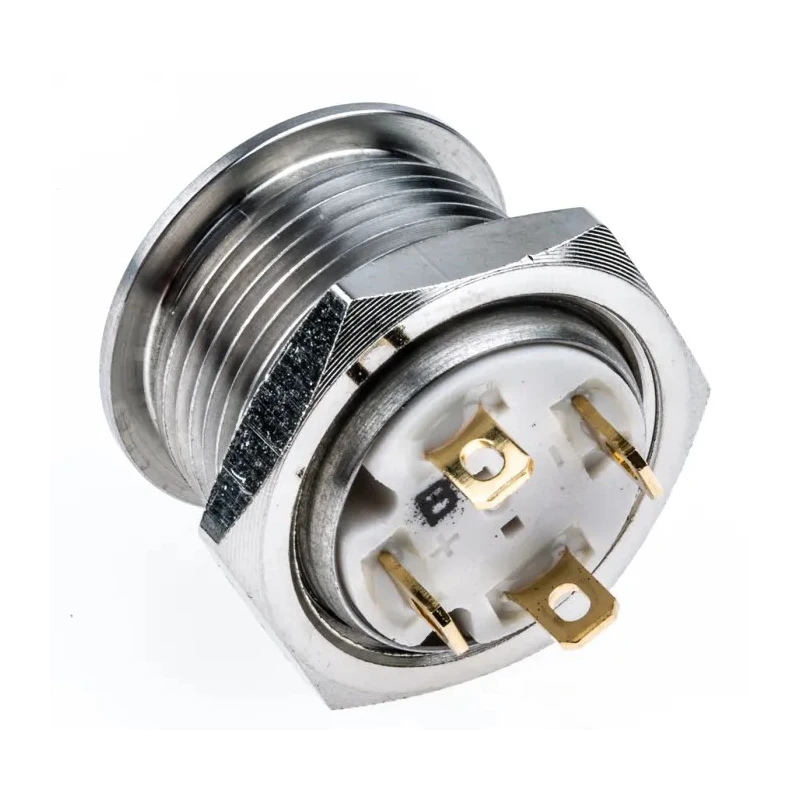

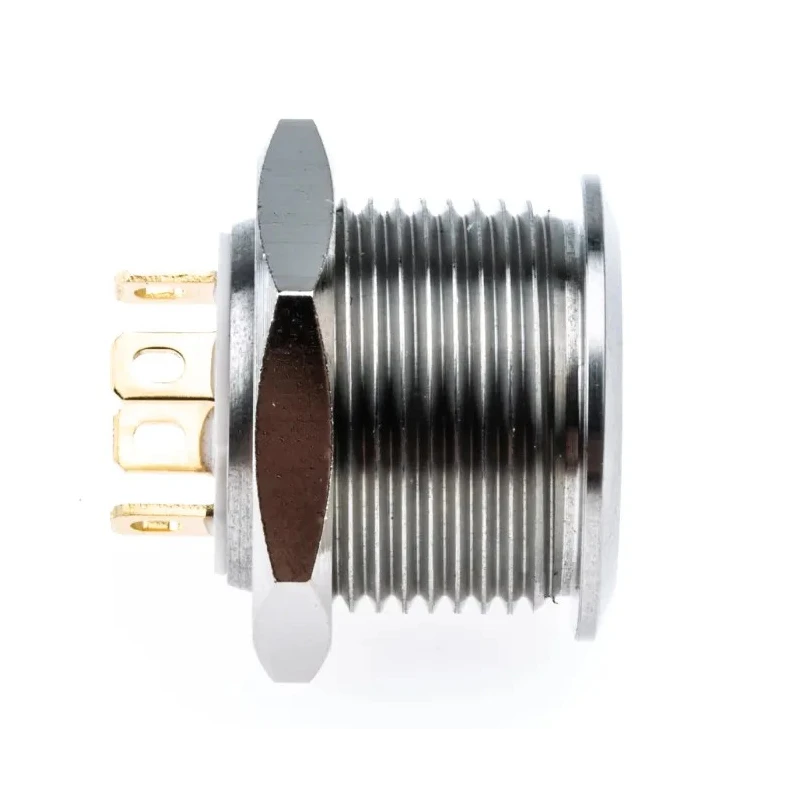

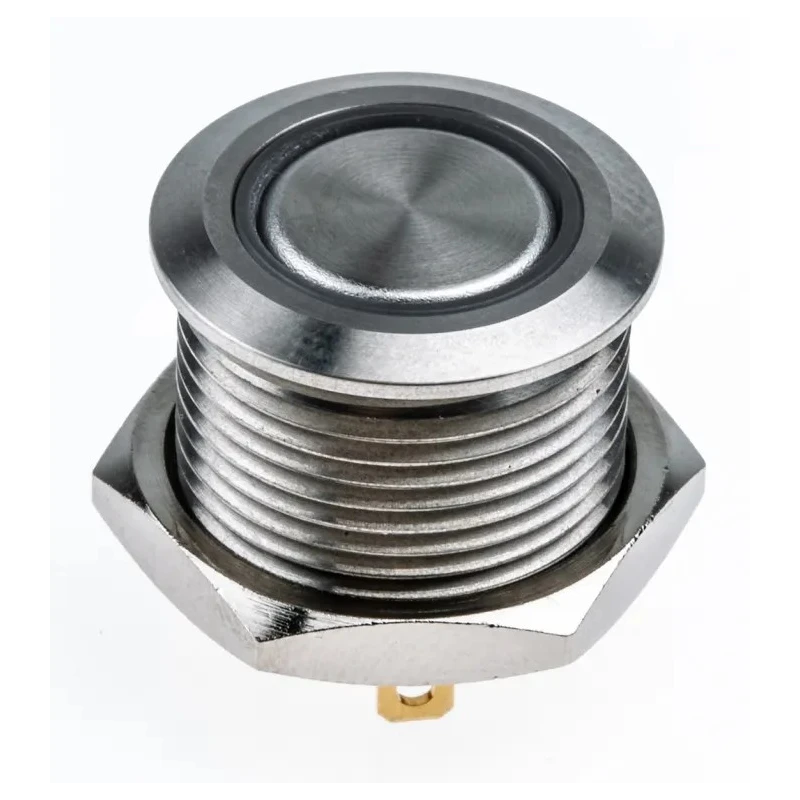

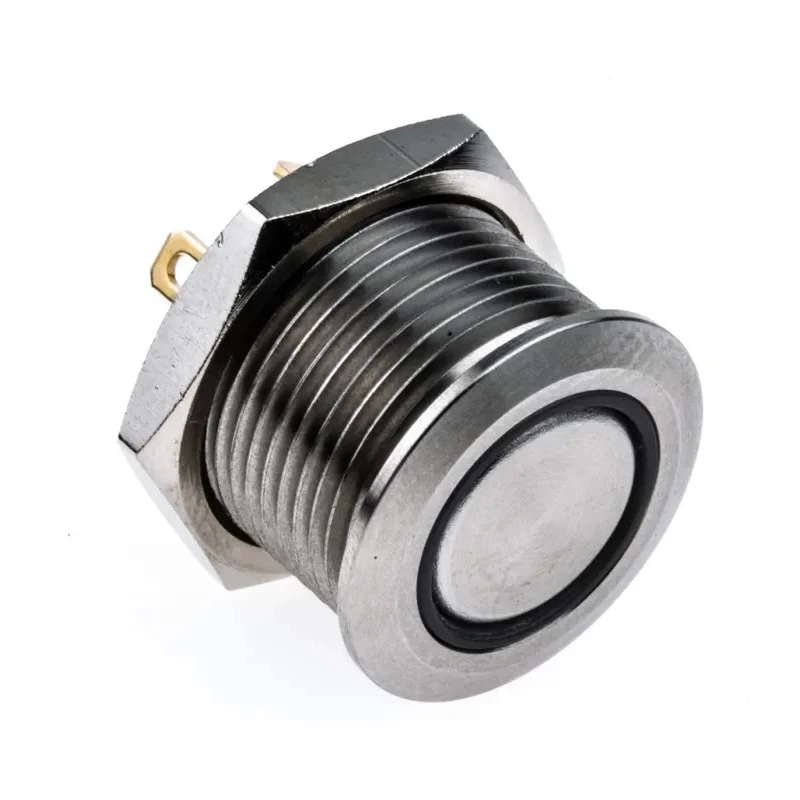

RS PRO Illuminated Momentary Push Button Switch Panel Mount 16 mm Cutout SPST Blue LED IP67 36V DC 175-9224

RS PRO 175-9224 is a high-quality illuminated momentary push button switch intended for panel mounting with a 16 mm cutout size and single-pole single-throw (SPST) contact configuration.

This switch incorporates a blue LED illumination and is rated IP67, providing excellent protection against dust and water ingress, making it suitable for harsh industrial environments.

The flat actuator style ensures ease of operation, while the solder terminals offer reliable electrical connections. This robust switch is rated for a maximum contact DC voltage of 36V and can handle a switch contact current up to 2A.

Operating temperatures range from -20°C to 70°C, allowing use in varied climatic conditions. The product meets stringent UL 94 V-0 and UL 94 V-2 standards for flame retardance, enhancing safety.

Applications for this switch include industrial control instruments, medical devices, security monitoring systems, vehicle peripherals, and audio-visual equipment. Its anti-vandal design and IP67 rating make it ideal for public-facing and demanding situations.

The RS PRO MPB series is known for metal construction that offers lightweight strength, corrosion resistance, and effective heat dissipation, ensuring long life and reliability under continuous use.

The switch features a blue LED illumination for clear visual feedback. Panel mount design suited for 16 mm diameter cutouts. Momentary operation provides temporary electrical contact while actuated. Contact rating up to 2A at 36V DC.

Rated IP67 for dust-tight and water immersion protection. Conforms to UL flame retardant standards UL 94 V-0 and UL 94 V-2. Wide operating temperature range from -20°C to 70°C. Solder terminal type for secure connections.
